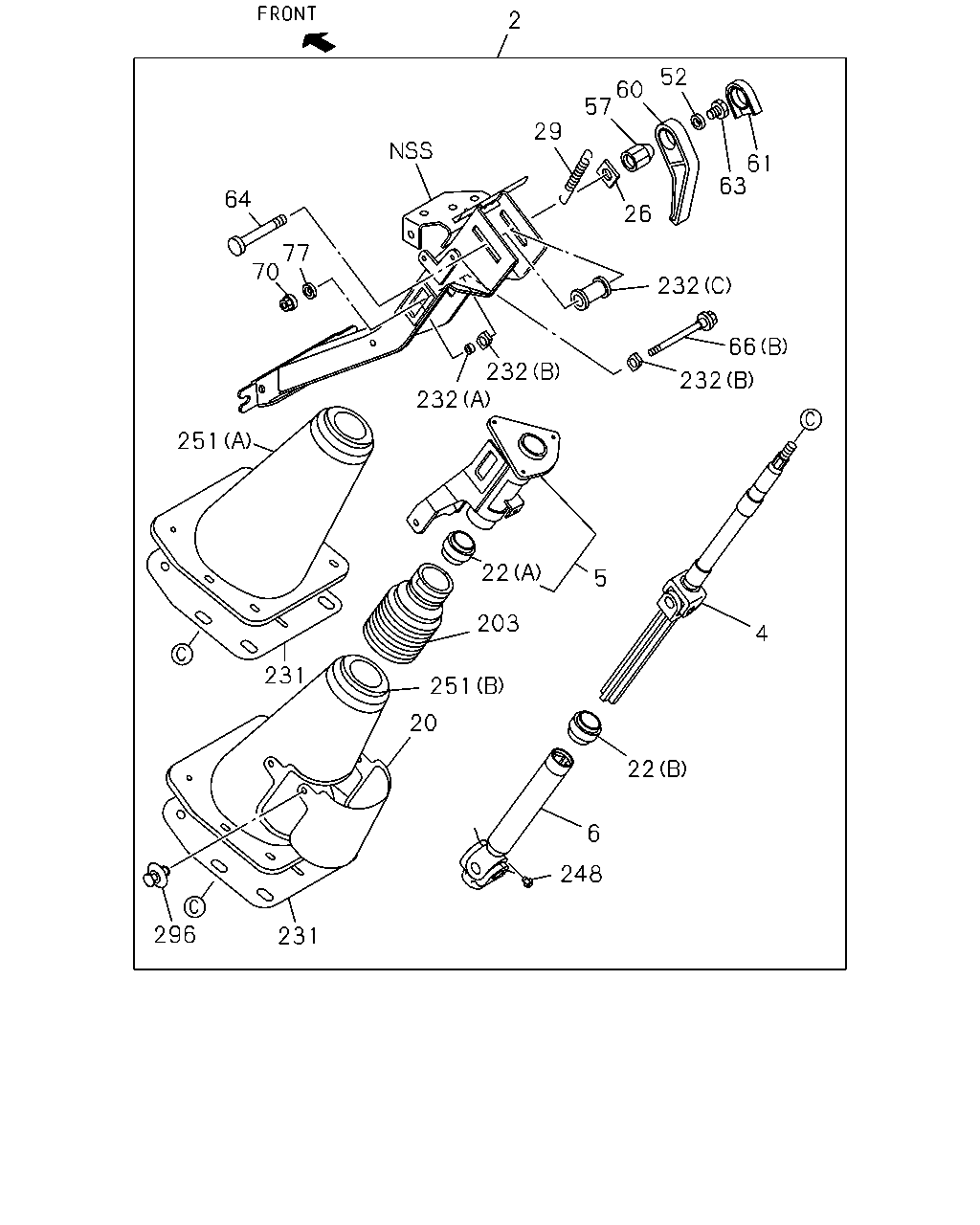

4-31 — STEERING COLUMN AND SHAFT (#21499) — 129 parça

2 52 60 57 29 61 63 64 26 77 70 232 66 232 232 232 251 22 5 203 4 231 251 20 22 6 248 296 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SHAFT ASM; STRG MANUAL TILT CAB<RWZ> BLACK	8-97402-345-1	01	1	0504-0609
2	SHAFT ASM; STRG MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> BLACK	8-97402-345-1	01	1	0610-
2	SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-058-1	01	1	0610-
2	SHAFT ASM; STRG TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-059-1	01	1	0610-
2	SHAFT ASM; STRG TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-056-1	01	1	0610-
2	SHAFT ASM; STRG EXC. TILT STEERING<N33>,MANUAL TILT CAB<RWZ> BLACK	8-97400-061-1	01	1	0610-
4	SHAFT; STRG MANUAL TILT CAB<RWZ>	8-97378-634-0	01	1	0504-0609
4	SHAFT; STRG	8-97378-634-0	01	1	0610-
5	COLUMN; STRG MANUAL TILT CAB<RWZ>	8-97146-719-0	01	1	0504-0609
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97146-719-0	01	1	0610-
5	COLUMN; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97096-767-2	01	1	0610-
5	COLUMN; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97093-792-2	01	1	0610-
6	SHAFT; STRG LWR MANUAL TILT CAB<RWZ>	8-97378-632-0	01	1	0504-0609
6	SHAFT; STRG LWR	8-97378-632-0	01	1	0610-
20	COVER; STRG SHAFT EXC. TILT STEERING<N33>,MANUAL TILT CAB<RWZ> BLACK	8-97291-634-1	01	1	0610-
20	COVER; STRG SHAFT TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-634-1	01	1	0610-
20	COVER; STRG SHAFT TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97291-634-1	01	1	0610-
22	BUSHING; STRG COLUMN MANUAL TILT CAB<RWZ> (A)	8-97076-821-0	01	1	0504-0609
22	BUSHING; STRG COLUMN (A)	8-97076-821-0	01	1	0610-
22	BUSHING; STRG COLUMN MANUAL TILT CAB<RWZ> (B)	8-97378-617-0	01	1	0504-0609
22	BUSHING; STRG COLUMN (B)	8-97378-617-0	01	1	0610-
26	PLATE; ADJ TILT STEERING<N33>	8-97222-989-0	01	1	0610-
29	SPRING; COLUMN TILT STEERING<N33>	8-97076-811-0	01	1	0610-
52	WASHER; PL,ADJ LEVER TILT STEERING<N33>	8-97076-813-0	01	1	0610-
57	NUT; ADJ BOLT TILT STEERING<N33>	8-97222-988-0	01	1	0610-
60	LEVER; ADJ,STRG COLUMN TILT STEERING<N33>	8-97076-830-0	01	1	0610-
61	CAP; ADJ LEVER,TILT STRG TILT STEERING<N33>	8-97076-814-0	01	1	0610-
63	BOLT; ADJ LEVER,TILT STRG TILT STEERING<N33>	8-97222-986-0	01	1	0610-
64	BOLT; ADJ,PROTECTOR TILT STEERING<N33>	8-97222-987-0	01	1	0610-
66	BOLT; STRG COLUMN (A) M8X20 FLANGE	0-28650-820-0	02	1	1201-
66	BOLT; STRG COLUMN (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0504-0611
66	BOLT; STRG COLUMN (A) M8X24.5 W/LK&PL WASHER	8-98051-939-0	04	1	0612-1112
66	BOLT; STRG COLUMN (A) M8X24.5 W/LK&PL WASHER	8-98051-939-0	02	1	1201-
66	BOLT; STRG COLUMN TILT STEERING<N33> (B)	8-97076-831-0	01	1	0610-
70	NUT; STRG COLUMN TILT STEERING<N33>	8-97076-807-0	01	1	0610-
77	WASHER; PL,COLUMN TILT STEERING<N33>	8-97076-804-0	01	1	0610-
203	BOOT; STRG COLUMN LWR MANUAL TILT CAB<RWZ>	8-97076-822-0	01	1	0504-0609
203	BOOT; STRG COLUMN LWR	8-97076-822-0	01	1	0610-
231	SEAL; RUBBER,STRG COLUMN MANUAL TILT CAB<RWZ>	8-97076-808-1	01	1	0504-0609
231	SEAL; RUBBER,STRG COLUMN	8-97076-808-1	01	1	0610-
232	SPACER; STRG SHAFT TILT STEERING<N33> (B)	8-97076-805-0	02	1	0610-
232	SPACER; STRG SHAFT TILT STEERING<N33> (A)	8-97076-806-0	01	1	0610-
232	SPACER; STRG SHAFT TILT STEERING<N33> (C)	8-97148-277-0	01	1	0610-
248	SCREW; YOKE MANUAL TILT CAB<RWZ>	8-97222-984-0	01	1	0504-0609
248	SCREW; YOKE	8-97222-984-0	01	1	0610-
251	COVER; LWR MANUAL TILT CAB<RWZ> (A) BLACK	8-97398-450-1	01	1	0504-0609
251	COVER; LWR TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> (A) BLACK	8-97398-450-1	01	1	0610-
251	COVER; LWR MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> (A) BLACK	8-97398-450-1	01	1	0610-
251	COVER; LWR TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> (B) BLACK	8-97159-168-2	01	1	0610-
251	COVER; LWR TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> (B) BLACK	8-97159-168-2	01	1	0610-
251	COVER; LWR EXC. TILT STEERING<N33>,MANUAL TILT CAB<RWZ> (B) BLACK	8-97159-168-2	01	1	0610-
296	CLIP; COVER EXC. TILT STEERING<N33>,MANUAL TILT CAB<RWZ> BLACK	8-97868-409-0	01	1	0610-
296	CLIP; COVER TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97868-409-0	01	1	0610-
296	CLIP; COVER TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97868-409-0	01	1	0610-
296	CLIP; COVER TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97868-409-0	01	1	0610-
296	CLIP; COVER TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97868-409-0	01	1	0610-

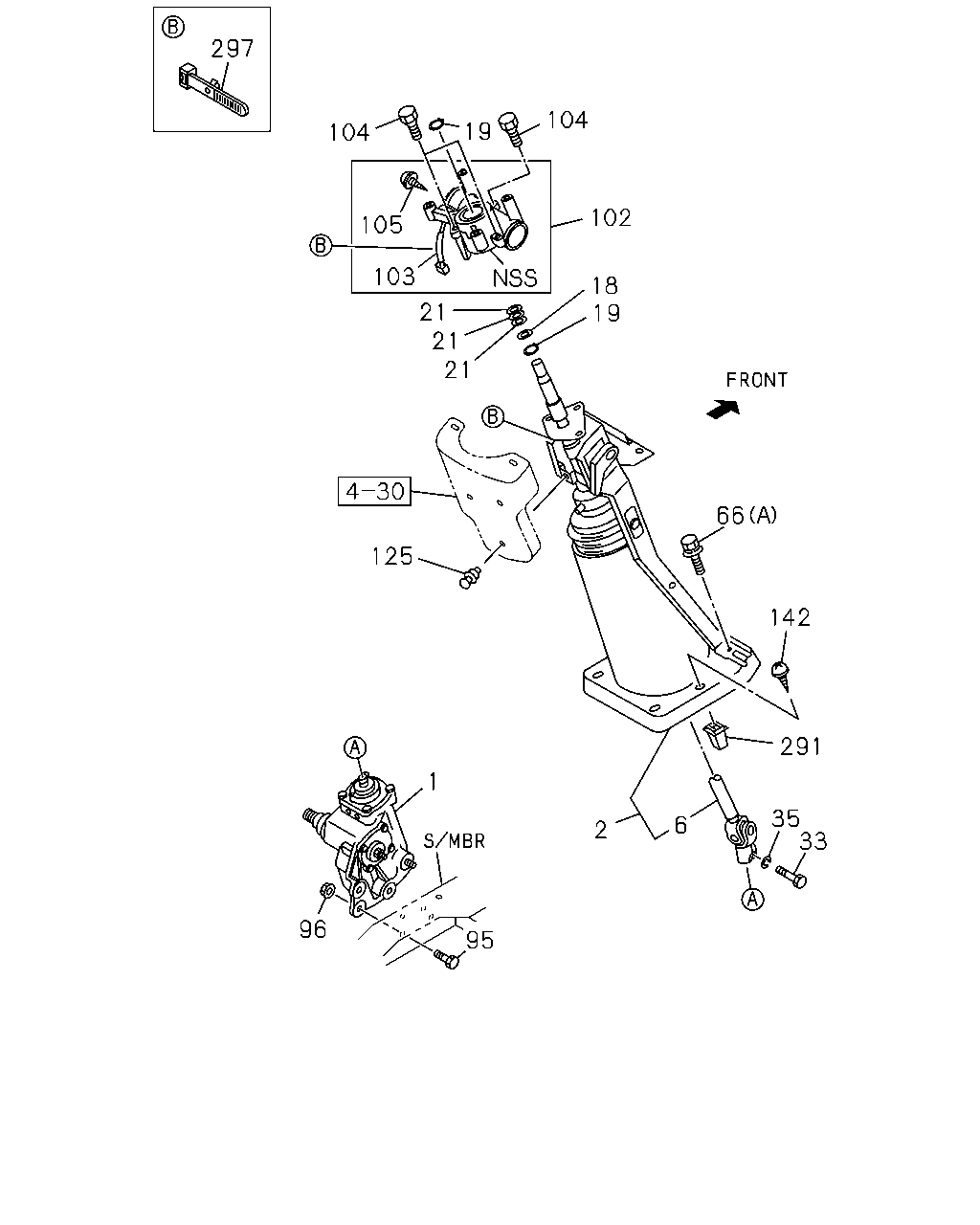

297 104 19 104 102 105 103 18 19 21 21 21 66 125 142 291 1 35 33 6 2 96 95

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-97305-047-8	01	1	0504-1308
1	STEERING UNIT SEE FIG-NO 4-40 FOR COMPONENT.	8-98251-948-0	01	1	1309-
2	SHAFT ASM; STRG MANUAL TILT CAB<RWZ> BLACK	8-97402-345-1	01	1	0504-0609
2	SHAFT ASM; STRG MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> BLACK	8-97402-345-1	01	1	0610-
2	SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-058-1	01	1	0610-
2	SHAFT ASM; STRG TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-059-1	01	1	0610-
2	SHAFT ASM; STRG TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-056-1	01	1	0610-
2	SHAFT ASM; STRG EXC. TILT STEERING<N33>,MANUAL TILT CAB<RWZ> BLACK	8-97400-061-1	01	1	0610-
6	SHAFT; STRG LWR MANUAL TILT CAB<RWZ>	8-97378-632-0	01	1	0504-0609
6	SHAFT; STRG LWR	8-97378-632-0	01	1	0610-
18	WASHER; STEERING SHAFT ID=19	8-94146-919-0	01	1	0504-
19	RING; SNAP,STRG SHAFT ID=17.5	9-09180-019-0	02	1	0504-
21	WASHER; WAVE,STRG LOCK TO SHAFT	8-94174-865-0	03	1	0504-
33	BOLT; STRG SHAFT TO UNIT M8X30	8-94247-692-0	01	1	0504-0610
33	BOLT; STRG SHAFT TO UNIT M8X30	8-97359-615-0	01	1	0611-
35	WASHER; LK,STRG SHAFT ID=8.2	9-09150-508-0	01	1	0504-0603
35	WASHER; LK,STRG SHAFT ID=8.2	0-91510-508-0	01	1	0604-0610
35	WASHER; LK,STRG SHAFT ID=8.2	0-91510-808-0	01	1	0611-
66	BOLT; STRG COLUMN (A) M8X20 FLANGE	0-28650-820-0	02	1	1201-
66	BOLT; STRG COLUMN (A) M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0504-0611
66	BOLT; STRG COLUMN (A) M8X24.5 W/LK&PL WASHER	8-98051-939-0	04	1	0612-1112
66	BOLT; STRG COLUMN (A) M8X24.5 W/LK&PL WASHER	8-98051-939-0	02	1	1201-
66	BOLT; STRG COLUMN TILT STEERING<N33> (B)	8-97076-831-0	01	1	0610-
95	BOLT; STRG UNIT M12X45	8-97212-810-1	03	1	0504-
96	NUT; STRG UNIT M12 FLANGE	8-94436-194-0	04	1	0504-0610
96	NUT; STRG UNIT M12 FLANGE	8-97359-618-0	04	1	0611-
102	LOCK ASM; STRG 4HE1 ENG(RLY)	8-97170-364-0	01	1	0504-0609
102	LOCK ASM; STRG	8-97170-364-0	01	1	0610-
103	SWITCH; IGNITION 4HE1 ENG(RLY)	8-97088-268-0	01	1	0504-0609
103	SWITCH; IGNITION	8-97088-268-0	01	1	0610-
104	BOLT; STRG LOCK TO COLUMN M6X30 W/LK&PL WASHER	8-97189-885-0	03	1	0504-0609
104	BOLT; STRG LOCK TO COLUMN M6X30 W/LK&PL WASHER	8-97189-885-0	01	1	0610-
104	BOLT; STRG LOCK TO COLUMN M6X30 W/LK&PL WASHER	8-97189-885-0	02	1	0610-
105	SCREW; IGN SW 4HE1 ENG(RLY) M4X12 W/LK WASHER	9-03910-412-0	01	1	0504-0609
105	SCREW; IGN SW M4X12 W/LK WASHER	9-03910-412-0	01	1	0610-
125	CLIP; STRG SHAFT BLACK	8-97868-409-0	01	1	0504-0609
125	CLIP; STRG SHAFT DARK GRAY	8-97582-246-0	01	1	0610-
142	SCREW; BRKT COWL M5X20 TAPPING W/PL WASHER	0-74305-520-0	06	1	0504-0604
142	SCREW; BRKT COWL M5X20 TAPPING W/PL WASHER	0-74365-520-0	06	1	0605-0609
142	SCREW; BRKT COWL M5X20 TAPPING W/PL WASHER	0-74365-520-0	06	1	0610-0612
142	SCREW; BRKT COWL M5X18 TAPPING	0-72180-518-0	06	1	0701-
291	GROMMET; STRG SHAFT COVER H=15	8-94463-268-1	06	1	0504-
297	CLIP; BAND L=145	8-94257-575-1	03	1	0504-

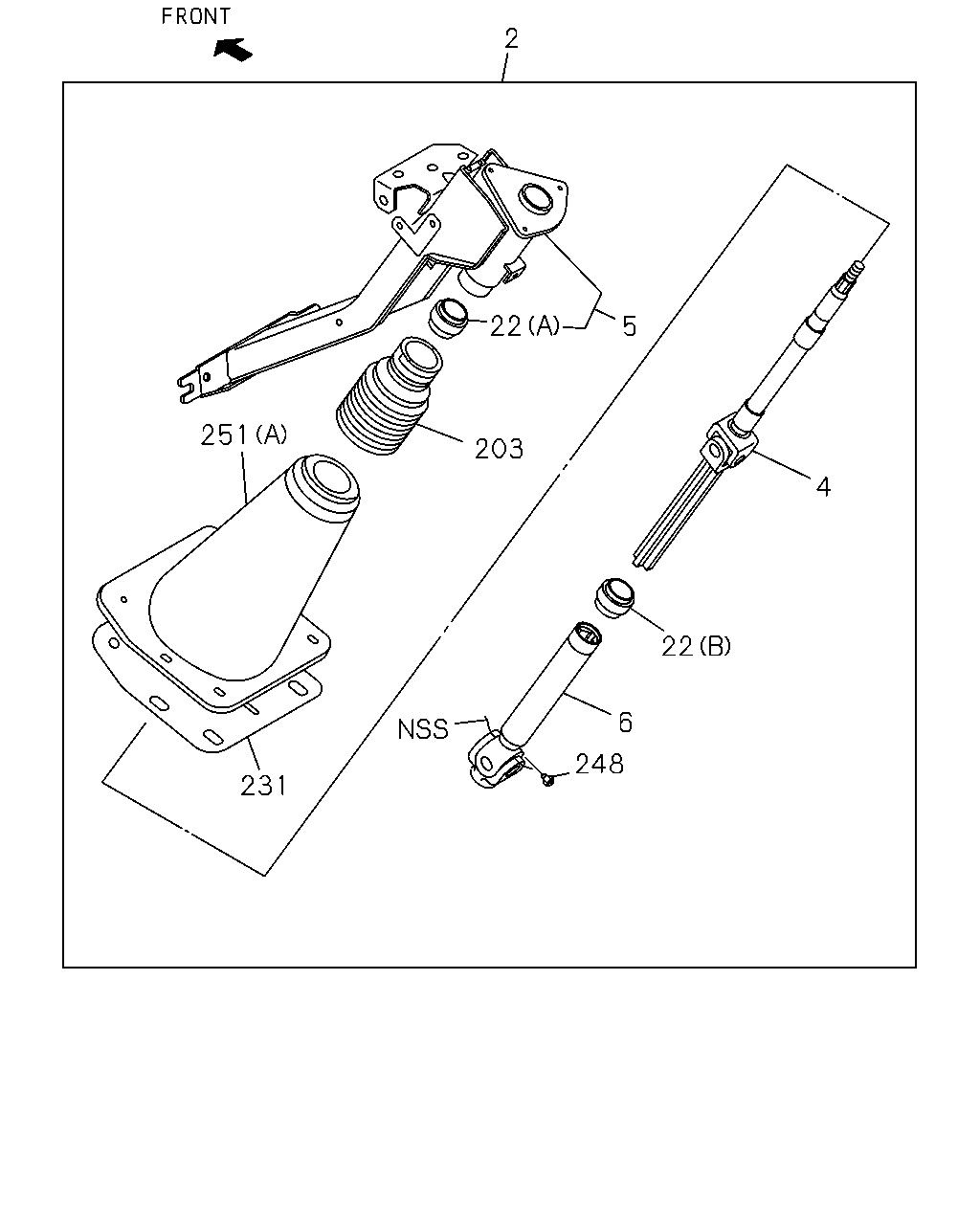

2 22 5 251 203 4 22 6 248 231

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	SHAFT ASM; STRG MANUAL TILT CAB<RWZ> BLACK	8-97402-345-1	01	1	0504-0609
2	SHAFT ASM; STRG MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> BLACK	8-97402-345-1	01	1	0610-
2	SHAFT ASM; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-058-1	01	1	0610-
2	SHAFT ASM; STRG TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-059-1	01	1	0610-
2	SHAFT ASM; STRG TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> BLACK	8-97400-056-1	01	1	0610-
2	SHAFT ASM; STRG EXC. TILT STEERING<N33>,MANUAL TILT CAB<RWZ> BLACK	8-97400-061-1	01	1	0610-
4	SHAFT; STRG MANUAL TILT CAB<RWZ>	8-97378-634-0	01	1	0504-0609
4	SHAFT; STRG	8-97378-634-0	01	1	0610-
5	COLUMN; STRG MANUAL TILT CAB<RWZ>	8-97146-719-0	01	1	0504-0609
5	COLUMN; STRG EXC. TILT STEERING<N33>	8-97146-719-0	01	1	0610-
5	COLUMN; STRG TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97096-767-2	01	1	0610-
5	COLUMN; STRG TILT STEERING<N33> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ>	8-97093-792-2	01	1	0610-
6	SHAFT; STRG LWR MANUAL TILT CAB<RWZ>	8-97378-632-0	01	1	0504-0609
6	SHAFT; STRG LWR	8-97378-632-0	01	1	0610-
22	BUSHING; STRG COLUMN MANUAL TILT CAB<RWZ> (A)	8-97076-821-0	01	1	0504-0609
22	BUSHING; STRG COLUMN (A)	8-97076-821-0	01	1	0610-
22	BUSHING; STRG COLUMN MANUAL TILT CAB<RWZ> (B)	8-97378-617-0	01	1	0504-0609
22	BUSHING; STRG COLUMN (B)	8-97378-617-0	01	1	0610-
203	BOOT; STRG COLUMN LWR MANUAL TILT CAB<RWZ>	8-97076-822-0	01	1	0504-0609
203	BOOT; STRG COLUMN LWR	8-97076-822-0	01	1	0610-
231	SEAL; RUBBER,STRG COLUMN MANUAL TILT CAB<RWZ>	8-97076-808-1	01	1	0504-0609
231	SEAL; RUBBER,STRG COLUMN	8-97076-808-1	01	1	0610-
248	SCREW; YOKE MANUAL TILT CAB<RWZ>	8-97222-984-0	01	1	0504-0609
248	SCREW; YOKE	8-97222-984-0	01	1	0610-
251	COVER; LWR MANUAL TILT CAB<RWZ> (A) BLACK	8-97398-450-1	01	1	0504-0609
251	COVER; LWR TILT STEERING<N33> MANUAL TILT CAB<RWZ> EXC. COATING PACK-STEERING COLUMN & SHAFT<6UJ> (A) BLACK	8-97398-450-1	01	1	0610-
251	COVER; LWR MANUAL TILT CAB<RWZ> EXC. TILT STEERING<N33> (A) BLACK	8-97398-450-1	01	1	0610-
251	COVER; LWR TILT STEERING<N33> COATING PACK-STEERING COLUMN & SHAFT<6UJ> (B) BLACK	8-97159-168-2	01	1	0610-
251	COVER; LWR TILT STEERING<N33> EXC. MANUAL TILT CAB<RWZ>,COATING PACK-STEERING COLUMN & SHAFT<6UJ> (B) BLACK	8-97159-168-2	01	1	0610-
251	COVER; LWR EXC. TILT STEERING<N33>,MANUAL TILT CAB<RWZ> (B) BLACK	8-97159-168-2	01	1	0610-
