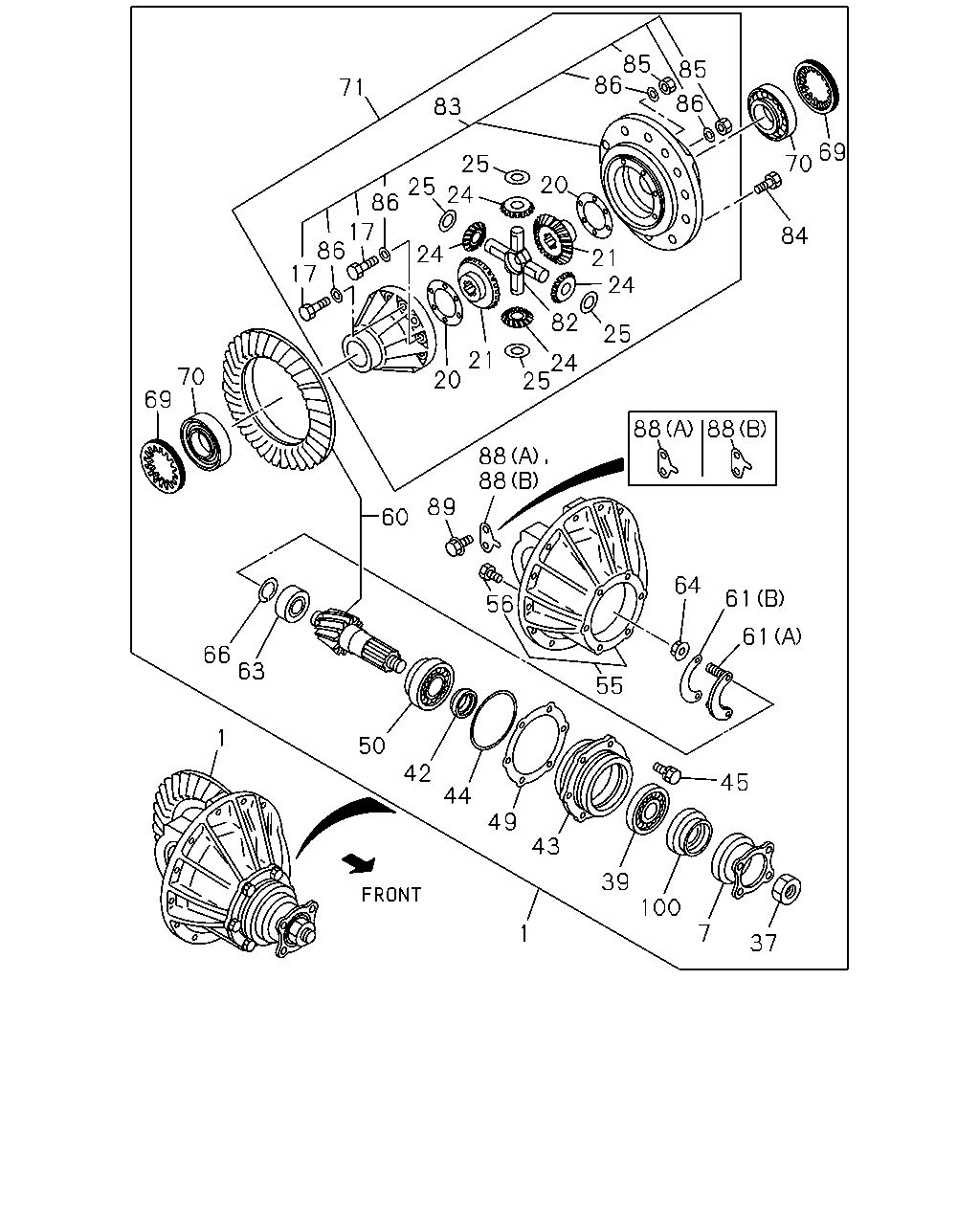

4-25 — REAR FINAL DRIVE (#21497) — 59 parça

85 85 86 86 71 83 69 70 25 20 25 86 24 17 86 17 84 24 21 24 82 25 21 20 24 25 70 69 88 88 88 88 89 60 64 61 56 61 66 63 55 1 50 42 45 44 49 43 39 100 7 1 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRIVE ASM; FINAL,RR 43/7	8-97094-684-0	01	1	0504-
7	FLANGE; FINAL	8-97073-802-2	01	1	0504-
17	BOLT; DIFF CAGE SETTING M12X90	8-97047-295-0	12	1	0504-1208
17	BOLT; DIFF CAGE SETTING M12X90	8-98219-448-0	12	1	1209-
20	WASHER; THRUST,SIDE GEAR T=2.80	1-41562-073-0	AR	1	0504-
20	WASHER; THRUST,SIDE GEAR T=2.90	1-41562-074-0	AR	1	0504-
20	WASHER; THRUST,SIDE GEAR T=3.00	1-41562-075-0	AR	1	0504-
20	WASHER; THRUST,SIDE GEAR T=3.10	1-41562-076-0	AR	1	0504-
20	WASHER; THRUST,SIDE GEAR T=3.20	1-41562-077-0	AR	1	0504-
20	WASHER; THRUST,SIDE GEAR T=3.30	1-41562-078-0	AR	1	0504-
20	WASHER; THRUST,SIDE GEAR T=3.40	1-41562-079-0	AR	1	0504-
21	GEAR; SIDE,DIFF Z=16	1-41561-093-0	02	1	0504-1004
21	GEAR; SIDE,DIFF Z=16	8-98165-935-0	02	1	1005-
24	GEAR; PINION,DIFF Z=10	1-41551-024-0	04	1	0504-1004
24	GEAR; PINION,DIFF Z=10	1-41551-050-0	04	1	1005-
25	WASHER; THRUST,PINION	1-41552-020-0	04	1	0504-
37	NUT; DRIVING PINION M30 FLANGE	8-97047-146-0	01	1	0504-
39	BEARING; FINAL PINION JTEKT	5-09812-062-1	01	1	0504-
39	BEARING; FINAL PINION NSK	5-09812-063-0	01	1	0504-
42	COLLAR; DIST,COLLAPSIBLE	8-97047-097-0	01	1	0504-
43	CAGE; FINAL PINION	8-97047-098-0	01	1	0504-
44	GASKET; PINION CAGE	8-97048-053-0	01	1	0504-
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50071-240-0	06	1	0504-0909
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	0-50571-240-0	06	1	0910-1209
45	BOLT; FINAL PINION CAGE M12X40 W/LK WASHER	8-98220-227-0	06	1	1210-
49	SHIM; FINAL PINION CAGE ID=142 T=0.12	8-97047-298-0	AR	1	0504-
49	SHIM; FINAL PINION CAGE ID=142 T=0.15	8-97047-299-0	AR	1	0504-
49	SHIM; FINAL PINION CAGE ID=142 T=0.20	8-97047-300-0	AR	1	0504-
49	SHIM; FINAL PINION CAGE ID=142 T=0.25	8-97048-418-0	AR	1	0504-
49	SHIM; FINAL PINION CAGE ID=142 T=0.50	8-97048-419-0	AR	1	0504-
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0701-
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	0504-
55	CARRIER; DIFF	8-97094-637-0	01	1	0504-
56	BOLT; BRG CAP M14X95 FLANGE	1-09070-027-0	04	1	0504-
60	GEAR SET; FINAL DRIVE,RR 43/7	8-97092-946-0	01	1	0504-
61	RETAINER; PILOT BRG,PINION (A) W/STUD	8-97047-149-0	01	1	0504-
61	RETAINER; PILOT BRG,PINION (B)	8-97047-150-0	01	1	0504-
63	BEARING; PINION PILOT NSK	8-97047-296-0	01	1	0504-
63	BEARING; PINION PILOT JTEKT	8-97047-928-0	01	1	0504-
64	NUT; RET M6 FLANGE	0-91150-106-0	02	1	0504-0602
64	NUT; RET M6 FLANGE	0-91180-106-0	02	1	0603-
66	RING; SNAP,PILOT BRG	8-97047-297-0	01	1	0504-
69	NUT; ADJ,DIFF CAGE M115 H=20	1-41121-039-0	02	1	0504-
70	BEARING; DIFF CAGE JTEKT ID=66.7 OD=113 T=30	9-00093-130-0	02	1	0504-
71	CAGE ASM; DIFF,FINAL DRIVE	8-97047-100-4	01	1	0504-
82	SPIDER; DIFF PINION	1-41521-035-2	01	1	0504-1004
82	SPIDER; DIFF PINION	1-41521-062-0	01	1	1005-1309
82	SPIDER; DIFF PINION	1-41521-035-2	01	1	1310-
83	CAGE ASM; DIFF	8-97047-117-2	01	1	0504-1208
83	CAGE ASM; DIFF	8-98219-707-0	01	1	1209-
84	BOLT; FINAL DRIVE GEAR M16X30	8-97047-147-0	12	1	0504-
85	NUT; DIFF CAGE SETTING M12	8-97065-214-0	12	1	0504-
86	WASHER; PL,DIFF CAGE SETTING ID=12.5 OD=22 T=2	8-97047-294-0	24	1	0504-1208
86	WASHER; PL,DIFF CAGE SETTING ID=12.5 OD=22 T=2	8-97047-294-0	12	1	1209-
88	PLATE; LK,ADJ NUT (B) T=2.3	8-97087-821-0	AR	1	0504-
88	PLATE; LK,ADJ NUT (A) T=2.3	9-41124-015-0	AR	1	0504-
89	BOLT; LK PLATE M8X16 FLANGE	0-28080-816-0	04	1	0504-0512
89	BOLT; LK PLATE M8X16 FLANGE	0-28050-816-0	04	1	0601-
100	SEAL; OIL,FINAL PINION NOK	1-09625-484-1	01	1	0504-
