Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#21492) — 209 parça

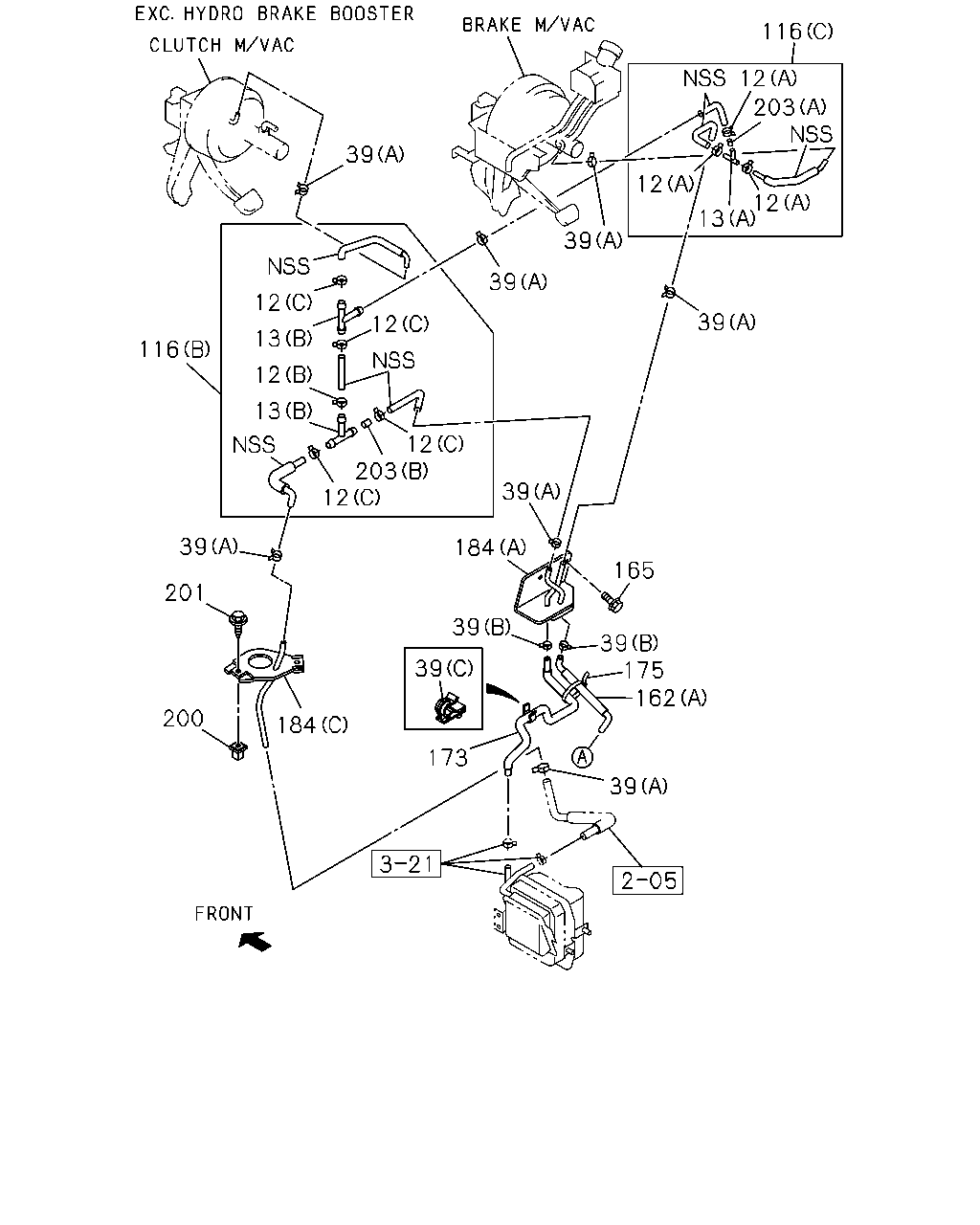

116 12 203 13 12 39 12 39 39 184 165 39 39 39 175 162 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	CLIP; HOSE (A) ID=14.5	8-94167-480-0	03	1	0504-0910
12	CLIP; HOSE EXC. HYDRO BRAKE BOOSTER<7QQ> (A) ID=14.5	8-94167-480-0	03	1	0911-
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) (C) ID=14.5	8-94167-480-0	04	1	0610-
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) (B) ID=15.5	8-94367-944-0	01	1	0610-
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (B) 3WAY	8-94167-478-0	01	1	0911-
13	JOINT; HOSE,VAC (A) 3WAY	8-94441-184-0	01	1	0504-0910
13	JOINT; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (A) 3WAY	8-94441-184-0	01	1	0911-
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) 3WAY	8-94167-478-0	02	1	0610-0910
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 3WAY	8-94167-478-0	02	1	0911-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (B) ID=16	5-09707-023-2	01	1	0911-
39	CLIP; HOSE,VAC (B) ID=16	5-09707-023-2	02	1	0504-0910
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (B) ID=16	5-09707-023-2	02	1	0911-
39	CLIP; HOSE,VAC (A) ID=16	8-94238-568-0	03	1	0504-0609
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) ID=16	8-94238-568-0	01	1	0610-0910
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (A) ID=16	8-94238-568-0	01	1	0911-
39	CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	0504-0910
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (C) ID=25.5	8-97077-492-0	01	1	0911-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) ID=16	8-94238-568-0	06	1	0610-0910
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (A) ID=16	8-94238-568-0	06	1	0911-
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (A) ID=16	8-94238-568-0	03	1	0610-0910
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> (A) ID=16	8-94238-568-0	03	1	0911-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (A) ID=16	8-94238-568-0	03	1	0911-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (D)	8-97188-946-2	01	1	0911-
116	HOSE; VAC,M/VAC (A)	8-97314-597-1	01	1	0504-0609
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97314-597-1	01	1	0610-0910
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> (A)	8-97314-597-1	01	1	0911-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-97178-727-2	01	1	0610-0910
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (B)	8-97178-727-2	01	1	0911-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97314-596-1	01	1	0610-0910
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (C)	8-97314-596-1	01	1	0911-
162	HOSE; VAC (A)	8-97081-535-1	01	1	0504-0910
162	HOSE; VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (A)	8-97081-535-1	01	1	0911-
162	HOSE; VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97081-535-1	01	1	0911-
162	HOSE; VAC (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0504-0910
162	HOSE; VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0911-
162	HOSE; VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0911-
165	BOLT; BRKT M6X16 FLANGE	0-28680-616-0	02	1	0504-0512
165	BOLT; BRKT M6X16 FLANGE	0-28650-616-0	02	1	0601-
173	HOSE; VAC,VAC TANK SIDE	8-97129-872-0	01	1	0504-0910
173	HOSE; VAC,VAC TANK SIDE EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97129-872-0	01	1	0911-
175	CLIP; BAND,VAC HOSE L=219.5	1-09987-136-0	01	1	0504-0910
175	CLIP; BAND,VAC HOSE EXC. HYDRO BRAKE BOOSTER<7QQ> L=219.5	1-09987-136-0	01	1	0911-
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER<7QQ> (D)	8-97175-473-1	01	1	0911-
184	BRACKET; UNION FIX (A)	8-97078-460-5	01	1	0504-0910
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97078-460-5	01	1	0911-
184	BRACKET; UNION FIX (B)	8-97094-014-3	01	1	0504-0609
184	BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97094-014-4	01	1	0610-
184	BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (C)	8-98009-402-1	01	1	0610-
203	VALVE; CHECK (A)	8-94386-540-0	01	1	0504-0910
203	VALVE; CHECK EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-94386-540-0	01	1	0911-
203	VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0610-

201 184 200 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER<7QQ> (D)	8-97175-473-1	01	1	0911-
184	BRACKET; UNION FIX (A)	8-97078-460-5	01	1	0504-0910
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97078-460-5	01	1	0911-
184	BRACKET; UNION FIX (B)	8-97094-014-3	01	1	0504-0609
184	BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97094-014-4	01	1	0610-
184	BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (C)	8-98009-402-1	01	1	0610-
200	GROMMET; SCREW H=15	8-94463-268-1	02	1	0504-
201	SCREW; BRKT M5X16 TAPPING W/PL WASHER	0-74305-516-0	02	1	0504-0604
201	SCREW; BRKT M5X16 TAPPING W/PL WASHER	0-74365-516-0	02	1	0605-
202	SEAL OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0504-0609
202	SEAL EXC. POWER ASSIST CLUTCH(S2T) OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0610-

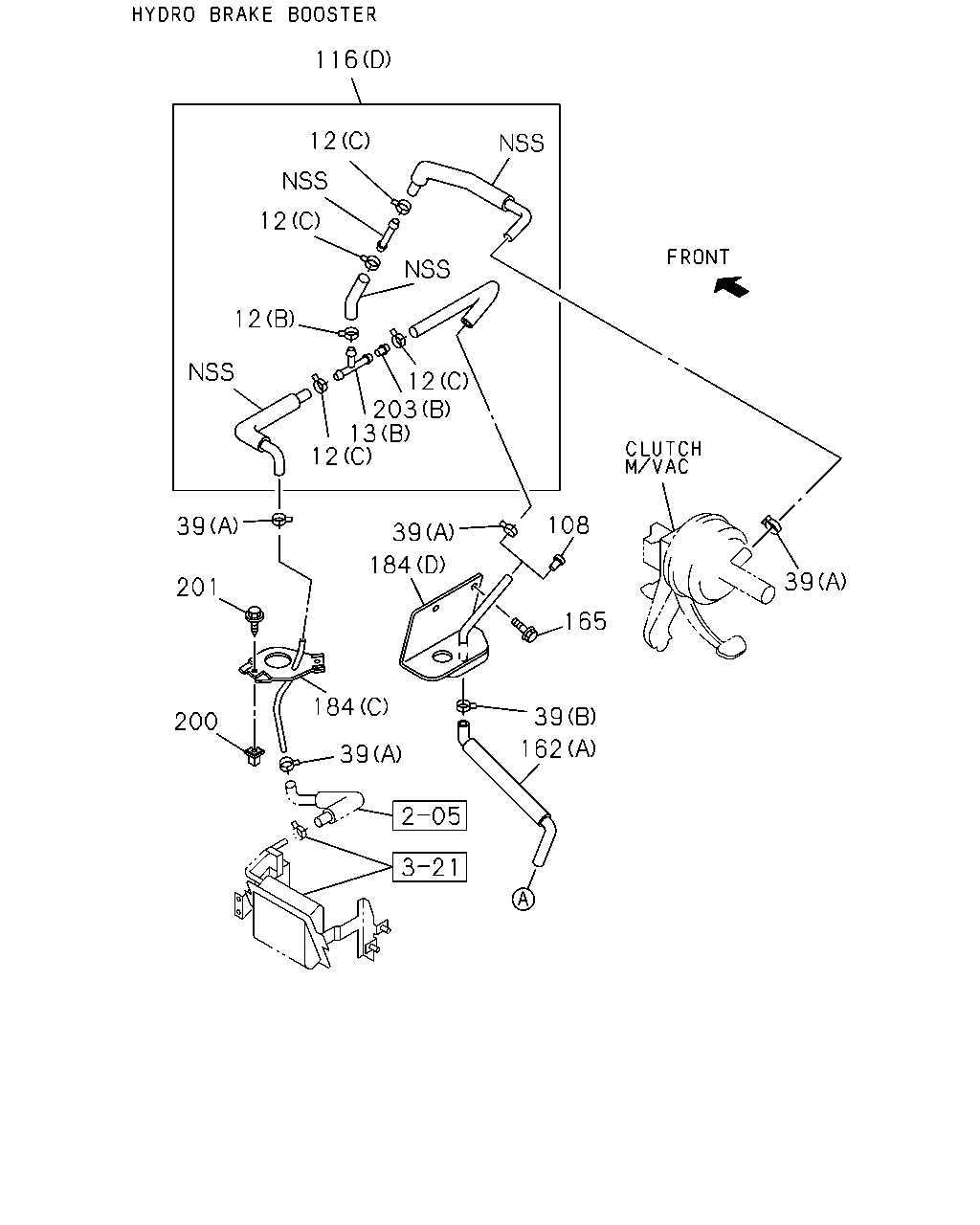

116 12 12 12 12 203 13 12 108 39 39 184 39 201 165 184 39 200 162 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	CLIP; HOSE (A) ID=14.5	8-94167-480-0	03	1	0504-0910
12	CLIP; HOSE EXC. HYDRO BRAKE BOOSTER<7QQ> (A) ID=14.5	8-94167-480-0	03	1	0911-
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) (C) ID=14.5	8-94167-480-0	04	1	0610-
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) (B) ID=15.5	8-94367-944-0	01	1	0610-
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (B) 3WAY	8-94167-478-0	01	1	0911-
13	JOINT; HOSE,VAC (A) 3WAY	8-94441-184-0	01	1	0504-0910
13	JOINT; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (A) 3WAY	8-94441-184-0	01	1	0911-
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) 3WAY	8-94167-478-0	02	1	0610-0910
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 3WAY	8-94167-478-0	02	1	0911-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (B) ID=16	5-09707-023-2	01	1	0911-
39	CLIP; HOSE,VAC (B) ID=16	5-09707-023-2	02	1	0504-0910
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (B) ID=16	5-09707-023-2	02	1	0911-
39	CLIP; HOSE,VAC (A) ID=16	8-94238-568-0	03	1	0504-0609
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) ID=16	8-94238-568-0	01	1	0610-0910
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (A) ID=16	8-94238-568-0	01	1	0911-
39	CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	0504-0910
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (C) ID=25.5	8-97077-492-0	01	1	0911-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) ID=16	8-94238-568-0	06	1	0610-0910
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (A) ID=16	8-94238-568-0	06	1	0911-
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (A) ID=16	8-94238-568-0	03	1	0610-0910
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> (A) ID=16	8-94238-568-0	03	1	0911-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (A) ID=16	8-94238-568-0	03	1	0911-
108	GROMMET; PIPE HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T)	9-09956-353-0	01	1	0911-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (D)	8-97188-946-2	01	1	0911-
116	HOSE; VAC,M/VAC (A)	8-97314-597-1	01	1	0504-0609
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97314-597-1	01	1	0610-0910
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> (A)	8-97314-597-1	01	1	0911-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-97178-727-2	01	1	0610-0910
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (B)	8-97178-727-2	01	1	0911-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97314-596-1	01	1	0610-0910
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (C)	8-97314-596-1	01	1	0911-
162	HOSE; VAC (A)	8-97081-535-1	01	1	0504-0910
162	HOSE; VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (A)	8-97081-535-1	01	1	0911-
162	HOSE; VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97081-535-1	01	1	0911-
162	HOSE; VAC (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0504-0910
162	HOSE; VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0911-
162	HOSE; VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0911-
165	BOLT; BRKT M6X16 FLANGE	0-28680-616-0	02	1	0504-0512
165	BOLT; BRKT M6X16 FLANGE	0-28650-616-0	02	1	0601-
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER<7QQ> (D)	8-97175-473-1	01	1	0911-
184	BRACKET; UNION FIX (A)	8-97078-460-5	01	1	0504-0910
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97078-460-5	01	1	0911-
184	BRACKET; UNION FIX (B)	8-97094-014-3	01	1	0504-0609
184	BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97094-014-4	01	1	0610-
184	BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (C)	8-98009-402-1	01	1	0610-
200	GROMMET; SCREW H=15	8-94463-268-1	02	1	0504-
201	SCREW; BRKT M5X16 TAPPING W/PL WASHER	0-74305-516-0	02	1	0504-0604
201	SCREW; BRKT M5X16 TAPPING W/PL WASHER	0-74365-516-0	02	1	0605-
203	VALVE; CHECK (A)	8-94386-540-0	01	1	0504-0910
203	VALVE; CHECK EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-94386-540-0	01	1	0911-
203	VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0610-

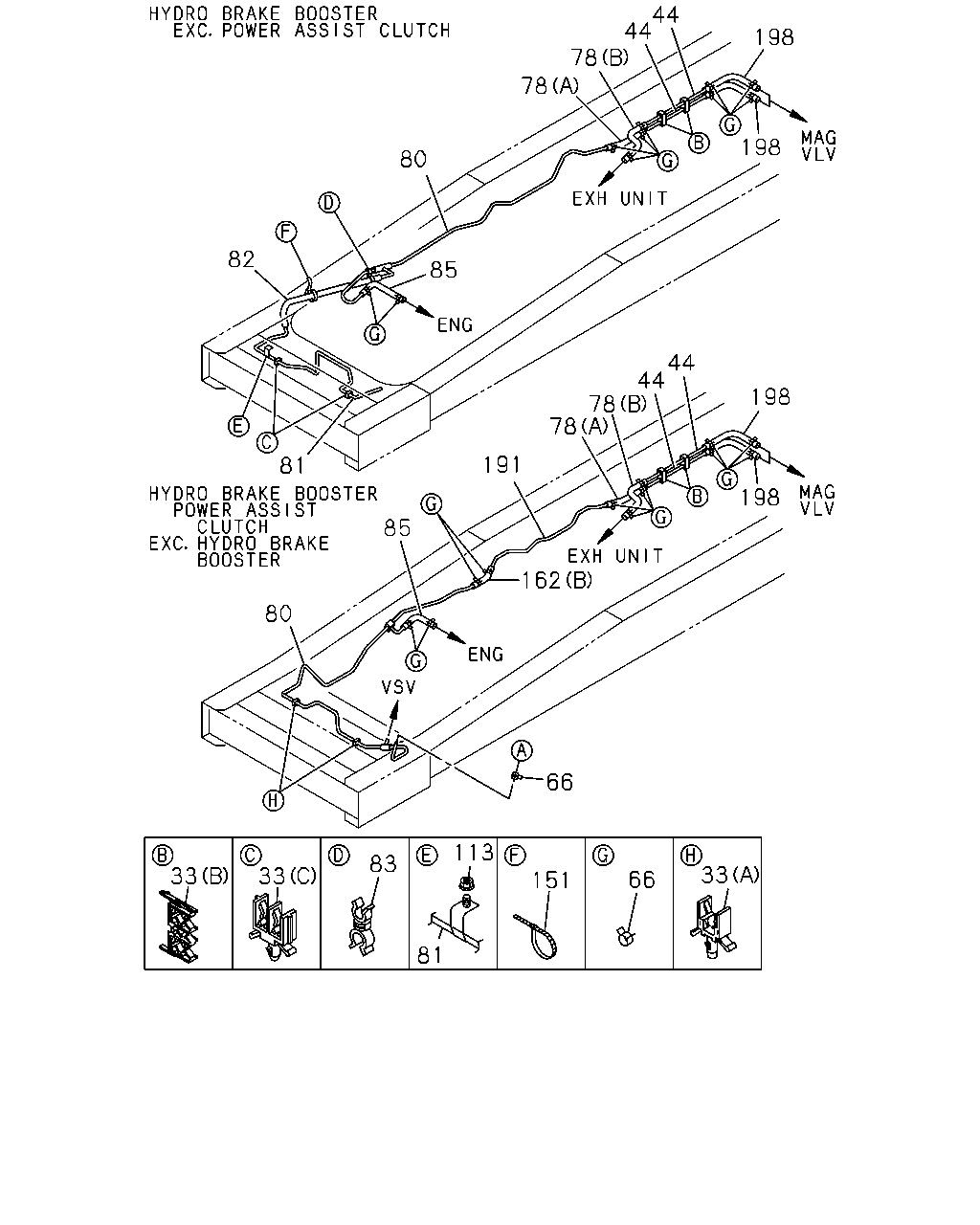

44 44 78 198 78 198 80 82 85 44 44 78 78 198 81 191 198 85 162 80 66 113 33 33 33 83 66 151 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
33	CLIP; VAC PIPE HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T) (C) ID=4.8X2	8-94316-410-0	01	1	0911-
33	CLIP; VAC PIPE (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	03	1	0504-0609
33	CLIP; VAC PIPE (B) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	03	1	0610-
33	CLIP; VAC PIPE (A) ID=10 H=40	8-94462-219-0	02	1	0504-0910
33	CLIP; VAC PIPE (A) ID=10 H=40	8-94462-219-0	02	1	0504-0910
33	CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (A) ID=10 H=40	8-94462-219-0	02	1	0911-
33	CLIP; VAC PIPE EXC. HYDRO BRAKE BOOSTER<7QQ> (A) ID=10 H=40	8-94462-219-0	02	1	0911-
33	CLIP; VAC PIPE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (A) ID=10 H=40	8-94462-219-0	02	1	0911-
33	CLIP; VAC PIPE EXC. HYDRO BRAKE BOOSTER<7QQ> (A) ID=10 H=40	8-94462-219-0	02	1	0911-
44	PIPE; VAC,MAG VLV	8-97096-972-0	02	1	0504-0609
44	PIPE; VAC,MAG VLV	8-97096-972-0	02	1	0610-
66	CLIP; VAC HOSE,M/VAC HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T) ID=16	8-94238-568-0	10	1	0911-0911
66	CLIP; VAC HOSE,M/VAC HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T) ID=16	8-98008-098-0	10	1	0912-
66	CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	13	1	0504-0910
66	CLIP; VAC HOSE,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> ID=16	8-94238-568-0	13	1	0911-0911
66	CLIP; VAC HOSE,M/VAC EXC. HYDRO BRAKE BOOSTER<7QQ> ID=16	8-94238-568-0	13	1	0911-0911
66	CLIP; VAC HOSE,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> ID=16	8-98008-098-0	13	1	0912-
66	CLIP; VAC HOSE,M/VAC EXC. HYDRO BRAKE BOOSTER<7QQ> ID=16	8-98008-098-0	13	1	0912-
78	HOSE; VAC,PIPE TO PIPE (A) L=300 SERVICED BY L=3000	0-08258-300-0	01	1	0504-0609
78	HOSE; VAC,PIPE TO PIPE (A)	8-98045-768-0	01	1	0610-
78	HOSE; VAC,PIPE TO PIPE (B) L=430 SERVICED BY L=3000	0-08258-300-0	01	1	0504-
80	PIPE; VAC,ENG SIDE 4HE1-TCN ENG(RDR) HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T)	8-97376-072-1	01	1	0911-
80	PIPE; VAC,ENG SIDE	8-97360-792-1	01	1	0504-0910
80	PIPE; VAC,ENG SIDE POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ>	8-97360-792-1	01	1	0911-
80	PIPE; VAC,ENG SIDE EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97360-792-1	01	1	0911-
81	PIPE; VAC,VSV HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T)	8-97386-703-0	01	1	0911-
82	HOSE; VAC,VSV HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T) L=960 SERVICED BY L=3000	0-04740-300-0	01	1	0911-
83	CLIP; VSV HOSE HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T) ID=8.3 & 16.5	8-94169-027-0	01	1	0911-
85	HOSE; VAC,ENG SIDE	8-97239-327-0	01	1	0504-
113	NUT HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T) M8 FLANGE	0-91180-108-0	01	1	0911-
151	CLIP; BAND HYDRO BRAKE BOOSTER<7QQ> EXC. POWER ASSIST CLUTCH(S2T) L=140	5-09707-031-1	03	1	0911-
162	HOSE; VAC (A)	8-97081-535-1	01	1	0504-0910
162	HOSE; VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (A)	8-97081-535-1	01	1	0911-
162	HOSE; VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97081-535-1	01	1	0911-
162	HOSE; VAC (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0504-0910
162	HOSE; VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0911-
162	HOSE; VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0911-
191	PIPE; VAC	8-97104-170-4	01	1	0504-0609
191	PIPE; VAC	8-98010-980-1	01	1	0610-0910
191	PIPE; VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ>	8-98010-980-1	01	1	0911-
191	PIPE; VAC EXC. HYDRO BRAKE BOOSTER<7QQ>	8-98010-980-1	01	1	0911-
198	HOSE; VAC,PIPE TO MAG VLV L=360 SERVICED BY L=3000	0-08258-300-0	02	1	0504-

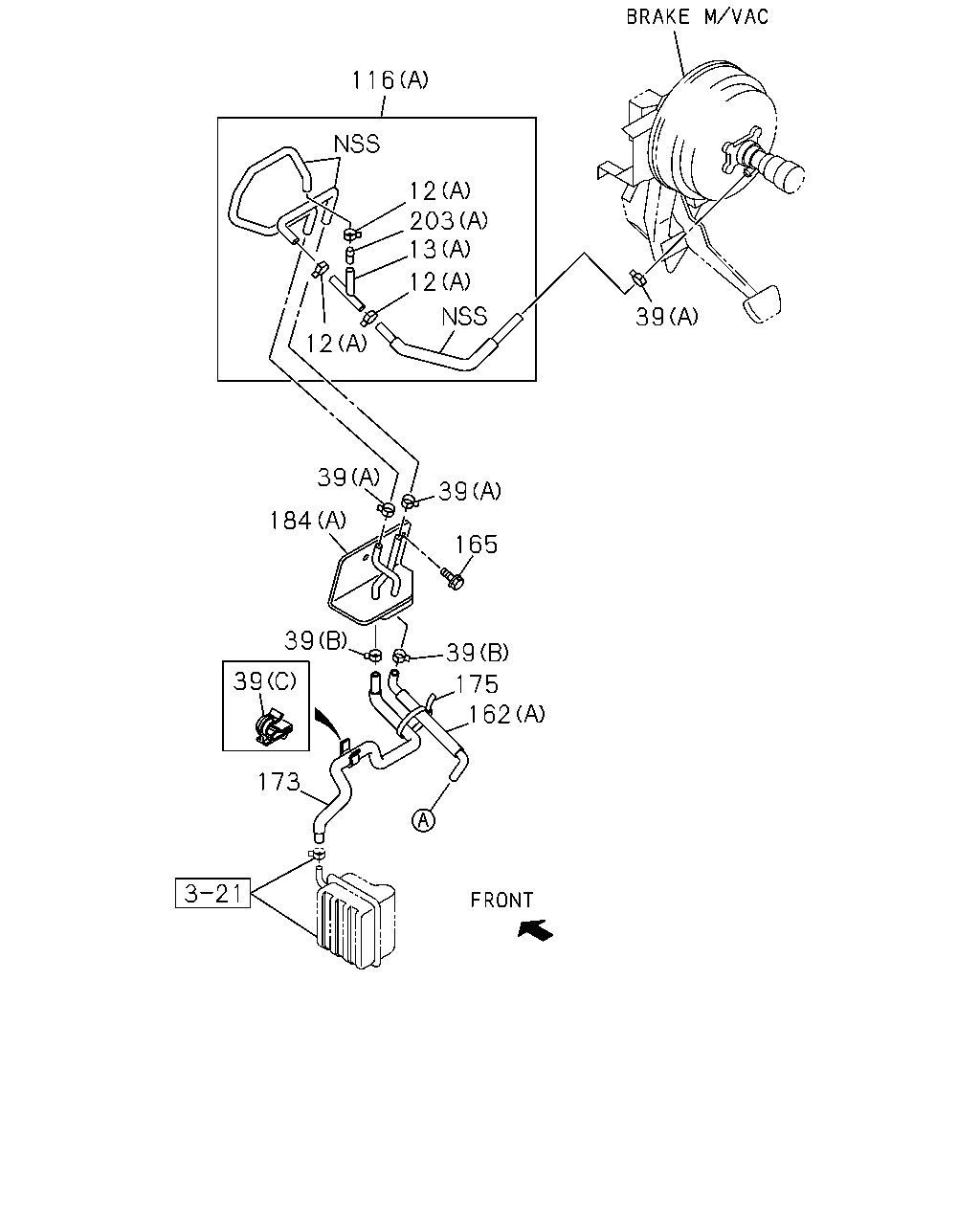

116 12 203 39 12 12 13 39 39 12 39 12 13 116 12 13 12 203 12 39 39 184 165 201 39 39 175 162 39 200 184 173 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	CLIP; HOSE (A) ID=14.5	8-94167-480-0	03	1	0504-0910
12	CLIP; HOSE EXC. HYDRO BRAKE BOOSTER<7QQ> (A) ID=14.5	8-94167-480-0	03	1	0911-
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) (C) ID=14.5	8-94167-480-0	04	1	0610-
12	CLIP; HOSE POWER ASSIST CLUTCH(S2T) (B) ID=15.5	8-94367-944-0	01	1	0610-
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (B) 3WAY	8-94167-478-0	01	1	0911-
13	JOINT; HOSE,VAC (A) 3WAY	8-94441-184-0	01	1	0504-0910
13	JOINT; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (A) 3WAY	8-94441-184-0	01	1	0911-
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) (B) 3WAY	8-94167-478-0	02	1	0610-0910
13	JOINT; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (B) 3WAY	8-94167-478-0	02	1	0911-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (B) ID=16	5-09707-023-2	01	1	0911-
39	CLIP; HOSE,VAC (B) ID=16	5-09707-023-2	02	1	0504-0910
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (B) ID=16	5-09707-023-2	02	1	0911-
39	CLIP; HOSE,VAC (A) ID=16	8-94238-568-0	03	1	0504-0609
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) ID=16	8-94238-568-0	01	1	0610-0910
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (A) ID=16	8-94238-568-0	01	1	0911-
39	CLIP; HOSE,VAC (C) ID=25.5	8-97077-492-0	01	1	0504-0910
39	CLIP; HOSE,VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (C) ID=25.5	8-97077-492-0	01	1	0911-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) (A) ID=16	8-94238-568-0	06	1	0610-0910
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (A) ID=16	8-94238-568-0	06	1	0911-
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T) (A) ID=16	8-94238-568-0	03	1	0610-0910
39	CLIP; HOSE,VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> (A) ID=16	8-94238-568-0	03	1	0911-
39	CLIP; HOSE,VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (A) ID=16	8-94238-568-0	03	1	0911-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (D)	8-97188-946-2	01	1	0911-
116	HOSE; VAC,M/VAC (A)	8-97314-597-1	01	1	0504-0609
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T) (A)	8-97314-597-1	01	1	0610-0910
116	HOSE; VAC,M/VAC EXC. POWER ASSIST CLUTCH(S2T),HYDRO BRAKE BOOSTER<7QQ> (A)	8-97314-597-1	01	1	0911-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (B)	8-97178-727-2	01	1	0610-0910
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (B)	8-97178-727-2	01	1	0911-
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) (C)	8-97314-596-1	01	1	0610-0910
116	HOSE; VAC,M/VAC POWER ASSIST CLUTCH(S2T) EXC. HYDRO BRAKE BOOSTER<7QQ> (C)	8-97314-596-1	01	1	0911-
162	HOSE; VAC (A)	8-97081-535-1	01	1	0504-0910
162	HOSE; VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (A)	8-97081-535-1	01	1	0911-
162	HOSE; VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97081-535-1	01	1	0911-
162	HOSE; VAC (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0504-0910
162	HOSE; VAC POWER ASSIST CLUTCH(S2T) HYDRO BRAKE BOOSTER<7QQ> (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0911-
162	HOSE; VAC EXC. HYDRO BRAKE BOOSTER<7QQ> (B) L=130 SERVICED BY L=3000	0-08258-300-0	01	1	0911-
165	BOLT; BRKT M6X16 FLANGE	0-28680-616-0	02	1	0504-0512
165	BOLT; BRKT M6X16 FLANGE	0-28650-616-0	02	1	0601-
173	HOSE; VAC,VAC TANK SIDE	8-97129-872-0	01	1	0504-0910
173	HOSE; VAC,VAC TANK SIDE EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97129-872-0	01	1	0911-
175	CLIP; BAND,VAC HOSE L=219.5	1-09987-136-0	01	1	0504-0910
175	CLIP; BAND,VAC HOSE EXC. HYDRO BRAKE BOOSTER<7QQ> L=219.5	1-09987-136-0	01	1	0911-
184	BRACKET; UNION FIX HYDRO BRAKE BOOSTER<7QQ> (D)	8-97175-473-1	01	1	0911-
184	BRACKET; UNION FIX (A)	8-97078-460-5	01	1	0504-0910
184	BRACKET; UNION FIX EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-97078-460-5	01	1	0911-
184	BRACKET; UNION FIX (B)	8-97094-014-3	01	1	0504-0609
184	BRACKET; UNION FIX EXC. POWER ASSIST CLUTCH(S2T) (B)	8-97094-014-4	01	1	0610-
184	BRACKET; UNION FIX POWER ASSIST CLUTCH(S2T) (C)	8-98009-402-1	01	1	0610-
200	GROMMET; SCREW H=15	8-94463-268-1	02	1	0504-
201	SCREW; BRKT M5X16 TAPPING W/PL WASHER	0-74305-516-0	02	1	0504-0604
201	SCREW; BRKT M5X16 TAPPING W/PL WASHER	0-74365-516-0	02	1	0605-
203	VALVE; CHECK (A)	8-94386-540-0	01	1	0504-0910
203	VALVE; CHECK EXC. HYDRO BRAKE BOOSTER<7QQ> (A)	8-94386-540-0	01	1	0911-
203	VALVE; CHECK POWER ASSIST CLUTCH(S2T) (B)	8-94104-021-0	01	1	0610-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
