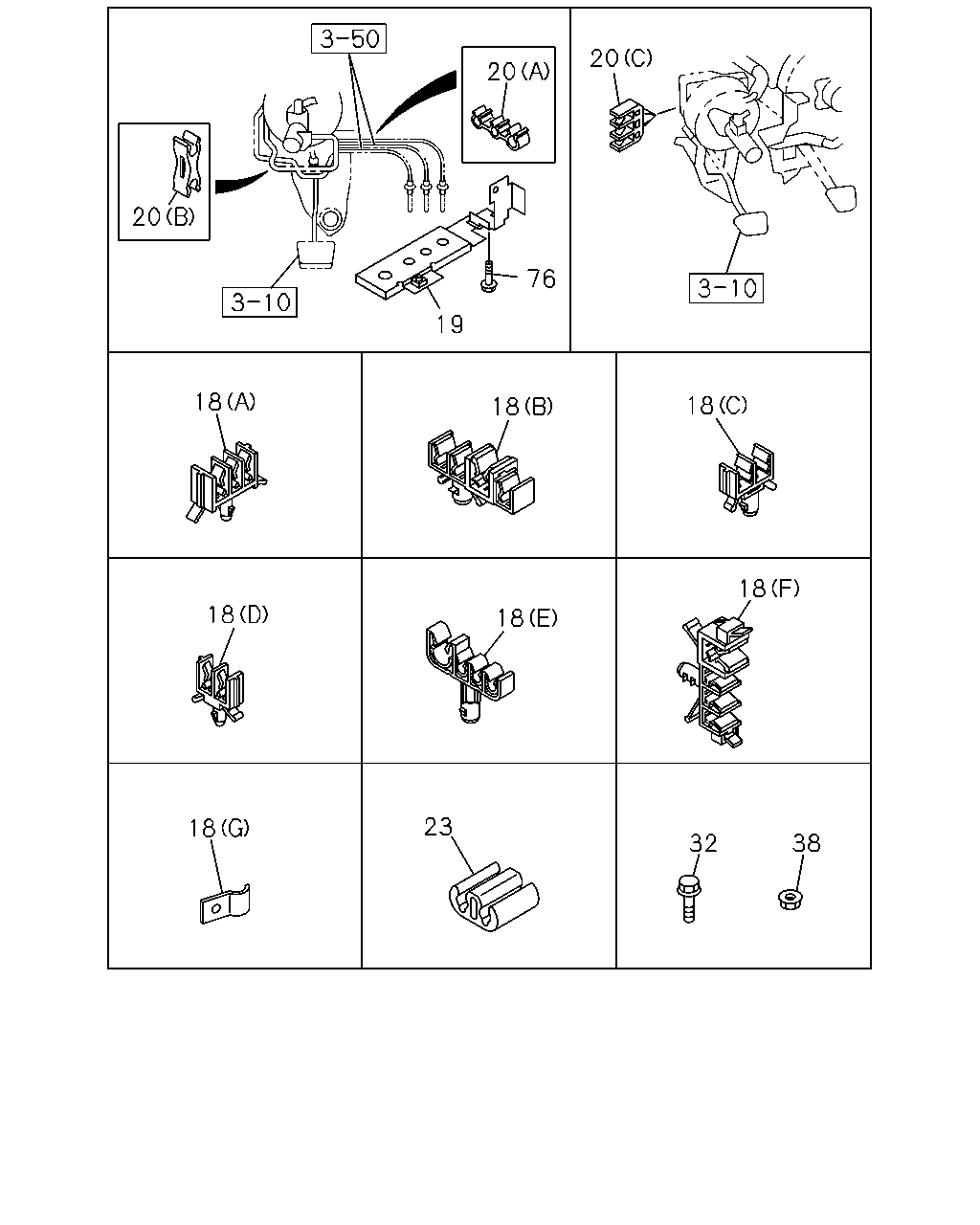

3-58 — FIXING PARTS; OIL PIPING (#21491) — 54 parça

20 20 20 76 19 18 18 18 18 18 18 23 18 32 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
18	CLIP; BRK PIPE (F) ID=10 & 4.76X3	8-97326-158-1	07	1	1006-
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (G) B=18 L=20	1-09700-372-0	02	1	0911-
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C) H=33 ID=4.8X2	8-94316-410-0	03	1	0911-
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3	8-97168-819-0	01	1	0911-
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	02	1	0911-
18	CLIP; BRK PIPE (A) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0504-
18	CLIP; BRK PIPE (E) ID=10 & 4.76X3	8-97168-819-0	02	1	0504-0910
18	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3	8-97168-819-0	02	1	0911-
18	CLIP; BRK PIPE (F) ID=10 & 4.76X3	8-97326-158-1	13	1	0504-0609
18	CLIP; BRK PIPE (F) ID=10 & 4.76X3	8-97326-158-1	05	1	0610-
18	CLIP; BRK PIPE (C) H=33 ID=4.8X2	8-94316-410-0	01	1	0504-0910
18	CLIP; BRK PIPE EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (C) H=33 ID=4.8X2	8-94316-410-0	01	1	0911-
18	CLIP; BRK PIPE (D) H=37 ID=4.8X2	8-94455-816-0	01	1	0504-
18	CLIP; BRK PIPE (B) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0504-0910
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0911-
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0911-
18	CLIP; BRK PIPE (B) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	01	1	0911-
18	CLIP; BRK PIPE (F) ID=10 & 4.76X3	8-97326-158-1	09	1	0610-1005
18	CLIP; BRK PIPE (F) ID=10 & 4.76X3	8-97326-158-1	01	1	1006-
18	CLIP; BRK PIPE (A) ID=6.5 & 4.8X2	8-94131-710-2	04	1	0504-0609
18	CLIP; BRK PIPE (A) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0610-
18	CLIP; BRK PIPE (A) ID=6.5 & 4.8X2	8-94131-710-2	02	1	0610-
18	CLIP; BRK PIPE (B) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	02	1	0504-0910
18	CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=10 OR 12 & 6.35X2 & 4.76	8-97326-156-2	04	1	0911-
19	BRACKET; OIL PIPE HYDRO BRAKE BOOSTER<7QQ>	8-97171-018-3	01	1	0911-
19	BRACKET; OIL PIPE	8-97178-320-1	01	1	0504-0910
19	BRACKET; OIL PIPE EXC. HYDRO BRAKE BOOSTER<7QQ>	8-97178-320-1	01	1	0911-
20	CLIP; BRK PIPE (A) ID=6.4 & 4.8X2	8-94146-043-0	03	1	0504-
20	CLIP; BRK PIPE (B) ID=4.6X2	8-94241-454-0	01	1	0504-
20	CLIP; BRK PIPE (C) ID=6.35 & 4.76X2	8-94250-923-2	01	1	0504-
23	CLAMP; PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> ID=4.8X2	8-94389-060-0	04	1	0911-
23	CLAMP; PIPE BRK WHL LK CONT LSPV<6PH> ID=4.8X2	8-94389-060-0	01	1	0911-
32	BOLT; CLIP,OIL PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> M8X25 FLANGE	0-28650-825-0	02	1	0911-
38	NUT; CLIP FIX 4 WHEEL ANTI LOCK BRAKE<JE5> M8 FLANGE	0-91180-108-0	02	1	0911-
76	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0504-0512
76	BOLT; BRKT,OIL PIPE M8X25 FLANGE	0-28650-825-0	02	1	0601-

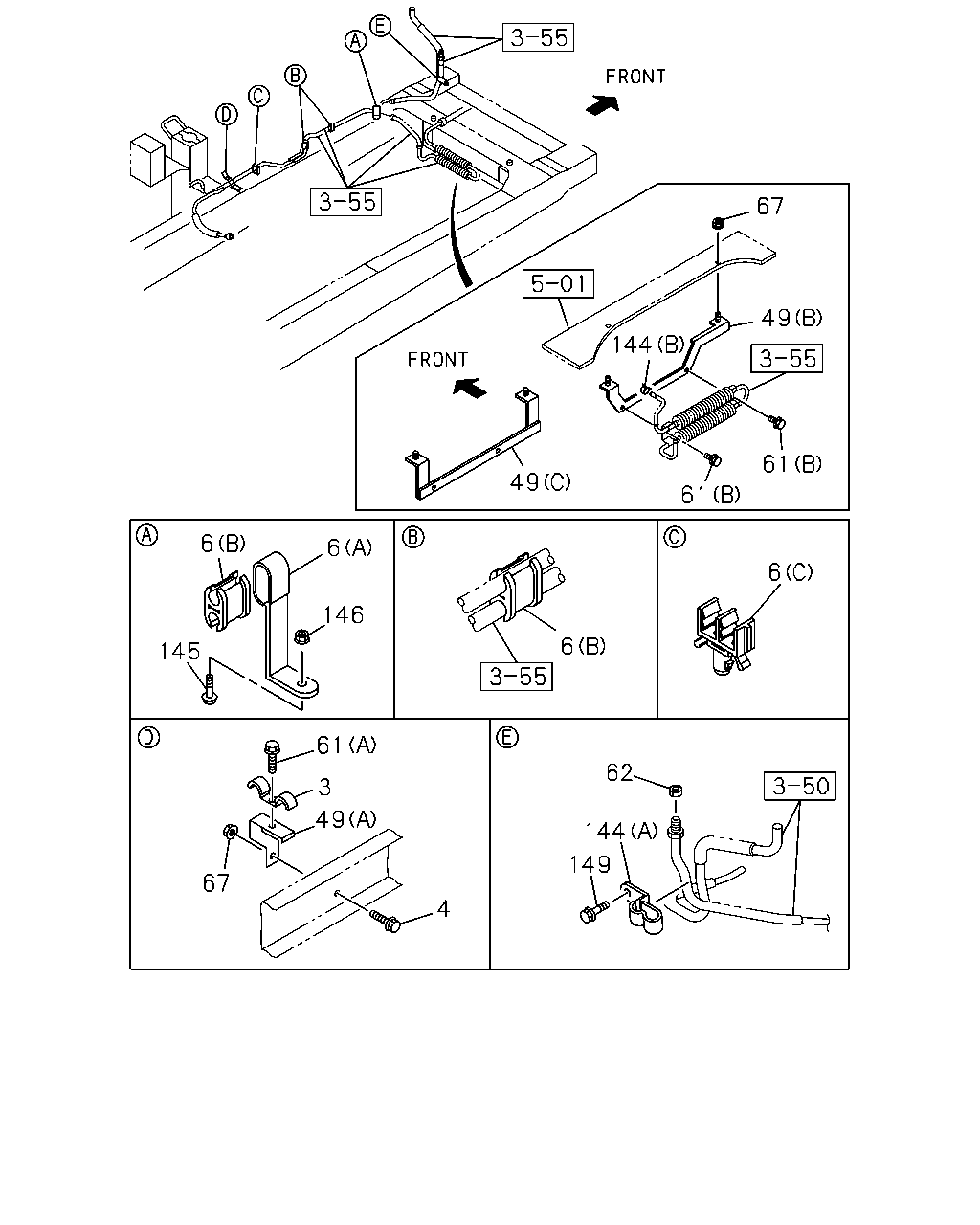

67 49 144 61 49 61 6 6 6 146 6 145 61 62 3 49 144 149 67 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
3	CLIP; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> ID=13 & 13 L=16 & 16	1-09700-072-0	01	1	0911-
4	BOLT; BRKT HYDRO BRAKE BOOSTER<7QQ> M10X25 FLANGE	0-28651-025-0	01	1	0911-
6	CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> (A) ID=14X29 H=30 L=25	1-09701-101-0	01	1	0911-
6	CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> (B) ID=10X2 H=22	8-94252-455-2	03	1	0911-
6	CLIP; PIPE HYDRO BRAKE BOOSTER<7QQ> (C) ID=10X2 H=37.5	8-97018-546-0	01	1	0911-
49	BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (A)	8-97174-638-0	01	1	0911-
49	BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (B)	8-97378-054-0	01	1	0911-1103
49	BRACKET; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (C)	8-97180-993-1	01	1	1104-
61	BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (A) M6X12 FLANGE	0-28050-612-0	01	1	0911-
61	BOLT; BRK PIPE HYDRO BRAKE BOOSTER<7QQ> (B) M10X25 FLANGE	0-28651-025-0	02	1	0911-
62	NUT HYDRO BRAKE BOOSTER<7QQ> M14	0-91111-514-0	01	1	0911-
67	NUT; BRKT HYDRO BRAKE BOOSTER<7QQ> M10 FLANGE	0-91180-110-0	03	1	0911-
144	CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (A) ID=19 & 19 L=53	1-09700-681-0	01	1	0911-
144	CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (B) ID=11-19.5	8-94426-597-0	03	1	0911-1005
144	CLIP; HOSE HYDRO BRAKE BOOSTER<7QQ> (B) ID=11-17	8-98173-762-1	03	1	1006-
145	BOLT; PIPE HYDRO BRAKE BOOSTER<7QQ> M8X20 FLANGE	0-28650-820-0	01	1	0911-
146	NUT; PIPE HYDRO BRAKE BOOSTER<7QQ> M8 FLANGE	0-91180-108-0	01	1	0911-
149	BOLT; HOSE HYDRO BRAKE BOOSTER<7QQ> M6X12 FLANGE	0-28050-612-0	01	1	0911-
