9-01 — TOOLS (#2149) — 149 parça

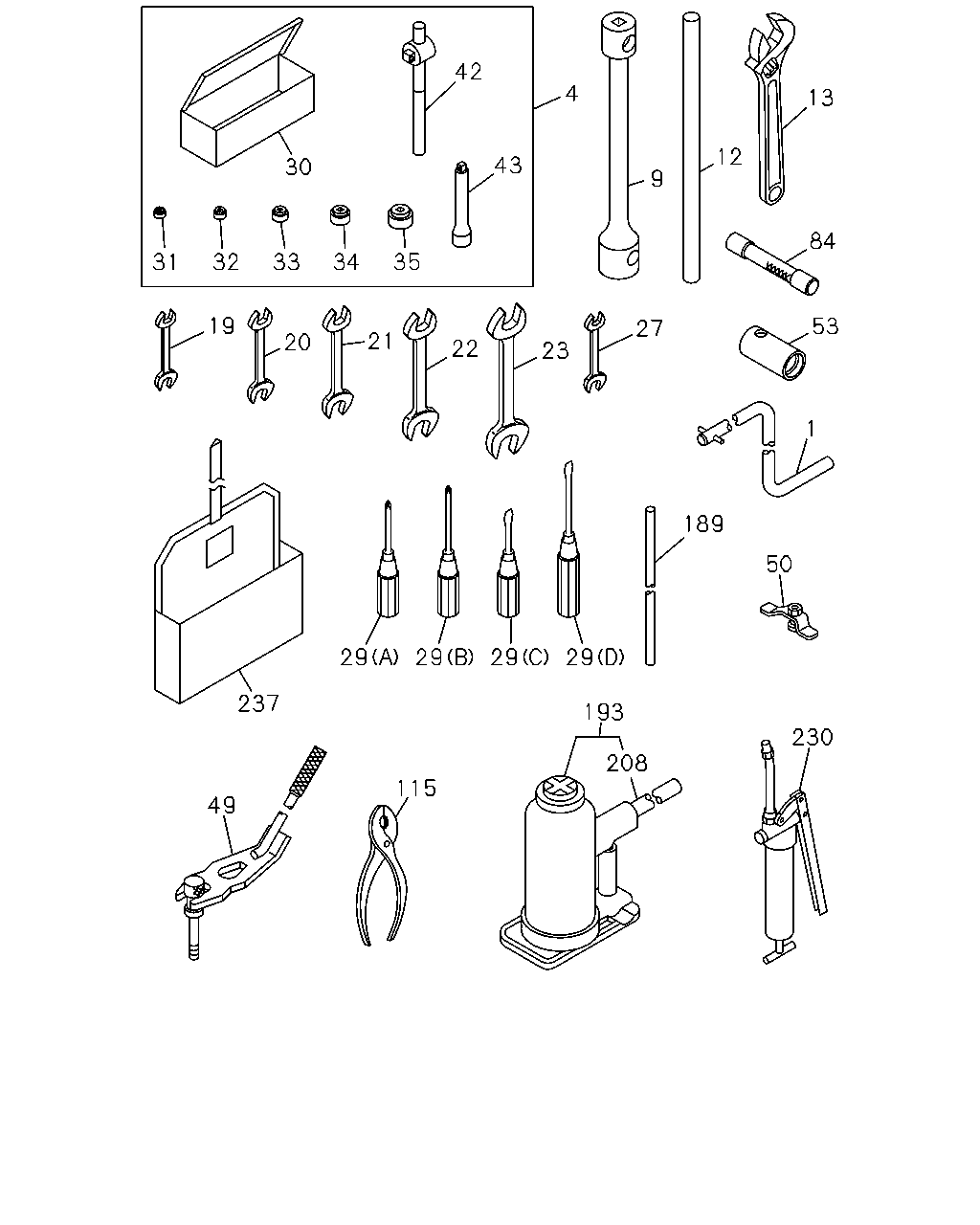

42 4 13 12 43 30 9 84 31 32 33 34 35 19 53 27 21 20 22 23 1 189 50 29 29 29 29 237 193 230 208 115 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANDLE; SPARE TIRE CARRIER SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	9-23110-018-0	01	1	9001-	●	●
4	WRENCH KIT; SOCKET TOOL B KIT(SL1)	9-85110-012-0	01	1	9001-9009	●	●
9	WRENCH; WHEEL PIN WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) L=450	1-85111-033-1	01	1	0108-	●	●
9	WRENCH; WHEEL PIN WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) TOOL B KIT(SL1) L=450	1-85111-032-0	01	1	9001-9111	●	●
9	WRENCH; WHEEL PIN WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) TOOL B KIT(SL1) L=450	1-85111-033-1	01	1	9112-9304	●	●
9	WRENCH; WHEEL PIN WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) TOOL B KIT(SL1) L=450	1-85111-033-1	01	1	9305-0107	●	●
9	WRENCH; WHEEL PIN WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) L=450	1-85111-033-1	01	1	0108-	●	●
9	WRENCH; WHEEL PIN EXC. WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) L=445	1-85113-015-0	01	1	9001-9304	●	●
9	WRENCH; WHEEL PIN EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) L=445	1-85113-015-1	01	1	9305-	●	●
12	HANDLE; WRENCH,WHEEL PIN WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) TOOL B KIT(SL1) OD=25 L=480	1-85116-011-0	01	1	9001-9304	●	●
12	HANDLE; WRENCH,WHEEL PIN EXC. WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) OD=25 L=480	1-85116-011-0	01	1	9001-9304	●	●
12	HANDLE; WRENCH,WHEEL PIN WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) TOOL B KIT(SL1) OD=25 L=480	1-85116-011-0	01	1	9305-0107	●	●
12	HANDLE; WRENCH,WHEEL PIN EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) OD=25 L=480	1-85116-011-0	01	1	9305-0107	●	●
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	1-85116-011-0	01	1	0108-	●	●
13	WRENCH; MONKEY TOOL B KIT(SL1)	1-85117-003-1	01	1	9001-9304	●	●
13	WRENCH; MONKEY TOOL B KIT(SL1) L=255	1-85117-002-1	01	1	9305-	●	●
19	WRENCH; 7X8 TOOL B KIT(SL1) 7X8	9-09592-107-0	01	1	9001-	●	●
20	WRENCH; 10X12 TOOL B KIT(SL1) 10X12	9-09592-110-0	01	1	9001-	●	●
21	WRENCH; 14X17 TOOL B KIT(SL1) 14X17	9-09592-114-0	01	1	9001-	●	●
22	WRENCH; 19X22 TOOL B KIT(SL1) 19X22	9-99592-119-0	01	1	9001-	●	●
23	WRENCH; 24X27 TOOL B KIT(SL1) 24X27	9-09592-124-0	01	1	9001-	●	●
23	WRENCH; 24X27 WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) TOOL B KIT(SL1) 5.5X7	9-09592-105-0	01	1	9001-9304	●	●
23	WRENCH; 24X27 WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) TOOL B KIT(SL1) 5.5X7	9-09592-105-0	01	1	9305-	●	●
27	WRENCH; OPEN END 5.5X7 TOOL B KIT(SL1) EXC. WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 5.5X7	9-09592-105-0	01	1	9001-9304	●	●
27	WRENCH; OPEN END 5.5X7 TOOL B KIT(SL1) EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 5.5X7	9-09592-105-0	01	1	9305-	●	●
29	DRIVER; SCREW TOOL B KIT(SL1) (A) <+> L=205	9-09595-022-0	01	1	9001-	●	●
29	DRIVER; SCREW TOOL B KIT(SL1) (B) <+> L=275	9-09595-023-0	01	1	9001-	●	●
29	DRIVER; SCREW TOOL B KIT(SL1) (C) <-> L=205	9-09595-126-0	01	1	9001-	●	●
29	DRIVER; SCREW TOOL B KIT(SL1) (D) <-> L=325	9-09595-129-0	01	1	9001-	●	●
30	BOX; SOCKET WRENCH TOOL B KIT(SL1)	9-85581-260-0	01	1	9001-9503	●	●
31	WRENCH; 12 TOOL B KIT(SL1)	9-09590-012-0	01	1	9001-9503	●	●
32	WRENCH; 14 TOOL B KIT(SL1)	9-09590-014-0	01	1	9001-9503	●	●
33	WRENCH; 17 TOOL B KIT(SL1)	9-09590-017-0	01	1	9001-9503	●	●
34	WRENCH; 19 TOOL B KIT(SL1)	9-09590-019-0	01	1	9001-9503	●	●
35	WRENCH; 22 TOOL B KIT(SL1)	9-09590-022-0	01	1	9001-9503	●	●
42	HANDLE; SLIDING TOOL B KIT(SL1)	9-09590-512-0	01	1	9001-9503	●	●
43	BAR; EXTENSION,SOCKET WRENCH TOOL B KIT(SL1)	9-09590-812-0	01	1	9001-9503	●	●
49	REPLACER ASM; VALVE 6QA1 STD ENG(L24)	1-85235-005-0	01	1	9001-	●	●
50	REPLACER; NOZZLE HOLDER 6RB1 STD ENG(07L),6RA1 STD ENG(14L),6RA1 TC ENG(15L)	9-85232-001-0	01	1	9001-	●	●
53	PULLER; TAPER BUSHING	9-85210-123-0	01	1	9001-	●	●
84	REPLACER; VALVE SEAL	9-85221-289-0	01	1	9001-	●	●
115	PLIER TOOL B KIT(SL1)	5-85171-001-0	01	1	9001-	●	●
189	TUBE; AIR BREATHER TOOL B KIT(SL1) L=460	9-85291-414-0	01	1	9001-	●	●
193	JACK ASM WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) TOOL B KIT(SL1) 15TON	1-85510-021-0	01	1	9709-9709	●	●
193	JACK ASM EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 15TON	1-85510-021-0	01	1	9709-9709	●	●
193	JACK ASM WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) TOOL B KIT(SL1) 15TON	1-85510-019-1	01	1	9710-0107	●	●
193	JACK ASM EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 15TON	1-85510-019-1	01	1	9710-0107	●	●
193	JACK ASM 15TON	1-85510-019-1	01	1	0108-	●	●
193	JACK ASM WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) TOOL B KIT(SL1) 15TON	1-85510-004-2	01	1	9001-9304	●	●
193	JACK ASM EXC. WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 15TON	1-85510-004-2	01	1	9001-9304	●	●
193	JACK ASM WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) TOOL B KIT(SL1) 15TON	1-85510-004-2	01	1	9305-9310	●	●
193	JACK ASM EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 15TON	1-85510-004-2	01	1	9305-9310	●	●
193	JACK ASM WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) TOOL B KIT(SL1) 15TON	1-85510-019-0	01	1	9311-9608	●	●
193	JACK ASM EXC. WHEEL 10STUD 8.25X22.5 165-13(QM8),WHEEL 10STUD 7.00TX20(Q58),WHEEL 10STUD 7.50VX20(Q64) 15TON	1-85510-019-0	01	1	9311-9608	●	●
208	HANDLE; JACK L=680	1-85515-004-0	01	1	9001-9405	●	●
208	HANDLE; JACK L=600	1-85515-008-0	01	1	9406-0105	●	●
208	HANDLE; JACK L=600	1-85515-009-0	01	1	0106-	●	●
230	PUMP; GREASE TOOL B KIT(SL1)	1-85556-007-2	01	1	9001-	●	●
237	BAG; TOOL TOOL B KIT(SL1)	8-94367-102-0	01	1	9001-9509	●	●
237	BAG; TOOL TOOL B KIT(SL1)	8-97130-902-0	01	1	9510-	●	●

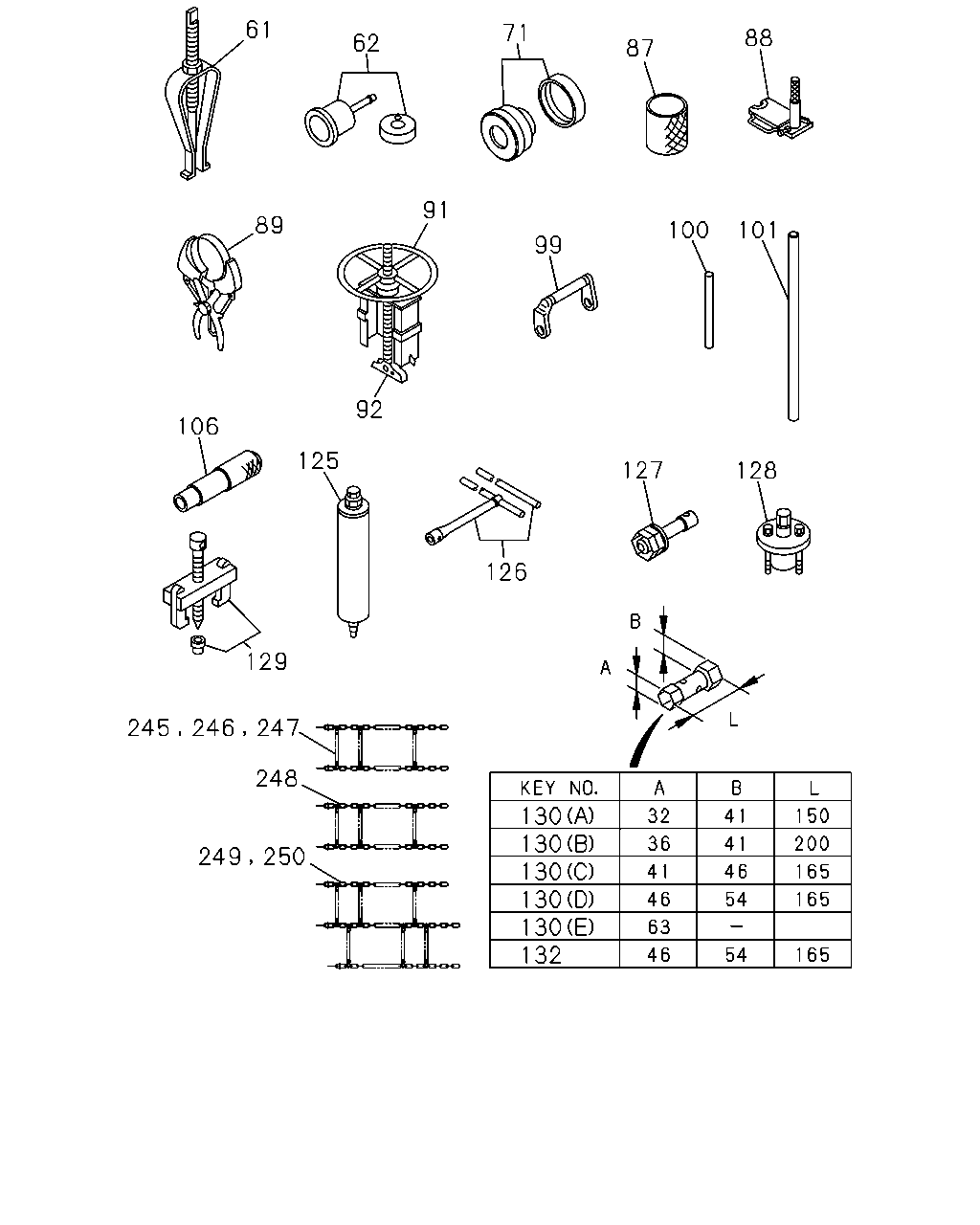

61 71 88 62 87 91 89 100 101 99 92 106 125 127 128 126 129 248 130 130 130 130 130 132 249 250 247 246 245

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
61	PULLER ASM; PILOT BRG	9-85210-157-0	01	1	9001-	●	●
62	TOOL ASM; SETTING WEAR RING	1-85220-014-0	01	1	9001-	●	●
71	TOOL; SETTING,OIL SEAL,FRT	1-85220-015-0	01	1	9001-	●	●
87	TOOL; PISTON 6QA1 STD ENG(L24)	9-85221-177-0	01	1	9001-	●	●
87	TOOL; PISTON 6RB1 STD ENG(07L),6RA1 STD ENG(14L),6RA1 TC ENG(15L)	9-85221-319-0	01	1	9001-	●	●
88	TOOL; CONNROD BUSHING 6RB1 STD ENG(07L),6RA1 STD ENG(14L),6RA1 TC ENG(15L)	9-85220-042-0	01	1	9001-	●	●
89	TOOL; PISTON RING	1-85221-025-0	01	1	9001-	●	●
91	REPLACER ASM; CYL LINER 6QA1 STD ENG(L24)	9-85231-169-0	01	1	9001-	●	●
91	REPLACER ASM; CYL LINER 6RB1 STD ENG(07L),6RA1 STD ENG(14L),6RA1 TC ENG(15L)	9-85231-186-0	01	1	9001-	●	●
92	ANKLE; REPLACER,CYL LINER 6RB1 STD ENG(07L),6RA1 STD ENG(14L),6RA1 TC ENG(15L)	9-85231-180-0	01	1	9001-	●	●
99	WRENCH; CYL HD BOLT 6QA1 STD ENG(L24)	9-85111-950-0	01	1	9001-	●	●
100	LEVER; CYL HD BOLT 6QA1 STD ENG(L24) OD=16 L=200	9-85111-934-0	01	1	9001-	●	●
101	LEVER; EXT 6QA1 STD ENG(L24)	9-85111-935-0	01	1	9001-	●	●
106	TOOL; SETTING PILOT BRG	9-85241-409-0	01	1	9001-	●	●
125	PULLER ASM; KING PIN L=450	1-85210-009-0	01	1	9001-	●	●
126	WRENCH; FRT HUB BRG NUT L=257 B=63	9-85111-373-0	01	1	9001-	●	●
127	WRENCH ASM; HUB BRG NUT L=400 B=105	9-85113-509-0	01	1	9001-	●	●
128	PULLER ASM; STRG WHEEL	9-85210-099-0	01	1	9001-	●	●
129	PULLER ASM; PITMAN ARM	1-85210-011-0	01	1	9001-	●	●
130	WRENCH; BOX (E) B=63	9-85111-368-0	01	1	9001-	●	●
130	WRENCH; BOX (D) B=46 & 54 L=165	9-85112-320-0	01	1	9001-	●	●
130	WRENCH; BOX (A) B=32 & 41 L=150	9-85112-322-0	01	1	9001-	●	●
130	WRENCH; BOX (B) B=36 & 41 L=200	9-85112-330-0	01	1	9001-	●	●
130	WRENCH; BOX (C) B=41 & 46 L=165	9-85113-401-0	01	1	9001-	●	●
132	WRENCH; NUT CR/SHF B=46 & 54 L=165	9-85112-320-0	01	1	9001-	●	●
245	CHAIN; TIRE,SINGLE 9.00-20	9-85591-254-0	AR	1	9001-	●	●
246	CHAIN; TIRE,1000-20,SINGLE 10.00-20	9-85591-239-0	AR	1	9001-	●	●
246	CHAIN; TIRE,1000-20,SINGLE 11.00-20	9-85591-259-0	AR	1	9001-	●	●
247	CHAIN; TIRE,750-20,DOUBLE 9.00-20	9-85591-255-0	AR	1	9001-	●	●
248	CHAIN; TIRE,1000-20,DOUBLE 10.00-20	9-85591-240-0	AR	1	9001-	●	●
248	CHAIN; TIRE,1000-20,DOUBLE 11.00-20	9-85591-260-0	AR	1	9001-	●	●
249	CHAIN; TIRE,TRIPLE 9.00-20	9-85591-256-0	AR	1	9001-	●	●
250	CHAIN; TIRE,1000-20,TRIPLE 10.00-20	9-85591-241-0	AR	1	9001-	●	●
250	CHAIN; TIRE,1000-20,TRIPLE 11.00-20	9-85591-261-0	AR	1	9001-	●	●

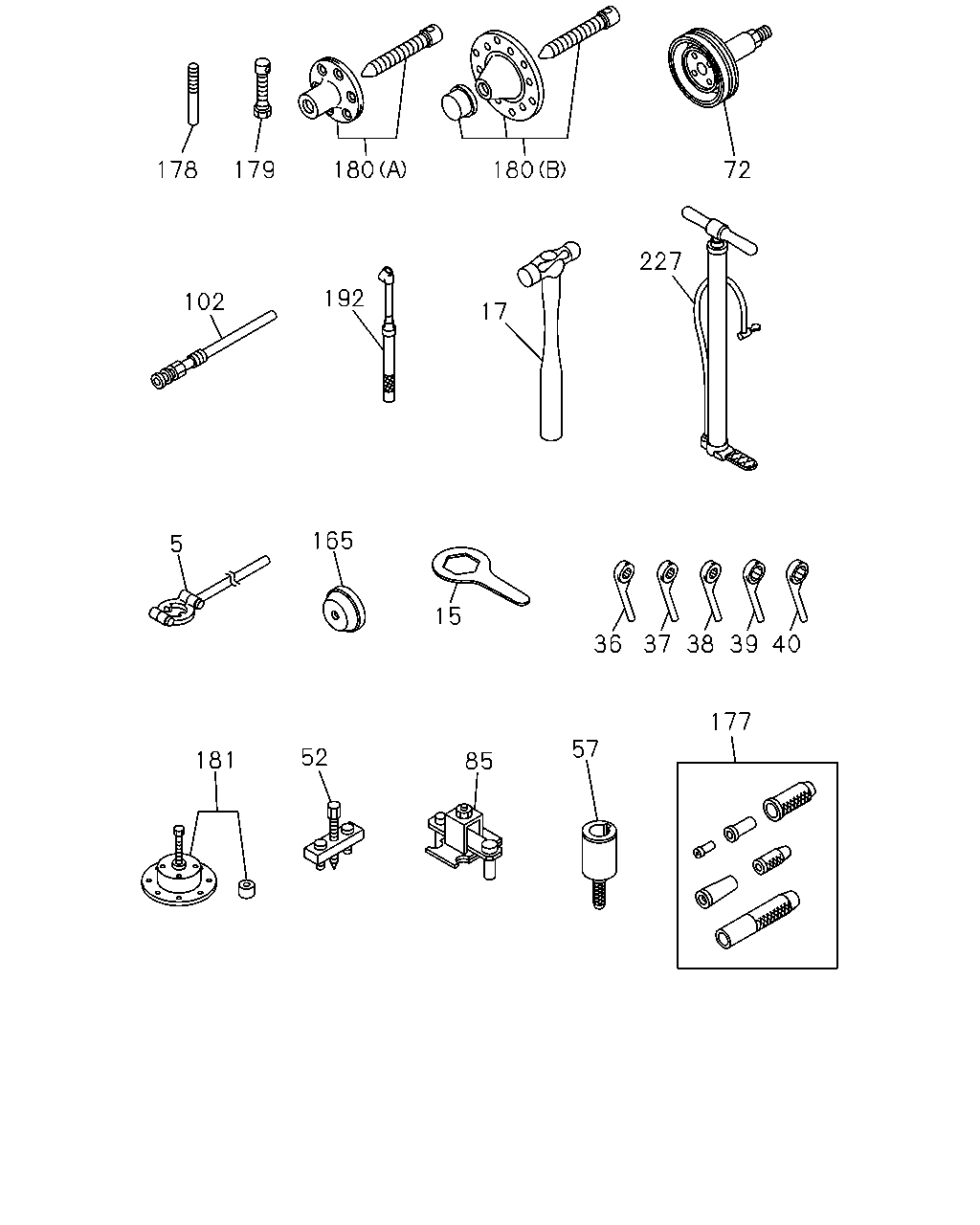

178 179 180 180 72 227 192 102 17 165 5 15 39 40 36 37 38 177 57 52 181 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
5	WRENCH ASM; NUT,MAINSHAFT	1-85110-010-0	01	1	9001-	●	●
15	WRENCH; TOP GEAR NUT	9-85111-330-0	01	1	9001-	●	●
17	HAMMER TOOL B KIT(SL1)	9-85121-406-0	01	1	9001-	●	●
36	WRENCH; 24	9-85111-377-0	01	1	9001-	●	●
37	WRENCH; 27	9-85111-375-0	01	1	9001-	●	●
38	WRENCH; 32	9-85111-358-0	01	1	9001-	●	●
39	WRENCH; 36	9-85111-374-0	01	1	9001-	●	●
40	WRENCH; 41	9-85111-356-0	01	1	9001-	●	●
52	REMOVER; WATER PUMP	9-85210-097-0	01	1	9001-	●	●
57	TOOL; SETTING CRANK GEAR OD=153	9-85220-025-0	01	1	9001-	●	●
72	TOOL; SETTING,OIL SEAL,RR WO/REAR PTO	1-85220-035-0	01	1	9001-	●	●
85	REPLACER ASM; VALVE SPR 6RB1 STD ENG(07L),6RA1 STD ENG(14L),6RA1 TC ENG(15L)	9-85231-436-0	01	1	9001-	●	●
102	ADAPTER; COMP GAGE 6RB1 STD ENG(07L),6RA1 STD ENG(14L),6RA1 TC ENG(15L)	9-85431-505-0	01	1	9001-	●	●
165	SETTING TOOL; PTO 6QA1 STD ENG(L24)	9-85241-702-0	01	1	9001-	●	●
177	SETTING TOOL KIT L=220	9-85221-323-0	01	1	9001-	●	●
178	BAR; TRANS GUIDE	9-85291-203-0	01	1	9001-	●	●
179	PULLER; SPD METER GEAR	9-85210-091-0	01	1	9001-	●	●
180	PULLER; FRT & RR HUB (A)	1-85210-002-0	01	1	9001-	●	●
180	PULLER; FRT & RR HUB (B)	1-85210-003-0	01	1	9001-	●	●
181	PULLER ASM; AIR CMPR	1-85210-036-0	01	1	9001-	●	●
192	GAUGE; TIRE PRESSURE	1-85315-001-0	01	1	9001-9912	●	●
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	0001-	●	●
227	PUMP ASM; TIRE	9-85521-132-0	01	1	9001-	●	●

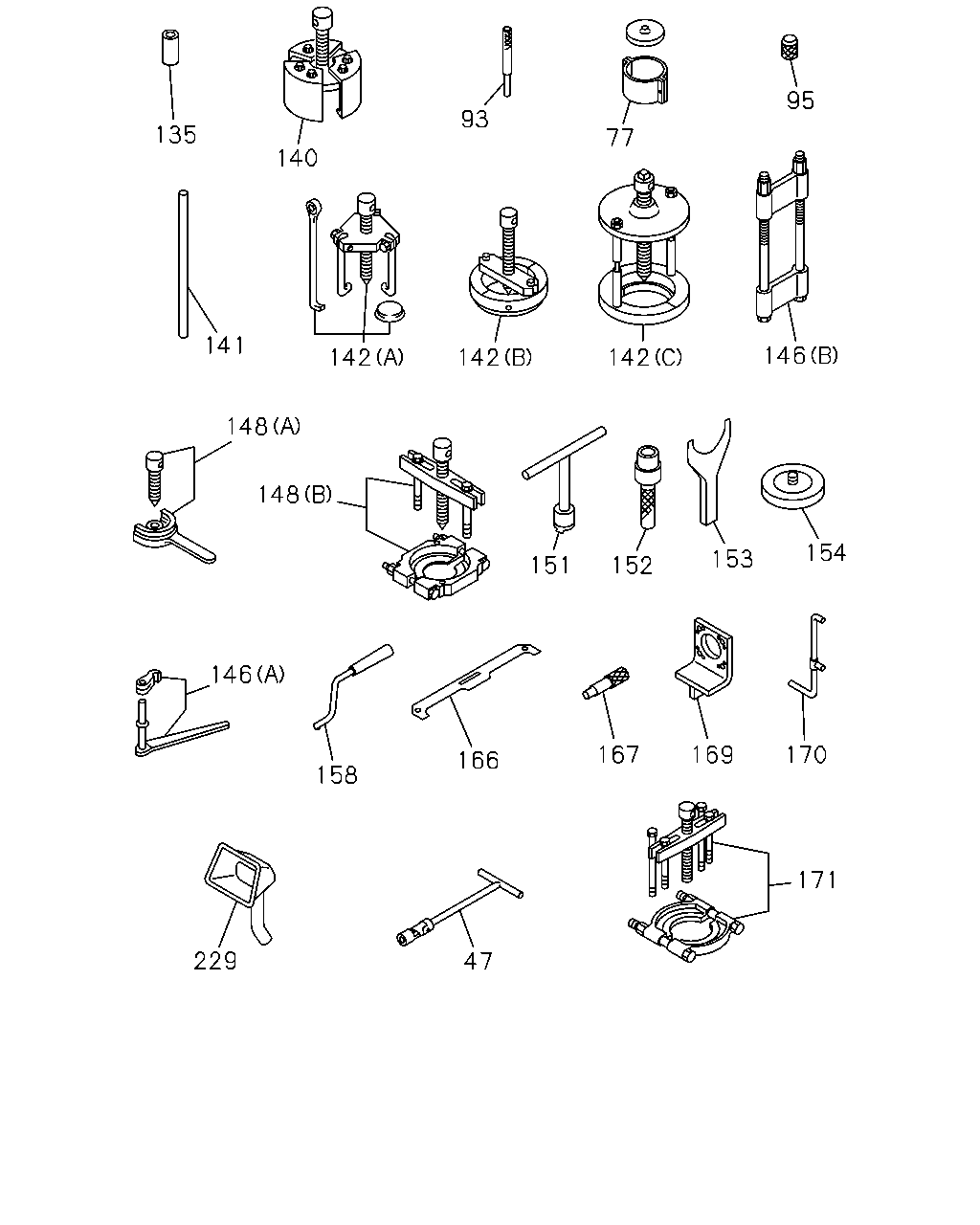

95 93 135 77 140 141 146 142 142 142 148 148 154 153 151 152 146 167 169 170 166 158 171 229 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	WRENCH ASM; UNIVERSAL,INJ PUMP 6QA1 STD ENG(L24)	9-85113-501-0	01	1	9001-	●	●
47	WRENCH ASM; UNIVERSAL,INJ PUMP 6RB1 STD ENG(07L),6RA1 STD ENG(14L),6RA1 TC ENG(15L)	9-85113-901-0	01	1	9001-	●	●
77	TOOL; SETTING,CYL LINER 6RB1 STD ENG(07L),6RA1 STD ENG(14L),6RA1 TC ENG(15L)	9-85220-043-0	01	1	9001-	●	●
93	SETTING KIT; VALVE GUIDE 6QA1 STD ENG(L24)	9-85231-220-0	01	1	9001-	●	●
93	SETTING KIT; VALVE GUIDE 6RB1 STD ENG(07L),6RA1 STD ENG(14L),6RA1 TC ENG(15L)	9-85231-222-0	01	1	9001-	●	●
95	SETTING TOOL; BRIDGE GUIDE 6RB1 STD ENG(07L),6RA1 STD ENG(14L),6RA1 TC ENG(15L)	9-85221-324-0	01	1	9001-	●	●
135	COVER; ENG MTG,FRT	9-85595-016-0	02	1	9001-	●	●
140	REMOVER; WEAR RING	1-85210-027-0	01	1	9001-	●	●
141	HANDLE; WRENCH OD=25 L=480	1-85116-011-0	01	1	9001-	●	●
141	HANDLE; WRENCH OD=25 L=400	9-85111-934-0	01	1	9001-	●	●
141	HANDLE; WRENCH OD=19 L=400	9-85114-306-0	01	1	9001-	●	●
141	HANDLE; WRENCH OD=16 L=300	9-85114-307-0	01	1	9001-	●	●
141	HANDLE; WRENCH	1-85116-011-0	01	1	9606-9805	●	●
142	PULLER ASM; TRANS BRG (A)	9-85210-148-0	01	1	9001-	●	●
142	PULLER ASM; TRANS BRG (B)	9-85210-186-0	01	1	9001-	●	●
142	PULLER ASM; TRANS BRG (C)	9-85210-192-0	01	1	9001-	●	●
146	REPLACER KIT; LEAF SPR (A)	1-85237-003-0	01	1	9001-9307	●	●
146	REPLACER KIT; LEAF SPR (A)	1-85237-016-0	01	1	9308-	●	●
146	REPLACER KIT; LEAF SPR (B)	9-85231-556-0	01	1	9001-	●	●
148	PULLER; COUNTER SHAFT BRG (A)	9-85210-129-1	01	1	9001-	●	●
148	PULLER; COUNTER SHAFT BRG (B)	9-85210-195-0	01	1	9001-	●	●
151	REMOVER; OIL BRK,FRT RETURN SPR	1-85237-002-0	01	1	9001-	●	●
152	DRIVER; NEEDLE,KING PIN L=220	1-85238-001-0	01	1	9001-	●	●
153	DRIVER; WASHER,THRUST WASHER	1-85238-002-0	01	1	9001-	●	●
154	SLEEPER; KING PIN	1-85238-003-0	01	1	9001-	●	●
158	SETTING TOOL; RETURN SPR	9-85221-231-0	01	1	9001-	●	●
166	ALIGNER; CLU RELEASE LEVER L=550 H=12.5	1-85253-001-0	01	1	9001-	●	●
167	ALIGNER; CLU PILOT	9-85241-409-0	01	1	9001-	●	●
169	BRACKET; SPLINE YOKE	9-85221-243-1	01	1	9001-	●	●
170	HANDLE; TURNING,FINAL	9-85251-121-0	01	1	9001-	●	●
171	PULLER ASM; PINION BRG	9-85210-152-0	01	1	9001-	●	●
229	FUNNEL; RAD TOOL B KIT(SL1)	9-85531-110-0	01	1	9001-	●	●
