Isuzu WW
▶
TRUCKS
▶
NQR
▶
51038 - NQR(IRAN)
▶
3 - Brakes, Brake System
▶
3-11 - PARKING BRAKE CONTROL
▶
3-11 — PARKING BRAKE CONTROL
(#21482) — 38 parça
◀
[311A] FIXING PARTS (22 parça)

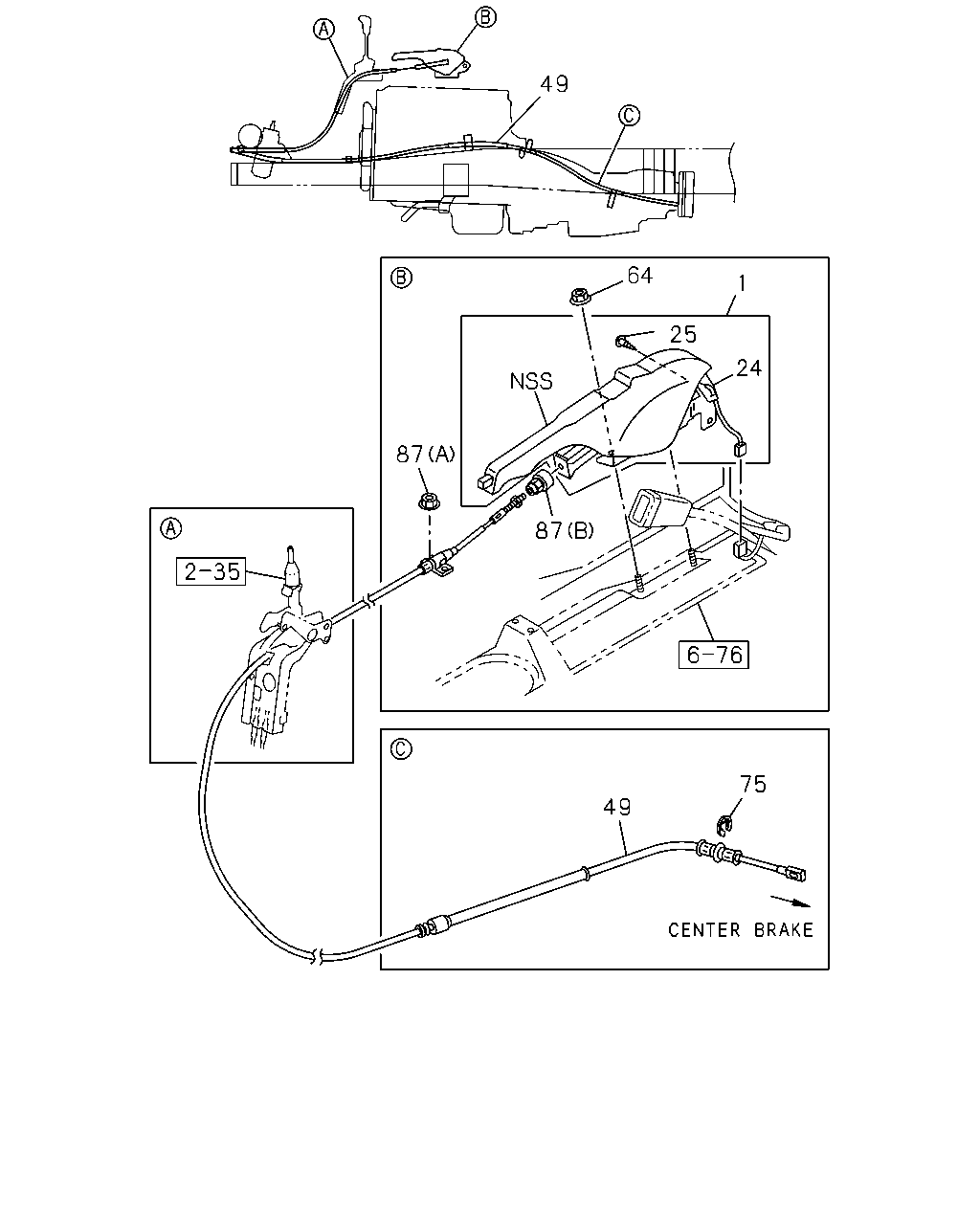

[311A] STEM AND CABLE (16 parça)
▶
49
236
235
237
224
324
223
225
85
181
238
241
241
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
49
CABLE; PARKING BRK
8-98010-844-0
01
1
0504-
85
CLIP; BRKT
ID=12 L=70
1-09700-097-1
01
1
0504-
181
BOLT; BRKT
M10X30 FLANGE
0-28681-030-0
01
1
0504-0512
181
BOLT; BRKT
M10X30 FLANGE
0-28651-030-0
01
1
0601-
223
CLIP; PARKING BRK CABLE
ID=16 L=28
9-09525-556-0
01
1
0504-0606
223
CLIP; PARKING BRK CABLE
ID=16 L=28
0-95235-556-0
01
1
0607-
224
BOLT; CABLE CLIP
M8X25 FLANGE
0-28680-825-0
01
1
0504-0512
224
BOLT; CABLE CLIP
M8X25 FLANGE
0-28650-825-0
01
1
0601-
225
NUT; CABLE CLIP
M8 FLANGE
0-91150-108-0
01
1
0504-0602
225
NUT; CABLE CLIP
M8 FLANGE
0-91180-108-0
01
1
0603-
235
BRACKET; CONT CABLE TO FRAME
8-97325-052-0
01
1
0504-
236
BOLT; BRKT TO FRAME
M10X35 FLANGE
0-28681-035-0
01
1
0504-0512
236
BOLT; BRKT TO FRAME
M10X35 FLANGE
0-28651-035-0
01
1
0601-
237
NUT; BRKT TO FRAME
M10 FLANGE
0-91150-110-0
01
1
0504-0602
237
NUT; BRKT TO FRAME
M10 FLANGE
0-91180-110-0
01
1
0603-
238
BOLT; CLIP TO BRKT
M8X25 FLANGE
0-28680-825-0
01
1
0504-0512
238
BOLT; CLIP TO BRKT
M8X25 FLANGE
0-28650-825-0
01
1
0601-
241
NUT; BRKT
(B) M10 FLANGE
0-91150-110-0
01
1
0504-0602
241
NUT; BRKT
(B) M10 FLANGE
0-91180-110-0
01
1
0603-
241
NUT; BRKT
(A) M8 FLANGE
0-91150-108-0
01
1
0504-0602
241
NUT; BRKT
(A) M8 FLANGE
0-91180-108-0
01
1
0603-
324
BRACKET
8-97188-151-0
01
1
0504-
49
64
1
25
24
87
87
75
49
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STEM ASM; PARKING BRK
DARK GRAY
8-97996-543-2
01
1
0504-0609
1
STEM ASM; PARKING BRK
GRAY
8-97585-445-2
01
1
0610-0610
1
STEM ASM; PARKING BRK
GRAY
8-97409-385-0
01
1
0611-1305
1
STEM ASM; PARKING BRK
GRAY
8-97427-522-0
01
1
1306-
24
SWITCH ASM; PARK BRK
8-97995-828-1
01
1
0504-1305
24
SWITCH ASM; PARK BRK
8-98238-611-0
01
1
1306-
25
SCREW; SW,PARKING BRK
8-98152-463-0
01
1
0504-
49
CABLE; PARKING BRK
8-98010-844-0
01
1
0504-
64
NUT; PARKING BRK
M8 W/LK WASHER
8-94327-073-0
02
1
0504-0610
64
NUT; PARKING BRK
M8 LOCK NUT FLANGE
0-91380-008-0
02
1
0611-
75
RING; SNAP,HAND BRK CABLE
ID=12
9-09185-412-0
01
1
0504-0604
75
RING; SNAP,HAND BRK CABLE
ID=12
0-91805-512-0
01
1
0605-
87
NUT
(A) M8 FLANGE
0-91150-108-0
02
1
0504-0602
87
NUT
(A) M8 FLANGE
0-91180-108-0
02
1
0603-
87
NUT
(B) M6
1-71996-312-0
01
1
0504-0611
87
NUT
(B) M6
8-98034-313-1
01
1
0612-
