◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51038 - NQR(IRAN) ▶ 3 - Brakes, Brake System ▶ 3-01 - FRONT WHEEL BRAKE ▶
3-01 — FRONT WHEEL BRAKE (#21478) — 102 parça
çizim 56490
15 15 17 16 17 16 255 302 18 19 254 253 24 24 25 252 25 26
BalonParca AdiParca NoAdetTipApplied Date
15 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) FRONT 		8-97358-874-0 01 1 0911-1108
15 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) FRONT 		8-98081-290-0 01 1 1109-
15 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) FRONT 		8-97358-875-0 01 1 0911-1108
15 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) FRONT 		8-98081-291-0 01 1 1109-
15 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR 		8-97358-876-0 01 1 0911-1108
15 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR 		8-98081-292-0 01 1 1109-
15 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR 		8-97358-877-0 01 1 0911-1108
15 CYLINDER; WHEEL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> (B) REAR 		8-98081-293-0 01 1 1109-
15 CYLINDER; WHEEL,FRT BRK
HYDRO BRAKE BOOSTER<7QQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT 		8-97353-573-0 01 1 0911-
15 CYLINDER; WHEEL,FRT BRK
HYDRO BRAKE BOOSTER<7QQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) FRONT 		8-97353-574-0 01 1 0911-
15 CYLINDER; WHEEL,FRT BRK
HYDRO BRAKE BOOSTER<7QQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) REAR 		8-97353-575-0 01 1 0911-
15 CYLINDER; WHEEL,FRT BRK
HYDRO BRAKE BOOSTER<7QQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) REAR 		8-97353-576-0 01 1 0911-
15 CYLINDER; WHEEL,FRT BRK
(A) REAR 		8-97144-796-0 01 1 0504-0910
15 CYLINDER; WHEEL,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ> (A) REAR 		8-97144-796-0 01 1 0911-
15 CYLINDER; WHEEL,FRT BRK
(A) FRONT 		8-97144-798-0 01 1 0504-0910
15 CYLINDER; WHEEL,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ> (A) FRONT 		8-97144-798-0 01 1 0911-
15 CYLINDER; WHEEL,FRT BRK
(A) REAR 		8-97144-795-0 01 1 0504-0910
15 CYLINDER; WHEEL,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ> (A) REAR 		8-97144-795-0 01 1 0911-
15 CYLINDER; WHEEL,FRT BRK
(A) FRONT 		8-97144-797-0 01 1 0504-0910
15 CYLINDER; WHEEL,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ> (A) FRONT 		8-97144-797-0 01 1 0911-
16 SCREW; BLEEDER,FRT BRK 9-47615-027-0 02 1 0504-0710
16 SCREW; BLEEDER,FRT BRK 8-98050-477-0 02 1 0711-
17 CAP; BLEEDER,FRT WHEEL CYL 1-47619-009-0 02 1 0504-0710
17 CAP; BLEEDER,FRT WHEEL CYL 8-98050-479-0 02 1 0711-
18 STOPPER; ADJ SCREW 8-94128-486-0 04 1 0504-0910
18 STOPPER; ADJ SCREW
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94128-486-0 04 1 0911-
19 SCREW; STOPPER SETTING 8-94128-727-0 04 1 0504-0910
19 SCREW; STOPPER SETTING
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94128-727-0 04 1 0911-
24 PISTON; FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-729-0 02 1 0911-1108
24 PISTON; FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-731-0 02 1 1109-
24 PISTON; FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-730-0 02 1 0911-1108
24 PISTON; FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-732-0 02 1 1109-
24 PISTON; FRT WHEEL CYL
HYDRO BRAKE BOOSTER<7QQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97353-579-0 04 1 0911-
24 PISTON; FRT WHEEL CYL 8-94414-700-1 04 1 0504-0910
24 PISTON; FRT WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ> 		8-94414-700-1 04 1 0911-
25 SCREW; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-741-0 02 1 0911-1108
25 SCREW; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-741-0 02 1 1109-
25 SCREW; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-742-0 02 1 0911-1108
25 SCREW; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-742-0 02 1 1109-
25 SCREW; ADJ,FRT WHEEL CYL 8-94414-702-0 04 1 0504-0910
25 SCREW; ADJ,FRT WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-94414-702-0 04 1 0911-
26 CUP SET; FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		5-87832-069-0 01 1 0911-1108
26 CUP SET; FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		5-87832-051-0 01 1 1109-
26 CUP SET; FRT WHEEL CYL
HYDRO BRAKE BOOSTER<7QQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		5-87832-080-0 01 1 0911-
26 CUP SET; FRT WHEEL CYL 5-87831-598-0 01 1 0504-0910
26 CUP SET; FRT WHEEL CYL
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ> 		5-87831-598-0 01 1 0911-
252 GEAR; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97358-894-0 02 1 0911-1108
252 GEAR; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97358-894-0 02 1 1109-
252 GEAR; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97358-895-0 02 1 0911-1108
252 GEAR; ADJ,FRT WHEEL CYL
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97358-895-0 02 1 1109-
253 WASHER; THRUST
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-736-0 04 1 0911-1108
253 WASHER; THRUST
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-736-0 04 1 1109-
254 SPRING; ADJ LEVER
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-745-0 04 1 0911-1108
254 SPRING; ADJ LEVER
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-745-0 04 1 1109-
255 LEVER; ADJ
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-743-0 02 1 0911-1108
255 LEVER; ADJ
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-743-0 02 1 1109-
255 LEVER; ADJ
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-744-0 02 1 0911-1108
255 LEVER; ADJ
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-744-0 02 1 1109-
302 SCREW; ADJ LEVER
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-747-0 04 1 0911-1108
302 SCREW; ADJ LEVER
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97349-747-0 04 1 1109-

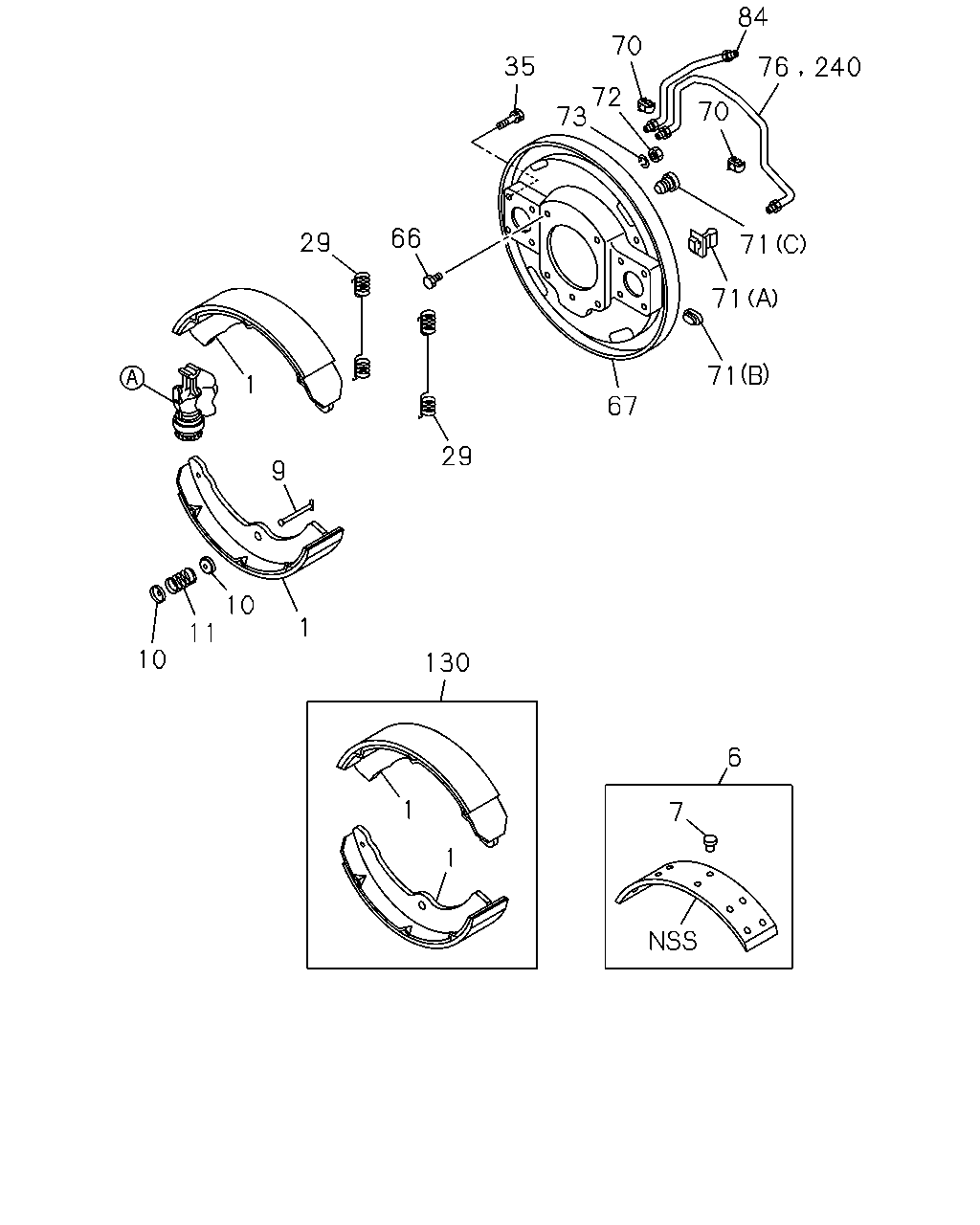

çizim 56730
84 70 35 72 73 70 66 29 71 71 71 1 67 29 9 10 1 11 10 130 6 1 7 1 76 240
BalonParca AdiParca NoAdetTipApplied Date
1 SHOE; BRK,FRT 8-97188-455-0 04 1 0504-
6 LINING KIT; FRT BRK 5-87831-692-0 01 1 0504-
6 LINING KIT; FRT BRK
BEST VALUE PARTS 		5-87610-119-0 01 1 0610-
7 RIVET; LINING,FRT BRK 1-09732-029-0 64 1 0504-
9 PIN; SHOE HOLDER 8-97122-870-0 04 1 0504-
10 CUP; SHOE HOLDING 9-47165-096-0 08 1 0504-
11 SPRING; SHOE HOLDING 5-09580-101-1 04 1 0504-
29 SPRING; RETURN,FRT BRK SHOE 8-97122-869-0 04 1 0504-
35 BOLT; FRT WHEEL CYL 8-97081-305-0 16 1 0504-
66 BOLT; OIL SHIELD COVER
M14X35 		8-97122-853-2 08 1 0504-0611
66 BOLT; OIL SHIELD COVER
M14X40 		8-98007-879-0 08 1 0612-
67 PLATE; BACK,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97358-868-0 01 1 0911-1108
67 PLATE; BACK,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97358-868-0 01 1 1109-
67 PLATE; BACK,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97358-869-0 01 1 0911-1108
67 PLATE; BACK,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97358-869-0 01 1 1109-
67 PLATE; BACK,FRT BRK
HYDRO BRAKE BOOSTER<7QQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97160-410-0 01 1 0911-
67 PLATE; BACK,FRT BRK
HYDRO BRAKE BOOSTER<7QQ> EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97160-411-0 01 1 0911-
67 PLATE; BACK,FRT BRK 8-97122-859-0 01 1 0504-0910
67 PLATE; BACK,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ> 		8-97122-859-0 01 1 0911-
67 PLATE; BACK,FRT BRK 8-97122-858-0 01 1 0504-0910
67 PLATE; BACK,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>,HYDRO BRAKE BOOSTER<7QQ> 		8-97122-858-0 01 1 0911-
70 CLIP; PIPE HOLD 8-97022-086-0 04 1 0504-
71 GROMMET; CHECK HOLE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		1-47154-008-0 04 1 0911-1108
71 GROMMET; CHECK HOLE
4 WHEEL ANTI LOCK BRAKE<JE5> (C) 		1-47154-008-0 04 1 1109-
71 GROMMET; CHECK HOLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97017-507-0 02 1 0911-
71 GROMMET; CHECK HOLE
(B) 		8-97017-507-0 02 1 0504-0910
71 GROMMET; CHECK HOLE
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97017-507-0 06 1 0911-1108
71 GROMMET; CHECK HOLE
4 WHEEL ANTI LOCK BRAKE<JE5> (B) 		8-97017-507-0 06 1 1109-
71 GROMMET; CHECK HOLE
(A) 		8-97044-742-1 02 1 0504-0910
71 GROMMET; CHECK HOLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (A) 		8-97044-742-1 02 1 0911-
72 NUT; OIL SHIELD COVER
M14 		9-99110-514-0 08 1 0504-0512
72 NUT; OIL SHIELD COVER
M14 		0-91110-514-0 08 1 0601-
73 WASHER; LK,OIL SHIELD COVER
ID=14.2 		9-09150-614-0 08 1 0504-0603
73 WASHER; LK,OIL SHIELD COVER
ID=14.2 		0-91510-614-0 08 1 0604-0611
73 WASHER; LK,OIL SHIELD COVER
ID=14.2 		0-91510-814-0 08 1 0612-
76 PIPE; OIL,BACKWARD,FRT BRK 8-97079-847-0 02 1 0504-0910
76 PIPE; OIL,BACKWARD,FRT BRK
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97079-847-0 02 1 0911-
84 PIPE; BRK,WHEEL CYL TO HOSE 8-97039-677-0 01 1 0504-
84 PIPE; BRK,WHEEL CYL TO HOSE 8-97039-676-0 01 1 0504-
130 SHOE KIT; BRK,FRT 5-87831-693-0 01 1 0504-
240 PIPE; OIL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97079-847-0 02 1 0911-1108
240 PIPE; OIL,FRT BRK
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97079-847-0 02 1 1109-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
