2-81 — POWER TAKE OFF; TRANSMISSION SIDE (#21476) — 48 parça

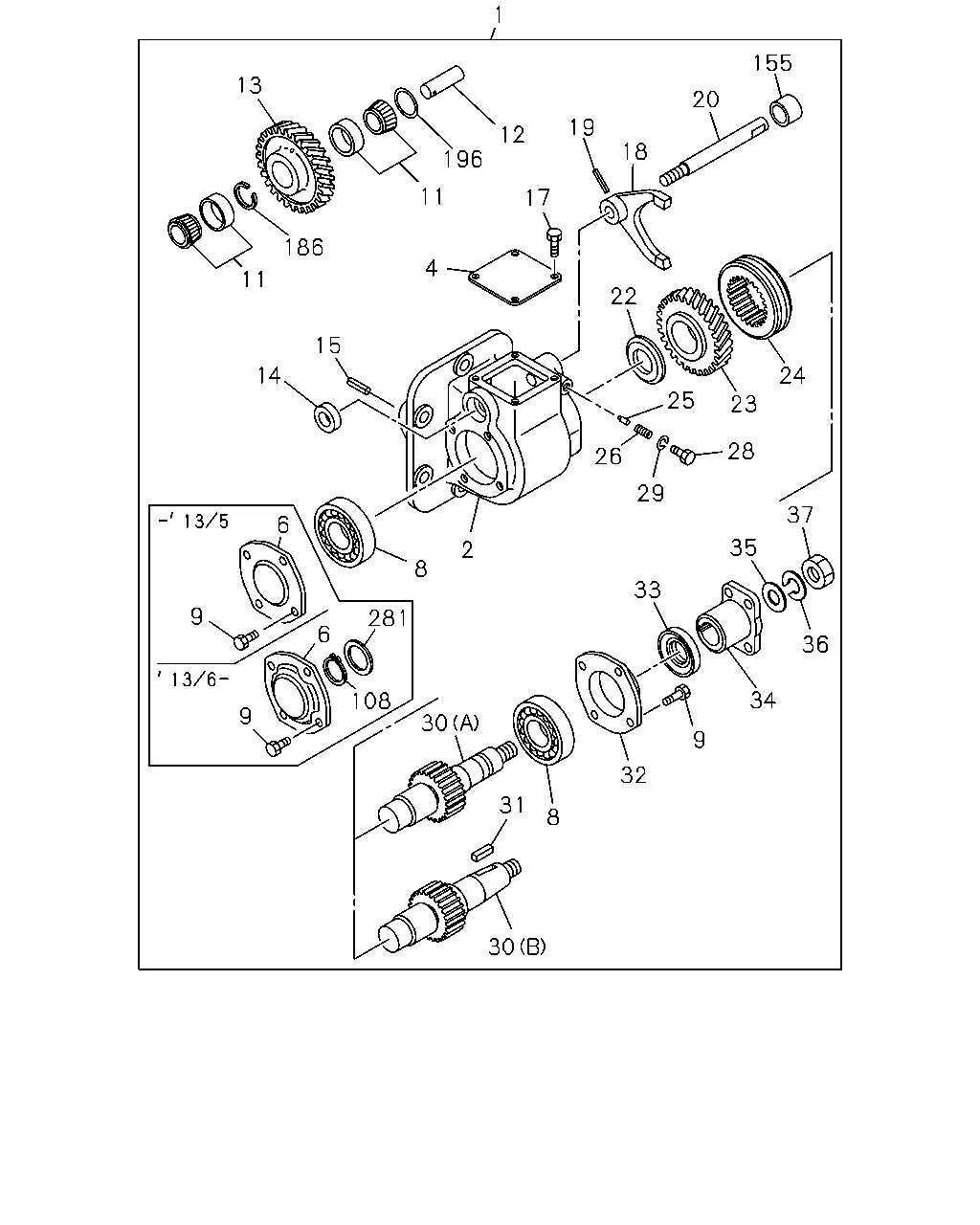

çizim 100970
1 13 11 186 14 15 4 11 196 12 17 19 18 20 155 22 25 23 24 26 28 29 2 8 6 9 9 6 281 108 30 31 30 8 32 9 34 36 35 37 33
BalonParca AdiParca NoAdetTipApplied Date
1 POWER TAKE OFF ASM; TRANS SIDE
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) IDENTIFICATION=YG 		8-97286-908-7 01 1 0610-1210
1 POWER TAKE OFF ASM; TRANS SIDE
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) IDENTIFICATION=YG 		8-98223-523-0 01 1 1211-1305
1 POWER TAKE OFF ASM; TRANS SIDE
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) IDENTIFICATION=YG 		8-98233-783-1 01 1 1306-
2 CASE; GEAR,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		8-97308-689-2 01 1 0610-1409
2 CASE; GEAR,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		8-98282-381-0 01 1 1410-
4 COVER; UPR,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		8-98046-613-0 01 1 0610-
6 COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		8-98046-612-0 01 1 0610-1305
6 COVER; FRT,OUTPUT SHAFT,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		8-98233-778-0 01 1 1306-
8 BEARING; OUTPUT SHAFT,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) ID=25 OD=62 		8-94343-031-1 02 1 0610-
9 BOLT; OUTPUT SHAFT COVER,TRANS SIDE PT
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) M8X20 FLANGE 		0-28050-820-0 08 1 0610-
11 BEARING; IDLE GEAR,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) NSK 		8-97106-734-0 02 1 0610-
12 SHAFT; IDLE GEAR,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		9-38211-606-0 01 1 0610-
13 GEAR; IDLE,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) Z=31 		8-97308-700-0 01 1 0610-
14 SEAL; OIL,GEAR CASE,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		8-98028-789-0 01 1 0610-
15 PIN; SPR,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) L=16 		9-09878-613-0 01 1 0610-
17 BOLT; UPR COVER,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) M8X20 FLANGE 		0-28050-820-0 04 1 0610-
18 ARM; GEAR SHIFT,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		8-97224-702-0 01 1 0610-
19 PIN; SPR,SHIFT ARM,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) L=25 OD=5 		8-94135-771-0 01 1 0610-
20 ROD; GEAR SHIFTER,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		8-98046-623-0 01 1 0610-
22 COLLAR; DIST,OUTPUT SHAFT,TRANS SIDE P
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		9-38245-603-1 01 1 0610-
23 GEAR; OUTPUT,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) Z=27 		8-97308-714-0 01 1 0610-0805
23 GEAR; OUTPUT,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) Z=27 		8-98120-609-0 01 1 0806-
24 SLEEVE; DOG CLU,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		8-97231-316-1 01 1 0610-
25 PIN; LK,SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		8-94169-071-0 01 1 0610-
26 SPRING; SHIFTER ROD,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		9-09940-380-0 01 1 0610-
28 BOLT; SPRING,SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) M8 		8-98038-424-0 01 1 0610-
29 WASHER; LK,SPRING,SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) ID=8.2 		0-91510-808-0 01 1 0610-
30 SHAFT; OUTPUT,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) (A) 		8-97118-183-1 01 1 0610-1210
30 SHAFT; OUTPUT,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) (B) 		8-98223-518-0 01 1 1211-1305
30 SHAFT; OUTPUT,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) (B) 		8-98233-777-0 01 1 1306-
31 KEY; OUTPUT SHAFT,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) L=25 		8-98068-088-0 01 1 1211-
32 COVER; RR,OUTPUT SHAFT,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		8-97305-794-0 01 1 0610-
33 SEAL; OIL,OUTPUT SHAFT,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		1-38159-007-0 01 1 0610-
34 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		8-98046-624-0 01 1 0610-1210
34 FLANGE; OUTPUT SHAFT,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		8-98223-519-0 01 1 1211-
35 WASHER; PL,FLANGE FIX,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) ID=15 		0-91610-514-0 01 1 0610-
36 WASHER; LK,FLANGE FIX,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) ID=14.2 		0-91510-814-0 01 1 0610-
37 NUT; FLANGE FIX,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) M14 		0-91111-514-0 01 1 0610-
108 RING; SNAP,OUTPUT SHAFT,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) ID=23.2 		9-09180-025-0 01 1 1306-
155 PLUG; SHIFTER ROD
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		8-98037-770-0 01 1 0610-
186 RING; SNAP,IDLE GEAR,TRANS SIDE PTO
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		8-97106-730-0 01 1 0610-
196 PIECE; THRUST
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) T=1.50 		8-97106-724-0 02 1 0610-
196 PIECE; THRUST
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) T=1.60 		8-97106-725-0 02 1 0610-
196 PIECE; THRUST
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) T=1.65 		8-97106-726-0 02 1 0610-
196 PIECE; THRUST
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) T=1.70 		8-97106-727-0 02 1 0610-
196 PIECE; THRUST
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) T=1.80 		8-97106-728-0 02 1 0610-
196 PIECE; THRUST
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) T=1.85 		8-97106-729-0 02 1 0610-
281 SHIM; OUTPUT SHAFT
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) T=1.85 		8-97106-729-0 01 1 1306-
