◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51038 - NQR(IRAN) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#21472) — 116 parça

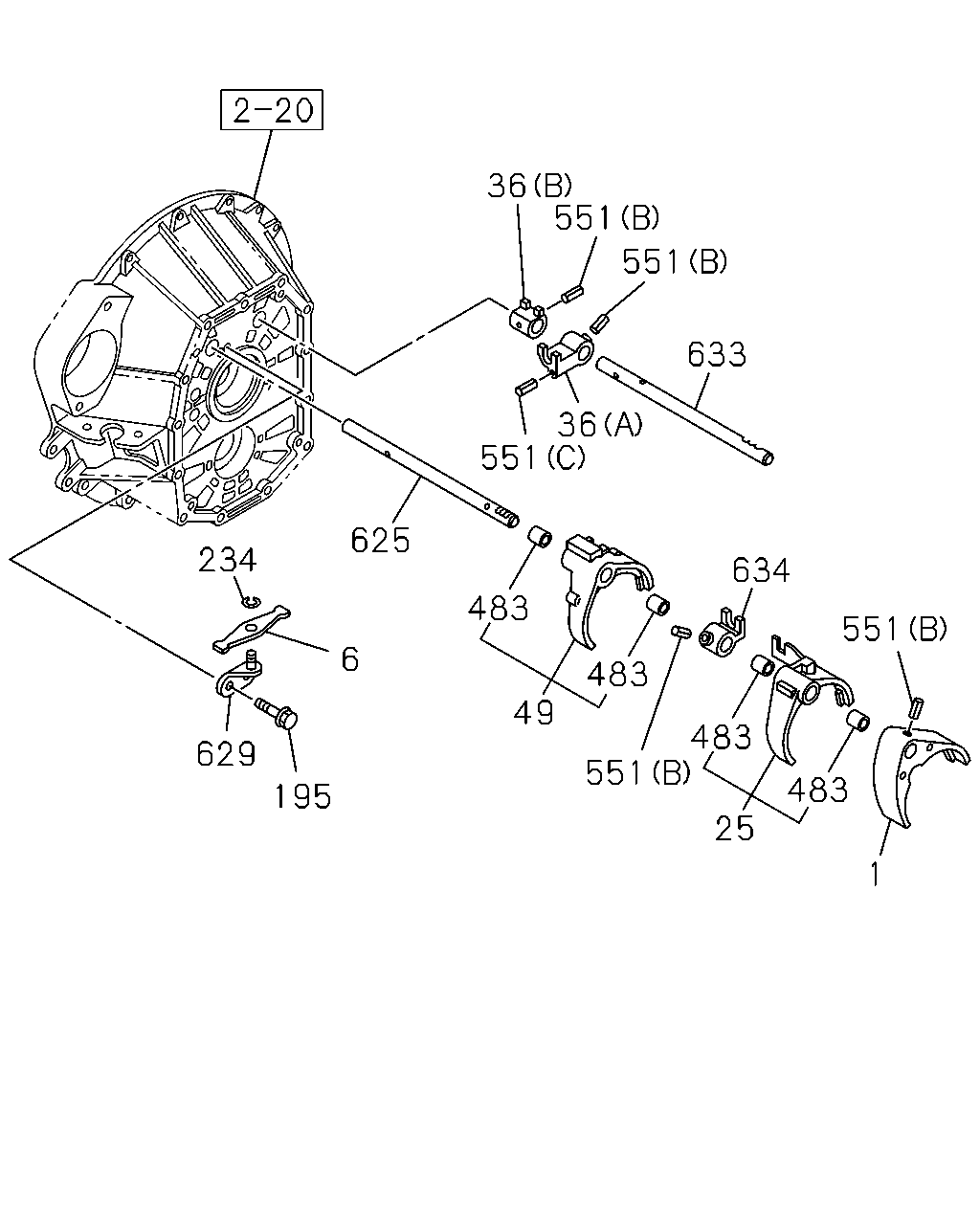

çizim 55910
36 551 551 633 36 551 625 234 634 483 551 6 483 49 483 551 629 483 195 25 1
BalonParca AdiParca NoAdetTipApplied Date
1 ARM; SHIFT,1ST & REV
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97241-320-2 01 1 0504-0609
1 ARM; SHIFT,1ST & REV
4HE1-TCN ENG(RDR) 		8-97241-320-2 01 1 0610-
6 LEVER; RELAY
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97241-344-0 01 1 0504-0609
6 LEVER; RELAY
4HE1-TCN ENG(RDR) 		8-97241-344-0 01 1 0610-
25 ARM; SHIFT,2ND & 3RD
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97362-731-1 01 1 0504-0609
25 ARM; SHIFT,2ND & 3RD
4HE1-TCN ENG(RDR) 		8-97362-731-2 01 1 0610-1407
25 ARM; SHIFT,2ND & 3RD
4HE1-TCN ENG(RDR) 		8-98255-926-1 01 1 1408-
36 BLOCK; SHIFT,4TH & 5TH
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-97241-329-1 01 1 0504-0609
36 BLOCK; SHIFT,4TH & 5TH
4HE1-TCN ENG(RDR) (A) 		8-97241-329-1 01 1 0610-
36 BLOCK; SHIFT,4TH & 5TH
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) (B) 		8-97241-330-0 01 1 0504-0609
36 BLOCK; SHIFT,4TH & 5TH
4HE1-TCN ENG(RDR) (B) 		8-97241-330-0 01 1 0610-
49 ARM; SHIFT,4TH & 5TH
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97258-716-0 01 1 0504-0609
49 ARM; SHIFT,4TH & 5TH
4HE1-TCN ENG(RDR) 		8-97258-716-0 01 1 0610-
195 BOLT
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) M10X28 FLANGE REAMER 		1-09040-089-1 02 1 0504-0604
195 BOLT
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0605-0609
195 BOLT
4HE1-TCN ENG(RDR) M10X28 FLANGE REAMER 		8-97365-375-0 02 1 0610-
234 RING; SNAP
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) ID=12 		8-94460-357-0 01 1 0504-0609
234 RING; SNAP
4HE1-TCN ENG(RDR) ID=12 		8-94460-357-0 01 1 0610-
483 BUSHING; SHIFT ARM
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97241-326-2 04 1 0504-0609
483 BUSHING; SHIFT ARM
4HE1-TCN ENG(RDR) 		8-97241-326-2 04 1 0610-
551 PIN; SPRING
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) (A) L=25 OD=5 		1-09748-032-0 01 1 0504-0609
551 PIN; SPRING
4HE1-TCN ENG(RDR) (A) L=25 OD=5 		1-09748-032-0 01 1 0610-
551 PIN; SPRING
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) (B) L=32 		8-97011-596-2 04 1 0504-0609
551 PIN; SPRING
4HE1-TCN ENG(RDR) (B) L=32 		8-97011-596-2 04 1 0610-
551 PIN; SPRING
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) (C) L=20 		8-97241-340-0 01 1 0504-0609
551 PIN; SPRING
4HE1-TCN ENG(RDR) (C) L=20 		8-97241-340-0 01 1 0610-
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97362-741-0 01 1 0504-0609
625 ROD; GEAR SHIFT,LOW,REV,2ND & 3RD
4HE1-TCN ENG(RDR) 		8-97362-741-0 01 1 0610-
629 BRIDGE; LEVER
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97237-107-1 01 1 0504-0609
629 BRIDGE; LEVER
4HE1-TCN ENG(RDR) 		8-97237-107-1 01 1 0610-
633 ROD; GEAR SHIFT,4TH,5TH
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97362-743-0 01 1 0504-0609
633 ROD; GEAR SHIFT,4TH,5TH
4HE1-TCN ENG(RDR) 		8-97362-743-0 01 1 0610-
634 BLOCK; SHIFT,LOW,REV
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97241-327-1 01 1 0504-0609
634 BLOCK; SHIFT,LOW,REV
4HE1-TCN ENG(RDR) 		8-97241-327-1 01 1 0610-

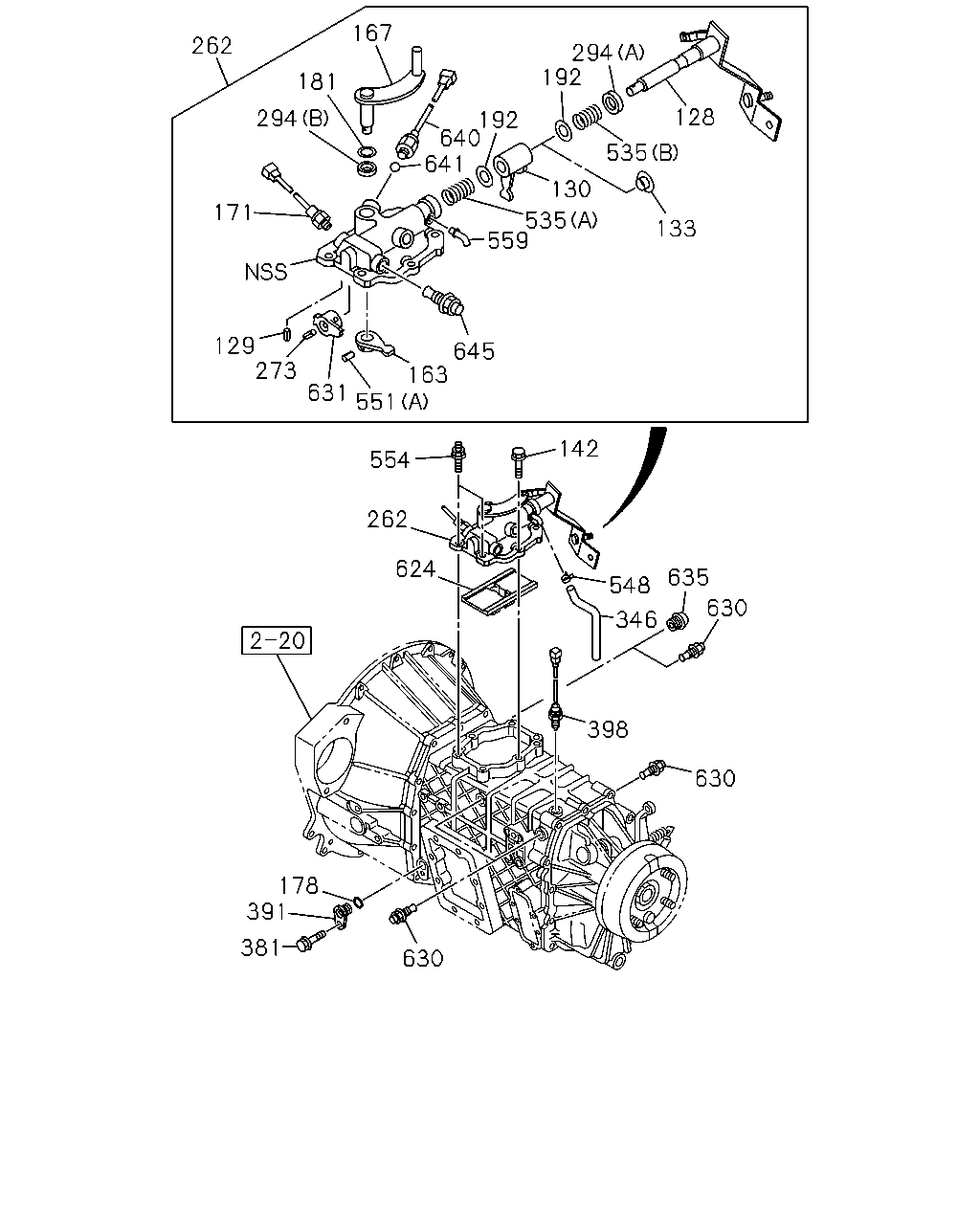

çizim 100956
167 262 294 192 181 128 294 192 640 641 535 130 171 535 559 133 129 273 645 163 551 631 142 554 262 624 635 548 630 346 398 630 178 391 381 630
BalonParca AdiParca NoAdetTipApplied Date
128 LEVER; SHIFT,EXTERNAL
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97305-725-0 01 1 0504-0609
128 LEVER; SHIFT,EXTERNAL
4HE1-TCN ENG(RDR) 		8-97305-725-0 01 1 0610-
129 PIN; SPR,SHIFT
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) L=30 OD=4 		1-09748-031-0 01 1 0504-0609
129 PIN; SPR,SHIFT
4HE1-TCN ENG(RDR) L=30 OD=4 		1-09748-031-0 01 1 0610-
130 LEVER; SHIFT,INTERNAL
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97306-647-0 01 1 0504-0609
130 LEVER; SHIFT,INTERNAL
4HE1-TCN ENG(RDR) 		8-97306-647-0 01 1 0610-
133 SEAT; SPR
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97305-667-0 01 1 0504-0609
133 SEAT; SPR
4HE1-TCN ENG(RDR) 		8-97305-667-0 01 1 0610-
142 BOLT; QUAD BOX
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) M8X22 FLANGE 		8-94448-815-3 04 1 0504-0604
142 BOLT; QUAD BOX
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) M8X22 FLANGE 		8-97365-376-0 04 1 0605-0609
142 BOLT; QUAD BOX
4HE1-TCN ENG(RDR) M8X22 FLANGE 		8-97365-376-0 04 1 0610-
163 LEVER; SELECT,INTERNAL
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97305-663-0 01 1 0504-0609
163 LEVER; SELECT,INTERNAL
4HE1-TCN ENG(RDR) 		8-97305-663-0 01 1 0610-
167 LEVER; SELECT,EXTERNAL
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97305-665-0 01 1 0504-0609
167 LEVER; SELECT,EXTERNAL
4HE1-TCN ENG(RDR) 		8-97305-665-0 01 1 0610-0611
167 LEVER; SELECT,EXTERNAL
4HE1-TCN ENG(RDR) 		8-98039-435-0 01 1 0612-
171 SWITCH; NEUTRAL
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97316-688-1 01 1 0504-0609
171 SWITCH; NEUTRAL
4HE1-TCN ENG(RDR) 		8-97316-688-1 01 1 0610-0611
171 SWITCH; NEUTRAL
4HE1-TCN ENG(RDR) 		8-98023-050-0 01 1 0612-1312
171 SWITCH; NEUTRAL
4HE1-TCN ENG(RDR) 		8-98242-172-1 01 1 1401-
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		9-09567-113-0 01 1 0504-0609
178 GASKET; PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCN ENG(RDR) 		9-09567-113-0 01 1 0610-
181 WASHER; PL,SELECT LEVER
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97367-327-0 01 1 0504-0609
181 WASHER; PL,SELECT LEVER
4HE1-TCN ENG(RDR) 		8-97367-327-0 01 1 0610-
192 WASHER; PL
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97305-661-0 01 1 0504-0609
192 WASHER; PL
4HE1-TCN ENG(RDR) 		8-97305-661-0 01 1 0610-
262 BOX ASM; SHIFT CONT
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97362-751-1 01 1 0504-0609
262 BOX ASM; SHIFT CONT
4HE1-TCN ENG(RDR) 		8-97362-751-2 01 1 0610-1312
262 BOX ASM; SHIFT CONT
4HE1-TCN ENG(RDR) 		8-98241-000-1 01 1 1401-
273 PIN; SPR,STOPPER
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) D=4.2 L=25 		8-97103-142-0 01 1 0504-0609
273 PIN; SPR,STOPPER
4HE1-TCN ENG(RDR) D=4.2 L=25 		8-97103-142-0 01 1 0610-
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) (B) 		8-97305-662-0 01 1 0504-0609
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCN ENG(RDR) (B) 		8-97305-662-0 01 1 0610-
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-97363-225-0 01 1 0504-0609
294 SEAL; OIL,SELECT
ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCN ENG(RDR) (A) 		8-97363-225-0 01 1 0610-
346 HOSE; AIR
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97309-855-0 01 1 0504-0609
346 HOSE; AIR
4HE1-TCN ENG(RDR) 		8-97309-855-0 01 1 0610-
381 BOLT
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) M6X16 FLANGE 		0-28680-616-0 01 1 0504-0512
381 BOLT
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) M6X16 FLANGE 		0-28650-616-0 01 1 0601-0609
381 BOLT
4HE1-TCN ENG(RDR) M6X16 FLANGE 		0-28650-616-0 01 1 0610-
391 PLUG; SW HOLE
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97300-273-1 01 1 0504-0609
391 PLUG; SW HOLE
4HE1-TCN ENG(RDR) 		8-97300-273-1 01 1 0610-
398 SWITCH; REV LAMP
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97316-688-1 01 1 0504-0604
398 SWITCH; REV LAMP
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-98023-050-0 01 1 0605-0609
398 SWITCH; REV LAMP
4HE1-TCN ENG(RDR) 		8-98023-050-0 01 1 0610-1312
398 SWITCH; REV LAMP
4HE1-TCN ENG(RDR) 		8-98242-173-1 01 1 1401-
535 SPRING; LEVER
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) (A) 		8-97323-771-0 01 1 0504-0609
535 SPRING; LEVER
4HE1-TCN ENG(RDR) (A) 		8-97323-771-0 01 1 0610-
535 SPRING; LEVER
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) (B) 		8-97323-772-0 01 1 0504-0609
535 SPRING; LEVER
4HE1-TCN ENG(RDR) (B) 		8-97323-772-0 01 1 0610-
548 CLIP; HOSE
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97031-674-0 01 1 0504-0609
548 CLIP; HOSE
4HE1-TCN ENG(RDR) 		8-97031-674-0 01 1 0610-
551 PIN; SPRING
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) (A) L=25 OD=5 		1-09748-032-0 01 1 0504-0609
551 PIN; SPRING
4HE1-TCN ENG(RDR) (A) L=25 OD=5 		1-09748-032-0 01 1 0610-
551 PIN; SPRING
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) (B) L=32 		8-97011-596-2 04 1 0504-0609
551 PIN; SPRING
4HE1-TCN ENG(RDR) (B) L=32 		8-97011-596-2 04 1 0610-
551 PIN; SPRING
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) (C) L=20 		8-97241-340-0 01 1 0504-0609
551 PIN; SPRING
4HE1-TCN ENG(RDR) (C) L=20 		8-97241-340-0 01 1 0610-
554 STUD; CONT BOX
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) M8X15,M8X25 L=49 		8-97352-677-0 02 1 0504-0604
554 STUD; CONT BOX
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) M8X15,M8X25 L=49 		8-97365-378-0 02 1 0605-0609
554 STUD; CONT BOX
4HE1-TCN ENG(RDR) M8X15,M8X25 L=49 		8-97365-378-0 02 1 0610-
559 PIPE; BREATHER
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97305-517-0 01 1 0504-0604
559 PIPE; BREATHER
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97358-318-0 01 1 0605-0609
559 PIPE; BREATHER
4HE1-TCN ENG(RDR) 		8-97358-318-0 01 1 0610-
624 PLATE; INTER LOCK
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97241-317-2 01 1 0504-0609
624 PLATE; INTER LOCK
4HE1-TCN ENG(RDR) 		8-97241-317-3 01 1 0610-
630 DETENT ASM
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97241-341-0 03 1 0504-0604
630 DETENT ASM
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-98019-536-0 03 1 0605-0609
630 DETENT ASM
4HE1-TCN ENG(RDR) 		8-98019-536-0 03 1 0610-
631 STOPPER; SPRING
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97305-666-0 01 1 0504-0609
631 STOPPER; SPRING
4HE1-TCN ENG(RDR) 		8-97305-666-0 01 1 0610-
635 PLUG; DETENT
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97229-313-2 01 1 0504-0609
635 PLUG; DETENT
4HE1-TCN ENG(RDR) 		8-97229-313-2 01 1 0610-0611
635 PLUG; DETENT
4HE1-TCN ENG(RDR) 		8-97380-892-0 01 1 0612-
640 SWITCH; SELECT
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97316-687-1 01 1 0504-0609
640 SWITCH; SELECT
4HE1-TCN ENG(RDR) 		8-97316-687-1 01 1 0610-0611
640 SWITCH; SELECT
4HE1-TCN ENG(RDR) 		8-98023-051-0 01 1 0612-
641 BALL
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97305-668-0 01 1 0504-0609
641 BALL
4HE1-TCN ENG(RDR) 		8-97305-668-0 01 1 0610-
645 DETENT ASM
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97241-341-0 01 1 0504-0604
645 DETENT ASM
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-98019-536-0 01 1 0605-0609
645 DETENT ASM
4HE1-TCN ENG(RDR) 		8-98019-536-0 01 1 0610-
