Isuzu WW
▶
TRUCKS
▶
CHR
▶
10648 - CHR/CJR/CQR
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-80 - WINDSHIELD WIPER AND WASHER
▶
8-80 — WINDSHIELD WIPER AND WASHER
(#2147) — 38 parça
Tümü
A - LVR5FB
B - LVR6FB
◀

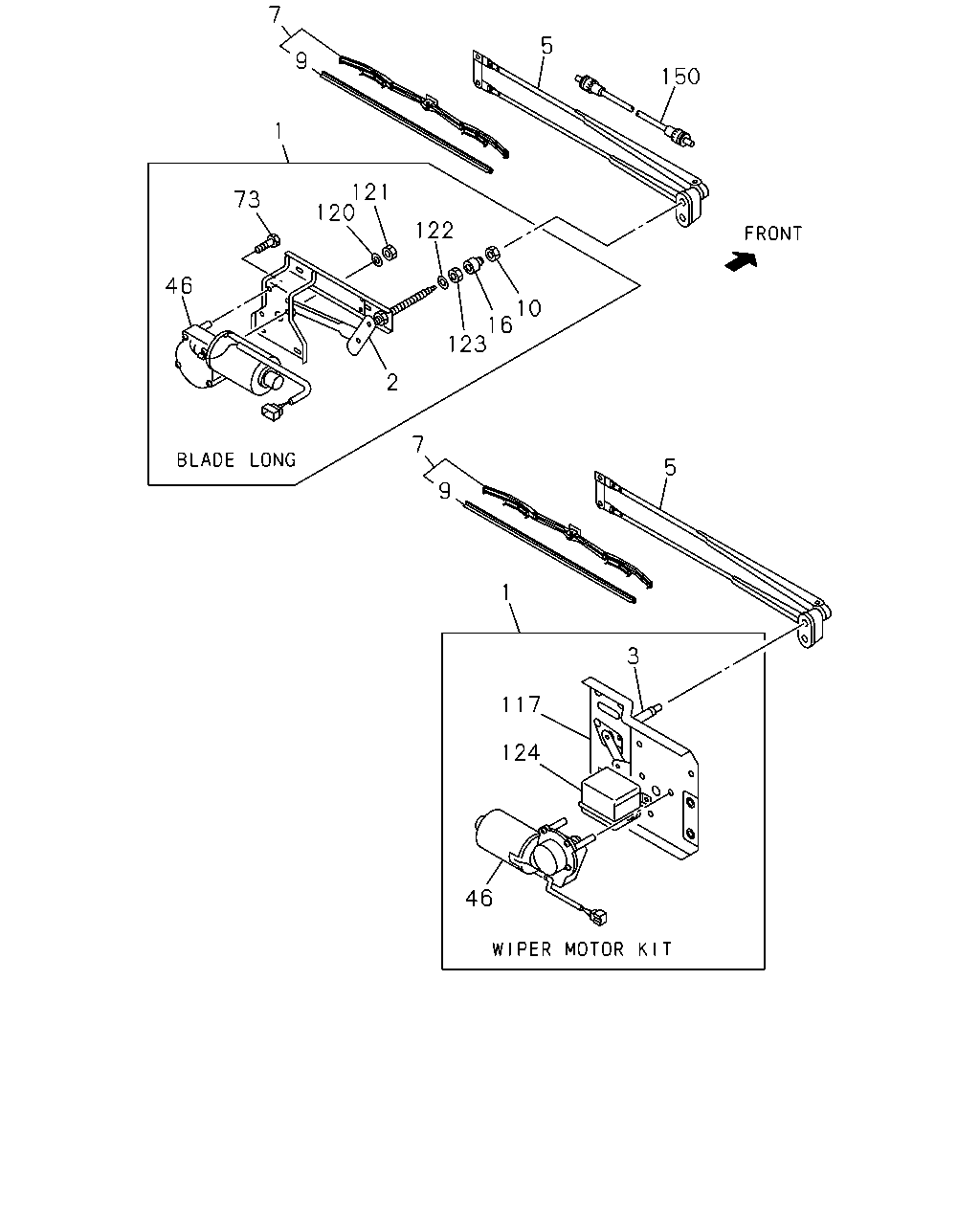

[880A] WIPER ARM,BLADE,MOTOR (30 parça)

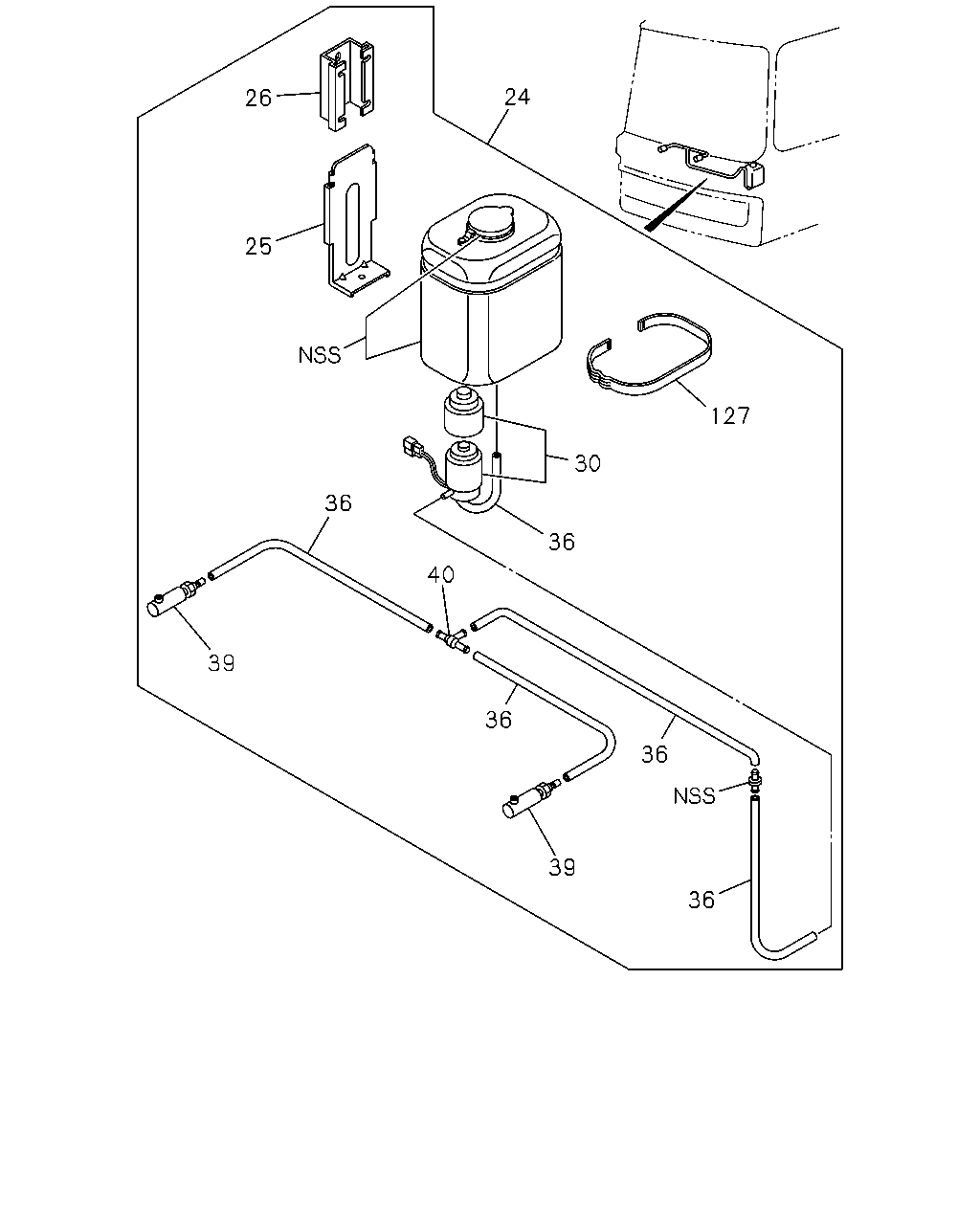

[880A] WASHER TANK,HOSE,NOZZLE (8 parça)
▶
7
5
9
150
1
121
120
73
122
46
10
16
123
2
7
5
9
1
3
117
124
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
LINK ASM; FRT WIPER
WIPER BLADE LONG<YD4>
1-83310-073-0
01
1
9001-
●
●
1
LINK ASM; FRT WIPER
WIPER BLADE LONG<YD4>
1-83310-072-0
01
1
9001-
●
●
1
LINK ASM; FRT WIPER
WIPER MOTOR KIT<ST7>
9-83571-695-3
01
1
9001-
●
●
1
LINK ASM; FRT WIPER
WIPER MOTOR KIT<ST7>
9-83571-694-4
01
1
9001-
●
●
2
LINK; FRT WIPER
WIPER BLADE LONG<YD4>
1-83314-117-0
01
1
9001-
●
●
2
LINK; FRT WIPER
WIPER BLADE LONG<YD4>
1-83312-083-0
01
1
9001-
●
●
3
PIVOT ASM; FRT WIPER
WIPER MOTOR KIT<ST7>
9-83572-728-0
04
1
9001-
●
●
5
ARM; WIPER
WIPER BLADE LONG<YD4>
1-83314-055-0
01
1
9001-
●
●
5
ARM; WIPER
WIPER BLADE LONG<YD4>
1-83314-054-0
01
1
9001-
●
●
5
ARM; WIPER
WIPER MOTOR KIT<ST7>
9-83572-649-0
01
1
9001-
●
●
5
ARM; WIPER
WIPER MOTOR KIT<ST7>
9-83572-650-0
01
1
9001-
●
●
7
BLADE; WIPER
WIPER BLADE LONG<YD4>
1-83315-024-1
02
1
9001-
●
●
7
BLADE; WIPER
WIPER MOTOR KIT<ST7>
1-83315-016-1
02
1
9001-
●
●
9
RUBBER; FRT WIPER BLADE
WIPER BLADE LONG<YD4>
1-83355-007-0
02
1
9001-
●
●
9
RUBBER; FRT WIPER BLADE
WIPER MOTOR KIT<ST7>
1-83355-008-0
02
1
9001-
●
●
10
NUT; WIPER ARM TO WIPER PIVOT
WIPER BLADE LONG<YD4>
1-83318-049-0
02
1
9001-
●
●
16
SEAL; BALL JOINT
WIPER BLADE LONG<YD4>
1-83319-028-0
02
1
9001-
●
●
46
MOTOR ASM; FRT WINDSHIELD WIPER
WIPER BLADE LONG<YD4>
1-83311-060-0
01
1
9001-
●
●
46
MOTOR ASM; FRT WINDSHIELD WIPER
WIPER BLADE LONG<YD4>
1-83311-057-0
01
1
9001-
●
●
46
MOTOR ASM; FRT WINDSHIELD WIPER
WIPER MOTOR KIT<ST7>
9-83571-394-0
01
1
9001-
●
●
46
MOTOR ASM; FRT WINDSHIELD WIPER
WIPER MOTOR KIT<ST7>
9-83571-393-0
01
1
9001-
●
●
73
BOLT
WIPER BLADE LONG<YD4>
1-83318-079-0
06
1
9001-
●
●
117
BRACKET; PIVOT FRT WIPER LINK
WIPER MOTOR KIT<ST7>
9-83574-109-0
01
1
9001-
●
●
117
BRACKET; PIVOT FRT WIPER LINK
WIPER MOTOR KIT<ST7>
9-83574-108-0
01
1
9001-
●
●
120
WASHER; ARM TO BRKT
WIPER BLADE LONG<YD4>
1-83318-045-0
02
1
9001-
●
●
121
NUT; ARM TO BRKT
WIPER BLADE LONG<YD4>
1-83318-044-0
02
1
9001-
●
●
122
WASHER; PIVOT FIX,FRT WIPER
WIPER BLADE LONG<YD4>
1-83319-034-0
02
1
9001-
●
●
123
NUT; PIVOT FIX,FRT WIPER
WIPER BLADE LONG<YD4>
1-83319-027-0
02
1
9001-
●
●
124
BOX ASM; CONT,WIPER LINK
WIPER MOTOR KIT<ST7>
9-83575-014-2
02
1
9001-
●
●
150
SHAFT; FLEX,WIPER MOTOR TO WIPER
WIPER BLADE LONG<YD4>
1-83123-393-0
01
1
9001-
●
●
24
26
25
127
30
36
36
40
39
36
36
39
36
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
24
TANK ASM; WASHER
WINDSHIELD WASHER<C11>
1-83330-033-0
01
1
9001-
●
●
25
BRACKET; WASHER TANK
WINDSHIELD WASHER<C11>
9-83561-926-0
01
1
9001-
●
●
26
HANGER; WASHER TANK
WINDSHIELD WASHER<C11>
9-83561-925-0
01
1
9001-
●
●
30
MOTOR ASM; FRT WASHER TANK
WINDSHIELD WASHER<C11>
9-83561-208-0
01
1
9001-
●
●
36
HOSE; WASHER
WINDSHIELD WASHER<C11> SERVICED BY L=10000
9-09914-906-0
01
1
9001-
●
●
39
NOZZLE; WINDSHIELD WASHER
WINDSHIELD WASHER<C11>
1-83334-012-0
02
1
9001-
●
●
40
JOINT; WASHER HOSE
WINDSHIELD WASHER<C11>
9-83565-006-0
01
1
9001-
●
●
127
BAND; WASHER TANK
WINDSHIELD WASHER<C11>
9-83561-928-0
01
1
9001-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
