◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51038 - NQR(IRAN) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-20 - MANUAL TRANSMISSION ASM AND CASE ▶
2-20 — MANUAL TRANSMISSION ASM AND CASE (#21469) — 80 parça

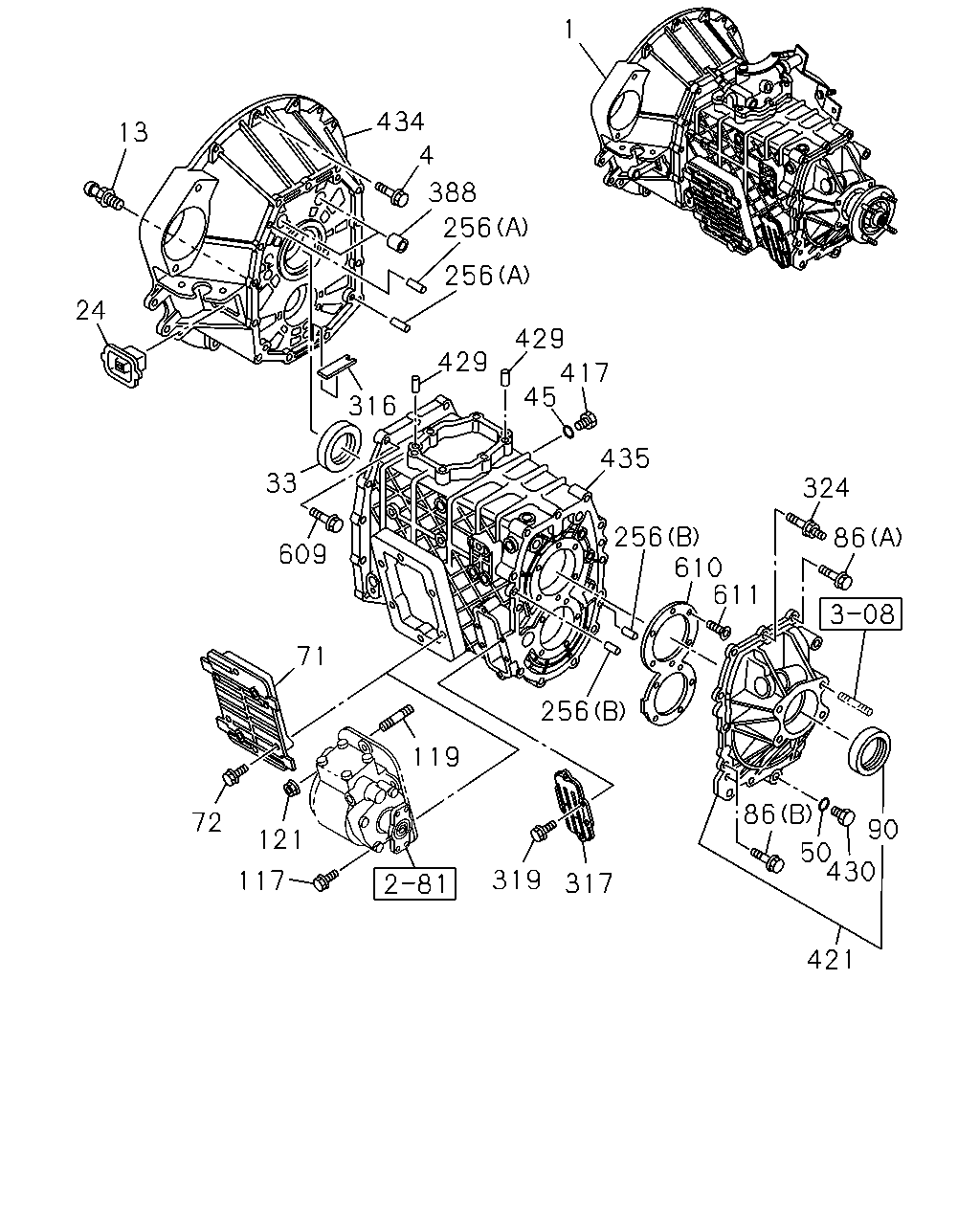

çizim 100972
1 434 13 4 388 256 256 24 429 429 417 45 316 435 33 324 256 610 611 86 609 71 256 119 86 72 90 121 50 430 319 117 317 421
BalonParca AdiParca NoAdetTipApplied Date
1 TRANSMISSION ASM; MANUAL
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97373-917-0 01 1 0504-0609
1 TRANSMISSION ASM; MANUAL
4HE1-TCN ENG(RDR) EXC. PTO TRANSMISSION SIDE(V66) 		8-97373-917-0 01 1 0610-
1 TRANSMISSION ASM; MANUAL
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) 		8-97373-917-0 01 1 0610-
4 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) M10X30 FLANGE 		0-28181-030-0 02 1 0504-0512
4 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) M10X30 FLANGE 		0-28181-030-0 02 1 0504-0512
4 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) M10X30 FLANGE 		0-28151-030-0 02 1 0601-0609
4 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) M10X30 FLANGE 		0-28151-030-0 02 1 0601-0609
4 BOLT; FLYWHEEL HSG
4HE1-TCN ENG(RDR) EXC. PTO TRANSMISSION SIDE(V66) M10X30 FLANGE 		0-28151-030-0 02 1 0610-
4 BOLT; FLYWHEEL HSG
4HE1-TCN ENG(RDR) M10X30 FLANGE 		0-28151-030-0 02 1 0610-
4 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) M10X35 FLANGE 		0-28181-035-0 03 1 0504-0512
4 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) M10X35 FLANGE 		0-28151-035-0 03 1 0601-0609
4 BOLT; FLYWHEEL HSG
4HE1-TCN ENG(RDR) M10X35 FLANGE 		0-28151-035-0 03 1 0610-
4 BOLT; FLYWHEEL HSG
4HE1 ENG(RLY) M10X55 FLANGE 		8-94399-863-1 02 1 0504-0609
4 BOLT; FLYWHEEL HSG
4HE1-TCN ENG(RDR) M10X55 FLANGE 		8-94399-863-1 02 1 0610-0611
4 BOLT; FLYWHEEL HSG
4HE1-TCN ENG(RDR) M10X55 FLANGE 		8-97365-449-0 02 1 0612-
4 BOLT; FLYWHEEL HSG
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) M10X35 FLANGE 		0-28151-035-0 02 1 0610-
13 SUPPORT; SHIFT FORK
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97255-384-1 01 1 0504-0609
13 SUPPORT; SHIFT FORK
4HE1-TCN ENG(RDR) 		8-97255-384-1 01 1 0610-
24 COVER; CHECK HOLE,DUST
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97255-201-0 01 1 0504-0609
24 COVER; CHECK HOLE,DUST
4HE1-TCN ENG(RDR) 		8-97255-201-0 01 1 0610-
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97253-550-0 01 1 0504-0609
33 SEAL; OIL,FRT COVER,T/M
ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCN ENG(RDR) 		8-97253-550-0 01 1 0610-
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) ID=17 		8-97115-712-0 01 1 0504-0609
45 GASKET; FILLER PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCN ENG(RDR) ID=17 		8-97115-712-0 01 1 0610-
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) ID=17 		8-97115-712-0 01 1 0504-0609
50 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCN ENG(RDR) ID=17 		8-97115-712-0 01 1 0610-
71 COVER; SIDE,TRANS CASE
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97252-625-0 01 1 0504-0609
71 COVER; SIDE,TRANS CASE
4HE1-TCN ENG(RDR) EXC. PTO TRANSMISSION SIDE(V66) 		8-97252-625-0 01 1 0610-
72 BOLT; SIDE COVER
EXC. PTO TRANSMISSION SIDE(V66) M10X20 FLANGE 		8-97254-833-0 06 1 0504-0604
72 BOLT; SIDE COVER
EXC. PTO TRANSMISSION SIDE(V66) M10X20 FLANGE 		8-98014-142-0 06 1 0605-
86 BOLT; RR COVER
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) (A) M10X40 FLANGE 		0-28181-040-0 10 1 0504-0512
86 BOLT; RR COVER
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) (A) M10X40 FLANGE 		0-28151-040-0 10 1 0601-0609
86 BOLT; RR COVER
4HE1-TCN ENG(RDR) (A) M10X40 FLANGE 		0-28151-040-0 10 1 0610-
86 BOLT; RR COVER
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) (B) M10X40 FLANGE 		8-97305-392-0 02 1 0504-0604
86 BOLT; RR COVER
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) (B) M10X40 FLANGE 		8-97365-377-0 02 1 0605-0609
86 BOLT; RR COVER
4HE1-TCN ENG(RDR) (B) M10X40 FLANGE 		8-97365-377-0 02 1 0610-
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) NOK 		8-97253-552-1 01 1 0504-0609
90 SEAL; OIL,RR COVER
ALSO INCLUDED IN GASKET SET(M/T). 4HE1-TCN ENG(RDR) NOK 		8-97253-552-1 01 1 0610-
117 BOLT; PTO FIX
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) M10X30 FLANGE 		0-28751-030-0 03 1 0610-
119 STUD; PTO FIX
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) M10X25 L=40 		0-44011-025-0 03 1 0610-
121 NUT; PTO FIX
4HE1-TCN ENG(RDR) PTO TRANSMISSION SIDE(V66) M10 FLANGE 		0-91180-210-0 03 1 0610-
256 PIN; KNOCK
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) (A) OD=10 L=20 		8-97135-423-0 02 1 0504-0609
256 PIN; KNOCK
4HE1-TCN ENG(RDR) (A) OD=10 L=20 		8-97135-423-0 02 1 0610-
256 PIN; KNOCK
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) (B) ID=6 L=12 		9-08160-612-0 02 1 0504-0609
256 PIN; KNOCK
4HE1-TCN ENG(RDR) (B) ID=6 L=12 		9-08160-612-0 02 1 0610-
316 MAGNET; TRANS CASE
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-94249-524-2 01 1 0504-0609
316 MAGNET; TRANS CASE
4HE1-TCN ENG(RDR) 		8-94249-524-2 01 1 0610-
317 COVER; CASE
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97252-626-0 01 1 0504-0609
317 COVER; CASE
4HE1-TCN ENG(RDR) 		8-97252-626-0 01 1 0610-
319 BOLT; COVER
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) M8X20 FLANGE 		0-28080-820-0 06 1 0504-0512
319 BOLT; COVER
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) M8X20 FLANGE 		0-28050-820-0 06 1 0601-0609
319 BOLT; COVER
4HE1-TCN ENG(RDR) M8X20 FLANGE 		0-28050-820-0 06 1 0610-
324 STUD; RR COVER
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) M10X15,M10X40 L=65 		8-97309-013-0 01 1 0504-0604
324 STUD; RR COVER
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) M10X15,M10X40 L=65 		8-97365-379-0 01 1 0605-0609
324 STUD; RR COVER
4HE1-TCN ENG(RDR) M10X15,M10X40 L=65 		8-97365-379-0 01 1 0610-
388 BUSHING; CLU HSG
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97241-326-2 02 1 0504-0609
388 BUSHING; CLU HSG
4HE1-TCN ENG(RDR) 		8-97241-326-2 02 1 0610-
417 PLUG; OIL FILLER,TRANS
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-94310-917-0 01 1 0504-0604
417 PLUG; OIL FILLER,TRANS
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97365-373-0 01 1 0605-0609
417 PLUG; OIL FILLER,TRANS
4HE1-TCN ENG(RDR) 		8-97365-373-0 01 1 0610-
421 COVER; RR,TRANS
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97252-621-0 01 1 0504-0507
421 COVER; RR,TRANS
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-98020-029-0 01 1 0508-0609
421 COVER; RR,TRANS
4HE1-TCN ENG(RDR) 		8-98020-029-0 01 1 0610-
429 PIN; STRAIGHT
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) OD=10 L=20 		8-97135-423-0 02 1 0504-0609
429 PIN; STRAIGHT
4HE1-TCN ENG(RDR) OD=10 L=20 		8-97135-423-0 02 1 0610-
430 PLUG; OIL DRAIN
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		9-09662-004-0 01 1 0504-0604
430 PLUG; OIL DRAIN
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97365-374-0 01 1 0605-0609
430 PLUG; OIL DRAIN
4HE1-TCN ENG(RDR) 		8-97365-374-0 01 1 0610-
434 HOUSING; CLU
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97237-099-5 01 1 0504-0609
434 HOUSING; CLU
4HE1-TCN ENG(RDR) 		8-97237-099-5 01 1 0610-
435 CASE; TRANS
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97379-375-0 01 1 0504-0609
435 CASE; TRANS
4HE1-TCN ENG(RDR) 		8-97379-375-0 01 1 0610-
609 BOLT; HSG TO CASE
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) M10X40 FLANGE 		0-28181-040-0 13 1 0504-0512
609 BOLT; HSG TO CASE
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) M10X40 FLANGE 		0-28151-040-0 13 1 0601-0609
609 BOLT; HSG TO CASE
4HE1-TCN ENG(RDR) M10X40 FLANGE 		0-28151-040-0 13 1 0610-
610 RETAINER; BRG
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) 		8-97241-315-1 01 1 0504-0609
610 RETAINER; BRG
4HE1-TCN ENG(RDR) 		8-97241-315-1 01 1 0610-
611 SCREW
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) M10X27 		8-97254-834-2 11 1 0504-0604
611 SCREW
4HE1 ENG(RLY) EXC. PTO TRANSMISSION SIDE(V66) M10X27 TORQUES 		8-97365-354-0 11 1 0605-0609
611 SCREW
4HE1-TCN ENG(RDR) M10X27 TORQUES 		8-97365-354-0 11 1 0610-
