◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51038 - NQR(IRAN) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#21464) — 28 parça

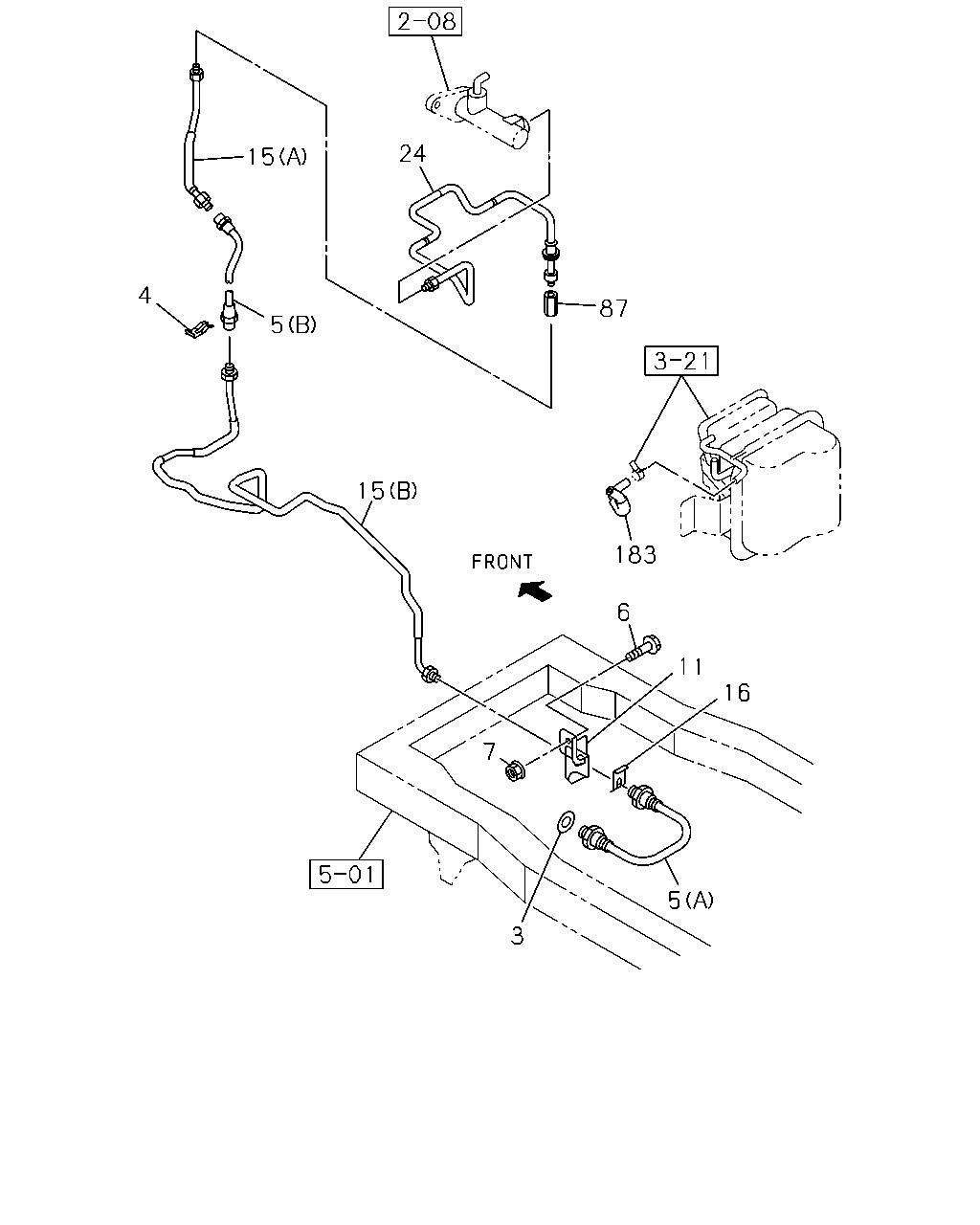

çizim 56002
24 15 4 87 5 15 183 6 11 16 7 5 3
BalonParca AdiParca NoAdetTipApplied Date
3 GASKET; FLEX HOSE,CLU
4HE1 ENG(RLY) 		9-09920-873-1 01 1 0504-0609
3 GASKET; FLEX HOSE,CLU
4HE1-TCN ENG(RDR) 		9-09920-873-1 01 1 0610-
4 CLIP; FLEX HOSE,CLU CONT 8-94167-006-0 02 1 0504-0610
4 CLIP; FLEX HOSE,CLU CONT 8-97365-304-0 02 1 0611-
5 HOSE; FLEX,CLU PIPE
(B) 		8-94248-702-2 01 1 0504-0609
5 HOSE; FLEX,CLU PIPE
(B) 		8-98004-775-0 01 1 0610-0706
5 HOSE; FLEX,CLU PIPE
(B) 		8-98090-655-0 01 1 0707-
5 HOSE; FLEX,CLU PIPE
4HE1 ENG(RLY) (A) 		8-97148-640-0 01 1 0504-0609
5 HOSE; FLEX,CLU PIPE
4HE1-TCN ENG(RDR) (A) 		8-97148-640-0 01 1 0610-
6 BOLT; BRKT,FLEX HOSE
4HE1 ENG(RLY) M8X25 FLANGE 		0-28680-825-0 01 1 0504-0512
6 BOLT; BRKT,FLEX HOSE
4HE1 ENG(RLY) M8X25 FLANGE 		0-28650-825-0 01 1 0601-0609
6 BOLT; BRKT,FLEX HOSE
4HE1-TCN ENG(RDR) M8X25 FLANGE 		0-28650-825-0 01 1 0610-
7 NUT; FLEX HOSE,CLU CONT
4HE1 ENG(RLY) M8 FLANGE 		0-91150-108-0 01 1 0504-0602
7 NUT; FLEX HOSE,CLU CONT
4HE1 ENG(RLY) M8 FLANGE 		0-91180-108-0 01 1 0603-0609
7 NUT; FLEX HOSE,CLU CONT
4HE1-TCN ENG(RDR) M8 FLANGE 		0-91180-108-0 01 1 0610-
11 BRACKET; FLEX HOSE,CLU
4HE1 ENG(RLY) 		8-97365-305-0 01 1 0504-0609
11 BRACKET; FLEX HOSE,CLU
4HE1-TCN ENG(RDR) 		8-97365-305-0 01 1 0610-
15 PIPE; CLU,FLEX HOSE
(B) 		8-97187-578-1 01 1 0504-
15 PIPE; CLU,FLEX HOSE
(A) 		8-97328-482-0 01 1 0504-
16 CLIP; FLEX HOSE
4HE1 ENG(RLY) 		8-94167-006-0 01 1 0504-0609
16 CLIP; FLEX HOSE
4HE1-TCN ENG(RDR) 		8-94167-006-0 01 1 0610-0610
16 CLIP; FLEX HOSE
4HE1-TCN ENG(RDR) 		8-97365-304-0 01 1 0611-
24 PIPE ASM; CLU,M/CYL TO UNION 8-97070-293-3 01 1 0504-0609
24 PIPE ASM; CLU,M/CYL TO UNION
EXC. POWER ASSIST CLUTCH(S2T) 		8-97070-293-3 01 1 0610-
24 PIPE ASM; CLU,M/CYL TO UNION
POWER ASSIST CLUTCH(S2T) 		8-97118-570-0 01 1 0610-
87 UNION; OIL PIPE
M12 STRAIGHT 		9-99227-006-0 01 1 0504-0607
87 UNION; OIL PIPE
M12 STRAIGHT 		0-92107-006-0 01 1 0608-
183 HOSE; VAC,VAC TANK SIDE
POWER ASSIST CLUTCH(S2T) 		8-98009-419-0 01 1 0610-
