Isuzu WW
▶
TRUCKS
▶
NQR
▶
51038 - NQR(IRAN)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-55 - EXHAUST BRAKE VALVE AND CONTROL CYLINDER
▶

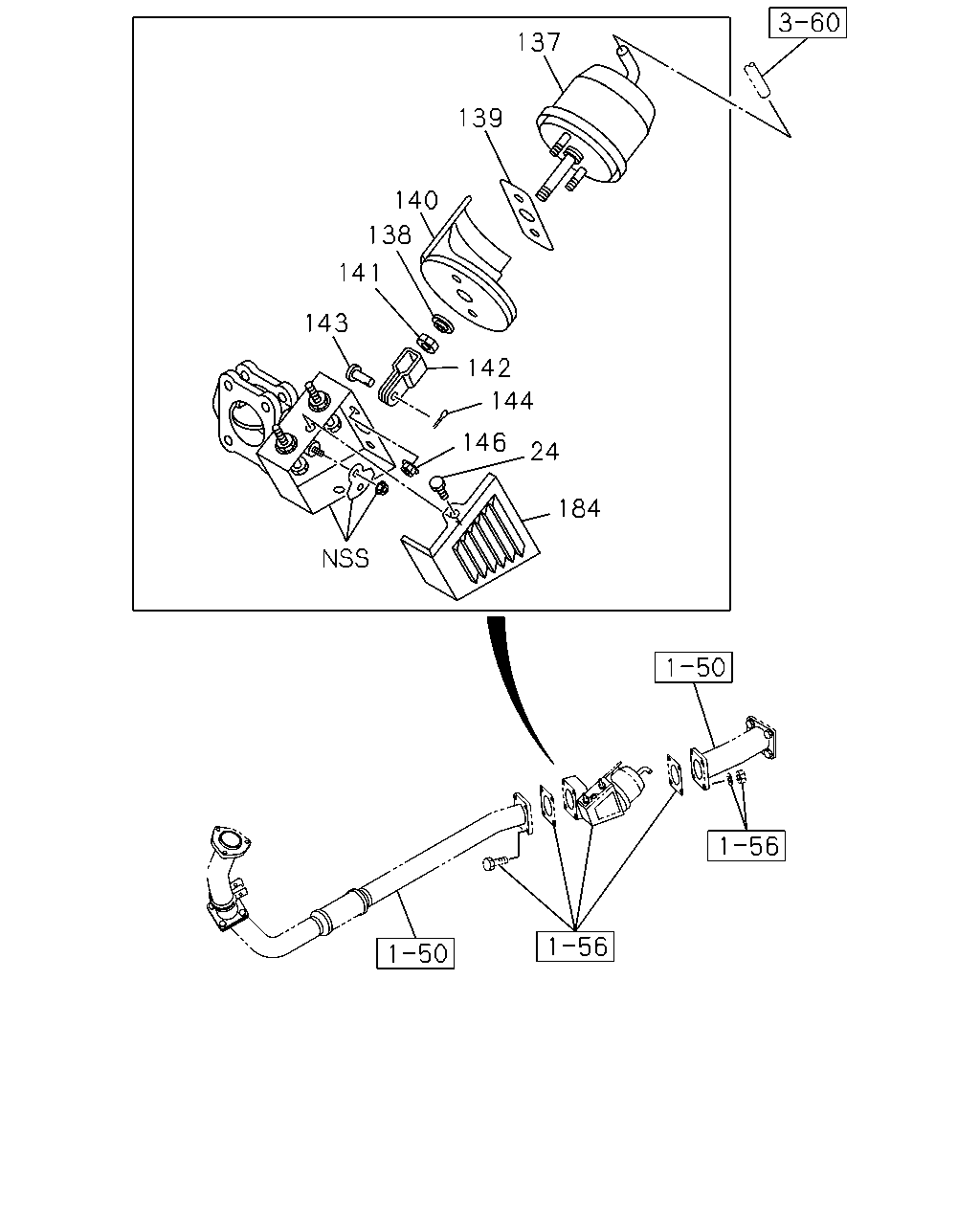

1-55 — EXHAUST BRAKE VALVE AND CONTROL CYLINDER
(#21460) — 11 parça
137
139
140
138
141
143
142
144
146
24
184
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
BOLT; COVER
4HE1-TCN ENG(RDR)
8-97065-029-0
02
1
0612-
137
CHAMBER; POWER
4HE1-TCN ENG(RDR)
8-98070-470-0
01
1
0612-
138
BEARING; EXH BRK VLV
4HE1-TCN ENG(RDR)
5-22189-004-0
01
1
0612-
139
GASKET; EXH BRK VLV
4HE1-TCN ENG(RDR)
8-94328-234-0
01
1
0612-
140
INSULATOR; EXH BRK VLV
4HE1-TCN ENG(RDR)
8-97173-333-0
01
1
0612-
141
NUT; CLEVIS,EXH BRK VLV
4HE1-TCN ENG(RDR)
8-94311-428-0
01
1
0612-
142
CLEVIS; EXH BRK VLV
4HE1-TCN ENG(RDR)
8-97177-311-0
01
1
0612-
143
PIN; EXH BRK VLV
4HE1-TCN ENG(RDR)
8-94311-452-0
01
1
0612-
144
PIN; SPLIT,EXH BRK VLV
4HE1-TCN ENG(RDR)
8-97029-428-0
01
1
0612-
146
NUT; EXH BRK VLV
4HE1-TCN ENG(RDR) M8 FLANGE
0-91180-108-0
02
1
0612-
184
COVER; BRKT
4HE1-TCN ENG(RDR)
8-98070-514-0
01
1
0612-
