1-50 — EXHAUST PIPE AND SILENCER (#21459) — 146 parça

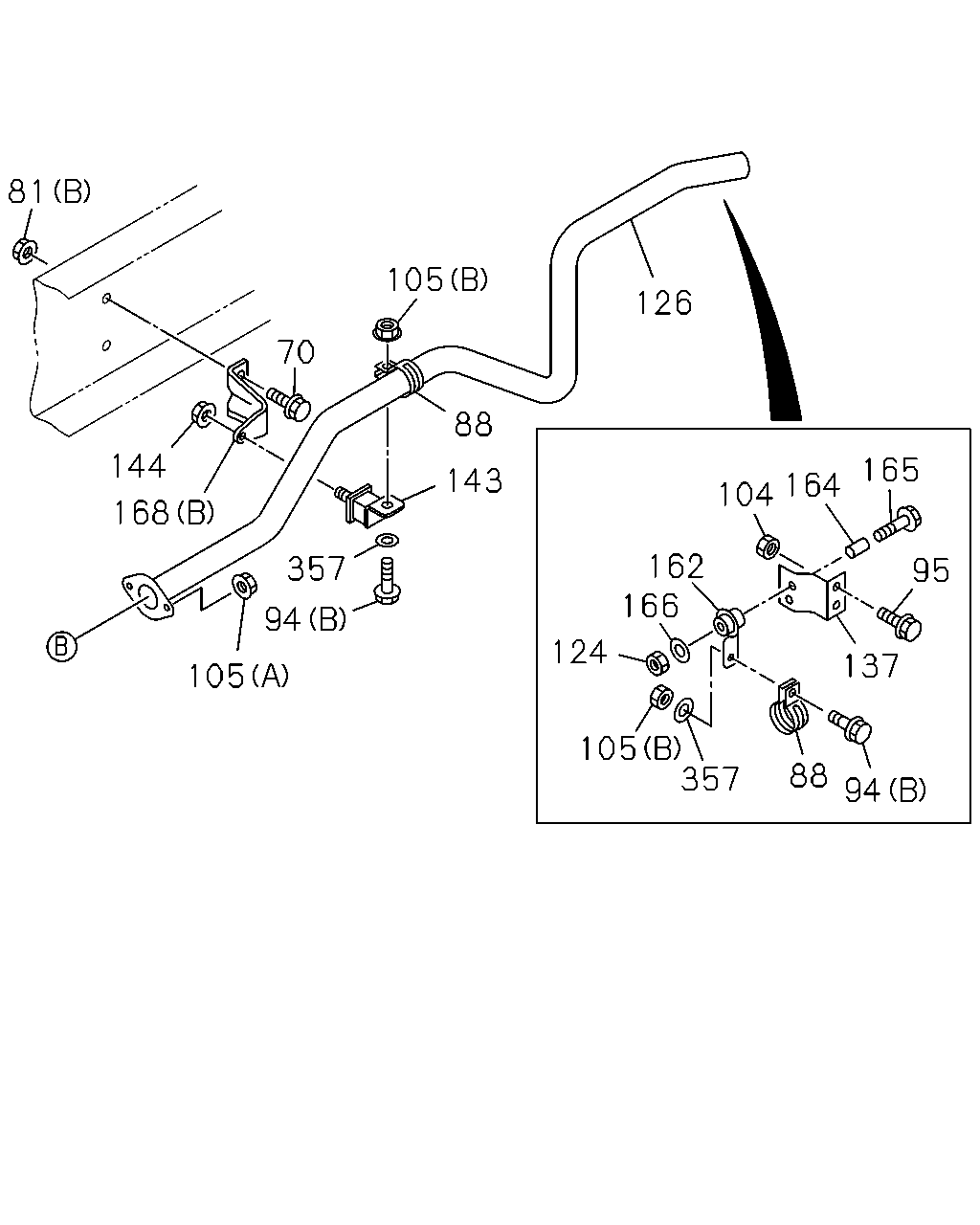

çizim 55992
81 105 126 70 88 144 165 143 164 104 168 162 166 357 95 94 124 137 105 105 357 88 94
BalonParca AdiParca NoAdetTipApplied Date
70 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0504-0512
70 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
81 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 0504-0602
81 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0603-
81 NUT; BRKT
4HE1 ENG(RLY) (A) M10 FLANGE 		0-91150-110-0 03 1 0504-0602
81 NUT; BRKT
4HE1 ENG(RLY) (A) M10 FLANGE 		0-91180-110-0 03 1 0603-0609
81 NUT; BRKT
4HE1-TCN ENG(RDR) (A) M10 FLANGE 		0-91180-110-0 03 1 0610-
88 CLAMP; EXH PIPE
ID=61.6 		8-97010-307-0 01 1 0504-0609
88 CLAMP; EXH PIPE
ID=61.6 		8-97010-307-0 01 1 0504-0609
88 CLAMP; EXH PIPE
ID=61.6 		8-97010-307-0 01 1 0610-
88 CLAMP; EXH PIPE
4HE1-TCN ENG(RDR) ID=61.6 		8-97010-307-0 01 1 0610-
94 BOLT; CLAMP
(B) M8X45 		0-20800-845-0 01 1 0504-
94 BOLT; CLAMP
(B) M8X45 		0-20800-845-0 01 1 0504-
94 BOLT; CLAMP
4HE1 ENG(RLY) (A) M10X30 FLANGE 		0-28681-030-0 01 1 0504-0512
94 BOLT; CLAMP
4HE1 ENG(RLY) (A) M10X30 FLANGE 		0-28651-030-0 01 1 0601-0609
94 BOLT; CLAMP
4HE1-TCN ENG(RDR) (A) M10X30 FLANGE 		0-28651-030-0 01 1 0610-
95 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0504-0512
95 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
104 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0504-0602
104 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
105 NUT; CLAMP
(A) M10 FLANGE 		0-91150-110-0 02 1 0504-0602
105 NUT; CLAMP
(A) M10 FLANGE 		0-91180-110-0 02 1 0603-
105 NUT; CLAMP
(B) M8 		9-09110-408-0 01 1 0504-0512
105 NUT; CLAMP
(B) M8 		9-09110-408-0 01 1 0504-0512
105 NUT; CLAMP
(B) M8 		0-91110-508-0 01 1 0601-
105 NUT; CLAMP
(B) M8 		0-91110-508-0 01 1 0601-
124 NUT; SUPPORT RUBBER
M10 FLANGE 		0-91150-110-0 01 1 0504-0602
124 NUT; SUPPORT RUBBER
M10 FLANGE 		0-91180-110-0 01 1 0603-
126 PIPE; EXH,RR
4HE1 ENG(RLY) 		8-97210-760-1 01 1 0504-0609
126 PIPE; EXH,RR
4HE1-TCN ENG(RDR) 		8-97210-760-1 01 1 0610-
137 BRACKET; TAIL PIPE 8-97116-588-2 01 1 0504-
143 RUBBER; SUPPORT 8-97371-655-1 01 1 0504-
144 NUT; MTG RUBBER
M8 FLANGE 		0-91150-108-0 01 1 0504-0602
144 NUT; MTG RUBBER
M8 FLANGE 		0-91180-108-0 01 1 0603-
162 RUBBER; SUPPORT,TAIL PIPE
L=115 		8-94156-256-0 01 1 0504-
164 COLLAR; DIST,TAIL PIPE
4HE1 ENG(RLY) L=37.5 		9-22151-217-0 01 1 0504-0609
164 COLLAR; DIST,TAIL PIPE
L=37.5 		9-22151-217-0 01 1 0504-0609
164 COLLAR; DIST,TAIL PIPE
4HE1-TCN ENG(RDR) L=37.5 		9-22151-217-0 01 1 0610-
164 COLLAR; DIST,TAIL PIPE
L=37.5 		9-22151-217-0 01 1 0610-
165 BOLT; SUPPORT RUBBER
M10X70 FLANGE 		0-28081-070-0 01 1 0504-0512
165 BOLT; SUPPORT RUBBER
M10X70 FLANGE 		0-28051-070-0 01 1 0601-
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
ID=10.5 OD=32 		9-09164-810-0 01 1 0504-0605
166 WASHER; PL,SUPPORT RUBBER,EXH PIPE
ID=10.5 OD=32 		0-91614-810-0 01 1 0606-
168 BRACKET; EXH PIPE,FRT
(B) 		8-97096-651-0 01 1 0504-
168 BRACKET; EXH PIPE,FRT
4HE1 ENG(RLY) (A) 		8-94370-046-4 01 1 0504-0609
168 BRACKET; EXH PIPE,FRT
4HE1-TCN ENG(RDR) (A) 		8-94370-046-4 01 1 0610-
168 BRACKET; EXH PIPE,FRT
4HE1 ENG(RLY) (C) 		8-97214-433-0 01 1 0504-0609
168 BRACKET; EXH PIPE,FRT
4HE1-TCN ENG(RDR) (C) 		8-97214-433-0 01 1 0610-
357 WASHER; PL,CLAMP
ID=8.4 OD=18 		9-09164-608-0 01 1 0504-0605
357 WASHER; PL,CLAMP
ID=8.4 OD=18 		9-09164-608-0 01 1 0504-0605
357 WASHER; PL,CLAMP
ID=8.4 OD=18 		0-91614-608-0 01 1 0606-
357 WASHER; PL,CLAMP
ID=8.4 OD=18 		0-91614-608-0 01 1 0606-

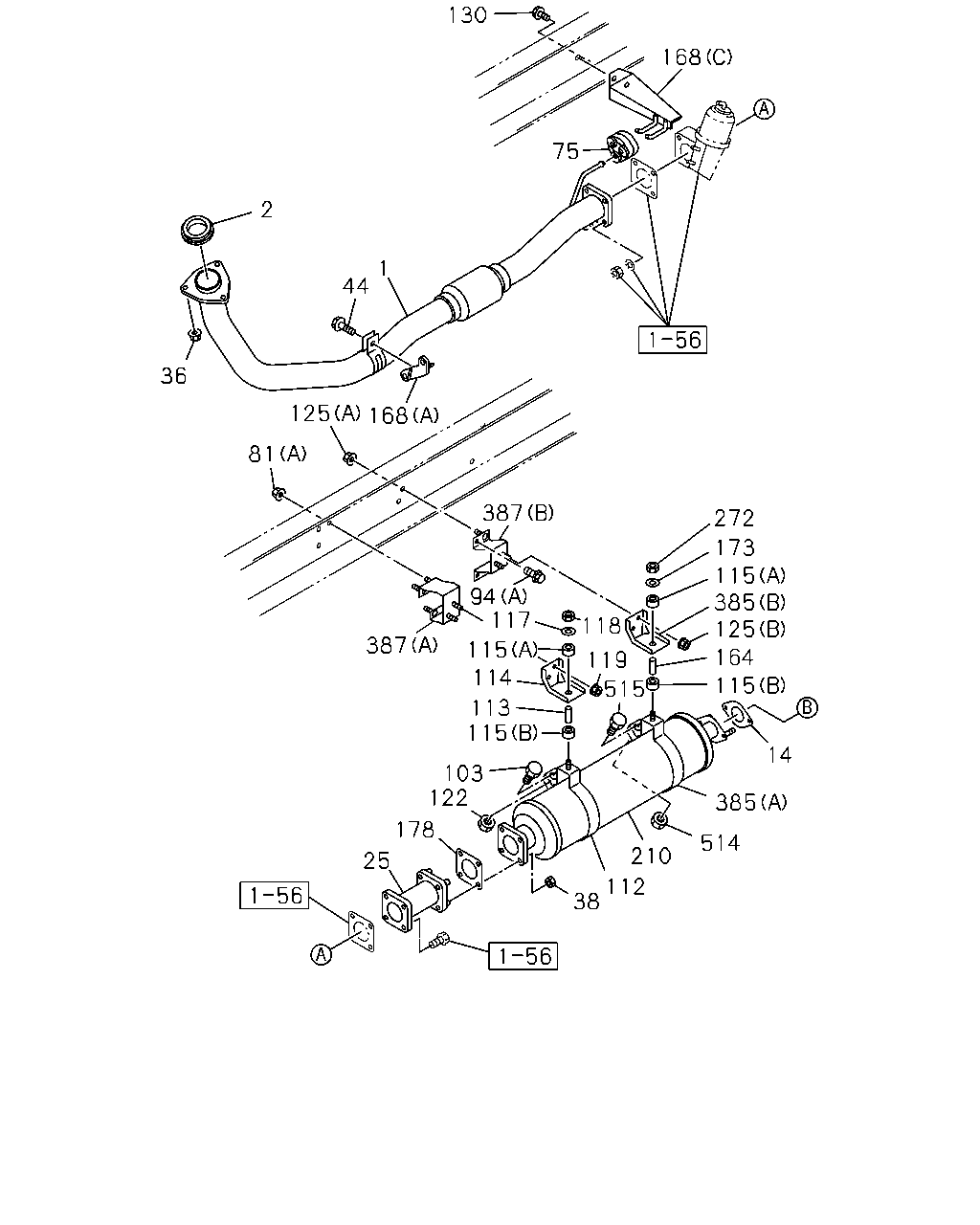

çizim 100933
130 168 75 2 1 44 36 125 168 81 387 272 173 115 385 125 94 117 118 387 115 164 119 114 115 515 113 115 14 103 122 385 178 514 210 25 112 38
BalonParca AdiParca NoAdetTipApplied Date
1 PIPE; EXH
4HE1 ENG(RLY) 		8-97175-955-4 01 1 0504-0609
1 PIPE; EXH
4HE1-TCN ENG(RDR) 		8-97175-955-4 01 1 0610-
2 GASKET; PIPE TO MANIF
4HE1 ENG(RLY) 		8-97381-455-0 01 1 0504-0609
2 GASKET; PIPE TO MANIF
4HE1-TCN ENG(RDR) 		8-97381-455-0 01 1 0610-
14 GASKET; SILENCER TO EXH PIPE
ID=64.7 		8-94328-352-0 01 1 0504-
25 PIPE; EXH,BRK VLV TO SILENCER
4HE1 ENG(RLY) 		8-97175-956-3 01 1 0504-0609
25 PIPE; EXH,BRK VLV TO SILENCER
4HE1-TCN ENG(RDR) 		8-97175-956-3 01 1 0610-
36 NUT; EXH PIPE
4HE1 ENG(RLY) M10 FLANGE 		8-97096-192-1 03 1 0504-0609
36 NUT; EXH PIPE
4HE1-TCN ENG(RDR) M10 FLANGE 		8-97096-192-1 03 1 0610-
38 NUT; SILENCER
4HE1 ENG(RLY) M8 FLANGE 		0-91150-108-0 04 1 0504-0602
38 NUT; SILENCER
4HE1 ENG(RLY) M8 FLANGE 		0-91180-108-0 04 1 0603-0609
38 NUT; SILENCER
M8 FLANGE 		0-91180-108-0 04 1 0610-
44 BOLT; BRKT
4HE1-TCN ENG(RDR) M8X45 W/LK WASHER 		0-50540-845-0 01 1 0802-0802
44 BOLT; BRKT
4HE1 ENG(RLY) M8X45 W/LK WASHER 		0-50040-845-0 01 1 0504-0609
44 BOLT; BRKT
4HE1-TCN ENG(RDR) M8X45 W/LK WASHER 		0-50040-845-0 01 1 0610-0707
44 BOLT; BRKT
4HE1-TCN ENG(RDR) M8X45 W/LK WASHER 		0-50040-845-0 02 1 0708-0801
44 BOLT; BRKT
4HE1-TCN ENG(RDR) M8X45 W/LK WASHER 		0-50040-845-0 01 1 0802-0909
44 BOLT; BRKT
4HE1-TCN ENG(RDR) M8X45 W/LK WASHER 		0-50540-845-0 01 1 0910-
75 RUBBER; SUPPORT,BRKT
4HE1 ENG(RLY) 		8-97080-694-0 01 1 0504-0609
75 RUBBER; SUPPORT,BRKT
4HE1-TCN ENG(RDR) 		8-97080-694-0 01 1 0610-
81 NUT; BRKT
(B) M8 FLANGE 		0-91150-108-0 02 1 0504-0602
81 NUT; BRKT
(B) M8 FLANGE 		0-91180-108-0 02 1 0603-
81 NUT; BRKT
4HE1 ENG(RLY) (A) M10 FLANGE 		0-91150-110-0 03 1 0504-0602
81 NUT; BRKT
4HE1 ENG(RLY) (A) M10 FLANGE 		0-91180-110-0 03 1 0603-0609
81 NUT; BRKT
4HE1-TCN ENG(RDR) (A) M10 FLANGE 		0-91180-110-0 03 1 0610-
94 BOLT; CLAMP
(B) M8X45 		0-20800-845-0 01 1 0504-
94 BOLT; CLAMP
(B) M8X45 		0-20800-845-0 01 1 0504-
94 BOLT; CLAMP
4HE1 ENG(RLY) (A) M10X30 FLANGE 		0-28681-030-0 01 1 0504-0512
94 BOLT; CLAMP
4HE1 ENG(RLY) (A) M10X30 FLANGE 		0-28651-030-0 01 1 0601-0609
94 BOLT; CLAMP
4HE1-TCN ENG(RDR) (A) M10X30 FLANGE 		0-28651-030-0 01 1 0610-
103 BOLT; SILENCER BRKT FIX
M8X45 W/LK WASHER 		0-50540-845-0 01 1 0802-0802
103 BOLT; SILENCER BRKT FIX
M8X45 W/LK WASHER 		0-50040-845-0 01 1 0504-0909
103 BOLT; SILENCER BRKT FIX
M8X45 W/LK WASHER 		0-50540-845-0 01 1 0910-
112 BRACKET; HANGER
4HE1 ENG(RLY) 		8-97207-224-0 01 1 0504-0609
112 BRACKET; HANGER
4HE1-TCN ENG(RDR) 		8-97207-224-0 01 1 0610-
113 COLLAR; DIST,MTG BRKT
L=37.5 		9-22151-217-0 01 1 0504-
114 BRACKET; EXH SILENCER
4HE1 ENG(RLY) 		8-94329-857-0 01 1 0504-0609
114 BRACKET; EXH SILENCER
4HE1-TCN ENG(RDR) 		8-94329-857-0 01 1 0610-
115 RUBBER; MTG,SILENCER
4HE1 ENG(RLY) (A) 		8-94457-277-1 01 1 0504-0609
115 RUBBER; MTG,SILENCER
(A) 		8-94457-277-1 01 1 0504-0609
115 RUBBER; MTG,SILENCER
4HE1-TCN ENG(RDR) (A) 		8-94457-277-1 01 1 0610-
115 RUBBER; MTG,SILENCER
4HE1-TCN ENG(RDR) (A) 		8-94457-277-1 01 1 0610-
115 RUBBER; MTG,SILENCER
4HE1 ENG(RLY) (B) 		8-94457-278-1 01 1 0504-0609
115 RUBBER; MTG,SILENCER
(B) 		8-94457-278-1 01 1 0504-0609
115 RUBBER; MTG,SILENCER
4HE1-TCN ENG(RDR) (B) 		8-94457-278-1 01 1 0610-
115 RUBBER; MTG,SILENCER
4HE1-TCN ENG(RDR) (B) 		8-94457-278-1 01 1 0610-
117 WASHER; PL,SILENCER MTG BRKT
OD=55 		9-09852-169-0 01 1 0504-
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		5-09440-006-0 01 1 0504-
119 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0504-0602
119 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0603-
122 NUT; HANGER BRKT
M8 		9-09110-408-0 01 1 0504-0512
122 NUT; HANGER BRKT
M8 		0-91110-508-0 01 1 0601-
125 NUT; CLAMP
4HE1 ENG(RLY) (B) M8 FLANGE 		0-91150-108-0 02 1 0504-0602
125 NUT; CLAMP
4HE1 ENG(RLY) (B) M8 FLANGE 		0-91180-108-0 02 1 0603-0609
125 NUT; CLAMP
4HE1-TCN ENG(RDR) (B) M8 FLANGE 		0-91180-108-0 02 1 0610-
125 NUT; CLAMP
4HE1 ENG(RLY) (A) M10 FLANGE 		0-91150-110-0 02 1 0504-0602
125 NUT; CLAMP
4HE1 ENG(RLY) (A) M10 FLANGE 		0-91180-110-0 02 1 0603-0609
125 NUT; CLAMP
4HE1-TCN ENG(RDR) (A) M10 FLANGE 		0-91180-110-0 02 1 0610-
130 BOLT; BRKT
4HE1 ENG(RLY) M10X35 FLANGE 		0-28681-035-0 01 1 0504-0512
130 BOLT; BRKT
4HE1 ENG(RLY) M10X35 FLANGE 		0-28651-035-0 01 1 0601-0609
130 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 01 1 0610-
164 COLLAR; DIST,TAIL PIPE
4HE1 ENG(RLY) L=37.5 		9-22151-217-0 01 1 0504-0609
164 COLLAR; DIST,TAIL PIPE
L=37.5 		9-22151-217-0 01 1 0504-0609
164 COLLAR; DIST,TAIL PIPE
4HE1-TCN ENG(RDR) L=37.5 		9-22151-217-0 01 1 0610-
164 COLLAR; DIST,TAIL PIPE
L=37.5 		9-22151-217-0 01 1 0610-
168 BRACKET; EXH PIPE,FRT
(B) 		8-97096-651-0 01 1 0504-
168 BRACKET; EXH PIPE,FRT
4HE1 ENG(RLY) (A) 		8-94370-046-4 01 1 0504-0609
168 BRACKET; EXH PIPE,FRT
4HE1-TCN ENG(RDR) (A) 		8-94370-046-4 01 1 0610-
168 BRACKET; EXH PIPE,FRT
4HE1 ENG(RLY) (C) 		8-97214-433-0 01 1 0504-0609
168 BRACKET; EXH PIPE,FRT
4HE1-TCN ENG(RDR) (C) 		8-97214-433-0 01 1 0610-
173 WASHER; PL
4HE1 ENG(RLY) OD=55 		9-09852-169-0 01 1 0504-0609
173 WASHER; PL
4HE1-TCN ENG(RDR) OD=55 		9-09852-169-0 01 1 0610-
178 GASKET; CONV TO MANIF
4HE1 ENG(RLY) ID=64 		8-97037-694-0 01 1 0504-0609
178 GASKET; CONV TO MANIF
4HE1-TCN ENG(RDR) ID=64 		8-97037-694-0 01 1 0610-
210 CONVERTER
4HE1 ENG(RLY) 		8-97205-851-1 01 1 0504-0609
210 CONVERTER
4HE1-TCN ENG(RDR) 		8-97205-851-1 01 1 0610-
272 NUT; FLANGE
4HE1 ENG(RLY) M10 FLANGE 		5-09440-006-0 01 1 0504-0609
272 NUT; FLANGE
4HE1-TCN ENG(RDR) M10 FLANGE 		5-09440-006-0 01 1 0610-
385 BRACKET; SILENCER MTG
4HE1 ENG(RLY) (B) 		8-94329-857-0 01 1 0504-0609
385 BRACKET; SILENCER MTG
4HE1-TCN ENG(RDR) (B) 		8-94329-857-0 01 1 0610-
385 BRACKET; SILENCER MTG
4HE1 ENG(RLY) (A) 		8-97207-224-0 01 1 0504-0609
385 BRACKET; SILENCER MTG
4HE1-TCN ENG(RDR) (A) 		8-97207-224-0 01 1 0610-
387 SPACER; BRKT
4HE1 ENG(RLY) (B) 		8-97172-493-2 01 1 0504-0609
387 SPACER; BRKT
4HE1-TCN ENG(RDR) (B) 		8-97172-493-2 01 1 0610-
387 SPACER; BRKT
4HE1 ENG(RLY) (A) 		8-97218-212-0 01 1 0504-0609
387 SPACER; BRKT
4HE1-TCN ENG(RDR) (A) 		8-97218-212-0 01 1 0610-
514 NUT; BAND
4HE1 ENG(RLY) M8 		9-09110-408-0 01 1 0504-0512
514 NUT; BAND
4HE1 ENG(RLY) M8 		0-91110-508-0 01 1 0601-0609
514 NUT; BAND
4HE1-TCN ENG(RDR) M8 		0-91110-508-0 01 1 0610-
515 BOLT; BAND
4HE1 ENG(RLY) M8X45 W/LK WASHER 		0-50040-845-0 01 1 0504-0609
515 BOLT; BAND
4HE1-TCN ENG(RDR) M8X45 W/LK WASHER 		0-50040-845-0 01 1 0610-0801
515 BOLT; BAND
4HE1-TCN ENG(RDR) M8X45 W/LK WASHER 		0-50540-845-0 01 1 0802-0802
515 BOLT; BAND
4HE1-TCN ENG(RDR) M8X45 W/LK WASHER 		0-50040-845-0 01 1 0802-0909
515 BOLT; BAND
4HE1-TCN ENG(RDR) M8X45 W/LK WASHER 		0-50540-845-0 01 1 0910-
