1-41 — FUEL PIPING; CHASSIS (#21457) — 94 parça

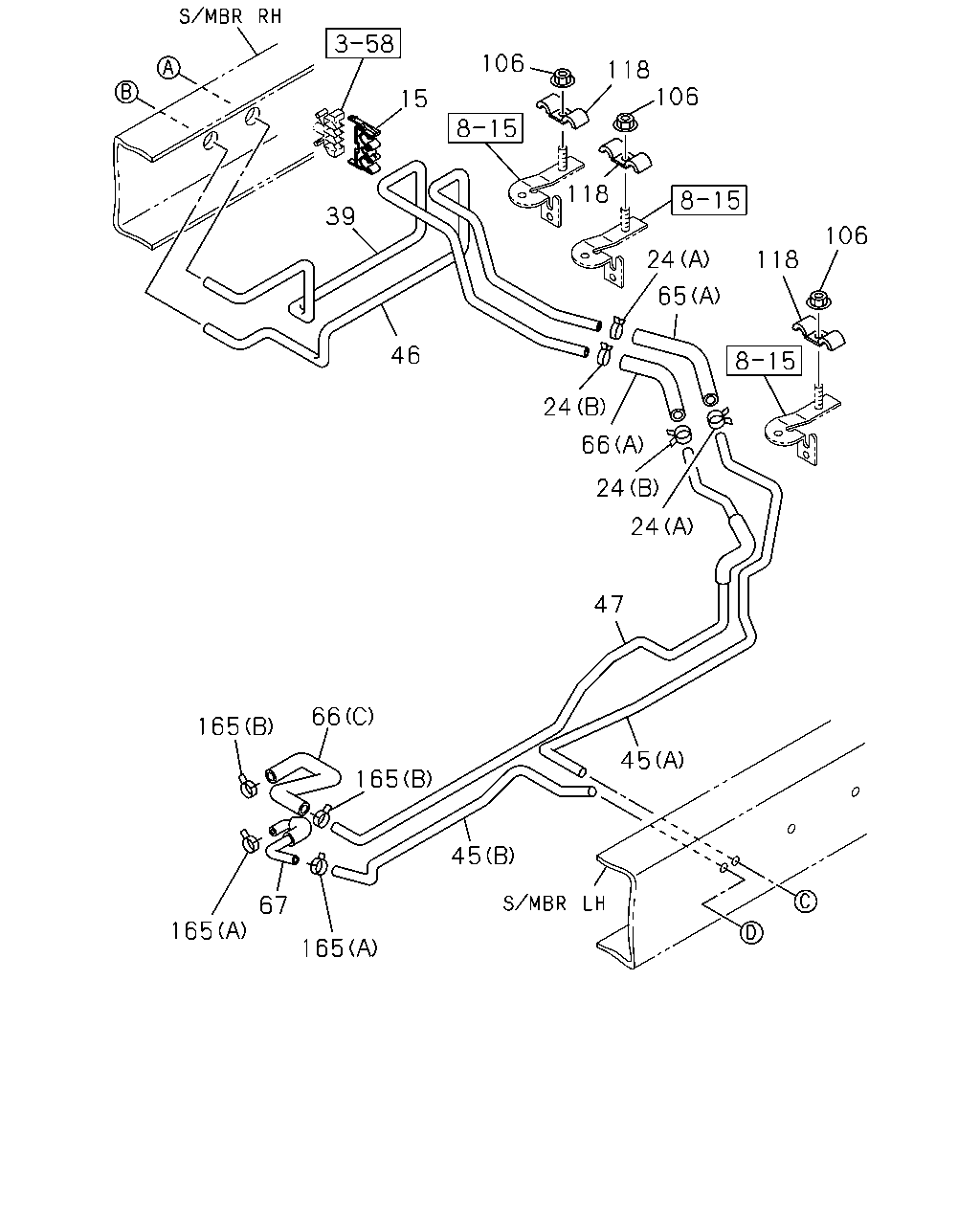

106 118 106 15 118 39 106 24 118 65 46 24 66 24 24 47 66 165 45 165 45 67 165 165

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	CLIP; FUEL PIPE ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0504-
24	CLIP; FUEL HOSE 4HE1 ENG(RLY) (A) ID=16	8-94238-568-0	02	1	0504-0609
24	CLIP; FUEL HOSE 4HE1-TCN ENG(RDR) (A) ID=16	8-94238-568-0	02	1	0610-0911
24	CLIP; FUEL HOSE 4HE1-TCN ENG(RDR) (A) ID=16	8-98008-098-0	02	1	0912-
24	CLIP; FUEL HOSE 4HE1 ENG(RLY) (B) ID=13	8-94238-571-0	02	1	0504-0609
24	CLIP; FUEL HOSE 4HE1-TCN ENG(RDR) (B) ID=13	8-94238-571-0	02	1	0610-0911
24	CLIP; FUEL HOSE 4HE1-TCN ENG(RDR) (B) ID=13	8-98150-357-0	02	1	0912-
39	PIPE; FUEL 4HE1 ENG(RLY)	8-97171-015-1	01	1	0504-0609
39	PIPE; FUEL 4HE1-TCN ENG(RDR)	8-97171-015-1	01	1	0610-
45	PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) (B)	8-97148-811-0	01	1	0504-0609
45	PIPE; FUEL,DELIVERY 4HE1-TCN ENG(RDR) (B)	8-97148-811-0	01	1	0610-
45	PIPE; FUEL,DELIVERY 4HE1 ENG(RLY) (A)	8-97171-009-3	01	1	0504-0609
45	PIPE; FUEL,DELIVERY 4HE1-TCN ENG(RDR) (A)	8-97171-009-3	01	1	0610-
46	PIPE; FUEL,TANK SIDE 4HE1 ENG(RLY)	8-97171-011-1	01	1	0504-0609
46	PIPE; FUEL,TANK SIDE 4HE1-TCN ENG(RDR)	8-97171-011-1	01	1	0610-
47	PIPE; FUEL,RETURN 4HE1 ENG(RLY)	8-97171-013-1	01	1	0504-0609
47	PIPE; FUEL,RETURN 4HE1-TCN ENG(RDR)	8-97171-013-1	01	1	0610-
65	HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0504-0609
65	HOSE; FUEL,DELIVERY PIPE 4HE1-TCN ENG(RDR) (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0610-
65	HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) (B) L=240 SERVICED BY L=3000	0-01259-300-0	01	1	0504-0609
65	HOSE; FUEL,DELIVERY PIPE 4HE1-TCN ENG(RDR) (B) L=240 SERVICED BY L=3000	0-01259-300-0	01	1	0610-
65	HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) (C) L=500	8-97353-527-0	01	1	0504-0609
65	HOSE; FUEL,DELIVERY PIPE 4HE1-TCN ENG(RDR) (C) L=500	8-97353-527-0	01	1	0610-
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0504-0609
66	HOSE; FUEL,RETURN PIPE 4HE1-TCN ENG(RDR) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0610-
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) (B) L=550 SERVICED BY L=3000	0-01256-300-0	01	1	0504-0609
66	HOSE; FUEL,RETURN PIPE 4HE1-TCN ENG(RDR) (B) L=550 SERVICED BY L=3000	0-01256-300-0	01	1	0610-
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) (C)	8-97174-761-1	01	1	0504-0609
66	HOSE; FUEL,RETURN PIPE 4HE1-TCN ENG(RDR) (C)	8-97174-761-1	01	1	0610-
67	HOSE; FUEL,DELIVERY 4HE1 ENG(RLY)	8-97174-760-2	01	1	0504-0609
67	HOSE; FUEL,DELIVERY 4HE1-TCN ENG(RDR)	8-97174-760-2	01	1	0610-
106	NUT; FUEL PIPE M6 FLANGE	0-91150-106-0	03	1	0504-0602
106	NUT; FUEL PIPE M6 FLANGE	0-91180-106-0	03	1	0603-
118	CLIP; MTG,FUEL PIPE TO FRT SIDE MBR ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0504-0609
118	CLIP; MTG,FUEL PIPE TO FRT SIDE MBR 4HE1-TCN ENG(RDR) ID=11 & 7 L=15 & 15	1-09700-071-0	03	1	0610-1410
118	CLIP; MTG,FUEL PIPE TO FRT SIDE MBR 4HE1-TCN ENG(RDR) ID=11 & 7 L=15 & 15	8-98289-347-0	03	1	1411-
165	CLIP; FUEL HOSE 4HE1 ENG(RLY) (C) L=140	5-09707-031-1	02	1	0504-0609
165	CLIP; FUEL HOSE 4HE1-TCN ENG(RDR) FUEL FILTER DUAL(S6B) (C) L=250	5-09707-030-1	01	1	0610-
165	CLIP; FUEL HOSE 4HE1 ENG(RLY) (A) ID=16	8-94238-568-0	02	1	0504-0609
165	CLIP; FUEL HOSE 4HE1-TCN ENG(RDR) (A) ID=16	8-94238-568-0	02	1	0610-0911
165	CLIP; FUEL HOSE 4HE1-TCN ENG(RDR) (A) ID=16	8-98008-098-0	02	1	0912-
165	CLIP; FUEL HOSE 4HE1 ENG(RLY) (B) ID=13	8-94238-571-0	02	1	0504-0609
165	CLIP; FUEL HOSE 4HE1-TCN ENG(RDR) (B) ID=13	8-94238-571-0	02	1	0610-0911
165	CLIP; FUEL HOSE 4HE1-TCN ENG(RDR) (B) ID=13	8-98150-357-0	02	1	0912-
165	CLIP; FUEL HOSE 4HE1-TCN ENG(RDR) (C) L=140	5-09707-031-1	01	1	0610-
165	CLIP; FUEL HOSE 4HE1-TCN ENG(RDR) EXC. FUEL FILTER DUAL(S6B) (C) L=140	5-09707-031-1	01	1	0610-

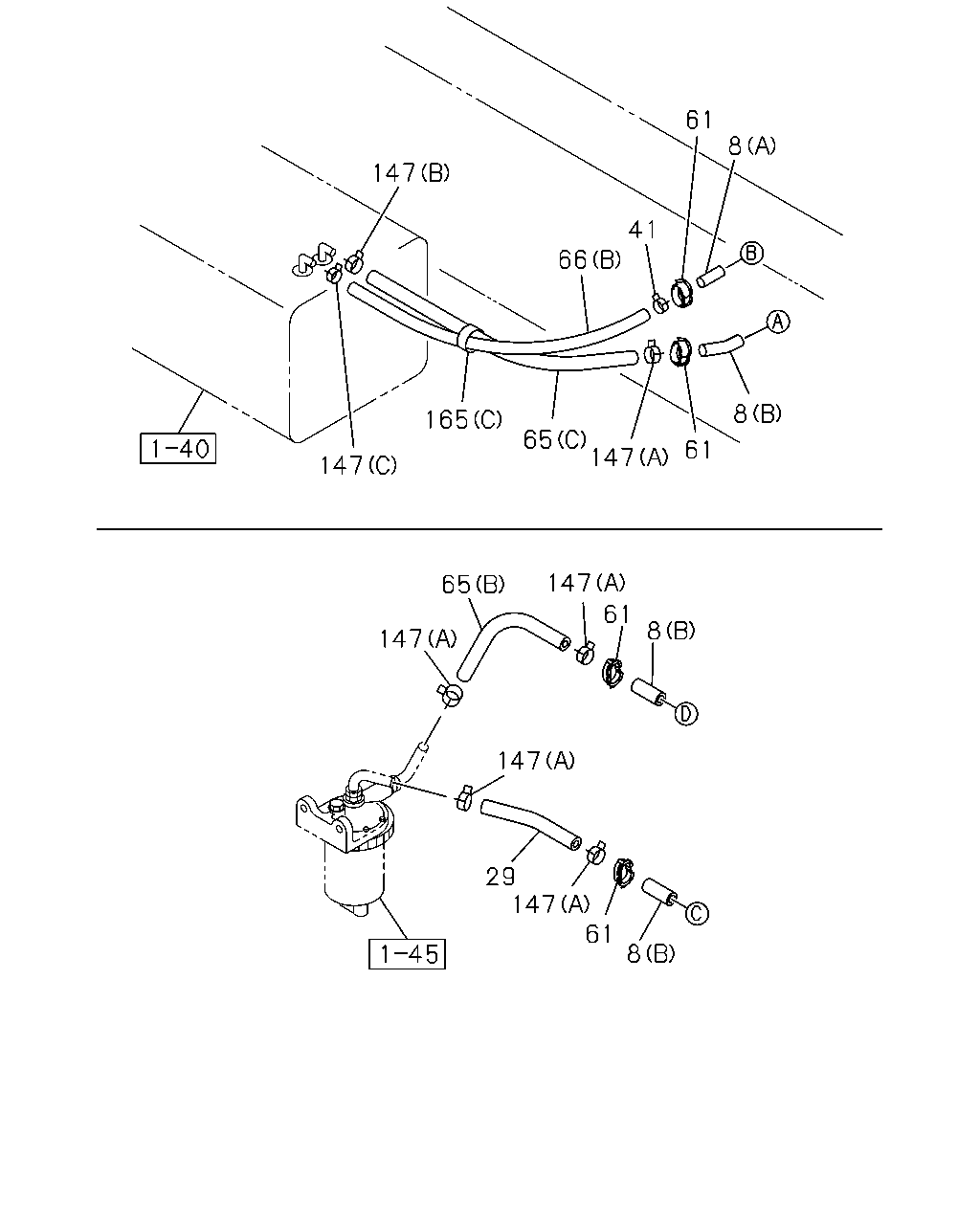

61 8 147 41 66 8 165 65 147 61 147 147 65 61 8 147 147 29 147 61 8

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	RUBBER; MTG 4HE1 ENG(RLY) (A) OD=17 L=50	8-94157-054-1	01	1	0504-0609
8	RUBBER; MTG (A) OD=17 L=50	8-94157-054-1	01	1	0610-
8	RUBBER; MTG 4HE1 ENG(RLY) (B) OD=15 L=50	8-97077-629-0	03	1	0504-0609
8	RUBBER; MTG 4HE1-TCN ENG(RDR) (B) OD=15 L=50	8-97077-629-0	03	1	0610-
29	HOSE; FUEL 4HE1 ENG(RLY) L=180 SERVICED BY L=3000	0-01259-300-0	01	1	0504-0609
29	HOSE; FUEL 4HE1-TCN ENG(RDR) FUEL FILTER DUAL(S6B) L=550 SERVICED BY L=3000	0-01259-300-0	02	1	0610-
29	HOSE; FUEL 4HE1-TCN ENG(RDR) EXC. FUEL FILTER DUAL(S6B) L=180 SERVICED BY L=3000	0-01259-300-0	01	1	0610-
41	CLIP; FUEL PIPE,FUEL TANK 4HE1 ENG(RLY) ID=13	8-94238-571-0	01	1	0504-0609
41	CLIP; FUEL PIPE,FUEL TANK 4HE1-TCN ENG(RDR) ID=13	8-94238-571-0	01	1	0610-0911
41	CLIP; FUEL PIPE,FUEL TANK 4HE1-TCN ENG(RDR) ID=13	8-98150-357-0	01	1	0912-
61	GROMMET; PIPE TO FRAME 4HE1 ENG(RLY) ID=17	8-94128-319-2	04	1	0504-0609
61	GROMMET; PIPE TO FRAME 4HE1-TCN ENG(RDR) ID=17	8-94128-319-2	04	1	0610-
65	HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0504-0609
65	HOSE; FUEL,DELIVERY PIPE 4HE1-TCN ENG(RDR) (A) L=140 SERVICED BY L=3000	0-01259-300-0	01	1	0610-
65	HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) (B) L=240 SERVICED BY L=3000	0-01259-300-0	01	1	0504-0609
65	HOSE; FUEL,DELIVERY PIPE 4HE1-TCN ENG(RDR) (B) L=240 SERVICED BY L=3000	0-01259-300-0	01	1	0610-
65	HOSE; FUEL,DELIVERY PIPE 4HE1 ENG(RLY) (C) L=500	8-97353-527-0	01	1	0504-0609
65	HOSE; FUEL,DELIVERY PIPE 4HE1-TCN ENG(RDR) (C) L=500	8-97353-527-0	01	1	0610-
66	HOSE; FUEL,RETURN PIPE (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0504-0609
66	HOSE; FUEL,RETURN PIPE 4HE1-TCN ENG(RDR) (A) L=140 SERVICED BY L=3000	0-01256-300-0	01	1	0610-
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) (B) L=550 SERVICED BY L=3000	0-01256-300-0	01	1	0504-0609
66	HOSE; FUEL,RETURN PIPE 4HE1-TCN ENG(RDR) (B) L=550 SERVICED BY L=3000	0-01256-300-0	01	1	0610-
66	HOSE; FUEL,RETURN PIPE 4HE1 ENG(RLY) (C)	8-97174-761-1	01	1	0504-0609
66	HOSE; FUEL,RETURN PIPE 4HE1-TCN ENG(RDR) (C)	8-97174-761-1	01	1	0610-
147	CLIP; FUEL PIPE TO HOSE 4HE1 ENG(RLY) (B) ID=19	8-94238-569-0	01	1	0504-0609
147	CLIP; FUEL PIPE TO HOSE (B) ID=19	8-94238-569-0	01	1	0610-0911
147	CLIP; FUEL PIPE TO HOSE (B) ID=19	8-98150-356-0	01	1	0912-
147	CLIP; FUEL PIPE TO HOSE 4HE1 ENG(RLY) (C) ID=13	8-94238-571-0	01	1	0504-0609
147	CLIP; FUEL PIPE TO HOSE 4HE1-TCN ENG(RDR) (C) ID=13	8-94238-571-0	01	1	0610-0911
147	CLIP; FUEL PIPE TO HOSE 4HE1-TCN ENG(RDR) (C) ID=13	8-98150-357-0	01	1	0912-
147	CLIP; FUEL PIPE TO HOSE 4HE1 ENG(RLY) (A) ID=16	8-94238-568-0	04	1	0504-0609
147	CLIP; FUEL PIPE TO HOSE 4HE1-TCN ENG(RDR) (A) ID=16	8-94238-568-0	03	1	0610-0911
147	CLIP; FUEL PIPE TO HOSE 4HE1-TCN ENG(RDR) (A) ID=16	8-98008-098-0	03	1	0912-
147	CLIP; FUEL PIPE TO HOSE 4HE1 ENG(RLY) (A) ID=16	8-94238-568-0	01	1	0504-0609
147	CLIP; FUEL PIPE TO HOSE 4HE1-TCN ENG(RDR) (A) ID=16	8-94238-568-0	05	1	0610-0911
147	CLIP; FUEL PIPE TO HOSE 4HE1-TCN ENG(RDR) (A) ID=16	8-98008-098-0	05	1	0912-
147	CLIP; FUEL PIPE TO HOSE 4HE1-TCN ENG(RDR) FUEL FILTER DUAL(S6B) (A) ID=16	8-94238-568-0	02	1	0610-0911
147	CLIP; FUEL PIPE TO HOSE 4HE1-TCN ENG(RDR) FUEL FILTER DUAL(S6B) (A) ID=16	8-98008-098-0	02	1	0912-
165	CLIP; FUEL HOSE 4HE1 ENG(RLY) (C) L=140	5-09707-031-1	02	1	0504-0609
165	CLIP; FUEL HOSE 4HE1-TCN ENG(RDR) FUEL FILTER DUAL(S6B) (C) L=250	5-09707-030-1	01	1	0610-
165	CLIP; FUEL HOSE 4HE1 ENG(RLY) (A) ID=16	8-94238-568-0	02	1	0504-0609
165	CLIP; FUEL HOSE 4HE1-TCN ENG(RDR) (A) ID=16	8-94238-568-0	02	1	0610-0911
165	CLIP; FUEL HOSE 4HE1-TCN ENG(RDR) (A) ID=16	8-98008-098-0	02	1	0912-
165	CLIP; FUEL HOSE 4HE1 ENG(RLY) (B) ID=13	8-94238-571-0	02	1	0504-0609
165	CLIP; FUEL HOSE 4HE1-TCN ENG(RDR) (B) ID=13	8-94238-571-0	02	1	0610-0911
165	CLIP; FUEL HOSE 4HE1-TCN ENG(RDR) (B) ID=13	8-98150-357-0	02	1	0912-
165	CLIP; FUEL HOSE 4HE1-TCN ENG(RDR) (C) L=140	5-09707-031-1	01	1	0610-
165	CLIP; FUEL HOSE 4HE1-TCN ENG(RDR) EXC. FUEL FILTER DUAL(S6B) (C) L=140	5-09707-031-1	01	1	0610-
