Isuzu WW
▶
TRUCKS
▶
NQR
▶
51038 - NQR(IRAN)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶

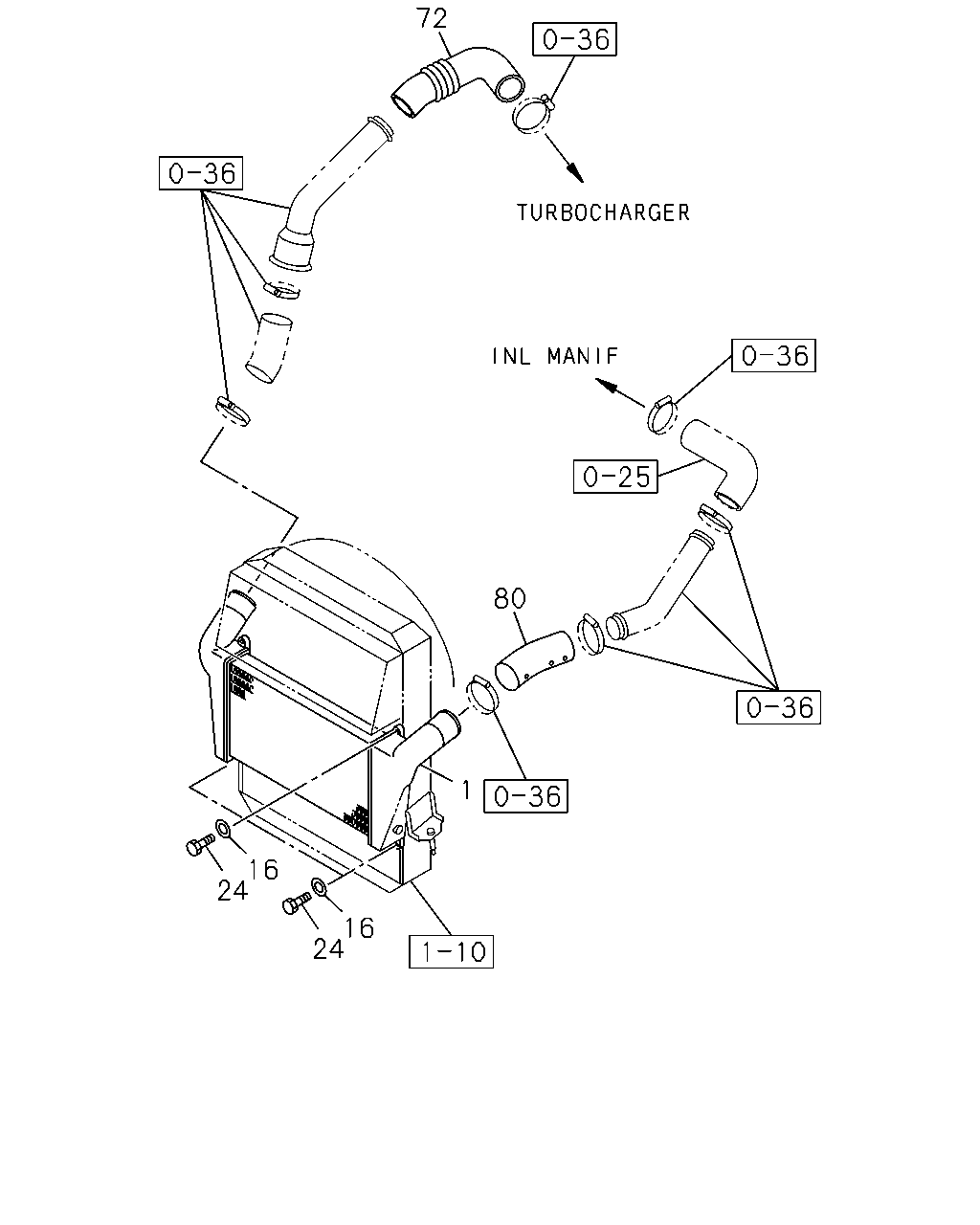

1-35 - CHARGE AIR COOLER
▶
1-35 — CHARGE AIR COOLER
(#21455) — 11 parça
72
80
1
16
24
16
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
COOLER; CHARGE AIR
4HE1 ENG(RLY)
8-97218-394-4
01
1
0504-0609
1
COOLER; CHARGE AIR
4HE1-TCN ENG(RDR)
8-97218-394-4
01
1
0610-
16
WASHER; PL,CHARGE AIR COOLER
4HE1 ENG(RLY) ID=8.4
9-09160-508-0
04
1
0504-0609
16
WASHER; PL,CHARGE AIR COOLER
4HE1-TCN ENG(RDR) ID=8.4
9-09160-508-0
04
1
0610-1103
16
WASHER; PL,CHARGE AIR COOLER
4HE1-TCN ENG(RDR) ID=8.4 OD=16
0-91610-508-0
04
1
1104-
24
BOLT; COOLER TO RAD
4HE1 ENG(RLY) M8X26
8-97173-439-0
04
1
0504-0609
24
BOLT; COOLER TO RAD
4HE1-TCN ENG(RDR) M8X25 FLANGE
0-28080-825-0
04
1
0610-
72
HOSE; CONN,INL PIPE TO DUCT
4HE1 ENG(RLY)
8-97203-993-2
01
1
0504-0609
72
HOSE; CONN,INL PIPE TO DUCT
4HE1-TCN ENG(RDR)
8-97203-993-2
01
1
0610-
80
HOSE; CONN,CHARGE AIR COOLER TO DUCT
4HE1 ENG(RLY)
8-97233-792-1
01
1
0504-0609
80
HOSE; CONN,CHARGE AIR COOLER TO DUCT
4HE1-TCN ENG(RDR)
8-97233-792-1
01
1
0610-
