1-31 — AIR DUCT (#21454) — 45 parça

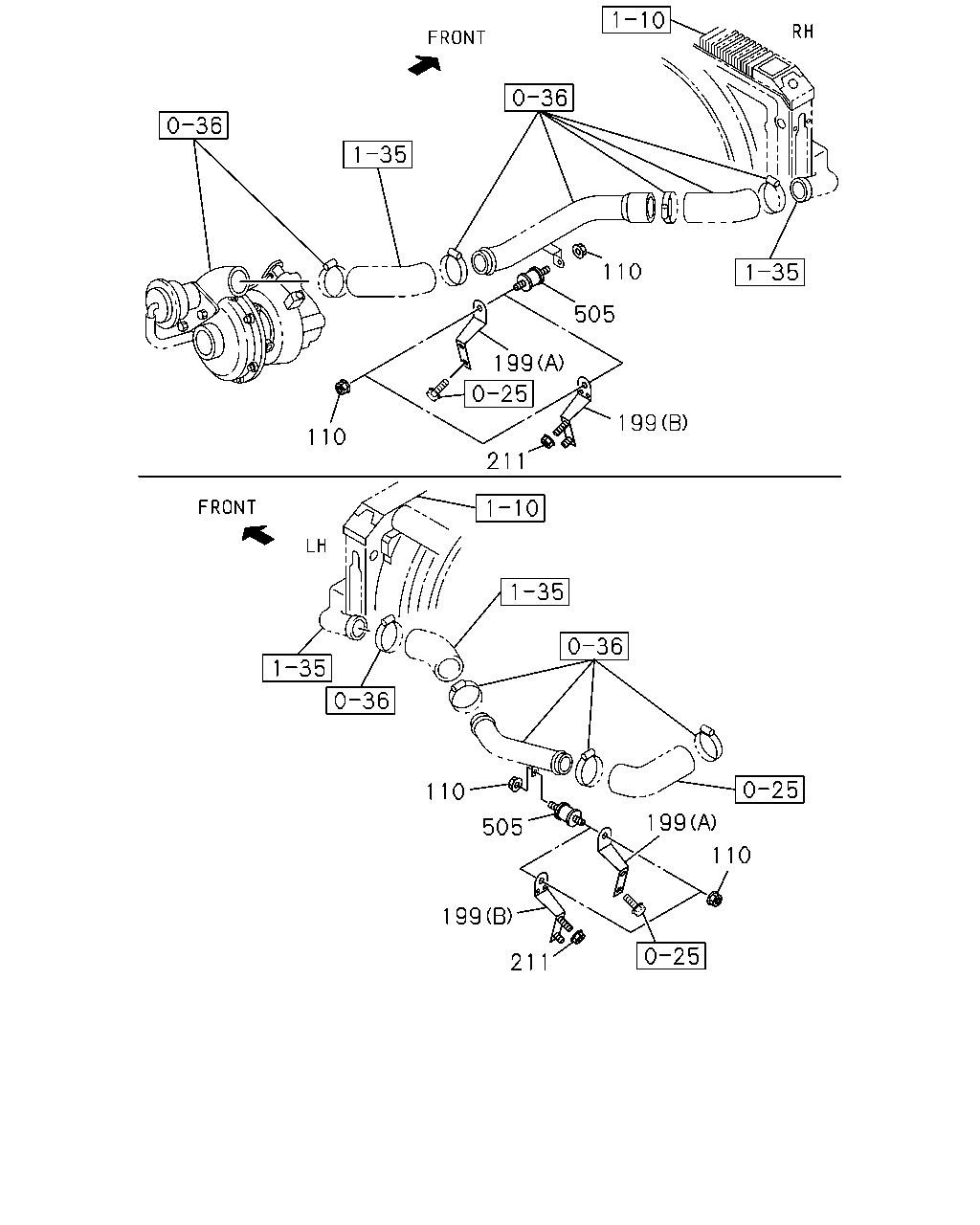

110 505 199 199 10 211 110 199 505 110 199 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	BOLT; BRKT FIX 4HE1 ENG(RLY) (A) M8X25 FLANGE	0-28680-825-0	02	1	0504-0512
10	BOLT; BRKT FIX 4HE1 ENG(RLY) (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0609
10	BOLT; BRKT FIX 4HE1-TCN ENG(RDR) (A) M8X25 FLANGE	0-28650-825-0	02	1	0610-
10	BOLT; BRKT FIX 4HE1 ENG(RLY) (B) M8X35 FLANGE	0-28680-835-0	01	1	0504-0512
10	BOLT; BRKT FIX 4HE1 ENG(RLY) (B) M8X35 FLANGE	0-28650-835-0	01	1	0601-0609
10	BOLT; BRKT FIX 4HE1-TCN ENG(RDR) (B) M8X35 FLANGE	0-28650-835-0	01	1	0610-
110	NUT; RUBBER MTG 4HE1 ENG(RLY) M8 FLANGE	0-91150-108-0	04	1	0504-0602
110	NUT; RUBBER MTG 4HE1 ENG(RLY) M8 FLANGE	0-91180-108-0	04	1	0603-0609
110	NUT; RUBBER MTG 4HE1-TCN ENG(RDR) M8 FLANGE	0-91180-108-0	04	1	0610-
199	BRACKET; PIPE 4HE1 ENG(RLY) (A)	8-97189-604-0	01	1	0504-0609
199	BRACKET; PIPE 4HE1-TCN ENG(RDR) (B)	8-98011-753-1	01	1	0610-
199	BRACKET; PIPE 4HE1 ENG(RLY) (A)	8-97189-603-1	01	1	0504-0609
199	BRACKET; PIPE 4HE1-TCN ENG(RDR) (B)	8-98011-752-1	01	1	0610-
211	NUT; BRKT 4HE1-TCN ENG(RDR) M8 FLANGE	8-97046-127-0	02	1	0610-0610
211	NUT; BRKT 4HE1-TCN ENG(RDR) M8 W/DISHED WASHER	8-97329-625-0	02	1	0611-
505	RUBBER; MTG 4HE1 ENG(RLY)	8-94158-155-1	02	1	0504-0609
505	RUBBER; MTG 4HE1-TCN ENG(RDR)	8-94158-155-1	02	1	0610-0611
505	RUBBER; MTG 4HE1-TCN ENG(RDR)	8-98036-826-0	02	1	0612-

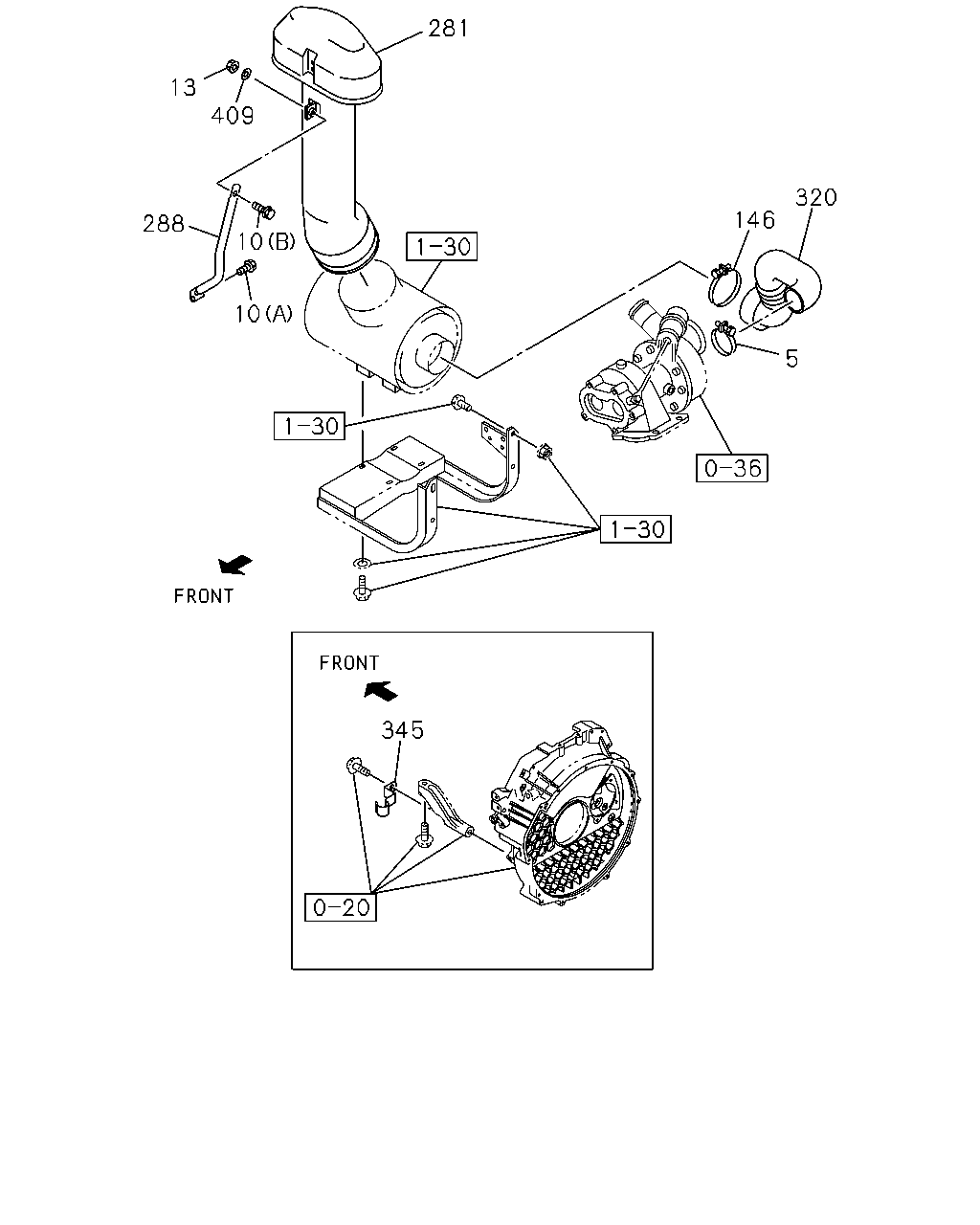

281 13 409 320 146 288 10 10 5 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	CLIP; AIR DUCT 4HE1-TCN ENG(RDR) EXC. IDENTIFICATION LABEL FOR KD<6UT> ID=70-90	8-98122-372-0	01	1	1002-
5	CLIP; AIR DUCT 4HE1 ENG(RLY) ID=58-79	1-09707-136-0	01	1	0504-0609
5	CLIP; AIR DUCT 4HE1-TCN ENG(RDR) ID=68-85	1-09707-202-0	01	1	0610-0810
5	CLIP; AIR DUCT 4HE1-TCN ENG(RDR) ID=65-85	8-98133-350-0	01	1	0811-1001
5	CLIP; AIR DUCT 4HE1-TCN ENG(RDR) IDENTIFICATION LABEL FOR KD<6UT> ID=65-85	8-98133-350-0	01	1	1002-
10	BOLT; BRKT FIX 4HE1 ENG(RLY) (A) M8X25 FLANGE	0-28680-825-0	02	1	0504-0512
10	BOLT; BRKT FIX 4HE1 ENG(RLY) (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-0609
10	BOLT; BRKT FIX 4HE1-TCN ENG(RDR) (A) M8X25 FLANGE	0-28650-825-0	02	1	0610-
10	BOLT; BRKT FIX 4HE1 ENG(RLY) (B) M8X35 FLANGE	0-28680-835-0	01	1	0504-0512
10	BOLT; BRKT FIX 4HE1 ENG(RLY) (B) M8X35 FLANGE	0-28650-835-0	01	1	0601-0609
10	BOLT; BRKT FIX 4HE1-TCN ENG(RDR) (B) M8X35 FLANGE	0-28650-835-0	01	1	0610-
13	NUT; BRKT FIX 4HE1 ENG(RLY) M8 FLANGE	0-91150-108-0	01	1	0504-0602
13	NUT; BRKT FIX 4HE1 ENG(RLY) M8 FLANGE	0-91180-108-0	01	1	0603-0609
13	NUT; BRKT FIX 4HE1-TCN ENG(RDR) M8 FLANGE	0-91180-108-0	01	1	0610-
146	CLIP; HOSE,ACL 4HE1 ENG(RLY) ID=112	9-09915-074-1	01	1	0504-0609
146	CLIP; HOSE,ACL 4HE1-TCN ENG(RDR) ID=112	9-09915-074-1	01	1	0610-
281	DUCT; AIR,VERTICAL INT 4HE1 ENG(RLY)	8-97180-995-0	01	1	0504-0609
281	DUCT; AIR,VERTICAL INT 4HE1-TCN ENG(RDR)	8-97180-995-0	01	1	0610-
288	BRACKET; DUCT 4HE1 ENG(RLY)	8-97183-041-2	01	1	0504-0609
288	BRACKET; DUCT 4HE1-TCN ENG(RDR)	8-97183-041-2	01	1	0610-
320	HOSE; CONN,ACL 4HE1 ENG(RLY)	8-97209-707-0	01	1	0504-0609
320	HOSE; CONN,ACL 4HE1-TCN ENG(RDR)	8-97209-707-0	01	1	0610-
345	CLIP; PCV HOSE 4HE1 ENG(RLY)	8-97369-959-0	01	1	0504-0609
345	CLIP; PCV HOSE 4HE1-TCN ENG(RDR)	8-97369-959-0	01	1	0610-
409	WASHER; PL,BRKT 4HE1 ENG(RLY) ID=8.4 OD=22	9-09160-708-0	01	1	0504-0605
409	WASHER; PL,BRKT 4HE1 ENG(RLY) ID=8.4 OD=22	0-91610-708-0	01	1	0606-0609
409	WASHER; PL,BRKT 4HE1-TCN ENG(RDR) ID=8.4 OD=22	0-91610-708-0	01	1	0610-
