◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51038 - NQR(IRAN) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-11 - RADIATOR HOSE AND SUB TANK ▶
1-11 — RADIATOR HOSE AND SUB TANK (#21452) — 31 parça

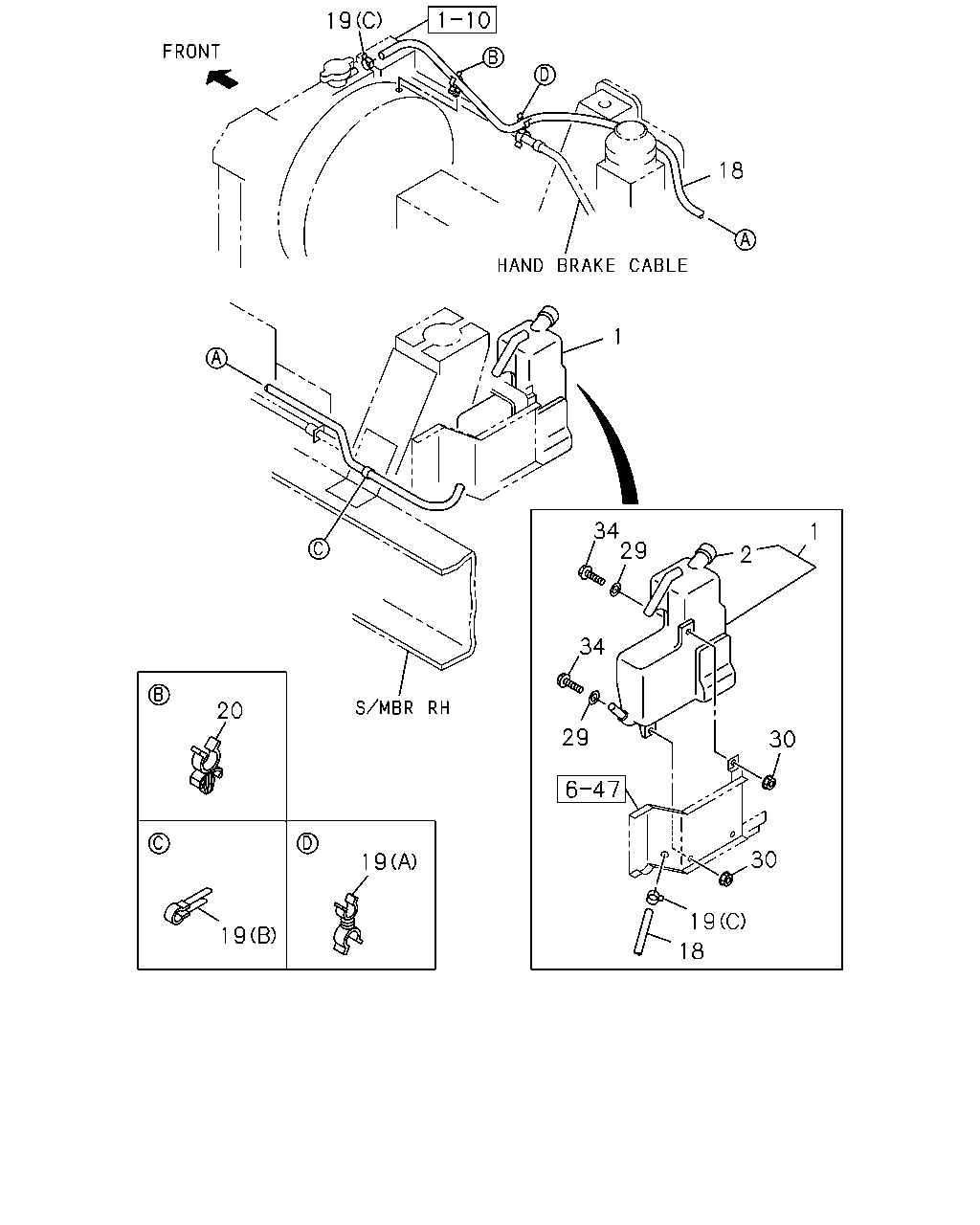

çizim 55886
19 18 1 34 29 1 2 34 20 29 30 30 19 19 19 18
BalonParca AdiParca NoAdetTipApplied Date
1 TANK; SURGE,RAD
4HE1 ENG(RLY) 		8-97210-844-0 01 1 0504-0609
1 TANK; SURGE,RAD
4HE1-TCN ENG(RDR) 		8-97210-844-0 01 1 0610-1010
1 TANK; SURGE,RAD
4HE1-TCN ENG(RDR) 		8-98178-177-0 01 1 1011-
2 CAP; SURGE TANK
4HE1 ENG(RLY) 		8-97217-796-0 01 1 0504-0609
2 CAP; SURGE TANK
4HE1-TCN ENG(RDR) 		8-97217-796-0 01 1 0610-1010
2 CAP; SURGE TANK
4HE1-TCN ENG(RDR) 		8-98178-074-0 01 1 1011-
18 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) L=1450 		8-97218-446-1 01 1 0504-0609
18 HOSE; RAD TO SURGE TANK
4HE1-TCN ENG(RDR) L=1450 		8-97218-446-1 01 1 0610-
19 CLIP; HOSE,SURGE TANK
(C) ID=12 		8-94238-610-0 02 1 0504-0911
19 CLIP; HOSE,SURGE TANK
(C) ID=12 		8-98150-358-0 02 1 0912-
19 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) (B) ID=14 L=47 		5-09700-319-0 01 1 0504-0609
19 CLIP; HOSE,SURGE TANK
4HE1-TCN ENG(RDR) (B) ID=14 L=47 		5-09700-319-0 01 1 0610-
19 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) (A) ID=10 & 11 		8-94438-996-0 01 1 0504-0609
19 CLIP; HOSE,SURGE TANK
4HE1-TCN ENG(RDR) (A) ID=10 & 11 		8-94438-996-0 01 1 0610-
20 CLIP; HOSE,RAD
4HE1 ENG(RLY) ID=10.8 		8-97354-231-0 01 1 0504-0609
20 CLIP; HOSE,RAD
4HE1-TCN ENG(RDR) ID=10.8 		8-97354-231-0 01 1 0610-
29 WASHER; PL,RESERVE TANK
4HE1 ENG(RLY) ID=6.4 OD=18 		9-09160-706-0 03 1 0504-0605
29 WASHER; PL,RESERVE TANK
4HE1 ENG(RLY) ID=6.4 OD=18 		0-91610-706-0 03 1 0606-0609
29 WASHER; PL,RESERVE TANK
4HE1-TCN ENG(RDR) ID=6.4 OD=18 		0-91610-706-0 03 1 0610-
30 NUT
4HE1 ENG(RLY) M6 FLANGE 		0-91150-106-0 03 1 0504-0602
30 NUT
4HE1 ENG(RLY) M6 FLANGE 		0-91180-106-0 03 1 0603-0609
30 NUT
4HE1-TCN ENG(RDR) M6 FLANGE 		0-91180-106-0 03 1 0610-
34 BOLT; RESERVE TANK
4HE1 ENG(RLY) M6X20 FLANGE 		0-28680-620-0 03 1 0504-0512
34 BOLT; RESERVE TANK
4HE1 ENG(RLY) M6X20 FLANGE 		0-28650-620-0 03 1 0601-0609
34 BOLT; RESERVE TANK
4HE1-TCN ENG(RDR) M6X20 FLANGE 		0-28650-620-0 03 1 0610-
çizim 100930
56 128 56 55
BalonParca AdiParca NoAdetTipApplied Date
55 HOSE; WATER,RAD OUTLET
4HE1 ENG(RLY) 		8-97216-029-0 01 1 0504-0609
55 HOSE; WATER,RAD OUTLET
4HE1-TCN ENG(RDR) 		8-97216-029-0 01 1 0610-
56 CLIP; WATER HOSE,RAD
4HE1 ENG(RLY) ID=40 		8-97245-216-0 02 1 0504-0609
56 CLIP; WATER HOSE,RAD
4HE1-TCN ENG(RDR) ID=40 		8-97245-216-0 02 1 0610-
128 HOSE; WATER,RAD INL
4HE1 ENG(RLY) 		8-97160-257-1 01 1 0504-0609
128 HOSE; WATER,RAD INL
4HE1-TCN ENG(RDR) 		8-97160-257-1 01 1 0610-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
