0-87 — COUPLING; INJECTION PUMP (#21449) — 18 parça

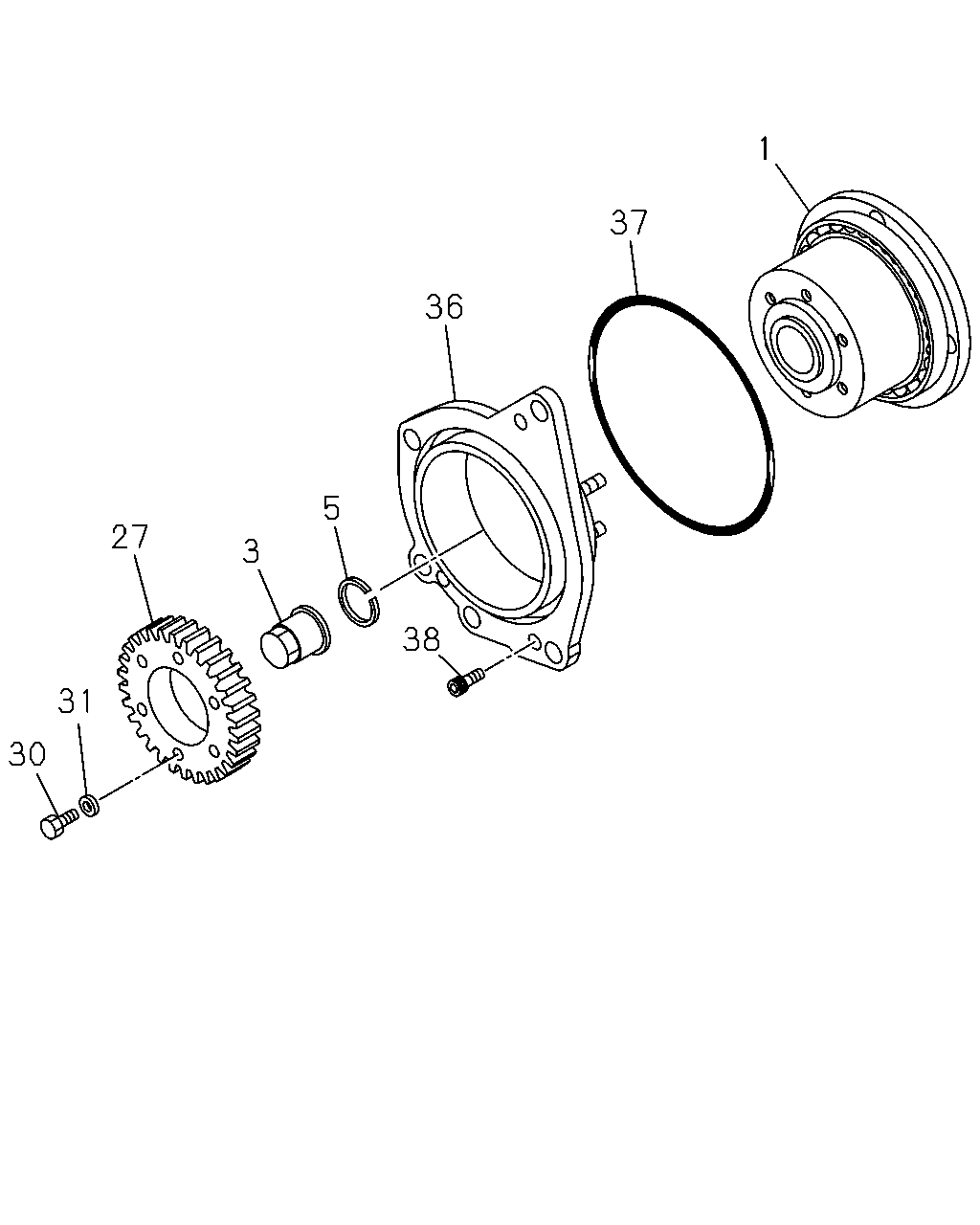

çizim 55884
1 37 36 5 27 3 38 31 30
BalonParca AdiParca NoAdetTipApplied Date A B
1 COUPLING; INJ PUMP DRIVE 8-97367-802-0 01 1 0504-0609 ●
1 COUPLING; INJ PUMP DRIVE 8-97367-802-0 01 1 0610- ●
3 NUT; COUPLING FIX,INJ PUMP 1-15749-144-0 01 1 0504-0609 ●
3 NUT; COUPLING FIX,INJ PUMP 1-15749-144-0 01 1 0610- ●
5 WASHER; COUPLING FIX,INJ PUMP 1-15749-145-0 01 1 0504-0609 ●
5 WASHER; COUPLING FIX,INJ PUMP 1-15749-145-0 01 1 0610- ●
27 GEAR; COUPLING 8-97367-803-0 01 1 0504-0609 ●
27 GEAR; COUPLING 8-97367-803-0 01 1 0610- ●
30 BOLT; GEAR TO COUPLING 8-97211-798-0 06 1 0504-0609 ●
30 BOLT; GEAR TO COUPLING 8-97211-798-0 06 1 0610- ●
31 WASHER; PL,GEAR TO COUPLING 8-97211-797-0 06 1 0504-0609 ●
31 WASHER; PL,GEAR TO COUPLING 8-97211-797-0 06 1 0610- ●
36 COVER; COUPLING 8-97202-360-2 01 1 0504-0609 ●
36 COVER; COUPLING 8-97202-360-2 01 1 0610- ●
37 GASKET; COUPLING 8-97201-279-0 01 1 0504-0609 ●
37 GASKET; COUPLING 8-97201-279-0 01 1 0610- ●
38 BOLT; COVER,COUPLING 1-09054-035-0 03 1 0504-0609 ●
38 BOLT; COVER,COUPLING 1-09054-035-0 03 1 0610- ●
