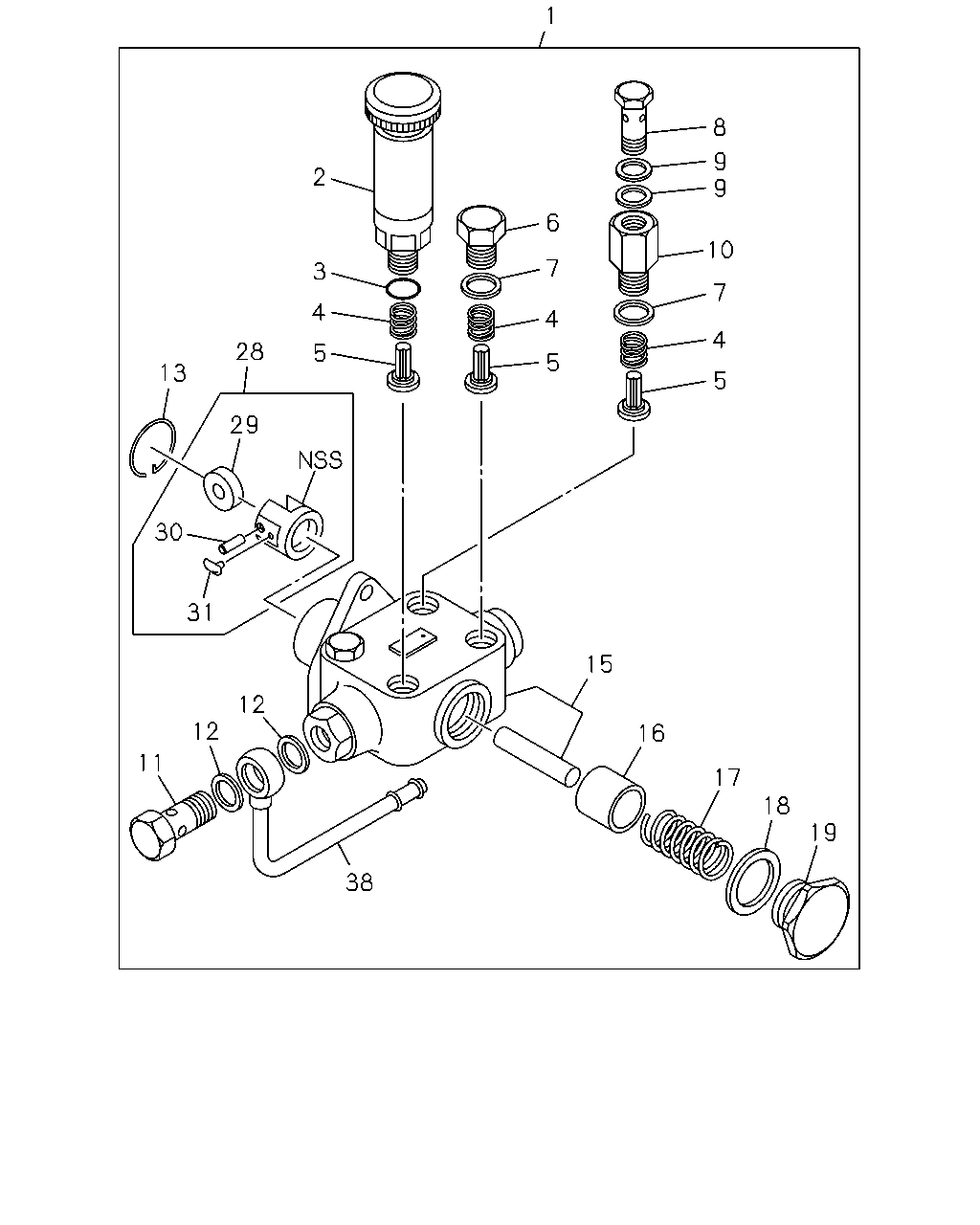

0-84 — FEED PUMP; INJECTION PUMP (#21447) — 23 parça

1 8 9 9 2 6 10 7 3 7 4 4 4 28 5 5 13 5 29 30 31 15 12 12 16 11 17 18 19 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; FUEL FEED,INJ PUMP ASM PART: A = 8-97212-189-1	8-97185-289-0	01	1	-
2	PUMP; PRIMING,FUEL FEED PUMP ASM PART: A = 8-97212-189-1	1-15761-006-0	01	1	-
3	GASKET; PRIMING PUMP,FUEL FEED PUMP ASM PART: A = 8-97212-189-1	1-19623-016-0	01	1	-
4	SPRING; VLV,FUEL FEED PUMP ASM PART: A = 8-97212-189-1	9-81351-702-0	04	1	-
5	VALVE; FUEL FEED PUMP ASM PART: A = 8-97212-189-1	1-15755-002-0	04	1	-
6	PLUG; VLV SPRING,FUEL FEED PUMP ASM PART: A = 8-97212-189-1	1-15759-009-0	02	1	-
7	GASKET; PLUG,FUEL FEED PUMP ASM PART: A = 8-97212-189-1	9-81355-031-0	03	1	-
8	BOLT; EYE,FUEL OUTLET,FEED PUMP ASM PART: A = 8-97212-189-1	1-15759-051-0	01	1	-
9	GASKET; EYE BOLT,OUTLET,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: A = 8-97212-189-1	1-09630-085-0	02	1	-
10	ADAPTER; EYE BOLT,FUEL FEED PUMP ASM PART: A = 8-97212-189-1	1-15759-052-0	01	1	-
11	BOLT; EYE,FUEL INL,FEED PUMP M14X30 ASM PART: A = 8-97212-189-1	8-97203-957-0	01	1	-
12	GASKET; EYE BOLT,INL,FUEL FEED PUMP ID=14.2 OD=19.2 ASM PART: A = 8-97212-189-1	1-09630-085-0	02	1	-
13	RING; SNAP,TAPPET,FUEL FEED PUMP ASM PART: A = 8-97212-189-1	9-81355-062-0	01	1	-
15	HOUSING; FUEL FEED PUMP ASM PART: A = 8-97212-189-1	8-97201-263-0	01	1	-
16	PISTON; FUEL FEED PUMP ASM PART: A = 8-97212-189-1	9-81351-205-0	01	1	-
17	SPRING; PISTON,FUEL FEED PUMP ASM PART: A = 8-97212-189-1	8-97201-264-0	01	1	-
18	GASKET; PISTON PLUG,FUEL FEED PUMP ASM PART: A = 8-97212-189-1	9-81355-035-0	01	1	-
19	PLUG; PISTON SPRING,FUEL FEED PUMP ASM PART: A = 8-97212-189-1	8-94171-185-0	01	1	-
28	TAPPET ASM; FUEL FEED PUMP ASM PART: A = 8-97212-189-1	8-97201-265-0	01	1	-
29	ROLLER; TAPPET,FUEL FEED PUMP ASM PART: A = 8-97212-189-1	8-97212-776-0	01	1	-
30	PIN; TAPPET ROLLER,FUEL FEED PUMP ASM PART: A = 8-97212-189-1	1-15759-056-0	01	1	-
31	GUIDE; TAPPET,FUEL FEED PUMP ASM PART: A = 8-97212-189-1	1-15759-057-0	02	1	-
38	PIPE; FEED PUMP ASM PART: A = 8-97212-189-1	8-97185-288-0	01	1	-
