8-28 — CHASSIS ELECTRICAL (#2144) — 72 parça

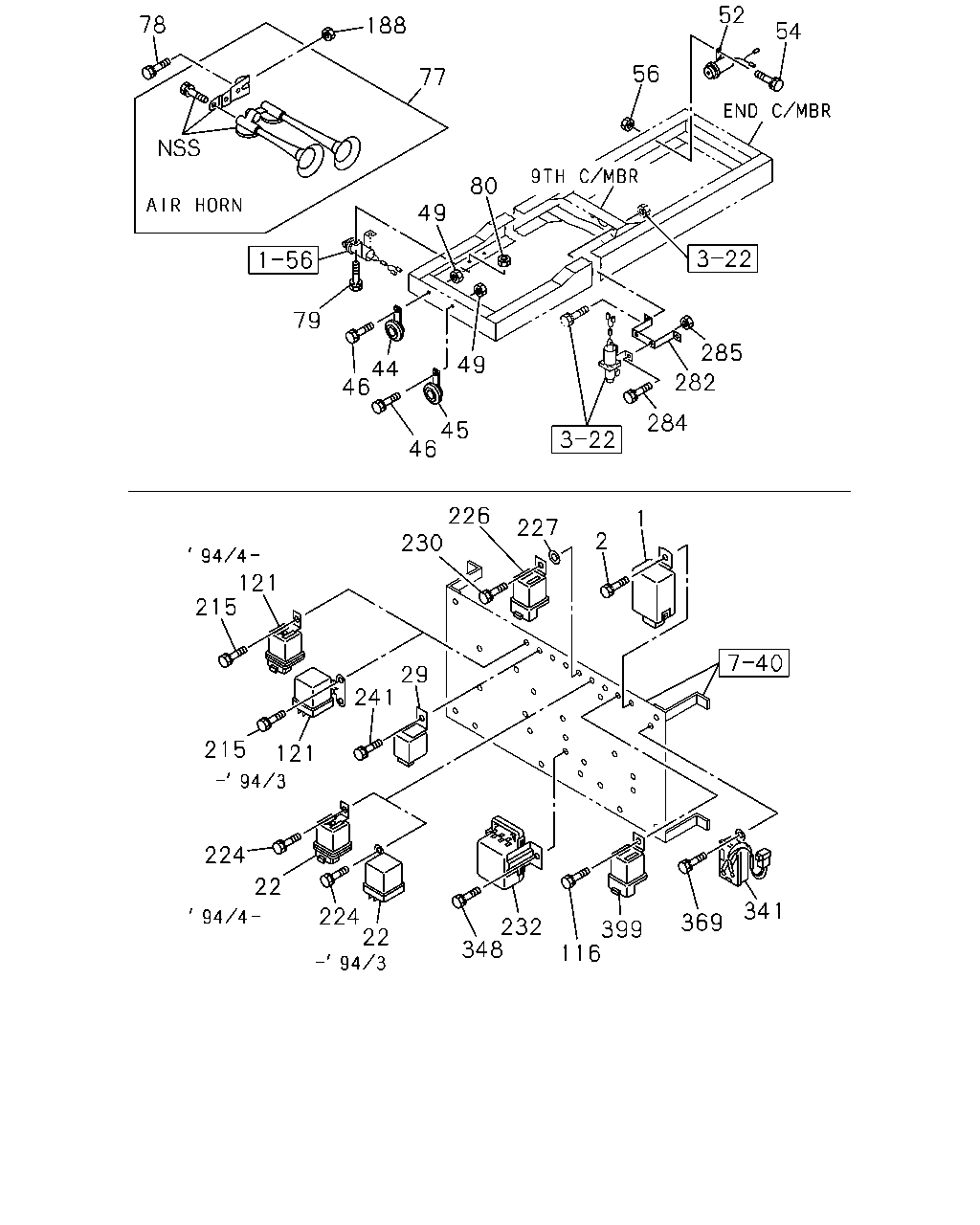

çizim 27349
52 78 188 54 56 77 80 49 79 285 49 44 46 282 284 45 46 226 230 1 227 2 121 215 29 241 215 121 224 22 341 224 22 369 232 348 399 116
BalonParca AdiParca NoAdetTipApplied Date A B
1 UNIT; FLASHER 1-83470-034-1 01 1 9001-9407 ● ●
1 UNIT; FLASHER 1-83470-034-1 01 1 9408- ●
1 UNIT; FLASHER
EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> 		1-83470-034-1 01 1 9408- ●
1 UNIT; FLASHER
HEAD LAMP RECTANGULAR ANGLE<TR4> 		1-83470-035-1 01 1 9408-9603 ●
1 UNIT; FLASHER
HEAD LAMP RECTANGULAR ANGLE<TR4> 		1-83470-035-1 01 1 9604- ●
2 BOLT; FLASHER UNIT
M6X12 W/LK WASHER 		9-01900-612-0 01 1 9001-9204 ● ●
2 BOLT; FLASHER UNIT
M6X12 W/LK WASHER 		0-50040-612-0 01 1 9205-9606 ● ●
2 BOLT; FLASHER UNIT
M6X16 FLANGE 		0-28680-616-0 01 1 9607- ● ●
22 RELAY; STOP LAMP
24V 		1-82550-127-1 01 1 9001-9403 ● ●
22 RELAY; STOP LAMP
24V 		1-82550-176-0 01 1 9404- ● ●
29 RELAY; HORN
EXC. AIR HORN(WB8) 		1-83420-001-0 01 1 9001- ● ●
44 HORN; HIGH NOTE
EXC. AIR HORN(WB8) 		1-83410-037-0 01 1 9001-9303 ● ●
44 HORN; HIGH NOTE
EXC. AIR HORN(WB8) 		1-83410-057-1 01 1 9304- ● ●
45 HORN; LOW NOTE
EXC. AIR HORN(WB8) 		1-83410-038-0 01 1 9001-9303 ● ●
45 HORN; LOW NOTE
EXC. AIR HORN(WB8) 		1-83410-058-1 01 1 9304- ● ●
46 BOLT; HORN TO BODY
EXC. AIR HORN(WB8) M8X16 W/LK WASHER 		9-01900-816-0 02 1 9001-9204 ● ●
46 BOLT; HORN TO BODY
EXC. AIR HORN(WB8) M8X16 W/LK WASHER 		0-50040-816-0 02 1 9205-9606 ● ●
46 BOLT; HORN TO BODY
EXC. AIR HORN(WB8) M8X20 FLANGE 		0-28680-820-0 02 1 9607- ● ●
49 NUT; HORN TO BODY
EXC. AIR HORN(WB8) M8 		9-09110-408-0 02 1 9001-9606 ● ●
49 NUT; HORN TO BODY
EXC. AIR HORN(WB8) M8 FLANGE 		0-91150-108-0 02 1 9607- ● ●
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> NIKKO 		1-83460-010-0 01 1 9001-9112 ● ●
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> NIKKO 		8-97061-718-0 01 1 9201- ● ●
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> METRO 		1-83460-091-0 01 1 9904-9907 ● ●
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> EXC. NIKKO<Y70> METRO 		1-83460-091-1 01 1 9908- ● ●
54 BOLT; BACK BUZZER
REVERSING WARNING BUZZER<YM9> M10X25 W/LK WASHER 		9-01901-025-0 01 1 9001-9204 ● ●
54 BOLT; BACK BUZZER
REVERSING WARNING BUZZER<YM9> M10X25 W/LK WASHER 		0-50041-025-0 01 1 9205-9606 ● ●
54 BOLT; BACK BUZZER
REVERSING WARNING BUZZER<YM9> M10X25 FLANGE 		0-28681-025-0 01 1 9607- ● ●
56 NUT; BACK BUZZER
REVERSING WARNING BUZZER<YM9> M10 		9-09110-510-0 01 1 9308-9606 ● ●
56 NUT; BACK BUZZER
REVERSING WARNING BUZZER<YM9> M10 FLANGE 		0-91150-210-0 01 1 9607- ● ●
77 HORN ASM
AIR HORN(WB8) 		1-83430-028-1 01 1 9001- ● ●
78 BOLT; AIR HORN
AIR HORN(WB8) M10X20 W/LK WASHER 		9-01901-020-0 02 1 9001-9204 ● ●
78 BOLT; AIR HORN
AIR HORN(WB8) M10X20 W/LK WASHER 		0-50041-020-0 02 1 9205-9606 ● ●
78 BOLT; AIR HORN
AIR HORN(WB8) M10X25 FLANGE 		0-28681-025-0 02 1 9607- ● ●
79 BOLT; MAG VLV
AIR HORN(WB8) M8X18 W/LK WASHER 		9-01900-818-0 02 1 9001-9204 ● ●
79 BOLT; MAG VLV
AIR HORN(WB8) M8X18 W/LK WASHER 		0-50040-818-0 02 1 9205-9606 ● ●
79 BOLT; MAG VLV
AIR HORN(WB8) M8X25 FLANGE 		0-28680-825-0 02 1 9607- ● ●
80 NUT; MAG VLV
AIR HORN(WB8) M8 		9-09110-408-0 02 1 9001-9606 ● ●
80 NUT; MAG VLV
AIR HORN(WB8) M8 FLANGE 		0-91150-108-0 02 1 9607- ● ●
116 BOLT; RELAY FIX
OVERHEAD COOLING SYSTEM(YS9) M6X12 W/LK WASHER 		9-01900-612-0 01 1 9001-9012 ●
121 RELAY; PARKING BRK
24V JIDECO 		1-82550-088-0 01 1 9001-9403 ● ●
121 RELAY; PARKING BRK
24V 12.5A JIDECO 		1-82550-197-0 01 1 9404- ● ●
188 NUT; AIR HORN
AIR HORN(WB8) M10 		9-09110-510-0 02 1 9308-9606 ● ●
188 NUT; AIR HORN
AIR HORN(WB8) M10 FLANGE 		0-91150-210-0 02 1 9607- ● ●
215 BOLT; TAIL LAMP RELAY
M6X12 W/LK WASHER 		9-01900-612-0 02 1 9001-9204 ● ●
215 BOLT; TAIL LAMP RELAY
M6X12 W/LK WASHER 		0-50040-612-0 02 1 9205-9606 ● ●
215 BOLT; TAIL LAMP RELAY
M6X16 FLANGE 		0-28680-616-0 02 1 9607- ● ●
224 BOLT; STOP LAMP RELAY
M6X12 W/LK WASHER 		9-01900-612-0 02 1 9001-9204 ● ●
224 BOLT; STOP LAMP RELAY
M6X12 W/LK WASHER 		0-50040-612-0 02 1 9205-9606 ● ●
224 BOLT; STOP LAMP RELAY
M6X16 FLANGE 		0-28680-616-0 02 1 9607- ● ●
226 RELAY; EXH BRK 1-82550-225-0 01 1 9001- ● ●
227 WASHER; RELAY
OD=14 		1-09509-048-0 01 1 9001- ● ●
230 BOLT; BRAKE WARNING RELAY
M6X12 W/LK WASHER 		9-01900-612-0 01 1 9001-9204 ● ●
230 BOLT; BRAKE WARNING RELAY
M6X12 W/LK WASHER 		0-50040-612-0 01 1 9205-9606 ● ●
230 BOLT; BRAKE WARNING RELAY
M6X16 FLANGE 		0-28680-616-0 01 1 9607- ● ●
232 RELAY; WARNING BUZZER
INDICATOR WARNING BUZZER(WF9) 		1-82550-119-1 01 1 9001- ● ●
241 BOLT; HORN RELAY
EXC. AIR HORN(WB8) M6X12 W/LK WASHER 		9-01900-612-0 01 1 9001-9204 ● ●
241 BOLT; HORN RELAY
EXC. AIR HORN(WB8) M6X12 W/LK WASHER 		0-50040-612-0 01 1 9205-9606 ● ●
241 BOLT; HORN RELAY
EXC. AIR HORN(WB8) M6X16 FLANGE 		0-28680-616-0 01 1 9607- ● ●
282 BRACKET; MAG VLV
AXLE RATIO 2 SPEED<W9Y> 		1-82569-048-0 01 1 9001- ● ●
284 BOLT; MAG VLV
AXLE RATIO 2 SPEED<W9Y> M8X25 W/LK WASHER 		9-01900-825-0 02 1 9001-9204 ● ●
284 BOLT; MAG VLV
AXLE RATIO 2 SPEED<W9Y> M8X25 W/LK WASHER 		0-50040-825-0 02 1 9205-9606 ● ●
284 BOLT; MAG VLV
AXLE RATIO 2 SPEED<W9Y> M8X30 FLANGE 		0-28680-830-0 02 1 9607- ● ●
285 NUT; MAG VLV
AXLE RATIO 2 SPEED<W9Y> M8 		9-09110-408-0 02 1 9001-9606 ● ●
285 NUT; MAG VLV
AXLE RATIO 2 SPEED<W9Y> M8 FLANGE 		0-91150-108-0 02 1 9607- ● ●
341 RELAY 1-82550-104-0 01 1 9001- ● ●
348 SCREW; LAMP FAILURE RELAY
INDICATOR WARNING BUZZER(WF9) M6X12 W/LK WASHER 		9-01900-612-0 02 1 9001-9204 ● ●
348 SCREW; LAMP FAILURE RELAY
INDICATOR WARNING BUZZER(WF9) M6X12 W/LK WASHER 		0-50040-612-0 02 1 9205-9606 ● ●
348 SCREW; LAMP FAILURE RELAY
INDICATOR WARNING BUZZER(WF9) M6X16 FLANGE 		0-28680-616-0 02 1 9607- ● ●
369 SCREW; RELAY ASM
M6X12 W/LK WASHER 		9-01900-612-0 01 1 9001-9204 ● ●
369 SCREW; RELAY ASM
M6X12 W/LK WASHER 		0-50040-612-0 01 1 9205-9606 ● ●
369 SCREW; RELAY ASM
M6X16 FLANGE 		0-28680-616-0 01 1 9607- ● ●
399 RELAY; COOLER
OVERHEAD COOLING SYSTEM(YS9) 24V 12.5A JIDECO 		1-82550-197-0 01 1 9001-9012 ●
