0-57 — EMISSION PIPING (#21439) — 32 parça

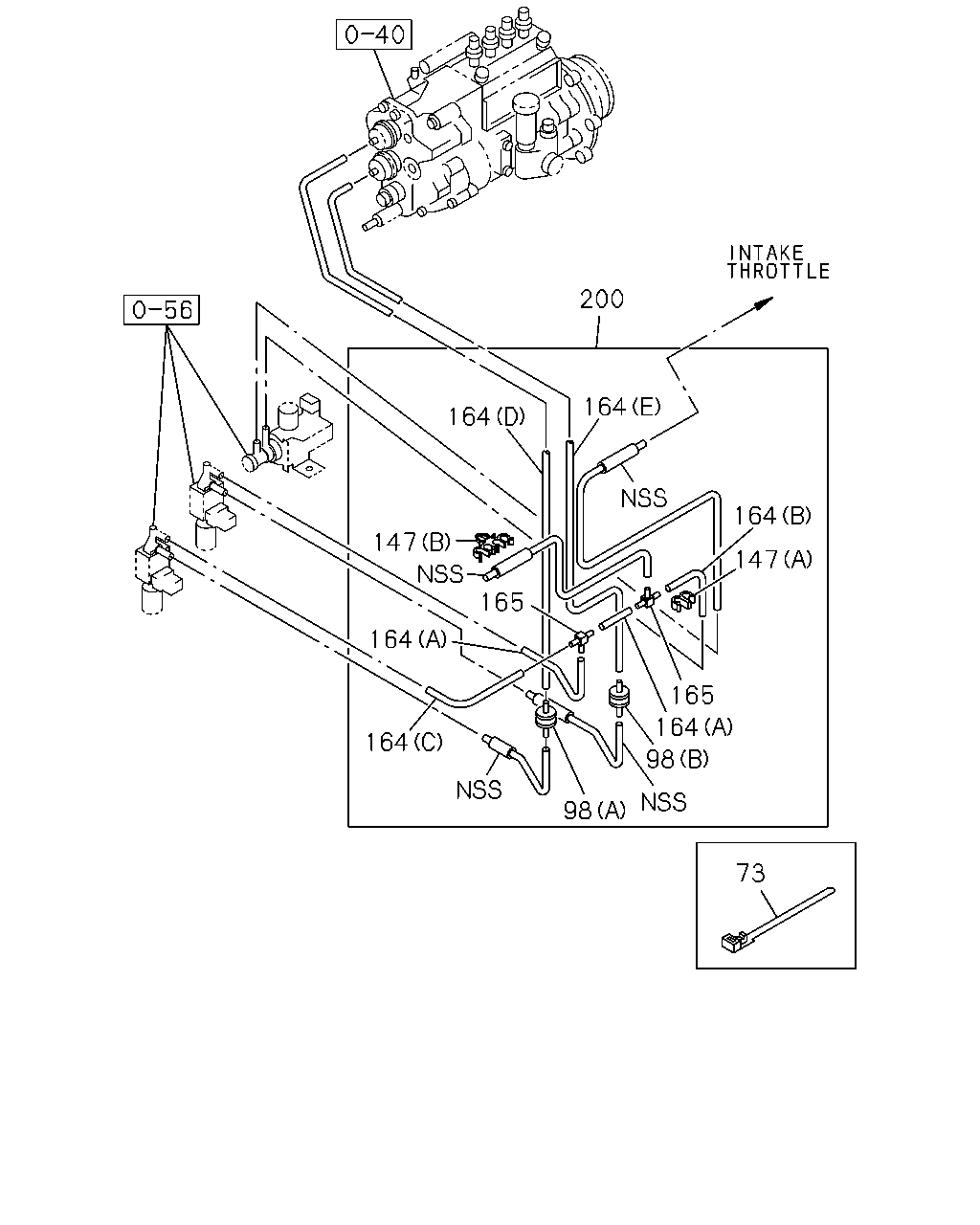

çizim 55960
200 164 164 164 147 147 165 164 165 164 164 98 98 73
BalonParca AdiParca NoAdetTipApplied Date A B
73 CLIP; VAC HOSE
L=250 		5-09707-030-1 02 1 0504-0609 ●
73 CLIP; VAC HOSE
HEATER & DEFROSTER(C41) L=250 		5-09707-030-1 02 1 0610- ●
73 CLIP; VAC HOSE
EXC. HEATER & DEFROSTER(C41) L=140 		5-09707-031-1 03 1 0610- ●
98 VALVE; DELAY
(A) 		8-94110-978-0 01 1 0504-0609 ●
98 VALVE; DELAY
(A) 		8-94110-978-0 01 1 0610- ●
98 VALVE; DELAY
(B) PINK 		8-94145-108-0 01 1 0504-0609 ●
98 VALVE; DELAY
(B) PINK 		8-94145-108-0 01 1 0610- ●
147 CLIP; RUBBER HOSE
(A) ID=6.8X2 		8-94126-636-0 01 1 0504-0609 ●
147 CLIP; RUBBER HOSE
(A) ID=6.8X2 		8-94126-636-0 01 1 0610- ●
147 CLIP; RUBBER HOSE
(B) 4XID=6.7 		8-94315-422-0 01 1 0504-0609 ●
147 CLIP; RUBBER HOSE
(B) 4XID=6.7 		8-94315-422-0 01 1 0610- ●
164 HOSE; RUBBER
(A) L=30 SERVICED BY L=3000 		0-04730-300-0 02 1 0504-0609 ●
164 HOSE; RUBBER
(A) L=30 SERVICED BY L=3000 		0-04730-300-0 02 1 0610- ●
164 HOSE; RUBBER
(B) L=70 SERVICED BY L=3000 		0-04730-300-0 01 1 0504-0609 ●
164 HOSE; RUBBER
(B) L=70 SERVICED BY L=3000 		0-04730-300-0 01 1 0610- ●
164 HOSE; RUBBER
(C) L=90 SERVICED BY L=3000 		0-04730-300-0 01 1 0504-0609 ●
164 HOSE; RUBBER
(C) L=90 SERVICED BY L=3000 		0-04730-300-0 01 1 0610- ●
164 HOSE; RUBBER
(D) L=230 SERVICED BY L=3000 		0-04731-300-0 01 1 0504-0609 ●
164 HOSE; RUBBER
(D) L=230 SERVICED BY L=3000 		0-04731-300-0 01 1 0610- ●
164 HOSE; RUBBER
(E) L=260 SERVICED BY L=3000 		0-04732-300-0 01 1 0504-0609 ●
164 HOSE; RUBBER
(E) L=260 SERVICED BY L=3000 		0-04732-300-0 01 1 0610- ●
165 JOINT; HOSE
3WAY 		8-94208-695-0 02 1 0504-0609 ●
165 JOINT; HOSE
3WAY 		8-94208-695-0 02 1 0610- ●
200 HOSE; VAC 8-97182-890-4 01 1 0504-0609 ●
200 HOSE; VAC 8-97182-890-4 01 1 0610- ●

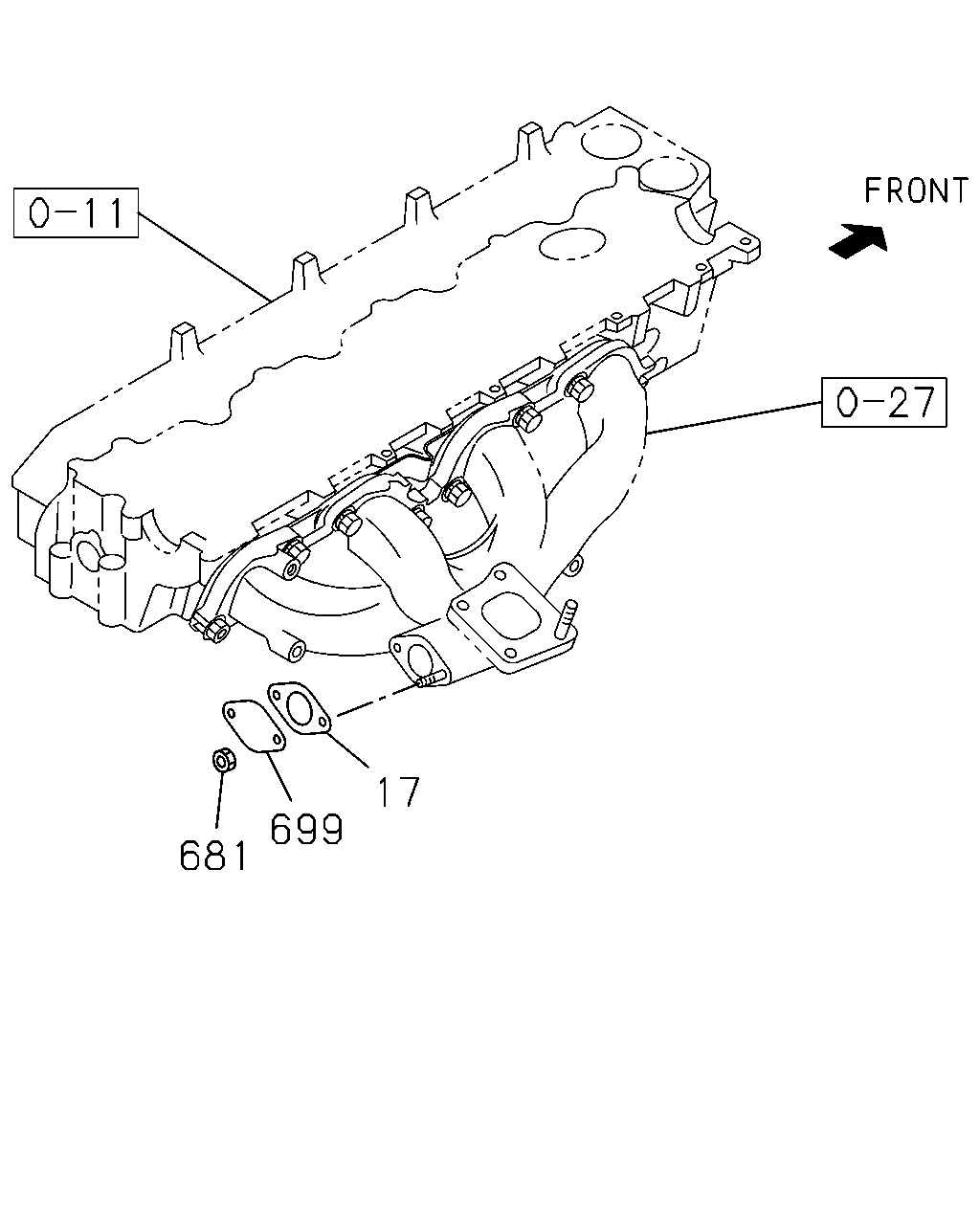

çizim 100893
17 699 681
BalonParca AdiParca NoAdetTipApplied Date A B
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94340-670-0 01 1 0504-0609 ●
17 GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-94340-670-0 01 1 0610- ●
681 NUT; EGR PIPE
M8 FLANGE 		8-97061-401-1 02 1 0504-0609 ●
681 NUT; EGR PIPE
M8 FLANGE 		8-97061-401-1 02 1 0610- ●
699 PLATE; BOSS,EXH MANIFOLD 8-97136-006-0 01 1 0504-0609 ●
699 PLATE; BOSS,EXH MANIFOLD 8-97136-006-0 01 1 0610-1007 ●
699 PLATE; BOSS,EXH MANIFOLD 8-98170-965-0 01 1 1008- ●
