Isuzu WW
▶
TRUCKS
▶
NQR
▶
51038 - NQR(IRAN)
▶
0 - Engine, Emission, Engine Electrical
▶
0-51 - OIL PUMP AND OIL STRAINER
▶

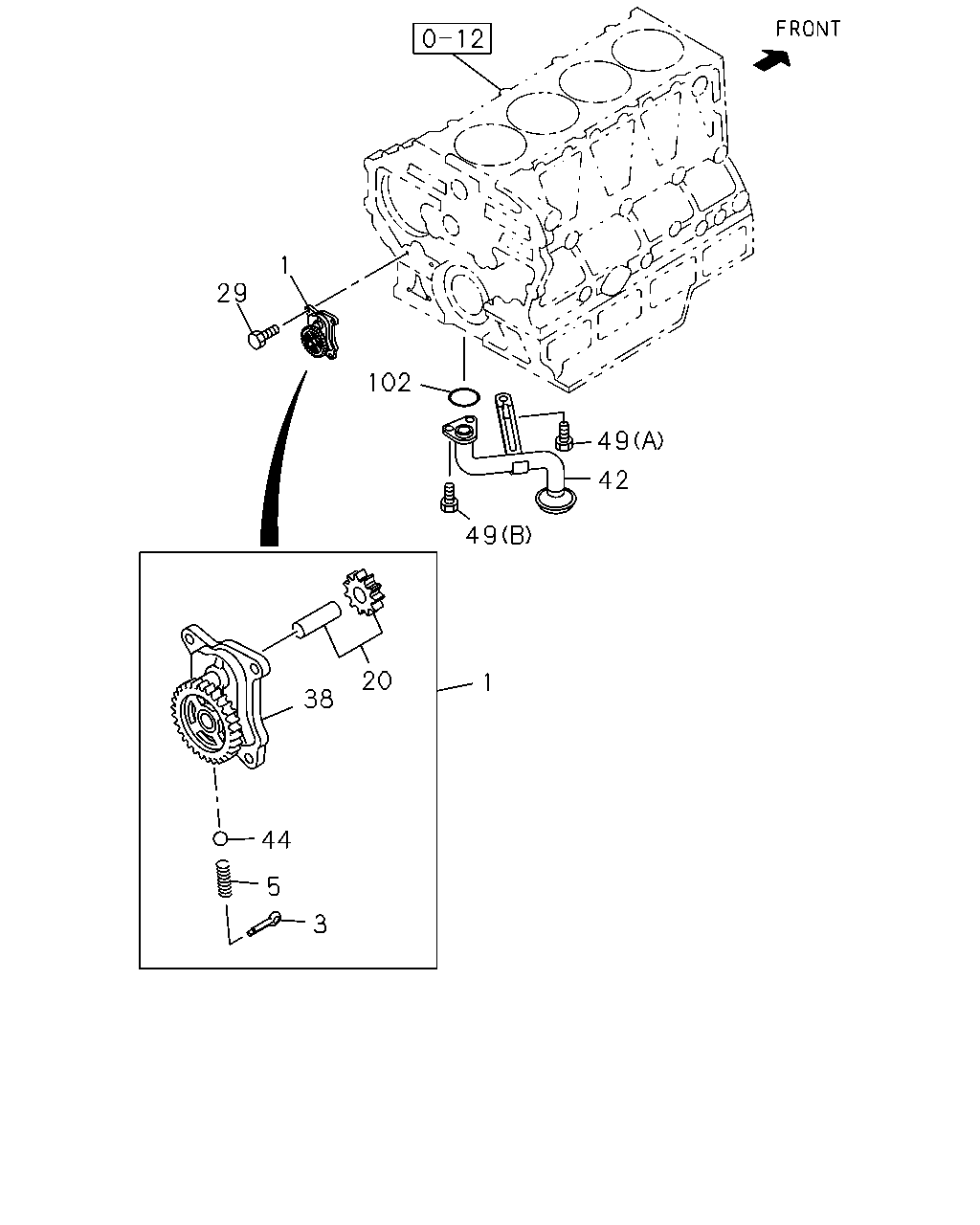

0-51 — OIL PUMP AND OIL STRAINER
(#21436) — 32 parça
Tümü
A - 4HE1 ENG
B - 4HE1-TCN ENG
1
29
102
49
42
49
20
1
38
44
5
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
PUMP ASM; OIL
8-97075-283-2
01
1
0504-0609
●
1
PUMP ASM; OIL
8-97075-283-4
01
1
0610-1004
●
1
PUMP ASM; OIL
8-98017-585-1
01
1
1005-
●
3
PIN; SPLIT
OD=3.7 L=30
9-08114-030-0
01
1
0504-0606
●
3
PIN; SPLIT
OD=3.7 L=30
0-81124-030-0
01
1
0607-0609
●
3
PIN; SPLIT
OD=3.7 L=30
0-81124-030-0
01
1
0610-0906
●
3
PIN; SPLIT
L=30
9-08104-030-0
01
1
0907-
●
5
SPRING; COIL
5-09580-098-0
01
1
0504-0609
●
5
SPRING; COIL
5-09580-098-0
01
1
0610-
●
20
GEAR; DRIVE,OIL PUMP
Z=9
8-97078-736-0
01
1
0504-0609
●
20
GEAR; DRIVE,OIL PUMP
Z=9
8-97078-736-0
01
1
0610-1004
●
20
GEAR; DRIVE,OIL PUMP
8-98059-192-0
01
1
1005-
●
29
BOLT; OIL PUMP
M8X25 FLANGE
0-28090-825-0
02
1
0504-0512
●
29
BOLT; OIL PUMP
M8X25 FLANGE
0-28060-825-0
02
1
0601-0609
●
29
BOLT; OIL PUMP
M8X25 FLANGE
0-28060-825-0
02
1
0610-
●
29
BOLT; OIL PUMP
M8X30 FLANGE
0-28090-830-0
02
1
0504-0512
●
29
BOLT; OIL PUMP
M8X30 FLANGE
0-28060-830-0
02
1
0601-0609
●
29
BOLT; OIL PUMP
M8X30 FLANGE
0-28060-830-0
02
1
0610-
●
38
CASE; OIL STRAINER
8-97133-330-1
01
1
0504-0609
●
38
CASE; OIL STRAINER
8-97133-330-3
01
1
0610-1004
●
42
STRAINER; OIL,OIL PUMP
8-97230-894-0
01
1
0504-0609
●
42
STRAINER; OIL,OIL PUMP
8-97230-894-0
01
1
0610-1203
●
42
STRAINER; OIL,OIL PUMP
8-98213-867-0
01
1
1204-
●
44
BALL; RELIEF VLV
5-09843-003-0
01
1
0504-0609
●
44
BALL; RELIEF VLV
5-09843-003-0
01
1
0610-
●
49
BOLT; STRAINER,OIL PUMP
(B) M8X16 FLANGE
0-28090-816-0
02
1
0504-0512
●
49
BOLT; STRAINER,OIL PUMP
(B) M8X16 FLANGE
0-28060-816-0
02
1
0601-0609
●
49
BOLT; STRAINER,OIL PUMP
(B) M8X16 FLANGE
0-28060-816-0
02
1
0610-
●
49
BOLT; STRAINER,OIL PUMP
(A) M10X80
8-97071-956-0
01
1
0504-0609
●
49
BOLT; STRAINER,OIL PUMP
(A) M10X80
8-97071-956-0
01
1
0610-
●
102
GASKET; STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5
8-94399-398-0
01
1
0504-0609
●
102
GASKET; STRAINER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5
8-94399-398-0
01
1
0610-
●
