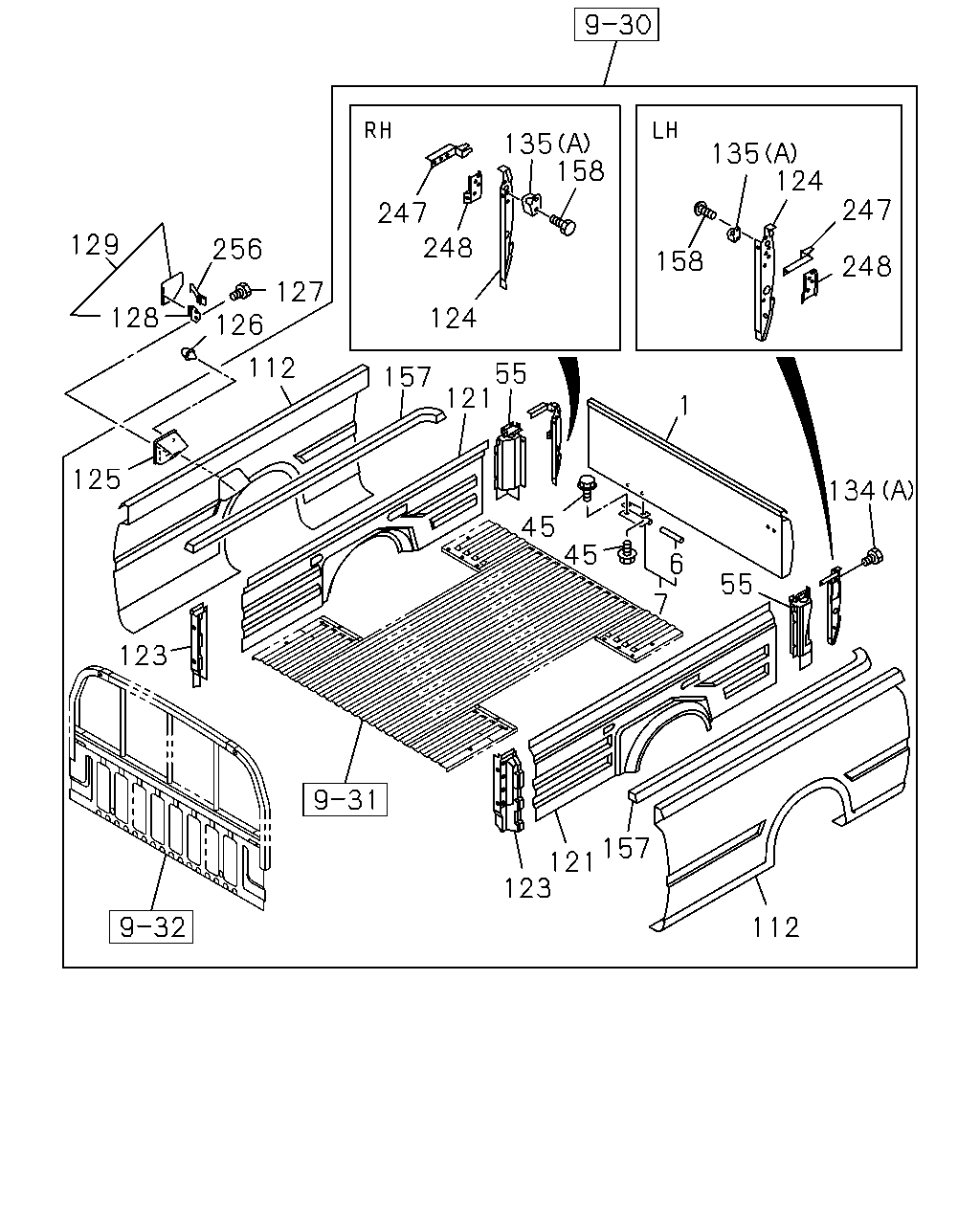

9-33 — REAR BODY; GATE AND SIDE GUARD (#21434) — 74 parça
çizim 50706
135 158 135 124 247 247 129 248 256 158 248 127 128 124 126 112 55 121 157 1 125 134 45 45 6 55 7 123 157 121 123 112
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 17.185 GATE ASM; RR
RR BODY DBL WALL CTR PULL(6MW) 		8-97940-402-1 01 1 0108- ● ● ● ● ●
6 17.208 PIN; TAIL GATE HINGE
RR BODY DBL WALL CTR PULL(6MW) 		8-97940-434-0 03 1 0108- ● ● ● ● ●
7 17.208 HINGE ASM; RR GATE
RR BODY DBL WALL CTR PULL(6MW) 		8-97940-435-0 02 1 0108- ● ● ● ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
RR BODY DBL WALL CTR PULL(6MW) 17.198 M8X18 		8-94419-345-0 04 1 0108- ● ● ● ● ●
45 17.208 BOLT; TAIL GATE TO RR BODY
RR BODY DBL WALL CTR PULL(6MW) M8X23 FLANGE 		8-97941-923-0 04 1 0108- ● ● ● ● ●
55 17.505 PANEL; RR CORNER
RR BODY DBL WALL CTR PULL(6MW) 		8-97940-519-0 01 1 0108- ● ● ● ● ●
55 17.505 PANEL; RR CORNER
RR BODY DBL WALL CTR PULL(6MW) 		8-97940-518-0 01 1 0108- ● ● ● ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL(6MW) 		8-97114-924-5 01 1 0108- ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL(6MW) 		8-97258-941-0 01 1 0108- ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL(6MW) 		8-97114-927-5 01 1 0108- ● ●
112 17.455 PANEL; SIDE GATE
RR BODY DBL WALL CTR PULL(6MW) 		8-97213-636-0 01 1 0108- ● ●
112 17.455 PANEL; SIDE GATE 8-97114-925-5 01 1 0108- ●
112 17.455 PANEL; SIDE GATE 8-97258-942-0 01 1 0108- ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DBL WALL CTR PULL(6MW) 		8-97940-504-0 01 1 0108- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DBL WALL CTR PULL(6MW) 		8-97942-025-0 01 1 0108- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DBL WALL CTR PULL(6MW) 		8-97114-964-1 01 1 0108- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY
RR BODY DBL WALL CTR PULL(6MW) 		8-97213-611-2 01 1 0108- ● ●
121 17.442 PANEL; SIDE INNER,RR BODY 8-97940-506-0 01 1 0108- ●
121 17.442 PANEL; SIDE INNER,RR BODY 8-97942-026-0 01 1 0108- ●
123 17.442 PANEL; EXT,FRT INNER,RR BODY
RR BODY DBL WALL CTR PULL(6MW) 		8-97940-510-0 01 1 0108- ● ● ●
123 17.442 PANEL; EXT,FRT INNER,RR BODY
RR BODY DBL WALL CTR PULL(6MW) 		8-97118-579-2 01 1 0108- ● ● ●
124 17.505 PANEL; EXT,RR CORNER POST,RR BOD
RR BODY DBL WALL CTR PULL(6MW) 		8-97940-464-0 01 1 0108- ● ● ● ● ●
124 17.505 PANEL; EXT,RR CORNER POST,RR BOD
RR BODY DBL WALL CTR PULL(6MW) 		8-97940-463-0 01 1 0108- ● ● ● ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DBL WALL CTR PULL(6MW) 		8-97942-092-1 01 1 0108- ● ● ●
125 17.505 RECESS; FUEL FILLER NECK,RR BODY
RR BODY DBL WALL CTR PULL(6MW) 		8-97212-711-2 01 1 0108- ● ●
126 17.507 RUBBER; STOPPER,FUEL FILLER LID
RR BODY DBL WALL CTR PULL(6MW) 		8-97166-112-0 01 1 0108- ● ● ● ● ●
127 17.507 BOLT; FUEL FILLER LID
RR BODY DBL WALL CTR PULL(6MW) 03.680 M6X12 W/LK&PL WASHER 		0-50140-612-0 02 1 0108- ● ● ● ● ●
128 17.505 HINGE; FUEL FILLER LID,RR BODY
RR BODY DBL WALL CTR PULL(6MW) 		8-97212-879-0 01 1 0108- ● ● ● ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
RR BODY DBL WALL CTR PULL(6MW) 		8-97261-164-2 01 1 0108- ● ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
RR BODY DBL WALL CTR PULL(6MW) 		8-97212-882-0 01 1 0108-0212 ● ●
129 17.505 LID ASM; FUEL FILLER,RR BODY
RR BODY DBL WALL CTR PULL(6MW) 		8-97360-470-0 01 1 0301- ● ●
134 17.507 BOLT; STRIKER,TAIL GATE
RR BODY DBL WALL CTR PULL(6MW) 04.197 (A) M6X10 		8-97020-236-0 02 1 0108- ● ● ● ● ●
134 17.507 BOLT; STRIKER,TAIL GATE
RR BODY DBL WALL CTR PULL(6MW) (B) M8X22 		8-97104-889-0 04 1 0108- ● ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DBL WALL CTR PULL(6MW) (B) 		8-97064-382-1 02 1 0108- ● ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DBL WALL CTR PULL(6MW) (A) 		8-97210-600-1 01 1 0108- ● ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DBL WALL CTR PULL(6MW) (A) 		8-97210-601-1 01 1 0108- ● ● ● ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DBL WALL CTR PULL(6MW) 		8-97940-474-0 01 1 0108- ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DBL WALL CTR PULL(6MW) 		8-97940-473-0 01 1 0108- ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DBL WALL CTR PULL(6MW) 		8-97940-480-0 01 1 0108- ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY
RR BODY DBL WALL CTR PULL(6MW) 		8-97940-479-0 01 1 0108- ● ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY 8-97940-476-0 01 1 0108- ●
157 17.505 RAIL ASM; SIDE PANEL UPR,RR BODY 8-97940-475-0 01 1 0108- ●
158 17.185 SCREW; STRIKER,TAIL GATE
RR BODY DBL WALL CTR PULL(6MW) 17.198 		9-03065-816-0 04 1 0108- ● ● ● ● ●
247 17.442 REINFORCEMENT; CARGO RR
RR BODY DBL WALL CTR PULL(6MW) 		8-97940-466-0 01 1 0108- ● ● ● ● ●
247 17.442 REINFORCEMENT; CARGO RR
RR BODY DBL WALL CTR PULL(6MW) 		8-97940-465-0 01 1 0108- ● ● ● ● ●
248 17.442 PATCH; CARGO RR
RR BODY DBL WALL CTR PULL(6MW) 		8-97940-471-0 01 1 0108- ● ● ● ● ●
248 17.442 PATCH; CARGO RR
RR BODY DBL WALL CTR PULL(6MW) 		8-97940-470-0 01 1 0108- ● ● ● ● ●
256 17.505 SPRING; LID,FUEL FILLER
RR BODY DBL WALL CTR PULL(6MW) 		8-97217-091-1 01 1 0108- ● ● ● ● ●

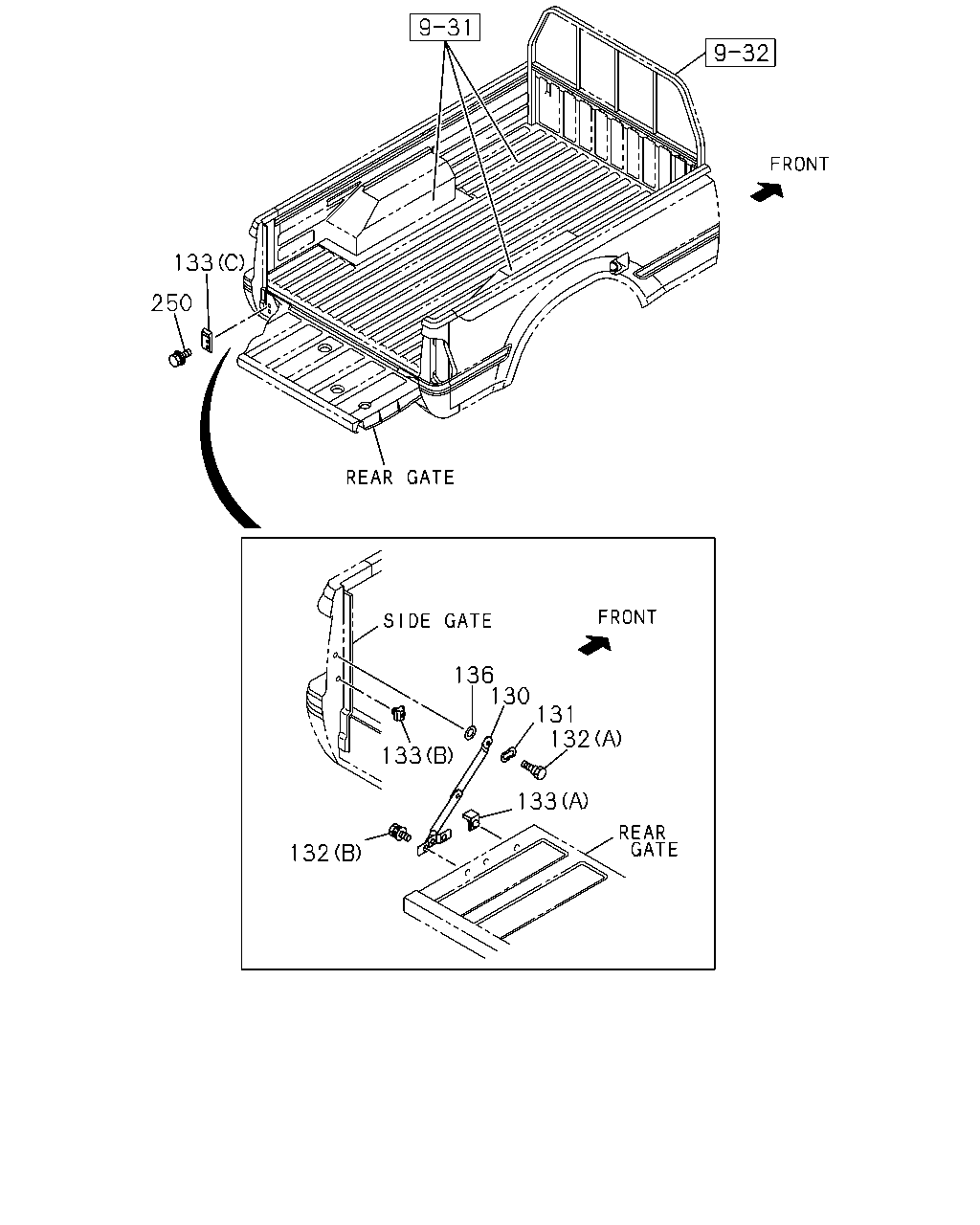

çizim 51966
133 250 136 130 131 132 133 133 132
BalonParca AdiParca NoAdetTipApplied Date A B C D E
130 17.225 LINK ASM; TAIL GATE,RR BODY
RR BODY DBL WALL CTR PULL(6MW) 		8-97063-897-2 02 1 0108- ● ● ● ● ●
131 17.635 WASHER; WAVE,TAIL GATE LINK,RR B
RR BODY DBL WALL CTR PULL(6MW) 		8-94481-020-0 02 1 0108- ● ● ● ● ●
132 17.635 BOLT; TAIL GATE LINK,RR BODY
RR BODY DBL WALL CTR PULL(6MW) (A) M8X14 		8-94481-021-0 02 1 0108- ● ● ● ● ●
132 17.635 BOLT; TAIL GATE LINK,RR BODY
RR BODY DBL WALL CTR PULL(6MW) 17.507 (B) M8X22 		8-97104-889-0 04 1 0108- ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DBL WALL CTR PULL(6MW) (A) 		8-94370-056-0 02 1 0108- ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DBL WALL CTR PULL(6MW) (B) 		8-94433-529-1 02 1 0108- ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DBL WALL CTR PULL(6MW) (C) 		8-97131-679-4 01 1 0108- ● ● ● ● ●
133 17.225 STOPPER; TAIL GATE LINK,RR BODY
RR BODY DBL WALL CTR PULL(6MW) (C) 		8-97131-678-4 01 1 0108- ● ● ● ● ●
136 17.635 WASHER; PL,TAIL GATE LINK,RR BOD
RR BODY DBL WALL CTR PULL(6MW) 16.674 ID=8.4 		9-09160-508-0 02 1 0108- ● ● ● ● ●
250 17.505 BOLT; STOPPER
RR BODY DBL WALL CTR PULL(6MW) 08.077 M6X18 		8-97071-681-0 04 1 0108- ● ● ● ● ●

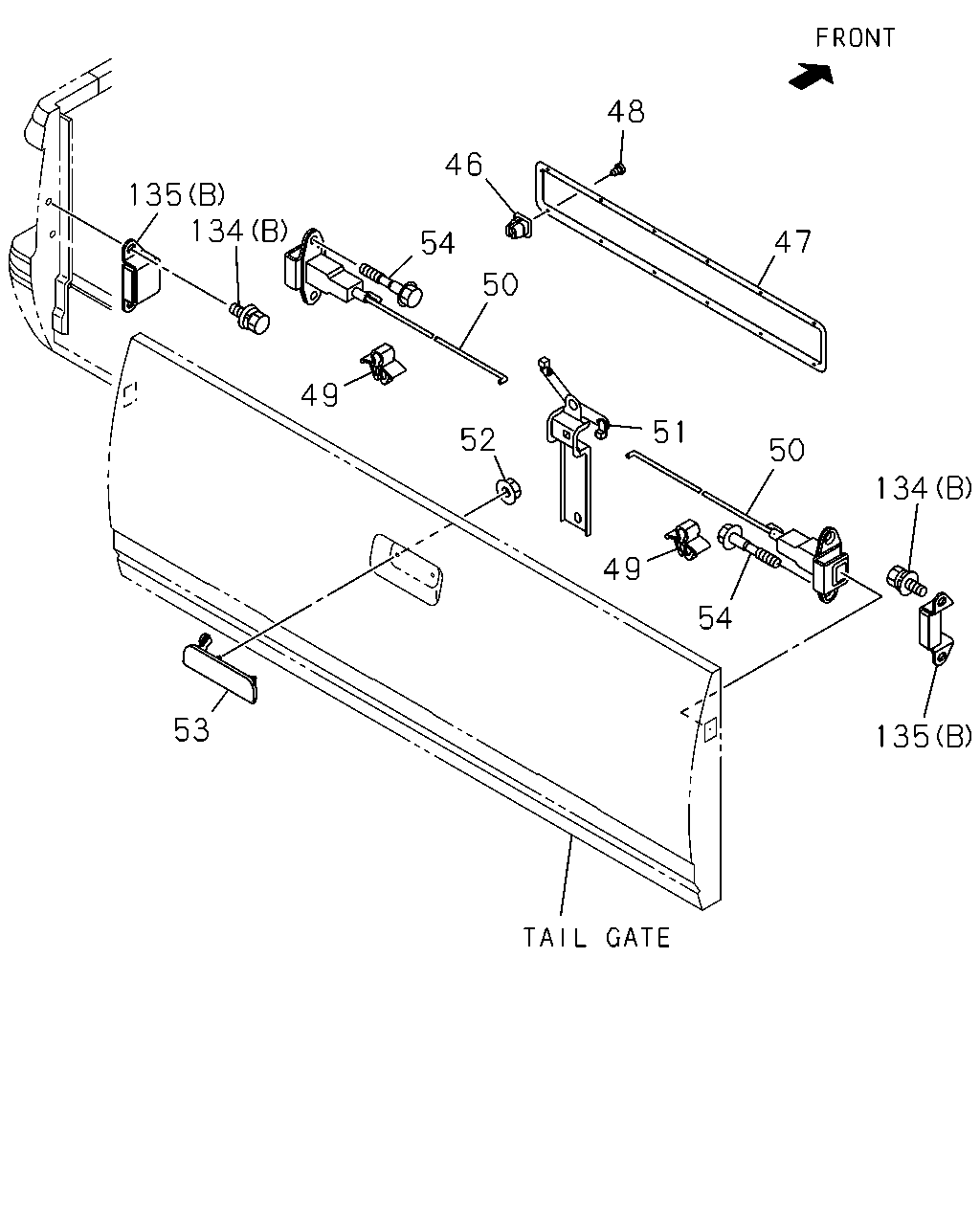

çizim 51967
48 46 135 134 47 54 50 49 51 52 50 134 49 54 53 135
BalonParca AdiParca NoAdetTipApplied Date A B C D E
46 17.507 GROMMET; SCREW,TAIL GATE HOLE CO
RR BODY DBL WALL CTR PULL(6MW) 02.708 M4 		5-09470-002-0 14 1 0108- ● ● ● ● ●
47 17.507 PLATE; HOLE COVER,TAIL GATE
RR BODY DBL WALL CTR PULL(6MW) 		8-94433-506-0 01 1 0108- ● ● ● ● ●
48 17.185 SCREW; HOLE COVER,TAIL GATE
RR BODY DBL WALL CTR PULL(6MW) M4X10 		8-97043-528-0 14 1 0108- ● ● ● ● ●
49 17.635 ANTIRATTLER; TAIL GATE
RR BODY DBL WALL CTR PULL(6MW) 16.341 ID=3.8 WHITE 		8-94217-699-0 02 1 0108- ● ● ● ● ●
50 17.204 LOCK ASM; TAIL GATE,RR BODY
RR BODY DBL WALL CTR PULL(6MW) 		8-97131-656-0 01 1 0108- ● ● ● ● ●
50 17.204 LOCK ASM; TAIL GATE,RR BODY
RR BODY DBL WALL CTR PULL(6MW) 		8-97131-655-0 01 1 0108- ● ● ● ● ●
51 17.204 LEVER ASM; TAIL GATE LOCK CONT
RR BODY DBL WALL CTR PULL(6MW) 		8-97131-635-0 01 1 0108- ● ● ● ● ●
52 17.204 NUT; OUTSIDE HANDLE,TAIL GATE
RR BODY DBL WALL CTR PULL(6MW) 07.829 M6 FLANGE 		5-09440-004-0 02 1 0108- ● ● ● ● ●
53 17.204 HANDLE ASM; OUTSIDE,TAIL GATE
RR BODY DBL WALL CTR PULL(6MW) 		8-97131-642-1 01 1 0108- ● ● ● ● ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
RR BODY DBL WALL CTR PULL(6MW) 		8-94481-018-1 04 1 0108-0112 ● ● ● ● ●
54 17.208 SCREW; TAIL GATE LOCK,RR BODY
RR BODY DBL WALL CTR PULL(6MW) M8X20 		8-94446-355-1 04 1 0201- ● ● ● ● ●
134 17.507 BOLT; STRIKER,TAIL GATE
RR BODY DBL WALL CTR PULL(6MW) 04.197 (A) M6X10 		8-97020-236-0 02 1 0108- ● ● ● ● ●
134 17.507 BOLT; STRIKER,TAIL GATE
RR BODY DBL WALL CTR PULL(6MW) (B) M8X22 		8-97104-889-0 04 1 0108- ● ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DBL WALL CTR PULL(6MW) (B) 		8-97064-382-1 02 1 0108- ● ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DBL WALL CTR PULL(6MW) (A) 		8-97210-600-1 01 1 0108- ● ● ● ● ●
135 17.198 STRIKER; TAIL GATE,RR BODY
RR BODY DBL WALL CTR PULL(6MW) (A) 		8-97210-601-1 01 1 0108- ● ● ● ● ●
