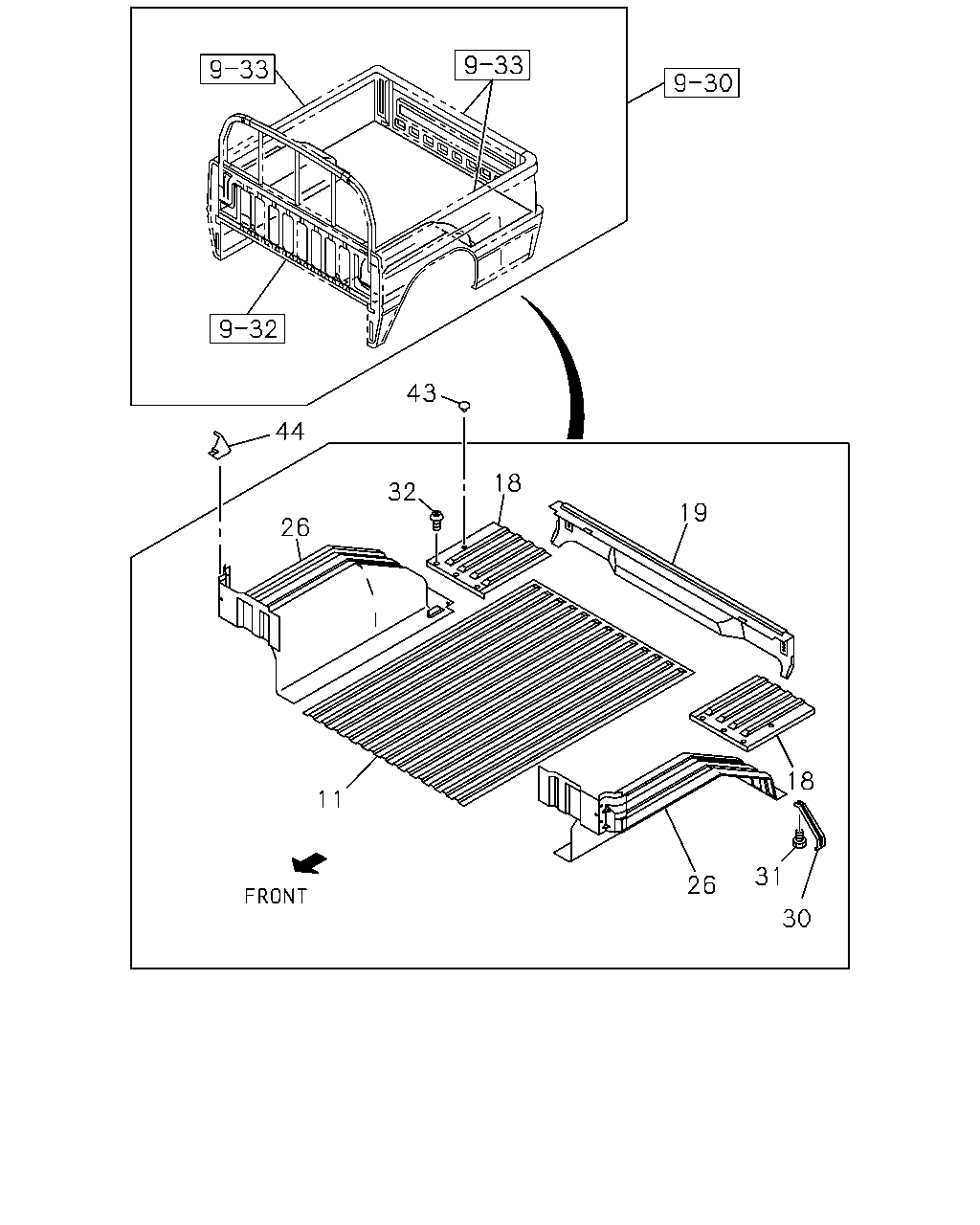

9-31 — REAR BODY; FLOOR AND FENDER (#21432) — 43 parça

43 44 18 32 19 26 18 11 31 26 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
11	17.400 PANEL; FLOOR BOARD,RR BODY RR BODY DBL WALL CTR PULL(6MW)	8-94435-722-3	01	1	0108-	●	●
11	17.400 PANEL; FLOOR BOARD,RR BODY RR BODY DBL WALL CTR PULL(6MW)	8-94454-489-2	01	1	0108-			●	●
11	17.400 PANEL; FLOOR BOARD,RR BODY	8-94454-490-3	01	1	0108-					●
18	17.406 PANEL; FLOOR BOARD,RR SIDE RR BODY DBL WALL CTR PULL(6MW)	8-94463-164-3	01	1	0108-	●	●	●	●	●
18	17.406 PANEL; FLOOR BOARD,RR SIDE RR BODY DBL WALL CTR PULL(6MW)	8-94463-163-3	01	1	0108-	●	●	●	●	●
19	17.208 BOLSTER; RR END,RR BODY RR BODY DBL WALL CTR PULL(6MW)	8-97136-566-2	01	1	0108-	●	●	●	●	●
26	17.505 PANEL; WHEEL HOUSE,RR BODY RR BODY DBL WALL CTR PULL(6MW)	8-94435-839-7	01	1	0108-	●	●			●
26	17.505 PANEL; WHEEL HOUSE,RR BODY RR BODY DBL WALL CTR PULL(6MW)	8-97258-972-0	01	1	0108-	●	●			●
26	17.505 PANEL; WHEEL HOUSE,RR BODY RR BODY DBL WALL CTR PULL(6MW)	8-97114-966-1	01	1	0108-			●	●
26	17.505 PANEL; WHEEL HOUSE,RR BODY RR BODY DBL WALL CTR PULL(6MW)	8-97213-637-0	01	1	0108-			●	●
30	17.510 STAY; SIDE PANEL TO FLOOR,RR BOD RR BODY DBL WALL CTR PULL(6MW)	8-97114-976-1	01	1	0108-	●	●	●	●	●
30	17.510 STAY; SIDE PANEL TO FLOOR,RR BOD RR BODY DBL WALL CTR PULL(6MW)	8-97114-975-1	01	1	0108-	●	●	●	●	●
31	17.510 BOLT; SIDE PANEL STAY,RR BODY RR BODY DBL WALL CTR PULL(6MW) 08.143 M6X16 W/PL WASHER	8-94204-636-0	04	1	0108-	●	●			●
31	17.510 BOLT; SIDE PANEL STAY,RR BODY RR BODY DBL WALL CTR PULL(6MW) 08.143 M6X16 W/PL WASHER	8-94204-636-0	02	1	0108-			●	●
32	17.208 SCREW; FLOOR BOLSTER,RR BODY RR BODY DBL WALL CTR PULL(6MW) M6X16 W/WASHER (+)	8-97109-753-1	12	1	0108-	●	●
32	17.208 SCREW; FLOOR BOLSTER,RR BODY RR BODY DBL WALL CTR PULL(6MW) M6X16 W/WASHER (+)	8-97109-753-1	08	1	0108-			●	●
32	17.208 SCREW; FLOOR BOLSTER,RR BODY M6X16 W/WASHER (+)	8-97109-753-1	10	1	0108-					●
43	17.447 GROMMET; DUMMY HOLE,RR BODY RR BODY DBL WALL CTR PULL(6MW)	8-94478-200-0	02	1	0108-	●	●	●	●	●
44	17.505 SEAL; RR POST,RR BODY RR BODY DBL WALL CTR PULL(6MW)	8-97133-851-1	02	1	0108-	●	●	●	●	●

43 18 32 44 19 26 32 18 13 26 11 31 30 29 13 31

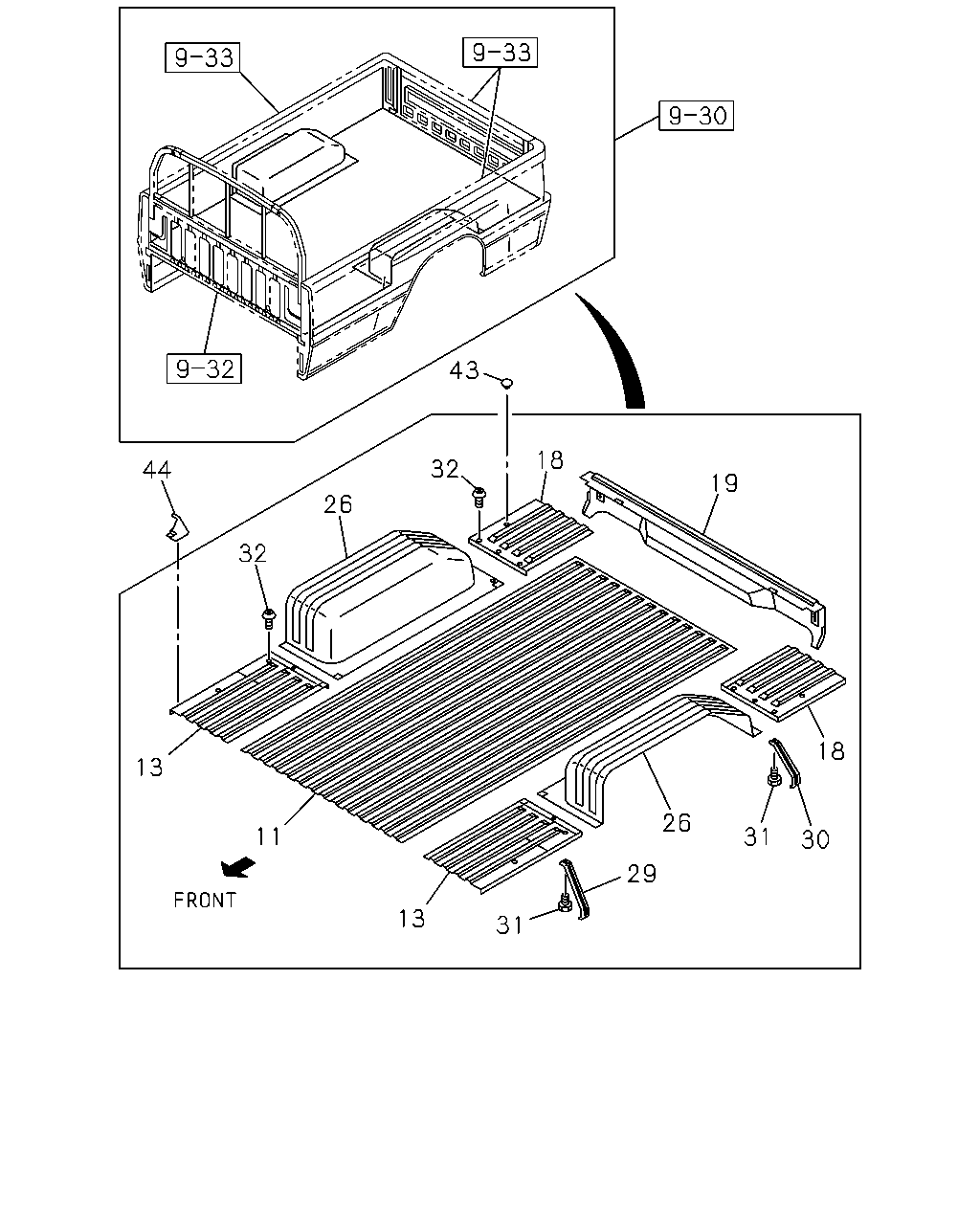

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
11	17.400 PANEL; FLOOR BOARD,RR BODY RR BODY DBL WALL CTR PULL(6MW)	8-94435-722-3	01	1	0108-	●	●
11	17.400 PANEL; FLOOR BOARD,RR BODY RR BODY DBL WALL CTR PULL(6MW)	8-94454-489-2	01	1	0108-			●	●
11	17.400 PANEL; FLOOR BOARD,RR BODY	8-94454-490-3	01	1	0108-					●
13	17.400 PANEL; FLOOR BOARD,FRT SIDE,RR B RR BODY DBL WALL CTR PULL(6MW)	8-94474-319-5	01	1	0108-	●	●
13	17.400 PANEL; FLOOR BOARD,FRT SIDE,RR B RR BODY DBL WALL CTR PULL(6MW)	8-94474-318-5	01	1	0108-	●	●
13	17.400 PANEL; FLOOR BOARD,FRT SIDE,RR B	8-94474-323-5	01	1	0108-					●
13	17.400 PANEL; FLOOR BOARD,FRT SIDE,RR B	8-94474-322-5	01	1	0108-					●
18	17.406 PANEL; FLOOR BOARD,RR SIDE RR BODY DBL WALL CTR PULL(6MW)	8-94463-164-3	01	1	0108-	●	●	●	●	●
18	17.406 PANEL; FLOOR BOARD,RR SIDE RR BODY DBL WALL CTR PULL(6MW)	8-94463-163-3	01	1	0108-	●	●	●	●	●
19	17.208 BOLSTER; RR END,RR BODY RR BODY DBL WALL CTR PULL(6MW)	8-97136-566-2	01	1	0108-	●	●	●	●	●
26	17.505 PANEL; WHEEL HOUSE,RR BODY RR BODY DBL WALL CTR PULL(6MW)	8-94435-839-7	01	1	0108-	●	●			●
26	17.505 PANEL; WHEEL HOUSE,RR BODY RR BODY DBL WALL CTR PULL(6MW)	8-97258-972-0	01	1	0108-	●	●			●
26	17.505 PANEL; WHEEL HOUSE,RR BODY RR BODY DBL WALL CTR PULL(6MW)	8-97114-966-1	01	1	0108-			●	●
26	17.505 PANEL; WHEEL HOUSE,RR BODY RR BODY DBL WALL CTR PULL(6MW)	8-97213-637-0	01	1	0108-			●	●
29	17.510 STAY; SIDE PANEL TO FLOOR,RR BOD RR BODY DBL WALL CTR PULL(6MW)	8-97114-974-1	02	1	0108-	●	●			●
30	17.510 STAY; SIDE PANEL TO FLOOR,RR BOD RR BODY DBL WALL CTR PULL(6MW)	8-97114-976-1	01	1	0108-	●	●	●	●	●
30	17.510 STAY; SIDE PANEL TO FLOOR,RR BOD RR BODY DBL WALL CTR PULL(6MW)	8-97114-975-1	01	1	0108-	●	●	●	●	●
31	17.510 BOLT; SIDE PANEL STAY,RR BODY RR BODY DBL WALL CTR PULL(6MW) 08.143 M6X16 W/PL WASHER	8-94204-636-0	04	1	0108-	●	●			●
31	17.510 BOLT; SIDE PANEL STAY,RR BODY RR BODY DBL WALL CTR PULL(6MW) 08.143 M6X16 W/PL WASHER	8-94204-636-0	02	1	0108-			●	●
32	17.208 SCREW; FLOOR BOLSTER,RR BODY RR BODY DBL WALL CTR PULL(6MW) M6X16 W/WASHER (+)	8-97109-753-1	12	1	0108-	●	●
32	17.208 SCREW; FLOOR BOLSTER,RR BODY RR BODY DBL WALL CTR PULL(6MW) M6X16 W/WASHER (+)	8-97109-753-1	08	1	0108-			●	●
32	17.208 SCREW; FLOOR BOLSTER,RR BODY M6X16 W/WASHER (+)	8-97109-753-1	10	1	0108-					●
43	17.447 GROMMET; DUMMY HOLE,RR BODY RR BODY DBL WALL CTR PULL(6MW)	8-94478-200-0	02	1	0108-	●	●	●	●	●
44	17.505 SEAL; RR POST,RR BODY RR BODY DBL WALL CTR PULL(6MW)	8-97133-851-1	02	1	0108-	●	●	●	●	●
