Isuzu WW
▶
PICKUP
▶
TFR
▶
50920 - TFR/TFS(EUROPE)-RHD
▶
9 - Tools
▶
9-30 - REAR BODY ASM AND MOUNTING
▶

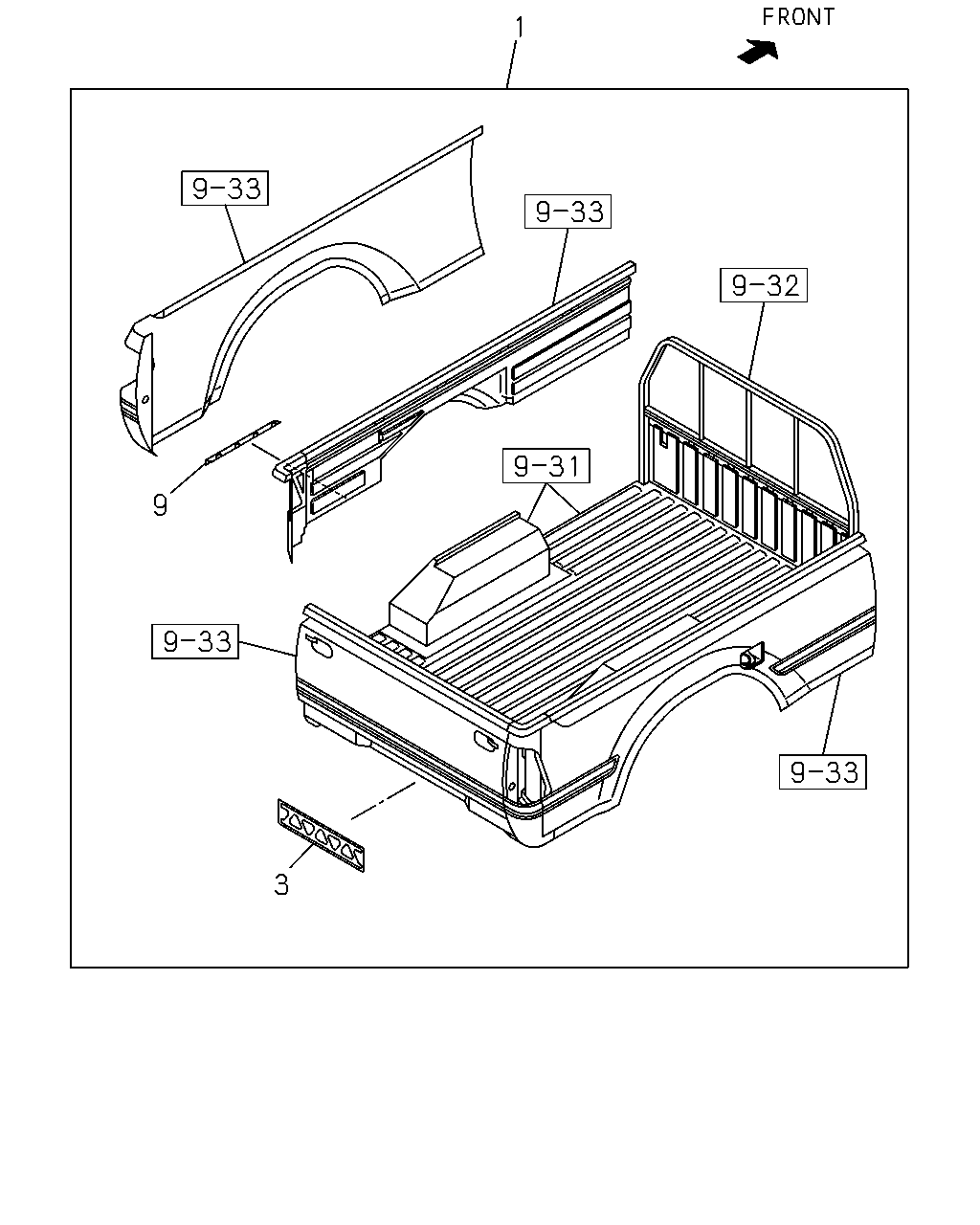

9-30 — REAR BODY ASM AND MOUNTING
(#21431) — 18 parça
Tümü
A - TFB5SF
B - TFS5SF
C - TFB5WF
D - TFS5WF
E - TFS5CF
◀
[930A] NO.1 (5 parça)
[930A] NO.2 (13 parça)
▶
1
9
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
1
17.090 BODY ASM; REAR
RR BODY DBL WALL CTR PULL(6MW)
8-97258-912-0
01
1
0108-
●
●
1
17.090 BODY ASM; REAR
RR BODY DBL WALL CTR PULL(6MW)
8-97217-088-1
01
1
0108-
●
●
1
17.090 BODY ASM; REAR
8-97258-916-0
01
1
0108-
●
3
07.800 BRACKET; LICENSE PLATE LAMP
RR BODY DBL WALL CTR PULL(6MW)
8-94327-560-1
01
1
0108-
●
●
●
●
●
9
17.505 COVER; MUD,FLOOR SIDE,RR BODY
RR BODY DBL WALL CTR PULL(6MW)
8-97940-532-0
02
1
0108-
●
●
●
●
●
13
11
11
16
15
16
15
13
12
11
11
16
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
11
09.007 GASKET; RR BODY MTG
RR BODY DBL WALL CTR PULL(6MW) (A)
8-94331-737-0
04
1
0108-
●
●
●
11
09.007 GASKET; RR BODY MTG
RR BODY DBL WALL CTR PULL(6MW) (B)
8-94331-738-1
08
1
0108-
●
●
11
09.007 GASKET; RR BODY MTG
RR BODY DBL WALL CTR PULL(6MW) (B)
8-94331-738-1
06
1
0108-
●
●
●
11
09.007 GASKET; RR BODY MTG
RR BODY DBL WALL CTR PULL(6MW) (A)
8-94331-737-0
02
1
0108-
●
●
12
09.011 SCREW; RR BODY MTG GASKET
RR BODY DBL WALL CTR PULL(6MW) 03.163 M6X20
9-07077-620-0
08
1
0108-
●
●
●
12
09.011 SCREW; RR BODY MTG GASKET
RR BODY DBL WALL CTR PULL(6MW) 03.163 M6X20
9-07077-620-0
04
1
0108-
●
●
13
09.008 BOLT; RR BODY MTG
RR BODY DBL WALL CTR PULL(6MW) (B) M12X40 W/PL WASHER
8-97169-423-0
02
1
0108-
●
●
●
●
●
13
09.008 BOLT; RR BODY MTG
RR BODY DBL WALL CTR PULL(6MW) (A)
8-97169-896-0
04
1
0108-
●
●
13
09.008 BOLT; RR BODY MTG
RR BODY DBL WALL CTR PULL(6MW) (A)
8-97169-896-0
02
1
0108-
●
●
●
15
09.011 NUT; RR BODY MTG
RR BODY DBL WALL CTR PULL(6MW) M12 FLANGE
8-97028-764-0
08
1
0108-
●
●
15
09.011 NUT; RR BODY MTG
RR BODY DBL WALL CTR PULL(6MW) M12 FLANGE
8-97028-764-0
06
1
0108-
●
●
●
16
09.011 WASHER; FRAME END,RR BODY
RR BODY DBL WALL CTR PULL(6MW) 07.874 ID=12.5
5-09503-093-0
08
1
0108-
●
●
16
09.011 WASHER; FRAME END,RR BODY
RR BODY DBL WALL CTR PULL(6MW) 07.874 ID=12.5
5-09503-093-0
06
1
0108-
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
