◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50920 - TFR/TFS(EUROPE)-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-80 - WINDSHIELD WIPER AND WASHER ▶
8-80 — WINDSHIELD WIPER AND WASHER (#21428) — 43 parça

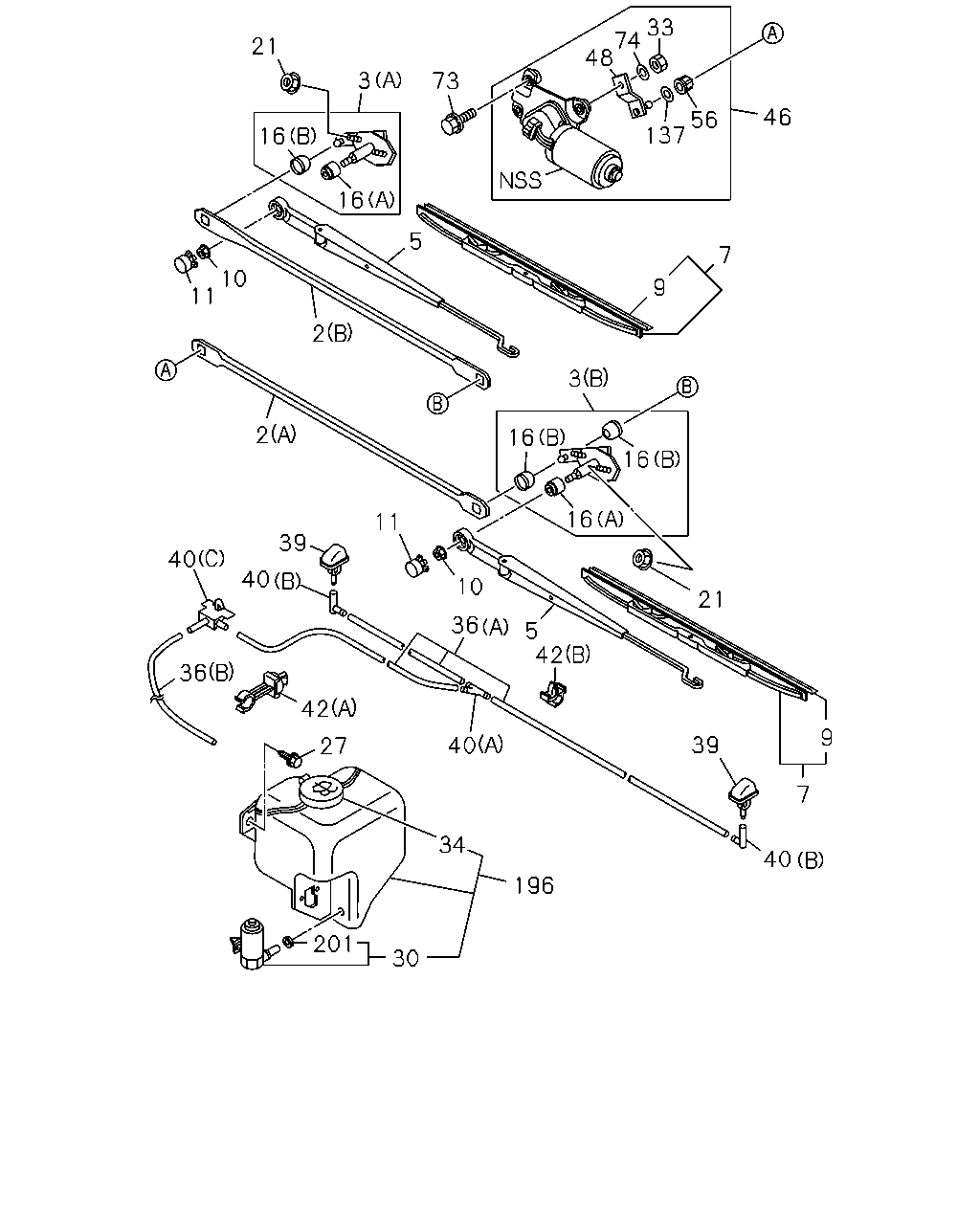

çizim 11845
33 74 48 21 3 73 56 137 46 16 16 5 7 10 9 11 2 3 2 16 16 16 11 39 10 40 21 36 5 42 36 42 9 39 40 27 7 34 196 201 30 40
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 16.063 LINK; FRT WIPER
(A) 		8-97110-242-0 01 1 0108-0212 ● ● ● ● ●
2 16.063 LINK; FRT WIPER
(A) 		8-97360-612-0 01 1 0301- ● ● ● ● ●
2 16.063 LINK; FRT WIPER
(B) 		8-97110-243-0 01 1 0108-0212 ● ● ● ● ●
2 16.063 LINK; FRT WIPER
(B) 		8-97360-613-0 01 1 0301- ● ● ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
(B) 		8-97110-240-0 01 1 0108-0212 ● ● ● ● ●
3 16.063 PIVOT ASM; FRT WIPER 8-97360-607-0 01 1 0301- ● ● ● ● ●
3 16.063 PIVOT ASM; FRT WIPER
(A) 		8-97110-241-0 01 1 0108-0212 ● ● ● ● ●
3 16.063 PIVOT ASM; FRT WIPER 8-97360-608-0 01 1 0301- ● ● ● ● ●
5 16.063 ARM; WIPER
L=495 		8-97149-373-1 01 1 0108- ● ● ● ● ●
5 16.063 ARM; WIPER
L=468 		8-97149-372-1 01 1 0108- ● ● ● ● ●
7 16.062 BLADE; WIPER 8-97136-362-1 02 1 0108- ● ● ● ● ●
9 16.062 RUBBER; FRT WIPER BLADE 8-94317-675-0 02 1 0108- ● ● ● ● ●
10 16.063 NUT; WIPER ARM TO WIPER PIVOT
00.349 M8 FLANGE 		9-09844-190-0 02 1 0108- ● ● ● ● ●
11 16.063 COVER; WIPER ARM 8-94460-965-0 02 1 0108- ● ● ● ● ●
16 16.063 SEAL; BALL JOINT
10.159 (B) 		8-97025-889-0 03 1 0108- ● ● ● ● ●
16 16.063 SEAL; BALL JOINT
(A) 		8-94319-016-0 02 1 0108- ● ● ● ● ●
21 16.063 NUT; WIPER LINK PIVOT
10.147 M6 W/DISHED WASHER 		8-94423-325-0 04 1 0108- ● ● ● ● ●
27 16.065 BOLT; WASHER TANK
03.885 M6X20 		8-94412-422-0 02 1 0108- ● ● ● ● ●
30 16.065 MOTOR ASM; FRT WASHER TANK 8-94335-625-1 01 1 0108- ● ● ● ● ●
33 16.064 NUT; MOTOR TO ARM
00.787 M8 		9-09111-408-0 01 1 0108- ● ● ● ● ●
34 16.065 CAP; WASHER TANK
10.154 		8-94436-369-0 01 1 0108- ● ● ● ● ●
36 16.065 HOSE; WASHER
4JG2 ENG(RJC) IMMOBILIZER SYSTEM<7KC> (B) L=1340 		8-97085-163-0 01 1 0306-0306 ● ● ● ●
36 16.065 HOSE; WASHER
(B) L=1340 		8-97085-163-0 01 1 0306-0306 ●
36 16.065 HOSE; WASHER
L=1340 		8-97085-163-0 01 1 0306- ● ● ● ● ●
36 16.065 HOSE; WASHER
10.155 (B) L=1340 SERVICED BY L=10000 		8-94153-780-0 01 1 0108-0305 ● ● ● ● ●
36 16.065 HOSE; WASHER
4JG2 ENG(RJC) EXC. IMMOBILIZER SYSTEM<7KC> 10.155 L=1340 SERVICED BY L=10000 		8-94153-780-0 01 1 0306-0306 ● ● ● ●
36 16.065 HOSE; WASHER
4JA1 ENG(RLE) 10.155 L=1340 SERVICED BY L=10000 		8-94153-780-0 01 1 0306-0306 ● ● ● ●
36 16.065 HOSE; WASHER
(A) SERVICED BY L=10000 		9-09914-906-0 01 1 0108- ● ● ● ● ●
39 16.065 NOZZLE; WINDSHIELD WASHER 8-94447-235-0 02 1 0108- ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(A) 3WAY 		5-83363-003-0 01 1 0108- ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
10.155 (B) 		8-94335-628-0 02 1 0108- ● ● ● ● ●
40 16.065 JOINT; WASHER HOSE
(C) 		8-97039-660-0 01 1 0108- ● ● ● ● ●
42 16.065 CLIP; WASHER HOSE
10.156 (A) L=46 		8-94154-654-1 01 1 0108- ● ● ● ● ●
42 16.065 CLIP; WASHER HOSE
10.156 (B) ID=5.8 L=8 		8-94155-681-0 03 1 0108- ● ● ● ● ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER 8-97102-416-0 01 1 0108-0212 ● ● ● ● ●
46 16.064 MOTOR ASM; FRT WINDSHIELD WIPER 8-97360-026-0 01 1 0301- ● ● ● ● ●
48 16.063 ARM; WIPER MOTOR 8-94323-720-0 01 1 0108- ● ● ● ● ●
56 16.063 JOINT; OUTER,WIPER MOTOR
10.151 		8-94323-719-0 01 1 0108- ● ● ● ● ●
73 16.063 BOLT
01.287 M6X25 W/LK&PL WASHER 		8-94416-136-0 04 1 0108- ● ● ● ● ●
74 16.063 WASHER; ARM TO MOTOR
00.002 ID=8.2 		9-09150-508-0 01 1 0108- ● ● ● ● ●
137 16.063 SEAL; JOINT,WIPER MOTOR
10.151 		8-94167-624-0 01 1 0108- ● ● ● ● ●
196 16.065 TANK; WASHER 8-97075-617-0 01 1 0108- ● ● ● ● ●
201 16.064 LINING; WIPER MOTOR
10.154 		8-94352-050-0 01 1 0108- ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
