Isuzu WW
▶
PICKUP
▶
TFR
▶
50920 - TFR/TFS(EUROPE)-RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-75 - CONDENSER
▶

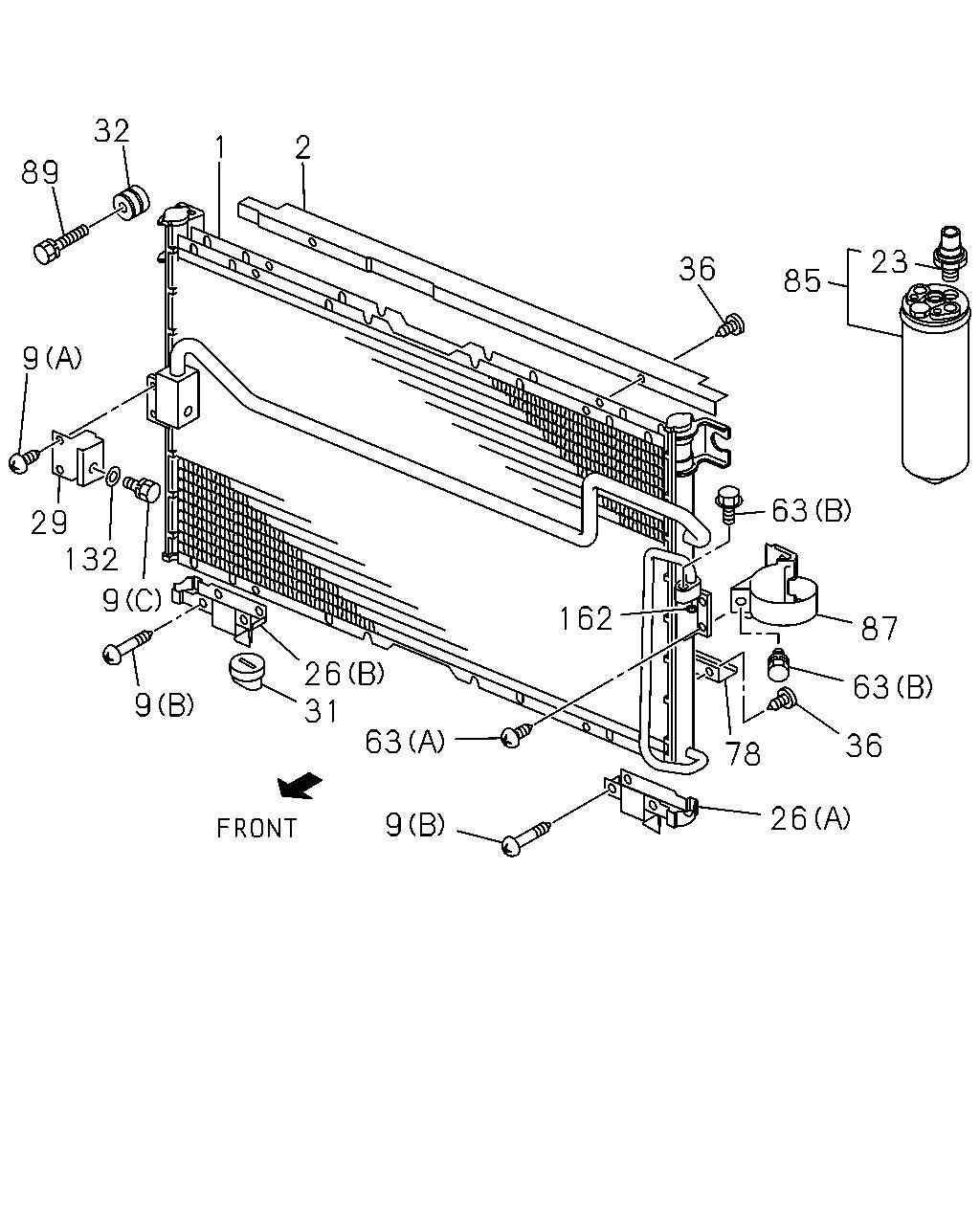

8-75 — CONDENSER
(#21427) — 20 parça
Tümü
A - TFB5SF
B - TFB5WF
C - TFS5CF
D - TFS5SF
E - TFS5WF
32
2
1
89
23
36
85
9
63
29
132
9
162
87
26
31
63
9
63
36
78
26
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
1
09.190 CONDENSER; A/C
AIR CONDITIONER MANUAL CONT(C60)
8-97314-646-0
01
1
0108-
●
●
●
●
●
2
09.190 PLATE; UPR,CONDENSER
AIR CONDITIONER MANUAL CONT(C60)
8-97049-256-1
01
1
0108-
●
●
●
●
●
9
09.190 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) (A) M5X14 TAPPING
8-97049-258-0
02
1
0108-
●
●
●
●
●
9
09.190 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) 09.216 (B) M5X35 TAPPING
8-97071-786-0
04
1
0108-
●
●
●
●
●
9
09.190 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) (C)
8-97096-064-0
01
1
0108-
●
●
●
●
●
23
09.172 SWITCH; PRESSURE,CONDENSER
AIR CONDITIONER MANUAL CONT(C60)
8-97217-210-0
01
1
0108-
●
●
●
●
●
26
09.190 BRACKET; LOW
AIR CONDITIONER MANUAL CONT(C60) (A)
8-97096-056-0
01
1
0108-
●
●
●
●
●
26
09.190 BRACKET; LOW
AIR CONDITIONER MANUAL CONT(C60) (B)
8-97096-058-0
01
1
0108-
●
●
●
●
●
29
09.190 BRACKET; SIDE
AIR CONDITIONER MANUAL CONT(C60)
8-97096-062-0
01
1
0108-
●
●
●
●
●
31
09.190 RUBBER; MTG,CONDENSER
AIR CONDITIONER MANUAL CONT(C60)
8-97018-673-0
02
1
0108-
●
●
●
●
●
32
09.190 GROMMET; CONDENSER
AIR CONDITIONER MANUAL CONT(C60)
8-97096-063-0
02
1
0108-
●
●
●
●
●
36
09.190 SCREW; PLATE TO CONDENSER
AIR CONDITIONER MANUAL CONT(C60) M5X14 TAPPING
8-97049-258-0
04
1
0108-
●
●
●
●
●
63
09.175 BOLT; RECEIVER TANK
AIR CONDITIONER MANUAL CONT(C60) 09.190 (A) M5X14 TAPPING
8-97049-258-0
02
1
0108-
●
●
●
●
●
63
09.175 BOLT; RECEIVER TANK
AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) M6X25
8-97095-660-0
02
1
0108-
●
●
●
●
●
78
09.190 PLATE; LWR,CONDENSER
AIR CONDITIONER MANUAL CONT(C60)
8-97049-257-0
01
1
0108-
●
●
●
●
●
85
09.172 DRYER; RECEIVER
AIR CONDITIONER MANUAL CONT(C60)
8-97217-208-0
01
1
0108-
●
●
●
●
●
87
09.196 BRACKET; RECEIVER DRYER
AIR CONDITIONER MANUAL CONT(C60)
8-97091-159-0
01
1
0108-
●
●
●
●
●
89
09.190 BOLT; CONDENSER TO BODY
AIR CONDITIONER MANUAL CONT(C60)
8-97049-255-0
02
1
0108-
●
●
●
●
●
132
09.190 WASHER; BRKT
AIR CONDITIONER MANUAL CONT(C60)
8-97096-065-0
01
1
0108-
●
●
●
●
●
162
09.195 GASKET; PIPE TO DRYER
AIR CONDITIONER MANUAL CONT(C60)
8-97161-776-0
01
1
0108-
●
●
●
●
●
