Isuzu WW
▶
PICKUP
▶
TFR
▶
50920 - TFR/TFS(EUROPE)-RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-65 - CONTROL LEVER; HEATER AND AIR CON
▶
8-65 — CONTROL LEVER; HEATER AND AIR CON
(#21423) — 16 parça
Tümü
A - TFB5SF
B - TFB5WF
C - TFS5CF
D - TFS5SF
E - TFS5WF
◀

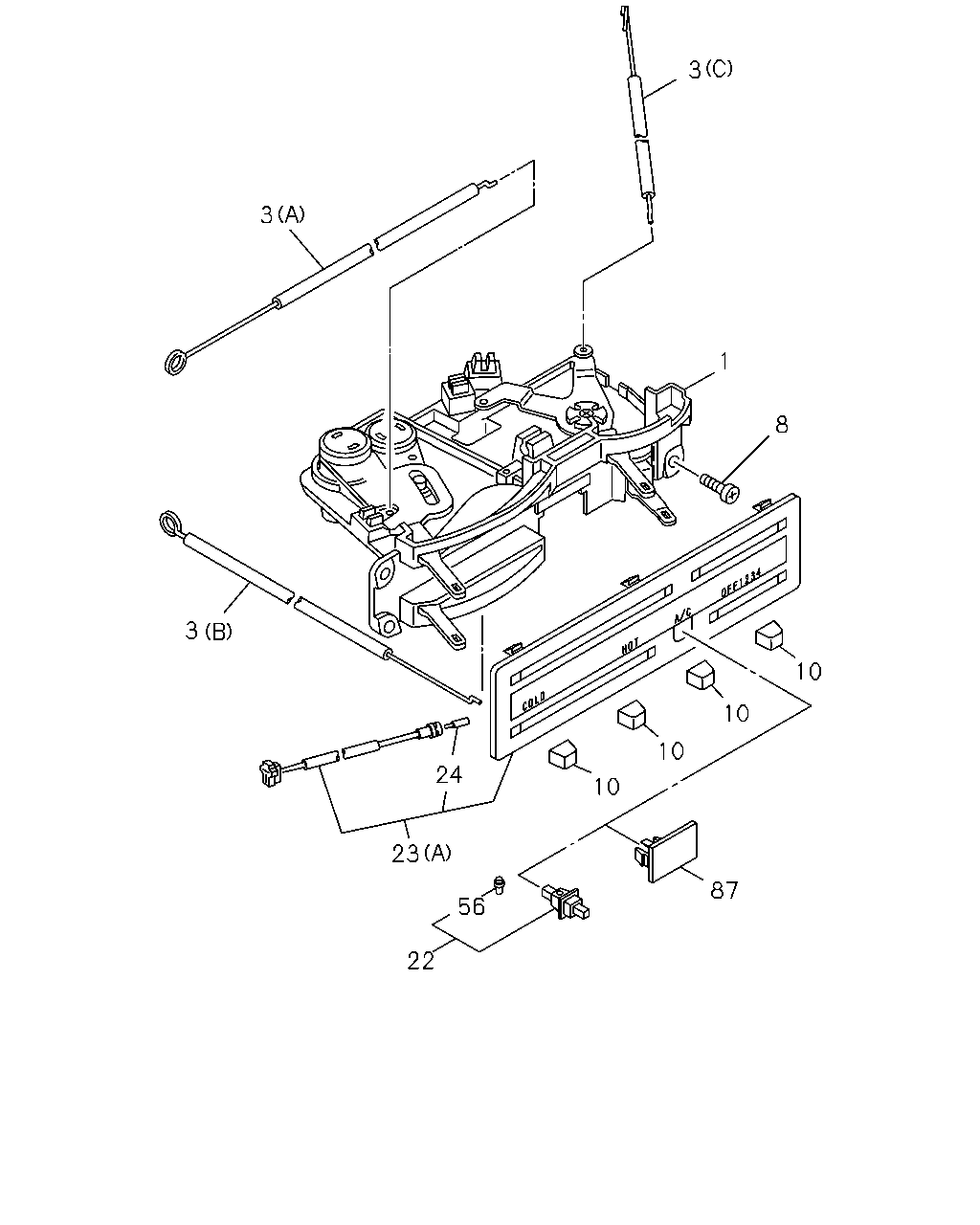

[865A] HEATER AND DEFROSTER,A/C MANUAL CONT (12 parça)
[865A] EXC.HEATER,AIR CON AND COOLER (4 parça)
▶
3
1
8
10
10
10
24
10
23
87
56
22
3
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
1
08.849 LEVER SUB ASM; HTR CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)
8-97120-849-0
01
1
0108-
●
●
●
●
●
3
09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) MODE LEVER
8-97120-846-0
01
1
0108-
●
●
●
●
●
3
09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) TEMP LEVER
8-97120-847-0
01
1
0108-
●
●
●
●
●
3
09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (C) F/C LEVER
8-97120-848-0
01
1
0108-
●
●
●
●
●
8
08.852 SCREW; CONT LVR TO INST PNL
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.085 M5X16 TAPPING
9-09829-323-1
04
1
0108-
●
●
●
●
●
10
08.852 KNOB; CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)
8-94435-195-0
04
1
0108-
●
●
●
●
●
22
08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60)
8-97117-963-0
01
1
0108-
●
●
●
●
●
23
08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)
8-97107-570-2
01
1
0108-
●
●
●
●
●
23
08.852 BEZEL; CONT LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)
8-97112-443-0
01
1
0108-
●
●
●
●
●
24
08.991 BULB; CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 12V 1.4W
5-82194-021-0
01
1
0108-
●
●
●
●
●
56
08.991 BULB; SWITCH,A/C
AIR CONDITIONER MANUAL CONT(C60) 14V 60MA
8-94337-134-0
01
1
0108-
●
●
●
●
●
87
08.849 CAP; A/C SWITCH
HEATER & DEFROSTER(C41) 08.852
8-94435-500-0
01
1
0108-
●
●
●
●
●

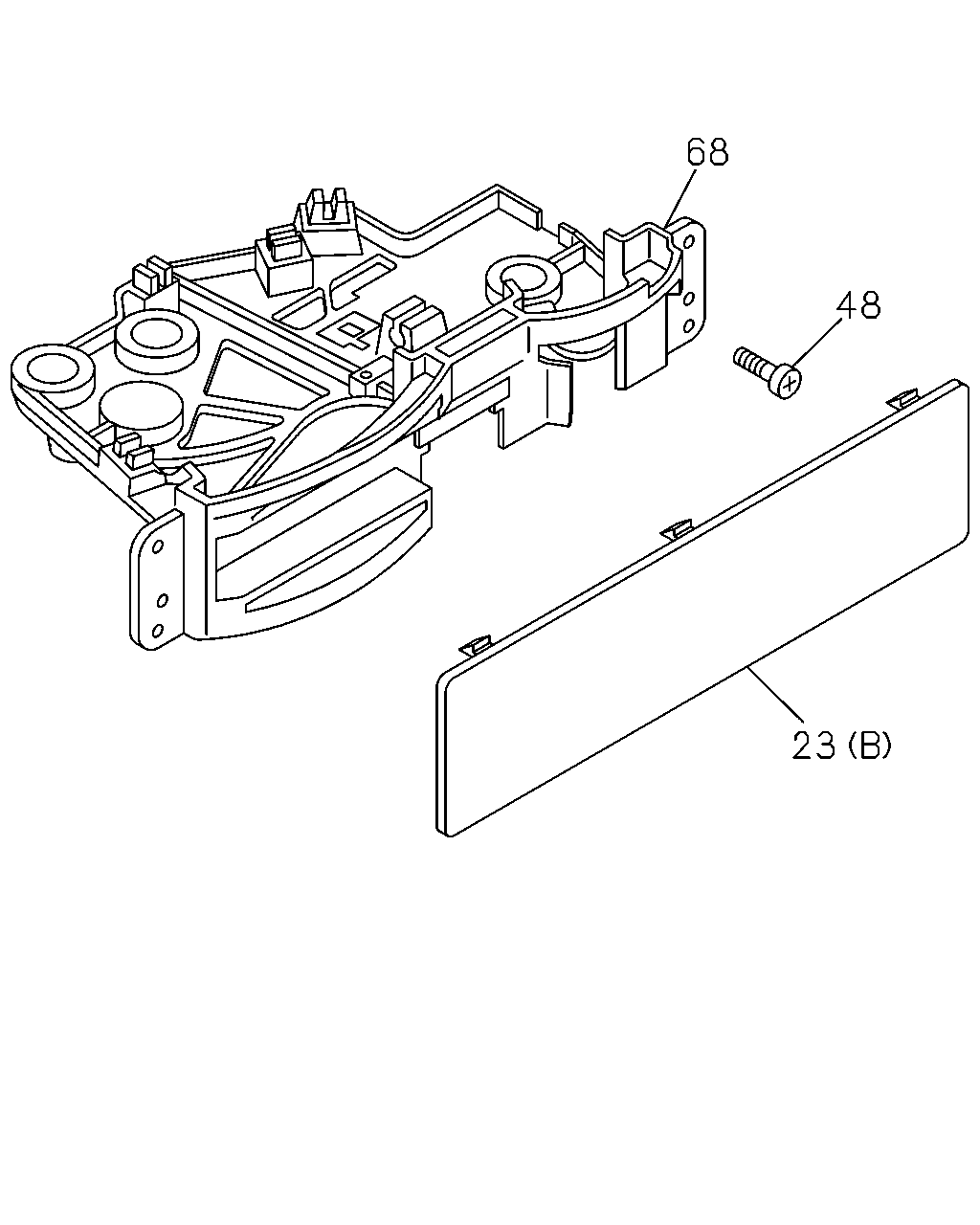

68
48
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
23
08.852 BEZEL; CONT LEVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A)
8-97107-570-2
01
1
0108-
●
●
●
●
●
23
08.852 BEZEL; CONT LEVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B)
8-97112-443-0
01
1
0108-
●
●
●
●
●
48
08.552 SCREW; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 16.085 M5X16 TAPPING
9-09829-323-1
04
1
0108-
●
●
●
●
●
68
08.849 BRACKET; BEZEL
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60)
8-97165-592-0
01
1
0108-
●
●
●
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
