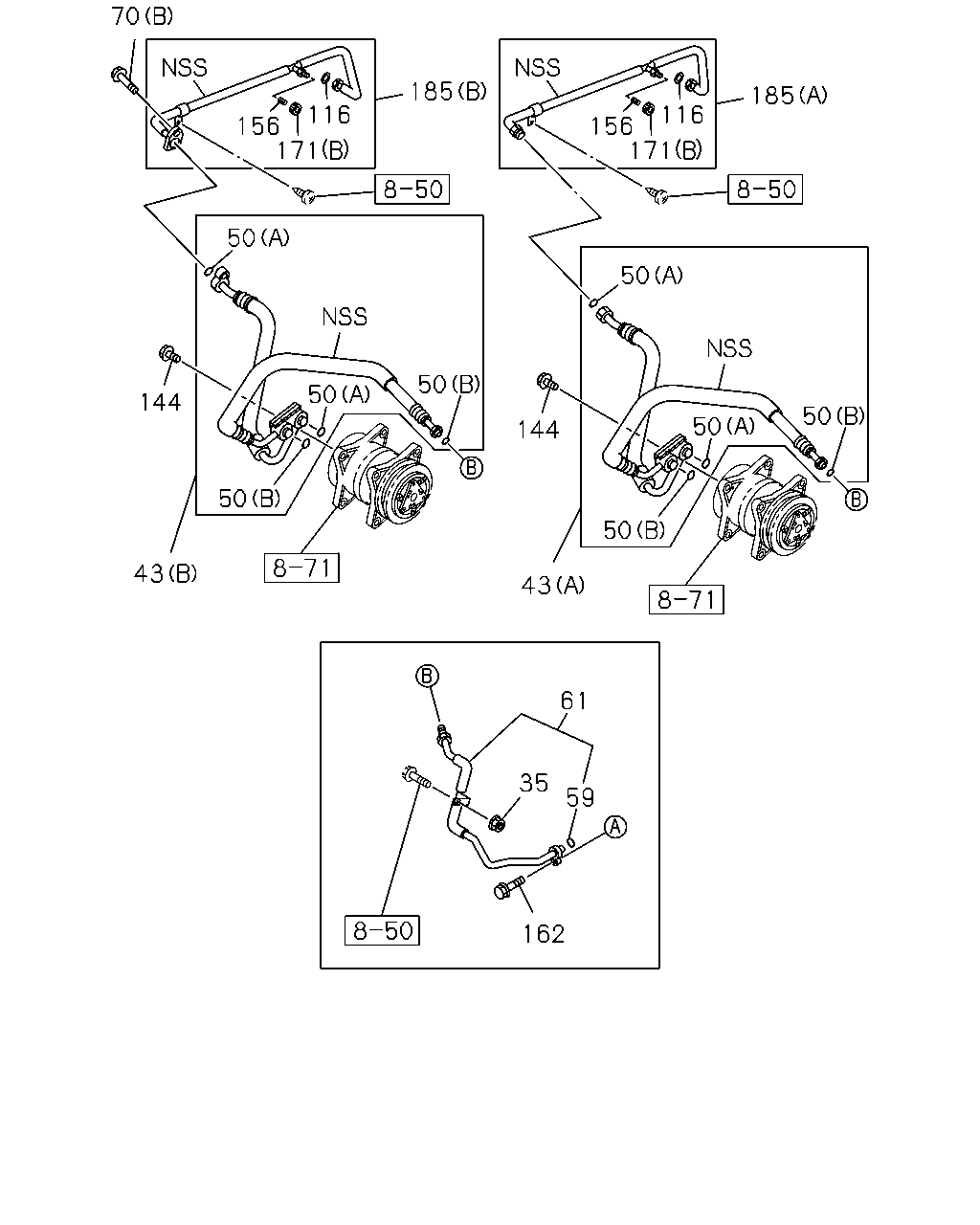

8-52 — PIPING; AIR CONDITIONING (#21421) — 32 parça

184 146 123 23 62 156 171 146 123 70 93 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
23	09.171 BOLT; BRKT 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 08.077 M6X18	8-97071-681-0	02	1	0108-	●	●	●	●	●
62	09.242 BRACKET; PIPE HIGH PRESSURE 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60)	8-94462-279-2	01	1	0108-	●	●		●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60) 02.334 (A) M6X25 FLANGE	0-28680-625-0	01	1	0108-	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0108-	●	●		●	●
93	09.220 PIPE; RECEIVER TANK TO PIPE AIR CONDITIONER MANUAL CONT(C60)	8-97301-235-0	01	1	0108-	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60)	8-97161-776-0	01	1	0108-	●	●	●	●	●
123	09.195 GASKET; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60)	8-97161-776-0	02	1	0108-	●	●	●	●	●
146	09.196 CLIP; RECEIVER PIPE AIR CONDITIONER MANUAL CONT(C60) ID=7.5 & 5.4 6NYLON,GRAY	8-94457-162-0	02	1	0108-	●	●	●	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60) 09.262	8-97083-100-0	01	1	0108-	●	●	●	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60) 09.262	8-97083-100-0	01	1	0108-	●	●	●	●	●
171	09.242 CAP; PIPE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK H	8-97083-101-0	01	1	0108-	●	●	●	●	●
171	09.242 CAP; PIPE AIR CONDITIONER MANUAL CONT(C60) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	0108-	●	●	●	●	●
184	09.220 PIPE; PIPE TO EVAP AIR CONDITIONER MANUAL CONT(C60)	8-97177-167-0	01	1	0108-	●	●	●	●	●

70 185 185 116 116 156 171 156 171 50 50 50 50 144 50 50 144 50 50 43 43 61 35 59 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E
35	09.242 NUT; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> 01.062 M6 FLANGE	0-91150-206-0	01	1	0108-0111	●	●	●	●	●
35	09.242 NUT; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> 04.594 M6 FLANGE	0-91150-106-0	01	1	0112-	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97301-259-0	01	1	0108-	●	●	●	●	●
43	09.225 HOSE; FLEX,A/C,EVAP TO CMPR 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97301-245-2	01	1	0108-	●	●		●	●
50	09.222 GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 09.260 (B) ID=15.5	8-97161-777-0	02	1	0108-	●	●	●	●	●
50	09.222 GASKET; FLEX HOSE,A/C AIR CONDITIONER MANUAL CONT(C60) 09.225 (A) ID=18.3	8-97161-778-0	02	1	0108-	●	●	●	●	●
59	09.222 GASKET; PIPE,FLEX HOSE TO CONDEN AIR CONDITIONER MANUAL CONT(C60) 09.260 ID=15.5	8-97161-777-0	01	1	0108-	●	●	●	●	●
61	09.220 PIPE; FLEX HOSE TO CONDENSER AIR CONDITIONER MANUAL CONT(C60)	8-97301-234-0	01	1	0108-	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY AIR CONDITIONER MANUAL CONT(C60) 02.334 (A) M6X25 FLANGE	0-28680-625-0	01	1	0108-	●	●	●	●	●
70	00.206 BOLT; PIPE TO BODY 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0108-	●	●		●	●
116	09.225 GASKET; PIPE AIR CONDITIONER MANUAL CONT(C60) ID=18.3	8-97161-778-0	01	1	0108-	●	●	●	●	●
144	09.242 BOLT; CONN TO CMPR AIR CONDITIONER MANUAL CONT(C60) 00.685 M10X45 FLANGE	0-28081-045-0	01	1	0108-	●	●	●	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60) 09.262	8-97083-100-0	01	1	0108-	●	●	●	●	●
156	09.198 VALVE; PIPE AIR CONDITIONER MANUAL CONT(C60) 09.262	8-97083-100-0	01	1	0108-	●	●	●	●	●
162	09.173 BOLT; FLEX HOSE AIR CONDITIONER MANUAL CONT(C60) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0108-	●	●	●	●	●
171	09.242 CAP; PIPE AIR CONDITIONER MANUAL CONT(C60) (A) CAP MARK H	8-97083-101-0	01	1	0108-	●	●	●	●	●
171	09.242 CAP; PIPE AIR CONDITIONER MANUAL CONT(C60) 09.226 (B) CAP MARK L	8-97083-102-0	01	1	0108-	●	●	●	●	●
185	09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO 4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) (A)	8-97177-168-0	01	1	0108-	●	●	●	●	●
185	09.220 PIPE; EVAP TO FLEX HOSE,PRESS LO 4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) (B)	8-97311-909-1	01	1	0108-	●	●		●	●
