8-50 — AIR CONDITIONING SYSTEM; FRONT (#21420) — 16 parça

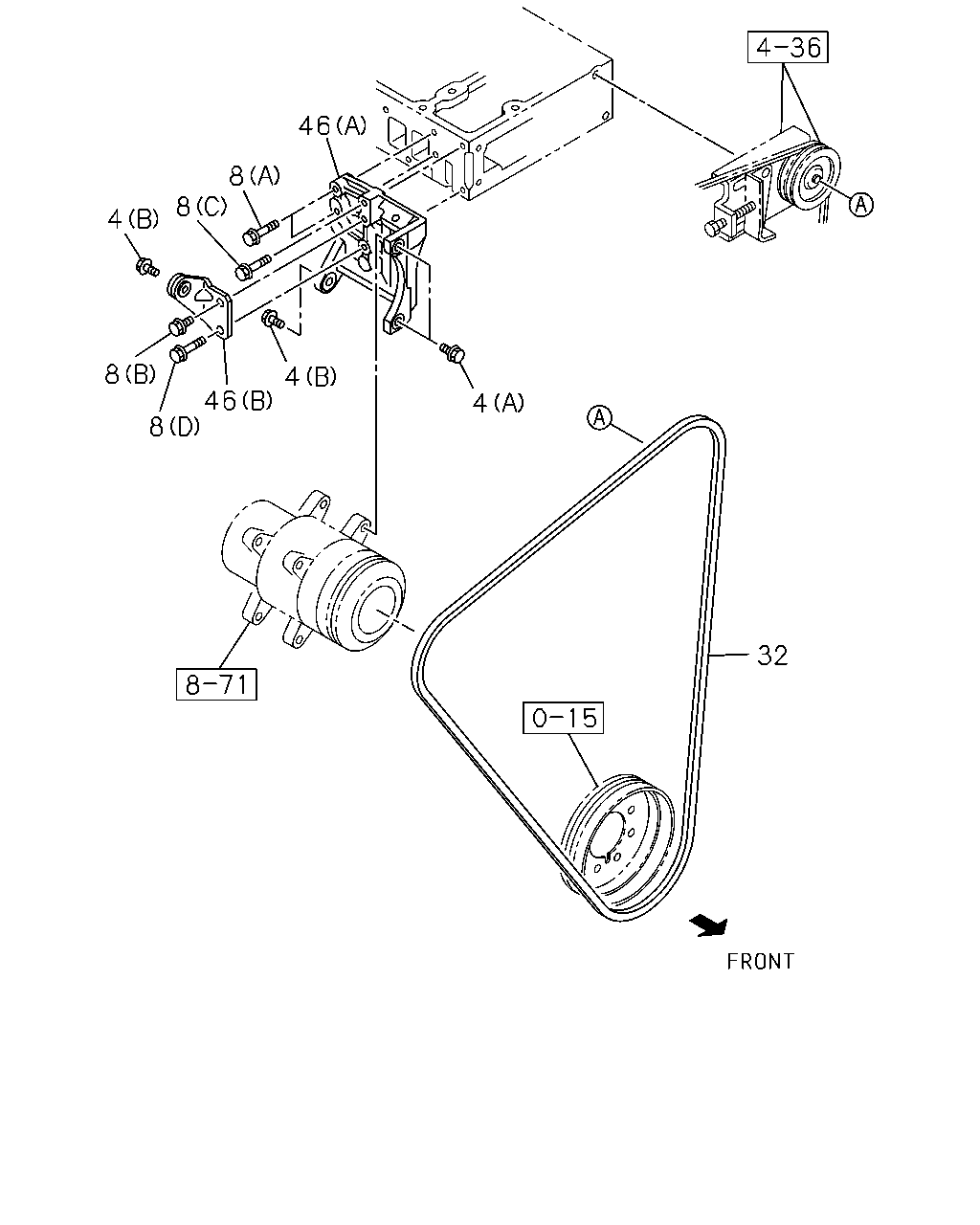

çizim 11842
46 8 8 4 8 4 46 8 4 32
BalonParca AdiParca NoAdetTipApplied Date A B C D E
4 09.171 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONT(C60) 03.405 (A) M10X30 FLANGE 		0-28681-030-0 02 1 0108- ● ● ● ● ●
4 09.171 BOLT; A/C CMPR BRKT
AIR CONDITIONER MANUAL CONT(C60) 00.004 (B) M10X40 W/LK WASHER 		0-50041-040-0 02 1 0108- ● ● ● ● ●
8 09.171 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) 03.405 (B) M10X30 FLANGE 		0-28681-030-0 01 1 0108- ● ● ● ● ●
8 09.171 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) 03.706 (A) M8X40 W/LK WASHER 		0-50040-840-0 02 1 0108- ● ● ● ● ●
8 09.171 BOLT; BRKT
AIR CONDITIONER MANUAL CONT(C60) 00.724 (D) M10X55 		5-09030-038-1 01 1 0108- ● ● ● ● ●
8 09.171 BOLT; BRKT
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 00.004 (C) M10X40 W/LK WASHER 		0-50041-040-0 01 1 0108- ● ● ● ● ●
8 09.171 BOLT; BRKT
4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) 00.386 (C) M10X50 W/LK WASHER 		0-50041-050-0 01 1 0108- ● ● ● ●
32 01.066 BELT; A/C CMPR
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 		8-94434-926-0 01 1 0108- ● ● ● ● ●
32 01.066 BELT; A/C CMPR
4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) 		8-94442-970-0 01 1 0108- ● ● ● ●
46 09.171 BRACKET; CMPR
AIR CONDITIONER MANUAL CONT(C60) 09.242 (B) 		8-97114-782-0 01 1 0108- ● ● ● ● ●
46 09.171 BRACKET; CMPR
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 09.242 (A) 		8-97114-780-0 01 1 0108- ● ● ● ● ●
46 09.171 BRACKET; CMPR
4JA1 ENG(RLE) AIR CONDITIONER MANUAL CONT(C60) (A) 		8-97254-188-0 01 1 0108- ● ● ● ●

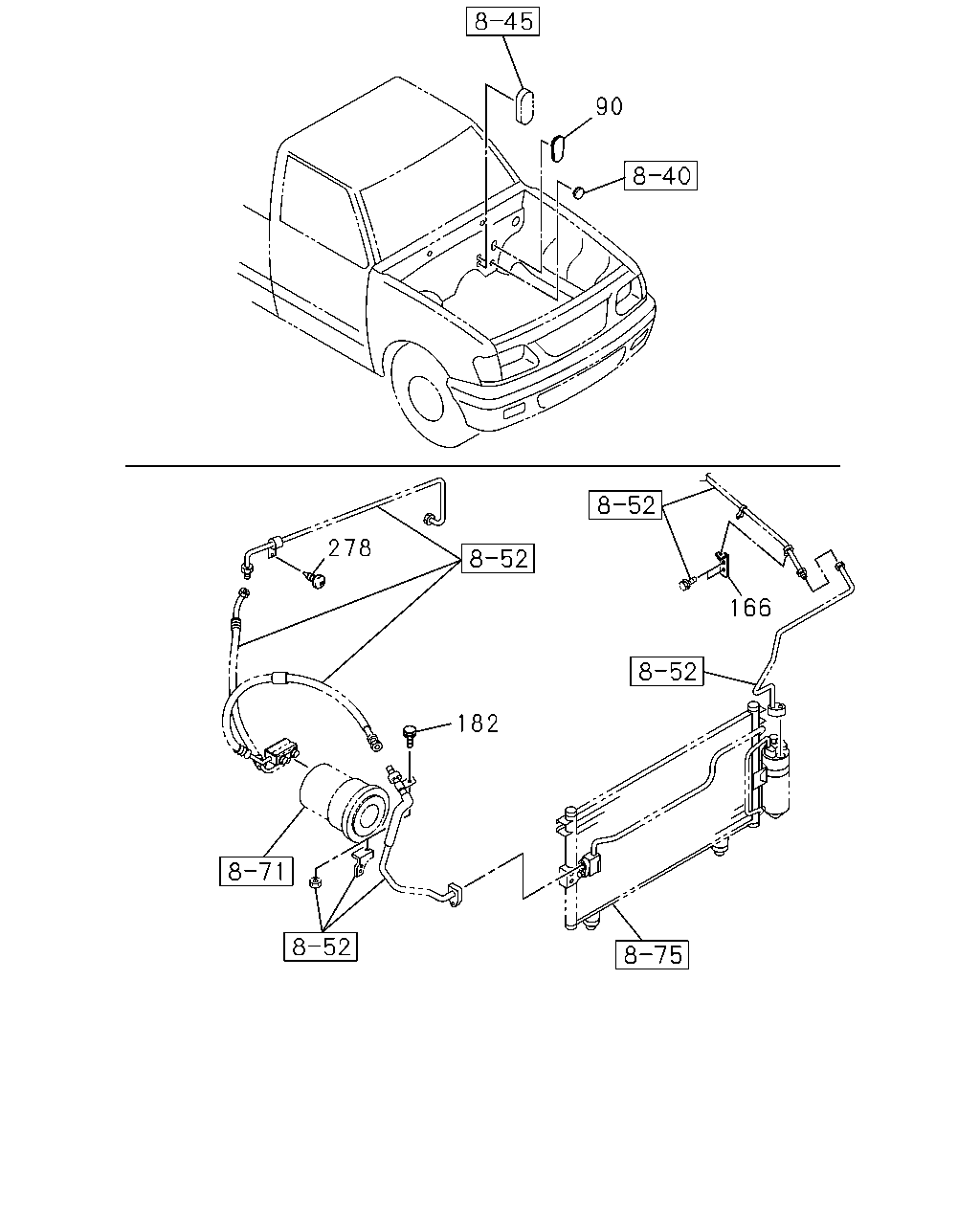

çizim 53453
90 278 166 182
BalonParca AdiParca NoAdetTipApplied Date A B C D E
90 08.850 PLUG; PIPE HOLE
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-94222-310-1 01 1 0108- ● ● ● ● ●
166 09.226 BRACKET; FLEX HOSE
4JG2 ENG(RJC) AIR CONDITIONER MANUAL CONT(C60) 		8-97072-706-1 01 1 0108- ● ● ● ● ●
182 09.242 BOLT; PIPE TO BRKT
AIR CONDITIONER MANUAL CONT(C60) EXC. HALOGEN HEAD LAMPS MULTI REFLECTO R<7YW> 10.701 M6X16 		8-94206-784-0 01 1 0108- ● ● ● ● ●
278 09.242 SCREW; CLIP
AIR CONDITIONER MANUAL CONT(C60) 16.165 M6X16 TAPPING W/PL WASHER 		0-74305-616-0 01 1 0108- ● ● ● ● ●
