8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#2142) — 25 parça

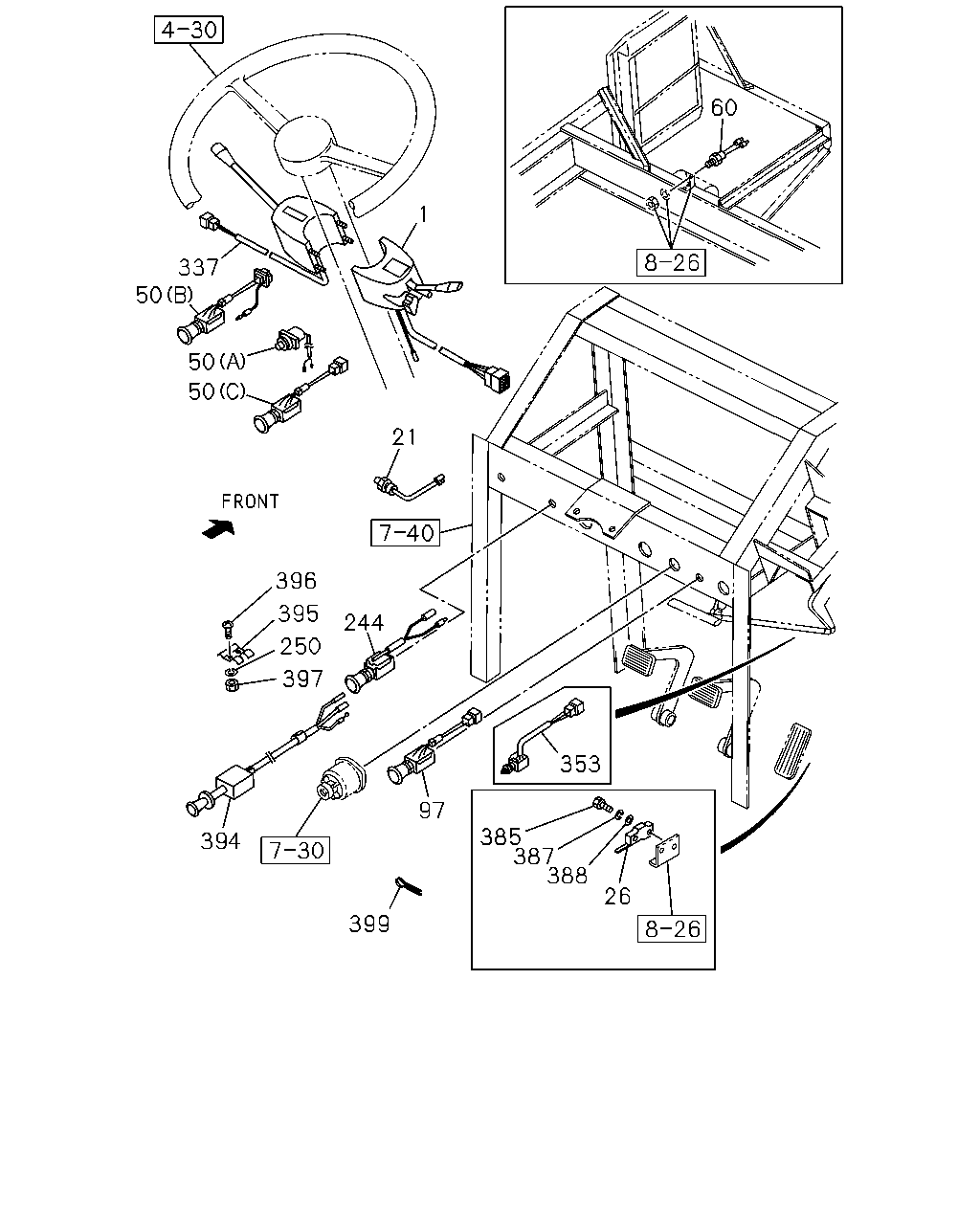

çizim 93811
60 1 337 50 50 50 21 396 395 244 250 397 353 97 385 387 388 394 26 399
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB 1-82360-154-1 01 1 9001- ● ●
21 SWITCH; CLU
M/T<X9C> 		1-82410-024-0 01 1 9001- ● ●
26 SWITCH; ACCEL 9-82770-013-0 01 1 9001- ● ●
50 SWITCH; FRT WIPER
WINDSHIELD WASHER<C11> (A) 		1-82380-003-1 01 1 9001- ● ●
50 SWITCH; FRT WIPER
WIPER BLADE LONG<YD4> (B) 		1-82340-167-0 01 1 9001- ● ●
50 SWITCH; FRT WIPER
WIPER MOTOR KIT<ST7> (C) 		1-82340-081-1 01 1 9001- ● ●
60 SWITCH; IGNITION SUB 1-82380-065-0 01 1 9001- ● ●
97 SWITCH; FOG & PARKING LAMP 1-82340-164-0 01 1 9001- ● ●
244 SWITCH; BATTERY 1-82340-150-0 01 1 9001-9001 ● ●
244 SWITCH; BATTERY 1-82340-350-0 01 1 9002- ● ●
250 WASHER; LK,BRKT
AXLE RATIO 2 SPEED<W9Y> ID=5.1 		9-09150-505-0 02 1 9001- ● ●
337 SWITCH; EXH 1-82360-161-3 01 1 9001- ● ●
353 SWITCH ASM; PARKING BRAKE
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) 		1-82440-038-0 01 1 9001-9105 ●
353 SWITCH ASM; PARKING BRAKE
BRAKE SYSTEM AIR DUAL CIRCUIT(Z04) 		1-82440-028-0 01 1 9106-9204 ●
385 SCREW; ACCEL SW 9-93470-325-0 02 1 9001- ● ●
387 WASHER; LK,ACCEL SW
ID=3.1 		9-09150-503-0 02 1 9001- ● ●
388 WASHER; PL,ACCEL SW
ID=3.2 OD=12 		9-09160-703-0 02 1 9001- ● ●
394 SWITCH; 2 SPEED
AXLE RATIO 2 SPEED<W9Y> 		1-82340-106-4 01 1 9001- ● ●
395 BRACKET; 2 SPEED SW
AXLE RATIO 2 SPEED<W9Y> 		1-33629-003-0 02 1 9001-9108 ● ●
395 BRACKET; 2 SPEED SW
AXLE RATIO 2 SPEED<W9Y> 		1-33629-004-0 02 1 9109- ● ●
396 SCREW; BRKT FIX
AXLE RATIO 2 SPEED<W9Y> M5X14 		9-93490-514-0 02 1 9001-9108 ● ●
396 SCREW; BRKT FIX
AXLE RATIO 2 SPEED<W9Y> M5X16 W/LK WASHER 		9-03910-516-0 02 1 9109- ● ●
397 NUT; BRKT FIX
AXLE RATIO 2 SPEED<W9Y> M5 		9-99110-405-0 02 1 9001- ● ●
399 CLIP; 2 SPEED HARNESS
AXLE RATIO 2 SPEED<W9Y> ID=11 L=41 		1-09700-403-0 03 1 9001- ● ●
399 CLIP; 2 SPEED HARNESS
AXLE RATIO 2 SPEED<W9Y> ID=8 L=58 		1-09700-465-0 02 1 9001- ● ●
