8-45 — HEATER PIPING (#21419) — 7 parça

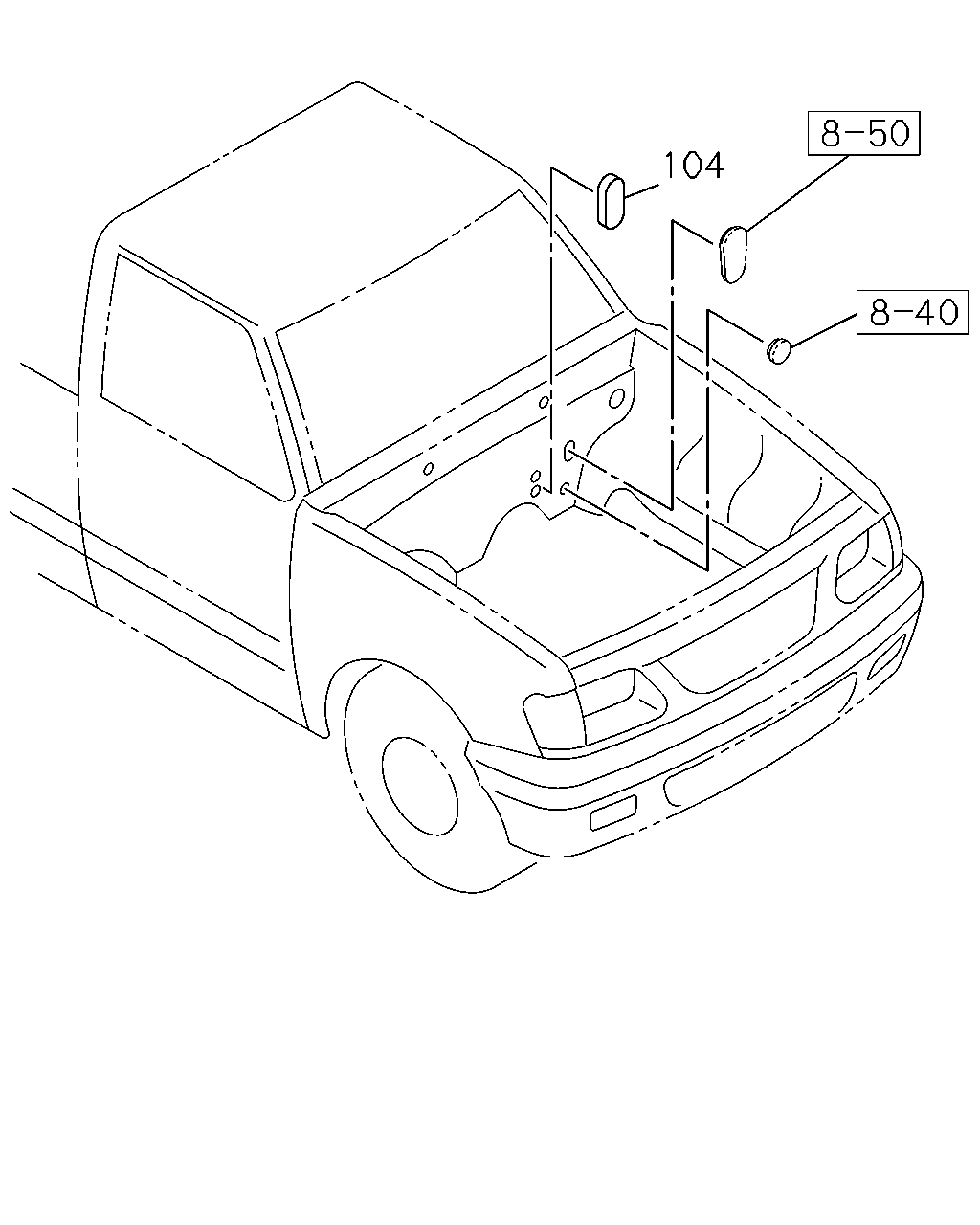

çizim 11843
104
BalonParca AdiParca NoAdetTipApplied Date A B C D E
104 16.550 PLUG; RUBBER,HTR HOSE HOLE
4JA1 ENG(RLE) EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-94468-656-0 01 1 0108- ● ● ● ●

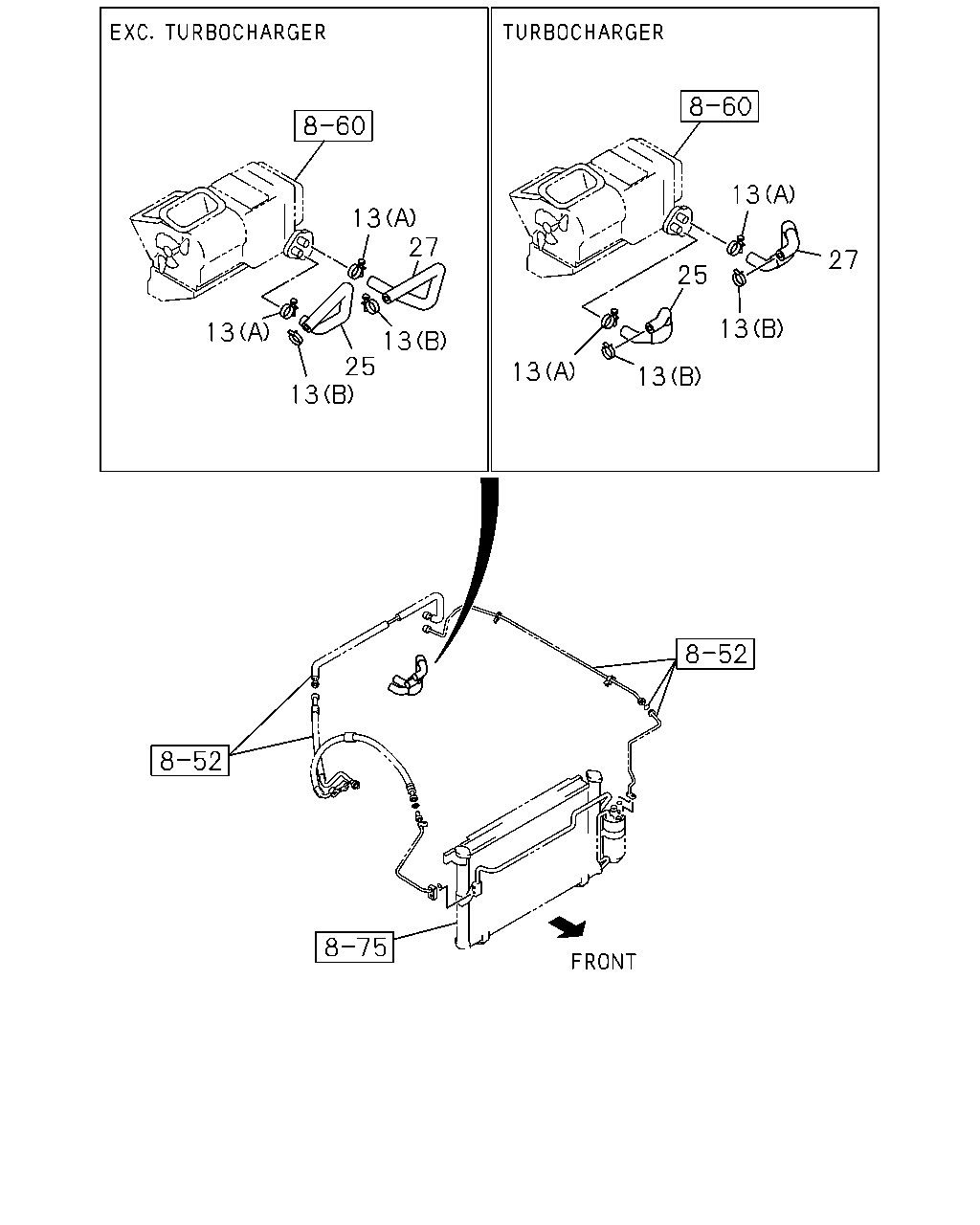

çizim 53201
13 13 27 27 25 13 13 13 25 13 13 13
BalonParca AdiParca NoAdetTipApplied Date A B C D E
13 08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) ID=25 		8-94369-726-0 02 1 0108- ● ● ● ● ●
13 08.846 CLIP; HTR HOSE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) ID=22 		8-94382-401-0 02 1 0108- ● ● ● ● ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> 		8-97023-975-1 01 1 0108- ● ● ● ● ●
25 08.846 HOSE; WATER,ENG TO HTR UNIT
4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> 		8-94450-207-3 01 1 0108- ● ● ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) TURBOCHARGER<K51> 		8-97023-974-1 01 1 0108- ● ● ● ● ●
27 08.846 HOSE; WATER,HTR UNIT TO WATER PI
4JA1 ENG(RLE) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) EXC. TURBOCHARGER<K51> 		8-94450-204-5 01 1 0108- ● ● ● ●
