8-28 — CHASSIS ELECTRICAL (#21416) — 25 parça

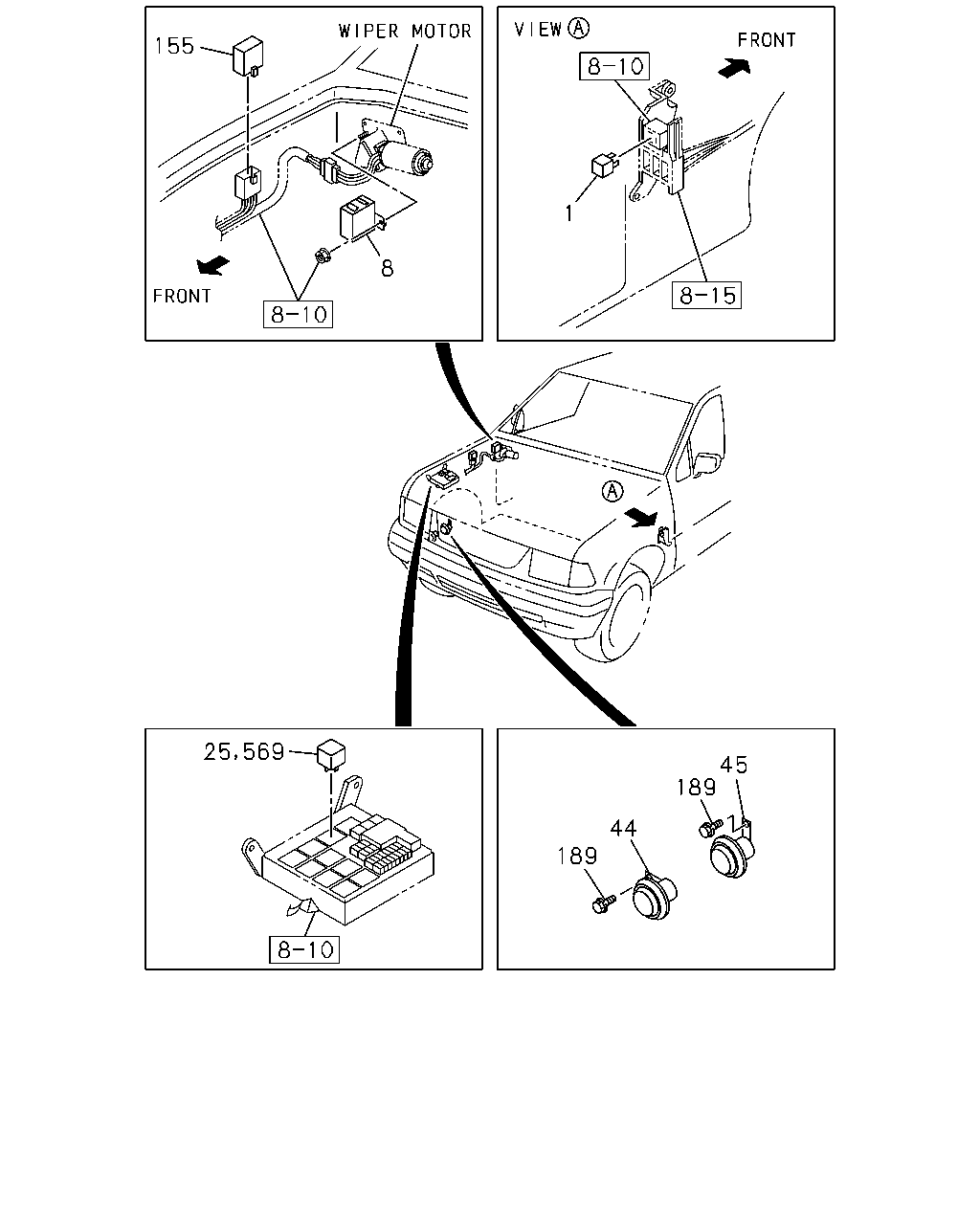

çizim 53177
155 1 8 569 45 189 44 189 25
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 02.575 UNIT; FLASHER
NILES 		8-97105-453-0 01 1 0108-0110 ● ● ● ● ●
1 02.575 UNIT; FLASHER
DENSO 		8-97202-225-1 01 1 0108- ● ● ● ● ●
8 16.067 RELAY; WIPER
INTERMITTENT WIPER<C13> 		8-97096-762-1 01 1 0108- ● ● ● ● ●
25 02.100 RELAY; TAIL LAMP
12V 20A 		8-97173-039-1 01 1 0108- ● ● ● ● ●
44 02.810 HORN; HIGH NOTE
DUAL TONE HORN<U05> 		8-97218-380-2 01 1 0108- ● ● ● ● ●
45 02.810 HORN; LOW NOTE 8-97218-382-2 01 1 0108- ● ● ● ● ●
155 16.067 CONNECTOR; SHORT
EXC. INTERMITTENT WIPER<C13> 02.559 		8-97114-443-0 01 1 0108- ● ● ● ● ●
189 02.812 BOLT; HORN
DUAL TONE HORN<U05> 02.343 M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 0108- ● ● ● ● ●
189 02.812 BOLT; HORN
EXC. DUAL TONE HORN<U05> 02.343 M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0108- ● ● ● ● ●
569 02.485 RELAY; IMMOBILIZER
IMMOBILIZER SYSTEM<7KC> 02.100 12V 20A 		8-97173-039-1 01 1 0108- ● ● ● ● ●

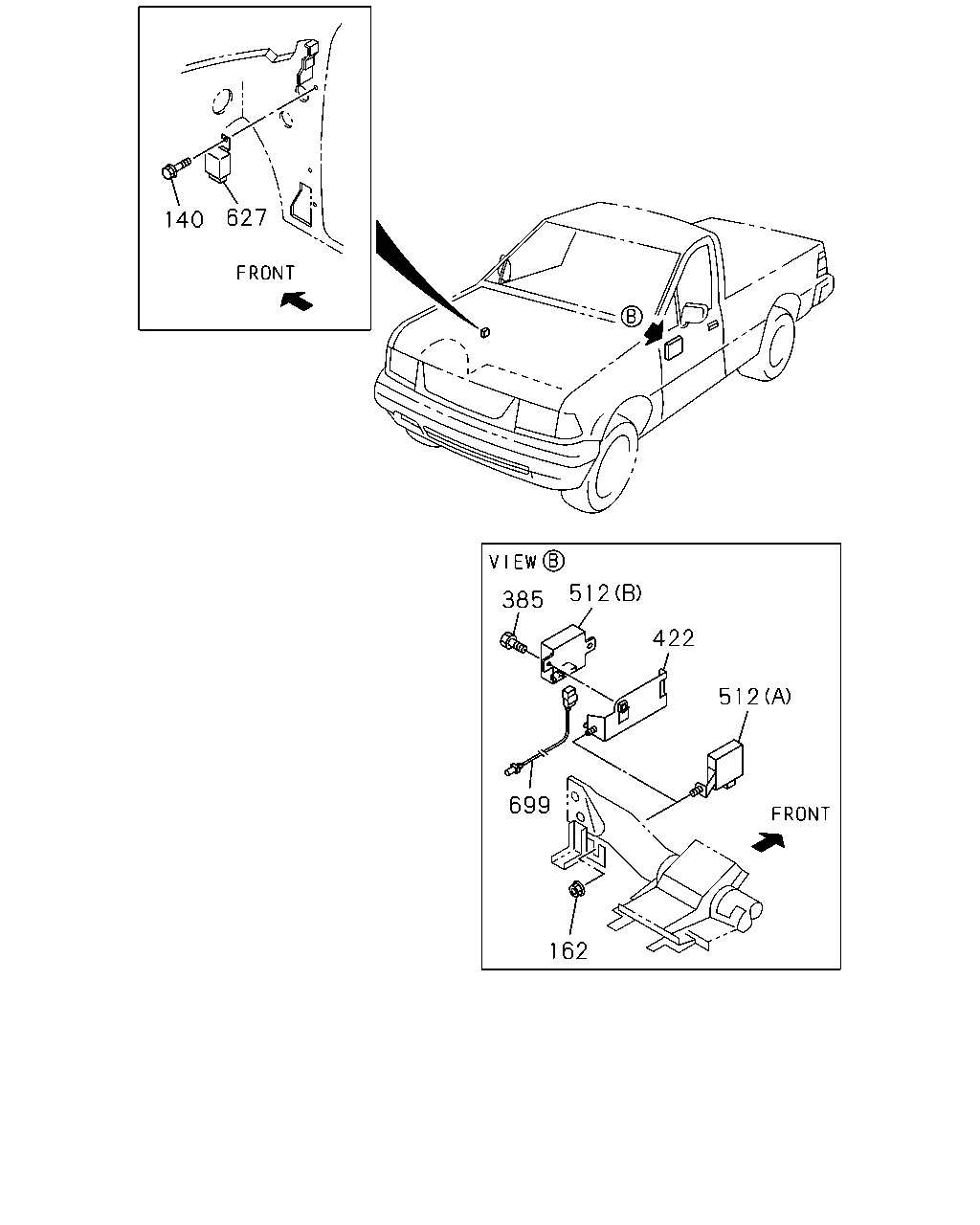

çizim 53266
627 140 512 385 422 512 699 162
BalonParca AdiParca NoAdetTipApplied Date A B C D E
140 16.263 BOLT; CONTROLLER
SHIFT ON THE FLY(7EX) 06.635 M6X16 FLANGE 		0-28480-616-0 01 1 0108- ● ●
162 03.415 NUT; ECM BRKT
IMMOBILIZER SYSTEM<7KC> 04.594 M6 FLANGE 		0-91150-106-0 01 1 0108- ● ● ● ● ●
385 03.670 BOLT; CONT UNIT
4JA1 ENG(RLE) IMMOBILIZER SYSTEM<7KC> 01.428 M6X12 FLANGE 		0-28080-612-0 01 1 0108- ● ● ● ●
422 03.415 BRACKET; CONT UNIT
4JA1 ENG(RLE) IMMOBILIZER SYSTEM<7KC> 		8-97263-118-0 01 1 0108- ● ● ● ●
512 16.263 CONTROL UNIT; IMMOBILIZER
4JG2 ENG(RJC) IMMOBILIZER SYSTEM<7KC> (A) 		8-97228-183-2 01 1 0108- ● ● ● ● ●
512 16.263 CONTROL UNIT; IMMOBILIZER
4JA1 ENG(RLE) IMMOBILIZER SYSTEM<7KC> (B) 		8-97234-671-0 01 1 0108- ● ● ● ●
627 02.440 CONTROLLER; SHIFT ON THE FLY
SHIFT ON THE FLY(7EX) 		8-97215-990-1 01 1 0108-0301 ● ●
627 02.440 CONTROLLER; SHIFT ON THE FLY
SHIFT ON THE FLY(7EX) 		8-97364-910-0 01 1 0302- ● ●
699 01.150 HARNESS; EXT
4JA1 ENG(RLE) IMMOBILIZER SYSTEM<7KC> 		8-97303-923-0 01 1 0108- ● ● ● ●

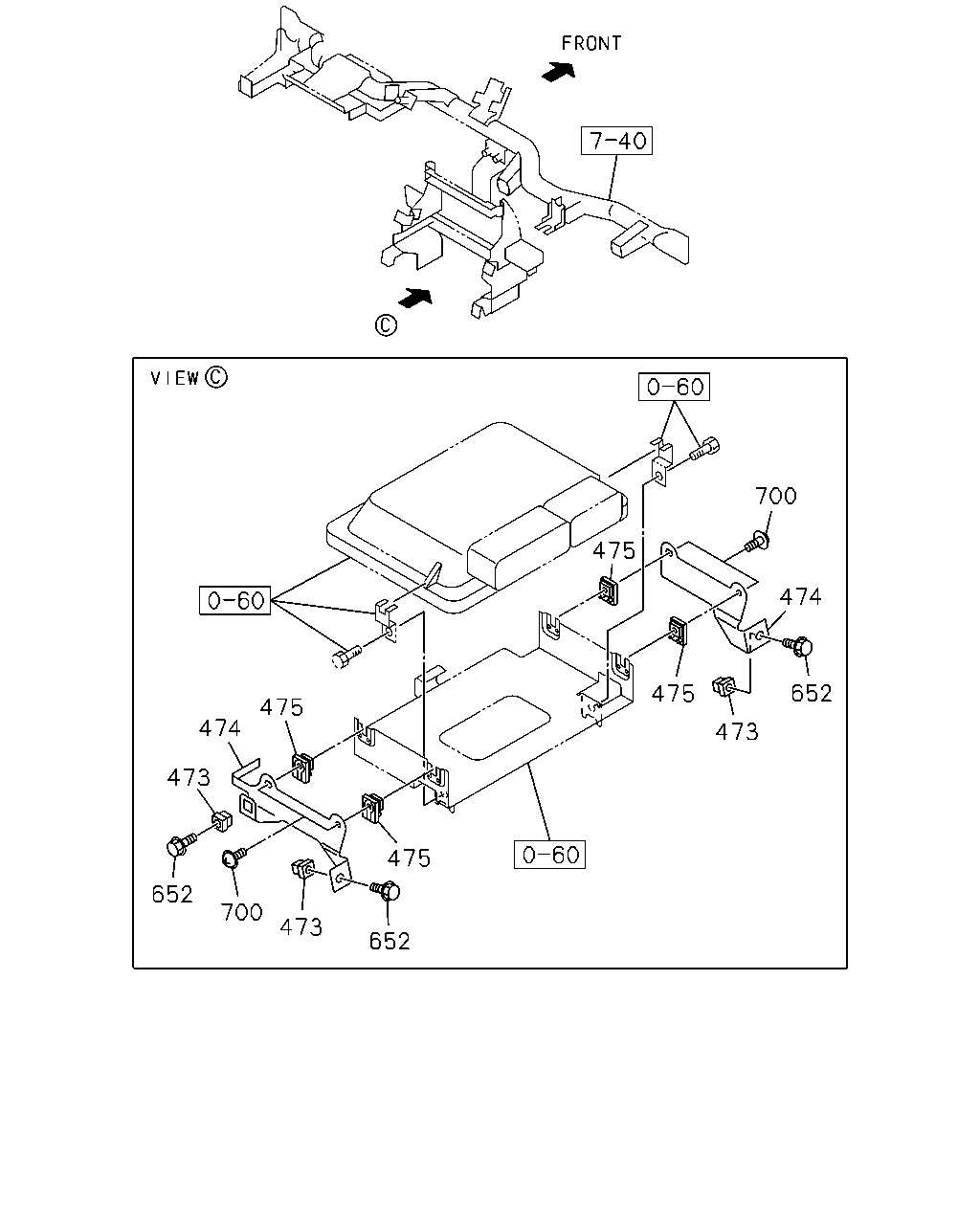

çizim 53331
700 475 474 652 475 475 474 473 473 475 652 700 473 652
BalonParca AdiParca NoAdetTipApplied Date A B C D E
473 02.487 NUT; PCM
4JA1 ENG(RLE) 09.190 D=9X9 L=8 M6 		8-94222-314-0 03 1 0108- ● ● ● ●
474 09.766 BRACKET; PCM
4JA1 ENG(RLE) 		8-97101-906-0 01 1 0108- ● ● ● ●
474 09.766 BRACKET; PCM
4JA1 ENG(RLE) 		8-97289-527-0 01 1 0108- ● ● ● ●
475 09.765 GROMMET; PCM
4JA1 ENG(RLE) 04.342 		8-97110-216-1 04 1 0108- ● ● ● ●
652 09.765 BOLT; BRKT,PCM
4JA1 ENG(RLE) 16.585 M6X14 W/PL WASHER 		9-03900-614-0 03 1 0108- ● ● ● ●
700 16.067 SCREW; PCM
4JA1 ENG(RLE) 06.514 M4X10 TAPPING W/PL WASHER 		0-74100-410-0 04 1 0108- ● ● ● ●
