◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50920 - TFR/TFS(EUROPE)-RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-27 - SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM ▶
8-27 — SUPPLEMENTAL INFLATABLE RESTRAINT SYSTEM (#21415) — 7 parça

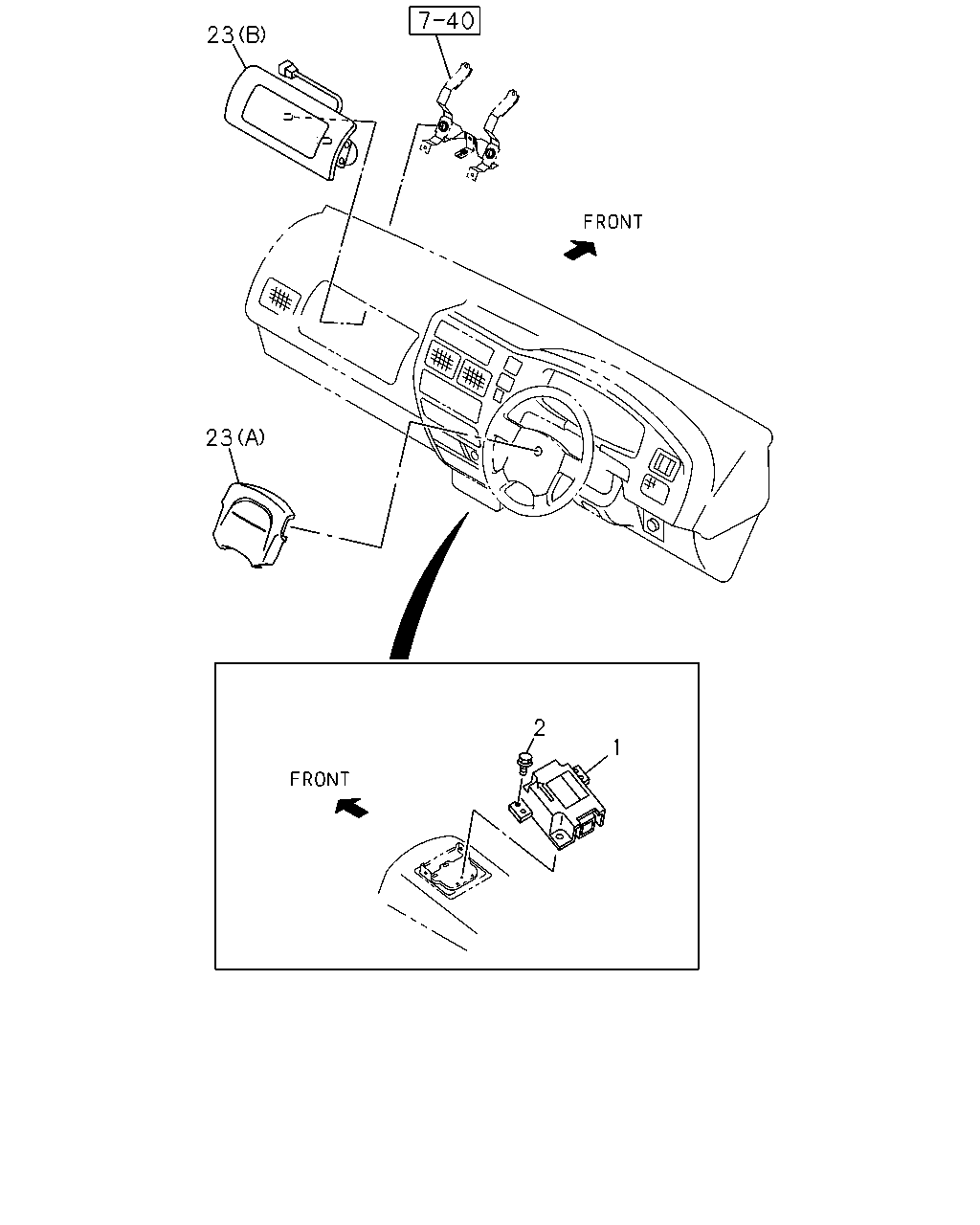

çizim 11796
23 23 2 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 02.559 CONTROL UNIT; SIR
AIR BAG DRIVER(AJ3) 		8-09373-909-2 01 1 0108- ● ● ● ● ●
2 06.870 BOLT; CONT UNIT,SIR
AIR BAG DRIVER(AJ3) M6X18 W/PL WASHER 		8-97105-796-0 03 1 0108- ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER(AJ3) AIR BAG PASSENGER(7FA) (B) GRAY 		8-97155-571-2 01 1 0108- ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER(AJ3) CHEVROLET BRAND<RWE> (A) BLACK 		8-97199-799-4 01 1 0108- ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER(AJ3) EXC. CHEVROLET BRAND<RWE>,VAUXHALL BRAND<8DT> (A) BLACK 		8-97198-663-4 01 1 0108-0201 ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER(AJ3) EXC. CHEVROLET BRAND<RWE> BLACK 		8-97198-663-4 01 1 0202- ● ● ● ● ●
23 02.559 AIR BAG UNIT
AIR BAG DRIVER(AJ3) VAUXHALL BRAND<8DT> (A) BLACK 		8-97198-667-1 01 1 0108-0201 ● ● ● ●
