8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#21414) — 12 parça

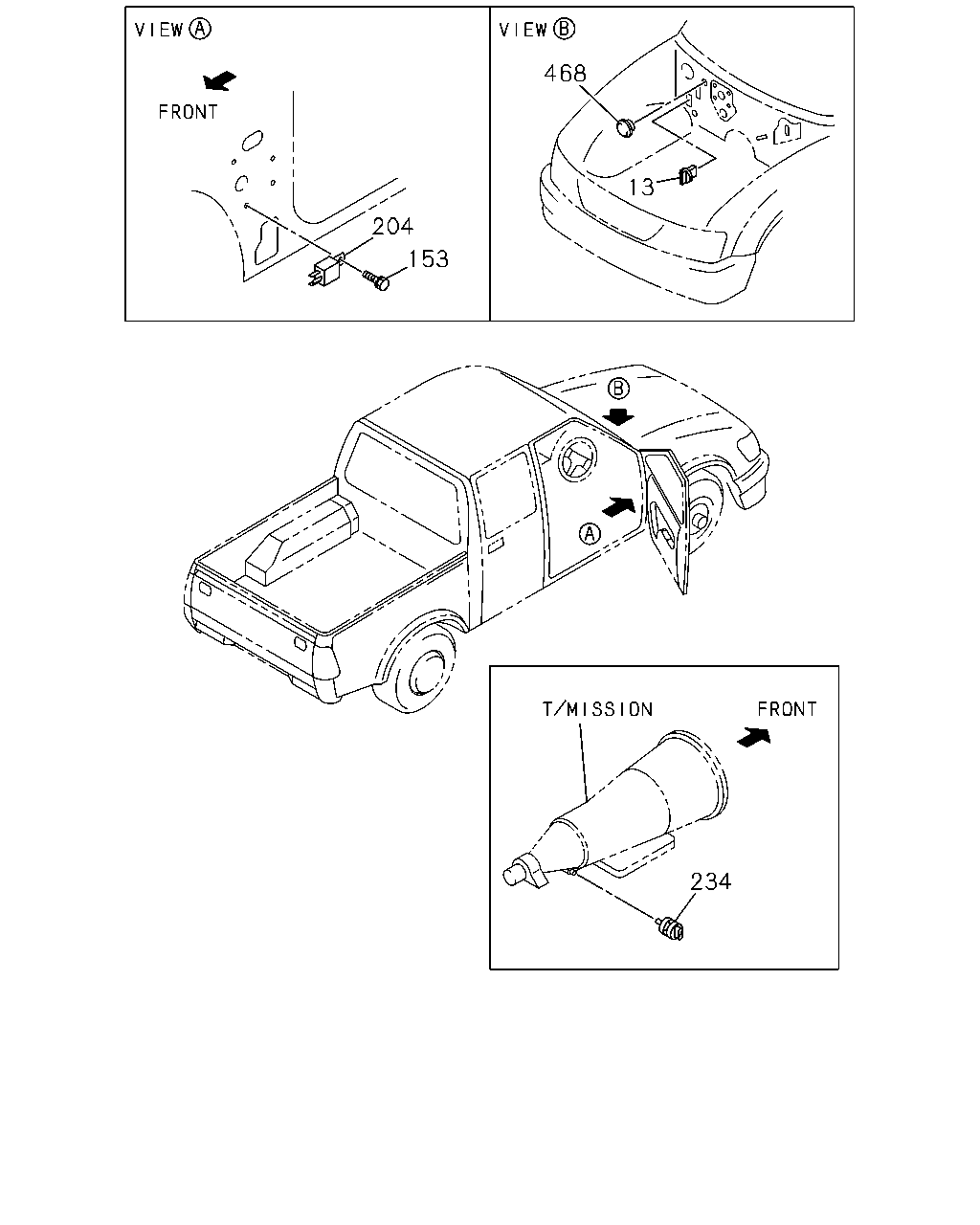

çizim 11546
468 13 204 153 234
BalonParca AdiParca NoAdetTipApplied Date A B C D E
13 03.880 PLUG; CONTROLLER,CRUISE
12.804 		8-94147-164-1 01 1 0108- ● ● ● ● ●
153 16.085 BOLT; BUZZER FIX
06.635 M6X16 FLANGE 		0-28480-616-0 01 1 0108- ● ● ● ● ●
204 02.195 BUZZER; KEY REMIND
02.485 		8-94100-124-0 01 1 0108- ● ● ● ● ●
234 03.682 SENSOR; VEHICLE SPD
4 PULSE PPS RESIN BLACK 		8-97129-704-0 01 1 0108- ● ● ● ● ●
468 04.342 GROMMET; HOLE,METER CABLE
16.585 OD=31.6 		8-94198-177-0 01 1 0108- ● ● ● ● ●

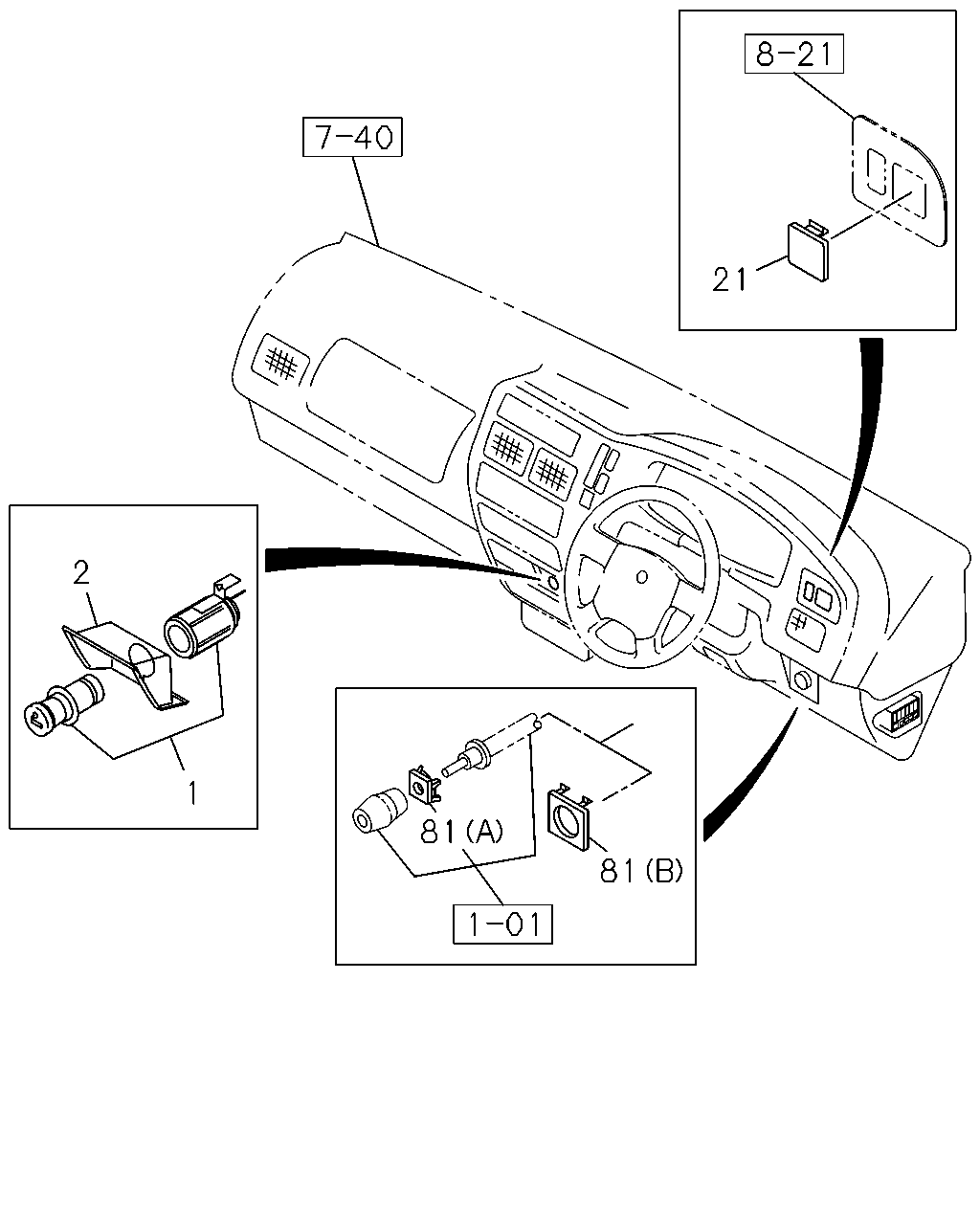

çizim 51712
21 2 1 81 81
BalonParca AdiParca NoAdetTipApplied Date A B C D E
1 09.709 LIGHTER; CIGAR 8-97100-029-0 01 1 0108-0206 ● ● ● ● ●
1 09.709 LIGHTER; CIGAR 8-97314-003-0 01 1 0207- ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER
BLACK 		8-94333-793-0 01 1 0108-0206 ● ● ● ● ●
2 09.709 BEZEL; CIGAR LIGHTER
BLACK 		8-97000-043-0 01 1 0207- ● ● ● ● ●
21 09.744 COVER; HOLE
EXC. DOOR MIRROR ELECTRIC CONT BRIGHT<7HX> BLACK 		8-97154-764-0 01 1 0108- ● ● ● ● ●
81 03.451 BEZEL; IDLE CONT
4JG2 ENG(RJC) (A) 		8-97065-377-3 01 1 0108- ● ● ● ● ●
81 03.451 BEZEL; IDLE CONT
4JA1 ENG(RLE) (B) 		8-97165-448-0 01 1 0108- ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
