◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11197 - FXZ SOUTH AFRICA ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-20 - REAR AXLE CASE AND SHAFT ▶
4-20 — REAR AXLE CASE AND SHAFT (#21411) — 146 parça

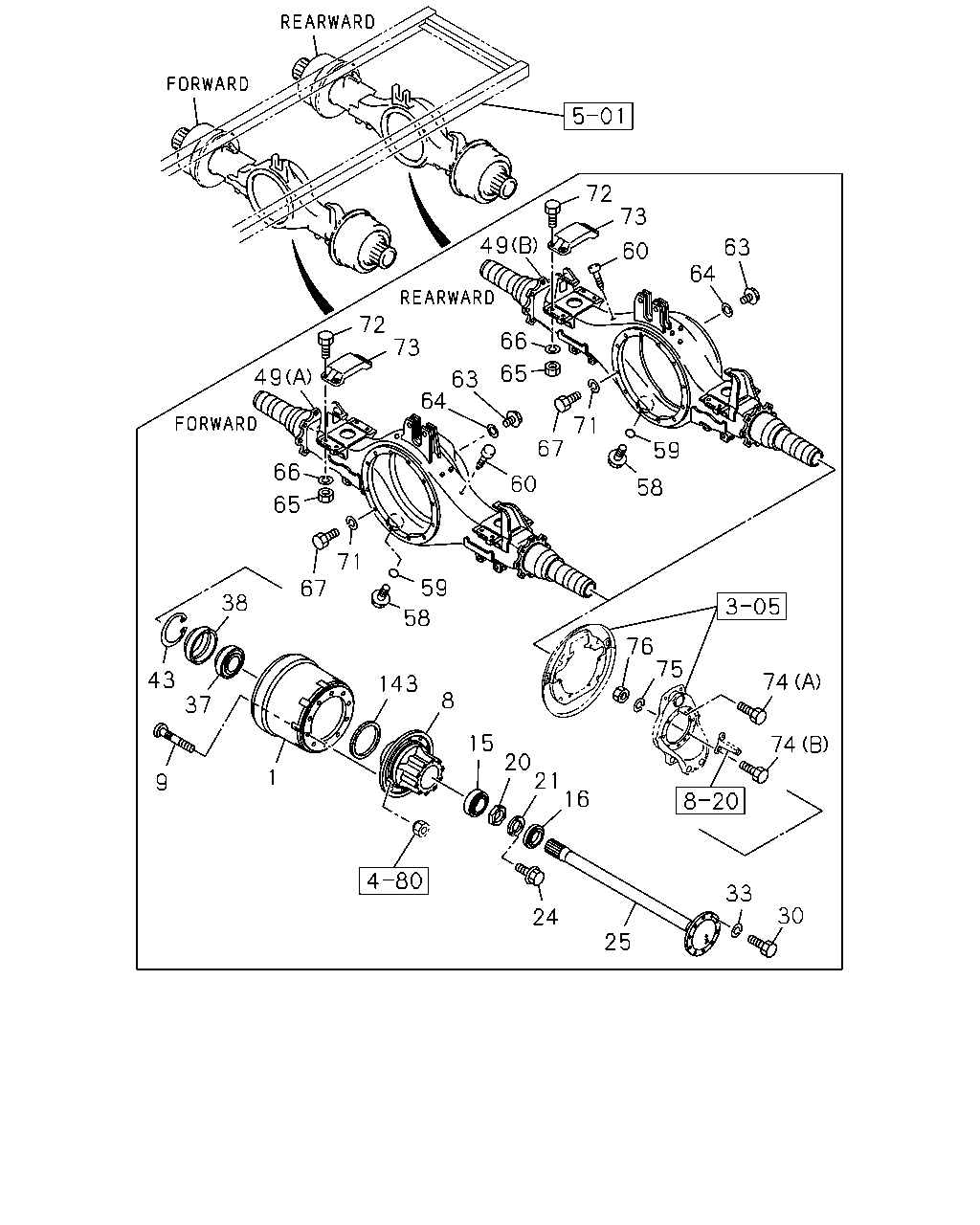

çizim 129320
72 73 49 63 64 60 66 72 73 65 49 63 64 66 71 67 59 60 58 65 71 59 67 38 58 76 75 43 37 74 143 8 15 74 20 21 16 1 9 33 30 24 25
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRUM; BRK,RR 1-42315-377-2 02 1 1004-1108 ●
1 DRUM; BRK,RR 1-42315-377-2 02 1 1004-1108 ●
1 DRUM; BRK,RR 1-42315-377-2 02 1 1109- ● ●
1 DRUM; BRK,RR 1-42315-377-2 02 1 1109- ● ●
8 HUB; RR AXLE
REARWARD 		1-42311-094-0 02 1 1004-1108 ●
8 HUB; RR AXLE
REARWARD 		1-42311-094-0 02 1 1109- ● ●
8 HUB; RR AXLE
FORWARD 		1-42311-085-0 02 1 1004-1108 ●
8 HUB; RR AXLE
FORWARD 		1-42311-085-0 02 1 1109- ● ●
9 PIN; WHEEL,RR AXLE
M22X93 RH THREAD 		1-42337-066-2 20 1 1004-1108 ●
9 PIN; WHEEL,RR AXLE
M22X93 RH THREAD 		1-42337-066-2 20 1 1004-1108 ●
9 PIN; WHEEL,RR AXLE
M22X93 RH THREAD 		1-42337-066-2 20 1 1109- ● ●
9 PIN; WHEEL,RR AXLE
M22X93 RH THREAD 		1-42337-066-2 20 1 1109- ● ●
15 BEARING; HUB OUTER,RR AXLE
SKF 		1-09812-256-0 02 1 1209- ● ●
15 BEARING; HUB OUTER,RR AXLE
SKF 		1-09812-256-0 02 1 1209- ● ●
15 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS 		1-87610-136-0 02 1 1209- ● ●
15 BEARING; HUB OUTER,RR AXLE
BEST VALUE PARTS 		1-87610-136-0 02 1 1209- ● ●
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-232-0 02 1 1004-1108 ●
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-232-0 02 1 1004-1108 ●
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-232-0 02 1 1109- ● ●
15 BEARING; HUB OUTER,RR AXLE
JTEKT 		1-09812-232-0 02 1 1109- ● ●
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 1004-1108 ●
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 1004-1108 ●
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 1109- ● ●
16 SEAL; OIL,RR HUB,OUTER
TKK 		1-09625-444-0 02 1 1109- ● ●
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 02 1 1004-1108 ●
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 02 1 1004-1108 ●
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 02 1 1109- ● ●
20 NUT; BRG,RR HUB
M88 		9-09843-062-2 02 1 1109- ● ●
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 1004-1108 ●
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 1004-1108 ●
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 1109- ● ●
21 WASHER; LK,BRG NUT
ID=88 		9-09854-112-0 02 1 1109- ● ●
24 BOLT; LK WASHER
M6X16 FLANGE SOU 		0-28650-616-0 06 1 1004-1108 ●
24 BOLT; LK WASHER
M6X16 FLANGE SOU 		0-28650-616-0 06 1 1004-1108 ●
24 BOLT; LK WASHER
M6X16 FLANGE SOU 		0-28650-616-0 06 1 1109- ● ●
24 BOLT; LK WASHER
M6X16 FLANGE SOU 		0-28650-616-0 06 1 1109- ● ●
25 SHAFT; AXLE,RR
FORWARD RH,REARWARD LH L=990 		8-98146-166-0 01 1 1004-1108 ●
25 SHAFT; AXLE,RR
FORWARD RH,REARWARD LH L=990 		8-98146-166-0 01 1 1004-1108 ●
25 SHAFT; AXLE,RR
FORWARD RH,REARWARD LH L=990 		8-98146-166-0 01 1 1109- ● ●
25 SHAFT; AXLE,RR
FORWARD RH,REARWARD LH L=990 		8-98146-166-0 01 1 1109- ● ●
25 SHAFT; AXLE,RR
FORWARD LH,REARWARD RH L=1110 		8-98146-167-0 01 1 1004-1108 ●
25 SHAFT; AXLE,RR
FORWARD LH,REARWARD RH L=1110 		8-98146-167-0 01 1 1004-1108 ●
25 SHAFT; AXLE,RR
FORWARD LH,REARWARD RH L=1110 		8-98146-167-0 01 1 1109- ● ●
25 SHAFT; AXLE,RR
FORWARD LH,REARWARD RH L=1110 		8-98146-167-0 01 1 1109- ● ●
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 1004-1108 ●
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 1004-1108 ●
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 1109- ● ●
30 BOLT; HUB TO AXLE SHAFT
M14X58 		1-09000-582-0 20 1 1109- ● ●
33 WASHER; AXLE SHAFT
ID=14.2 SOU 		0-91510-814-0 20 1 1004-1108 ●
33 WASHER; AXLE SHAFT
ID=14.2 SOU 		0-91510-814-0 20 1 1004-1108 ●
33 WASHER; AXLE SHAFT
ID=14.2 SOU 		0-91510-814-0 20 1 1109- ● ●
33 WASHER; AXLE SHAFT
ID=14.2 SOU 		0-91510-814-0 20 1 1109- ● ●
37 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS 		1-87610-138-0 02 1 1209- ● ●
37 BEARING; HUB INNER,RR AXLE
BEST VALUE PARTS 		1-87610-138-0 02 1 1209- ● ●
37 BEARING; HUB INNER,RR AXLE
SKF 		1-09812-257-0 02 1 1209- ● ●
37 BEARING; HUB INNER,RR AXLE
SKF 		1-09812-257-0 02 1 1209- ● ●
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-233-0 02 1 1004-1108 ●
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-233-0 02 1 1004-1108 ●
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-233-0 02 1 1109- ● ●
37 BEARING; HUB INNER,RR AXLE
JTEKT 		1-09812-233-0 02 1 1109- ● ●
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 02 1 1004-1108 ●
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 02 1 1004-1108 ●
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 02 1 1109- ● ●
38 SEAL; OIL,RR HUB,INNER
NOK 		1-09625-265-0 02 1 1109- ● ●
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 02 1 1004-1108 ●
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 02 1 1004-1108 ●
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 02 1 1109- ● ●
38 SEAL; OIL,RR HUB,INNER
TKK 		1-09625-350-0 02 1 1109- ● ●
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 1004-1108 ●
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 1004-1108 ●
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 1109- ● ●
43 RING; SNAP,HUB SEAL,RR AXLE
OD=179 		1-09587-057-0 02 1 1109- ● ●
49 CASE; RR AXLE
(A) 		8-98183-269-1 01 1 1109- ●
49 CASE; RR AXLE
(B) 		8-98107-926-0 01 1 1004-1108 ●
49 CASE; RR AXLE
(B) 		8-98107-926-1 01 1 1109- ● ●
49 CASE; RR AXLE
(A) 		1-42190-330-4 01 1 1004- ●
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 1004-1108 ●
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 1004-1108 ●
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 1109- ● ●
58 PLUG; DRAIN,AXLE CASE
M24X17 FLANGE 		1-09604-023-0 01 1 1109- ● ●
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 1004-1108 ●
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 1004-1108 ●
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 1109- ● ●
59 GASKET; DRAIN PLUG
ID=26.8 		9-09920-605-0 01 1 1109- ● ●
60 BREATHER; RR AXLE CASE 1-09893-011-1 02 1 1004-1108 ●
60 BREATHER; RR AXLE CASE 1-09893-011-1 02 1 1109-1412 ● ●
60 BREATHER; RR AXLE CASE 1-09893-003-0 02 1 1501-1509 ● ●
60 BREATHER; RR AXLE CASE 1-09893-011-1 02 1 1510- ● ●
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 1004-1108 ●
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 1004-1108 ●
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 1109- ● ●
63 PLUG; OIL FILLER,AXLE CASE
M24X17 FLANGE 		1-09604-022-0 01 1 1109- ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 1004-1108 ●
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 1004-1108 ●
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 1109- ● ●
64 GASKET; OIL FILLER,AXLE CASE
ID=26.8 		9-09920-605-0 01 1 1109- ● ●
65 NUT
M14 SOU 		0-91110-514-0 08 1 1004-1108 ●
65 NUT
M14 SOU 		0-91110-514-0 08 1 1004-1108 ●
65 NUT
M14 SOU 		0-91110-514-0 08 1 1109- ● ●
65 NUT
M14 SOU 		0-91110-514-0 08 1 1109- ● ●
66 WASHER; LK
ID=14.2 SOU 		0-91510-814-0 08 1 1004-1108 ●
66 WASHER; LK
ID=14.2 SOU 		0-91510-814-0 08 1 1004-1108 ●
66 WASHER; LK
ID=14.2 SOU 		0-91510-814-0 08 1 1109- ● ●
66 WASHER; LK
ID=14.2 SOU 		0-91510-814-0 08 1 1109- ● ●
67 BOLT; FINAL DRIVE SETTING
M16X70 		0-10956-670-0 08 1 1004-1008 ●
67 BOLT; FINAL DRIVE SETTING
M16X70 		0-10956-670-0 08 1 1004-1008 ●
67 BOLT; FINAL DRIVE SETTING
M16X70 		0-10956-670-0 04 1 1009-1108 ●
67 BOLT; FINAL DRIVE SETTING
M16X70 		0-10956-670-0 04 1 1009-1108 ●
67 BOLT; FINAL DRIVE SETTING
M16X70 		0-10956-670-0 04 1 1109- ● ●
67 BOLT; FINAL DRIVE SETTING
M16X70 		0-10956-670-0 04 1 1109- ● ●
67 BOLT; FINAL DRIVE SETTING
M16X40 		0-20951-640-0 16 1 1004-1008 ●
67 BOLT; FINAL DRIVE SETTING
M16X40 		0-20951-640-0 08 1 1009-1108 ●
67 BOLT; FINAL DRIVE SETTING
M16X40 		0-20951-640-0 08 1 1109- ● ●
67 BOLT; FINAL DRIVE SETTING
M16X40 		0-20951-640-0 07 1 1004-1108 ●
67 BOLT; FINAL DRIVE SETTING
M16X40 		0-20951-640-0 07 1 1109- ● ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 SOU 		0-91510-816-0 24 1 1004-1008 ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 SOU 		0-91510-816-0 24 1 1004-1008 ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 SOU 		0-91510-816-0 12 1 1009-1108 ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 SOU 		0-91510-816-0 12 1 1009-1108 ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 SOU 		0-91510-816-0 12 1 1109- ● ●
71 WASHER; LK,FINAL DRIVE SETTING
ID=16.2 SOU 		0-91510-816-0 12 1 1109- ● ●
72 BOLT; PAD FIX
M14X40 SOU 		0-20951-440-0 08 1 1004-1108 ●
72 BOLT; PAD FIX
M14X40 SOU 		0-20951-440-0 08 1 1004-1108 ●
72 BOLT; PAD FIX
M14X40 SOU 		0-20951-440-0 08 1 1109- ● ●
72 BOLT; PAD FIX
M14X40 SOU 		0-20951-440-0 08 1 1109- ● ●
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 1004-1108 ●
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 1004-1108 ●
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 1109- ● ●
73 PAD; RR SPR CONTACT 1-42124-101-0 02 1 1109- ● ●
74 BOLT; RR BRK ASM SETTING
(A) REARWARD M14X50 		1-09040-066-0 12 1 1004-1108 ●
74 BOLT; RR BRK ASM SETTING
(A) REARWARD M14X50 		1-09040-066-0 12 1 1109- ● ●
74 BOLT; RR BRK ASM SETTING
(B) REARWARD M14X80 		9-92621-480-0 04 1 1004-1108 ●
74 BOLT; RR BRK ASM SETTING
(B) REARWARD M14X80 		9-92621-480-0 04 1 1109-1504 ● ●
74 BOLT; RR BRK ASM SETTING
(B) REARWARD M14X60 		1-09040-084-0 04 1 1505- ● ●
74 BOLT; RR BRK ASM SETTING
(A) FORWARD M14X50 		1-09040-066-0 16 1 1004-1108 ●
74 BOLT; RR BRK ASM SETTING
(A) FORWARD M14X50 		1-09040-066-0 16 1 1109- ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 SOU 		0-91510-814-0 16 1 1004-1108 ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 SOU 		0-91510-814-0 16 1 1004-1108 ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 SOU 		0-91510-814-0 16 1 1109- ● ●
75 WASHER; LK,RR BRK ASM SETTING
ID=14.2 SOU 		0-91510-814-0 16 1 1109- ● ●
76 NUT; RR BRK ASM SETTING
M14 SOU 		0-91110-514-0 16 1 1004-1108 ●
76 NUT; RR BRK ASM SETTING
M14 SOU 		0-91110-514-0 16 1 1004-1108 ●
76 NUT; RR BRK ASM SETTING
M14 SOU 		0-91110-514-0 16 1 1109- ● ●
76 NUT; RR BRK ASM SETTING
M14 SOU 		0-91110-514-0 16 1 1109- ● ●
143 RING; EXCITER 1-42319-173-0 02 1 1004-1108 ●
143 RING; EXCITER 1-42319-173-0 02 1 1109- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
