8-21 — METER ASM (#2141) — 43 parça

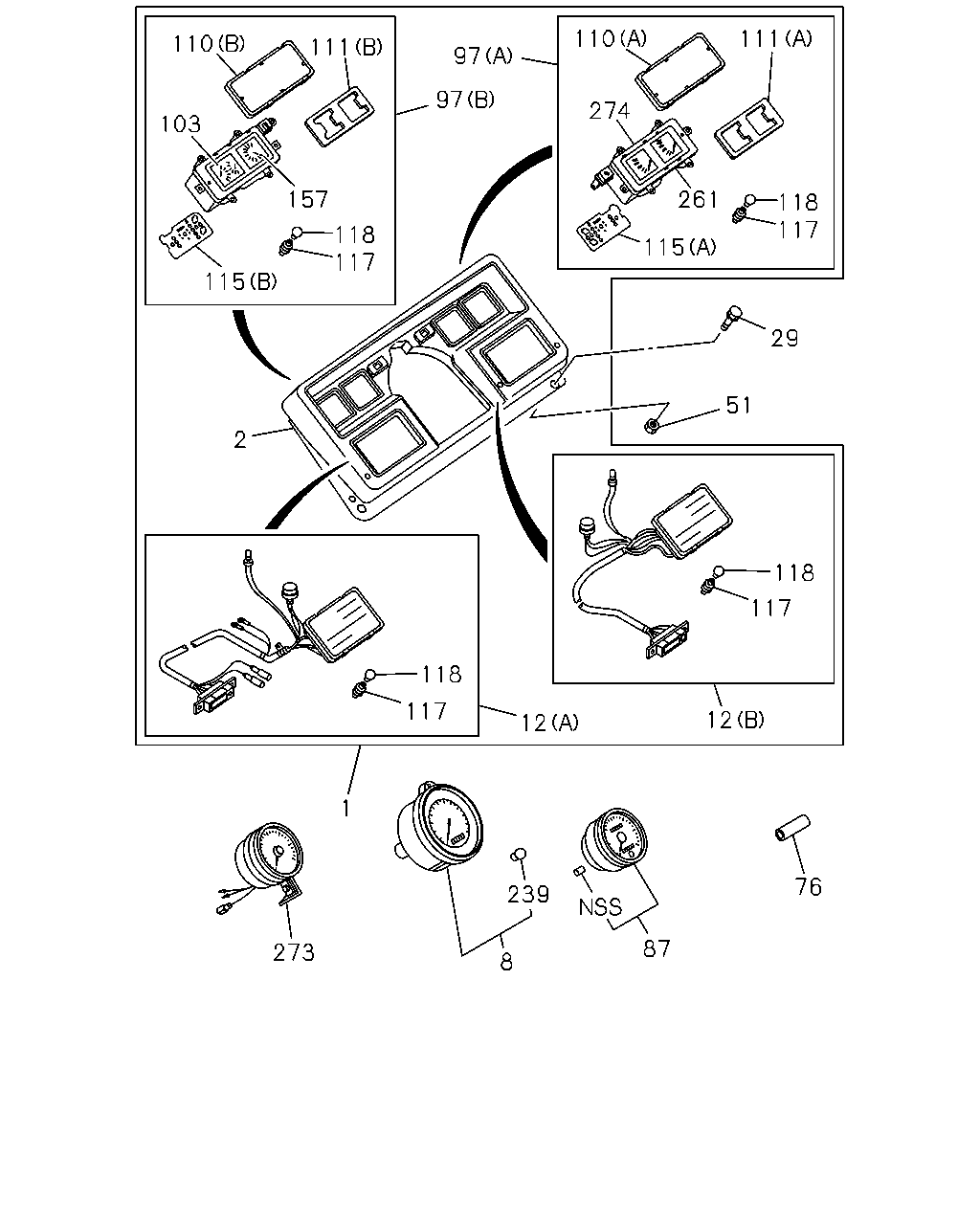

çizim 93807
110 111 110 111 97 97 274 103 157 261 118 117 118 117 115 115 29 51 2 118 117 118 117 12 12 1 76 239 87 273 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER
MILE SPEEDOMETER<UC1> 		1-83110-676-0 01 1 9001- ● ●
1 METER COMPL; CLUSTER
MILE TACHOGRAPH(UC5) 		1-83110-676-0 01 1 9001- ● ●
1 METER COMPL; CLUSTER
EXC. MILE SPEEDOMETER<UC1>,MILE TACHOGRAPH(UC5) 		1-83110-585-0 01 1 9001- ● ●
2 PANEL; CLUSTER 1-83117-058-0 01 1 9001- ● ●
8 TACHOGRAPH; CLUSTER METER
MILE TACHOGRAPH(UC5) 		1-83120-311-0 01 1 9001- ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 120KM/H(SM8) 120KM/H 7DAY 		1-83120-141-1 01 1 9001- ● ●
12 WARNING ASM; METER COMPL
(A) 		1-82250-047-1 01 1 9001- ● ●
12 WARNING ASM; METER COMPL
(B) 		1-82250-051-0 01 1 9001- ● ●
29 SCREW; METER TO BRKT
M6X25 W/LK WASHER 		9-03910-625-0 05 1 9001- ● ●
51 NUT; FIX
M6 		9-09110-406-0 05 1 9001-9606 ● ●
51 NUT; FIX
M6 FLANGE 		0-91150-106-0 05 1 9607- ● ●
76 SLEEVE; RUBBER,FLEX SHAFT,METER
ID=15 OD=19 L=50 		1-09337-014-0 03 1 9001- ● ●
87 SPEEDOMETER
MILE SPEEDOMETER<UC1> 80MPH 		1-83120-158-1 01 1 9001- ● ●
87 SPEEDOMETER
EXC. TACHOGRAPH 120KM/H(SM8),MILE SPEEDOMETER<UC1> ,MILE TACHOGRAPH(UC5) 120KM/H 		1-83120-157-0 01 1 9001- ● ●
97 METER; COMB,CLUSTER METER
MILE SPEEDOMETER<UC1> (B) 		1-83180-026-0 01 1 9001- ● ●
97 METER; COMB,CLUSTER METER
MILE TACHOGRAPH(UC5) (B) 		1-83180-026-0 01 1 9001- ● ●
97 METER; COMB,CLUSTER METER
MILE SPEEDOMETER<UC1> (A) 		1-83180-027-0 01 1 9001- ● ●
97 METER; COMB,CLUSTER METER
MILE TACHOGRAPH(UC5) (A) 		1-83180-027-0 01 1 9001- ● ●
97 METER; COMB,CLUSTER METER
EXC. MILE SPEEDOMETER<UC1>,MILE TACHOGRAPH(UC5) (A) 		1-83180-018-0 01 1 9001- ● ●
97 METER; COMB,CLUSTER METER
EXC. MILE SPEEDOMETER<UC1>,MILE TACHOGRAPH(UC5) (B) 		1-83180-021-0 01 1 9001- ● ●
103 METER ASM; FUEL & AMPERE 1-83180-017-0 01 1 9001- ● ●
110 GLASS; CLUSTER METER
(B) 		1-83189-001-0 01 1 9001- ● ●
110 GLASS; CLUSTER METER
(A) 		1-83189-006-0 01 1 9001- ● ●
111 RIM; GLASS,CLUSTER METER
(B) 		1-83189-004-0 01 1 9001- ● ●
111 RIM; GLASS,CLUSTER METER
(A) 		1-83189-007-0 01 1 9001- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
(B) 		1-83189-003-0 01 1 9001- ● ●
115 CIRCUIT; PRINTED,CLUSTER METER
(A) 		1-83189-009-0 01 1 9001- ● ●
117 SOCKET; BULB,GAUGE & CLOCK
12V 3.4W 		5-82188-001-0 18 1 9001- ● ●
118 BULB; CLUSTER METER
GREEN 24V 3W 		1-82194-022-0 04 1 9001- ● ●
118 BULB; CLUSTER METER
CLEAR 24V 3W 		9-82691-603-0 16 1 9001- ● ●
157 METER; AIR PRESSURE,CLUSTER METER
MILE SPEEDOMETER<UC1> 		1-83150-105-0 01 1 9001- ● ●
157 METER; AIR PRESSURE,CLUSTER METER
MILE TACHOGRAPH(UC5) 		1-83150-105-0 01 1 9001- ● ●
157 METER; AIR PRESSURE,CLUSTER METER
EXC. MILE SPEEDOMETER<UC1>,MILE TACHOGRAPH(UC5) 		1-83150-100-0 01 1 9001- ● ●
239 BULB; TACHOGRAPH
MILE TACHOGRAPH(UC5) 24V 3W 		1-82194-051-0 01 1 9001- ● ●
239 BULB; TACHOGRAPH
TACHOGRAPH 120KM/H(SM8) 24V 2W 		1-82194-072-0 02 1 9001- ● ●
261 THERMOMETER
MILE SPEEDOMETER<UC1> 		1-83160-051-0 01 1 9001- ● ●
261 THERMOMETER
MILE TACHOGRAPH(UC5) 		1-83160-051-0 01 1 9001- ● ●
261 THERMOMETER
EXC. MILE SPEEDOMETER<UC1>,MILE TACHOGRAPH(UC5) 		1-83160-050-0 01 1 9001- ● ●
273 METER ASM; TACHO
6QA1 STD ENG(L24),6RA1 STD ENG(14L),6RA1 TC ENG(15L) TACHOMETER<UD7> 		1-83120-170-0 01 1 9001- ● ●
273 METER ASM; TACHO
6RB1 STD ENG(07L) TACHOMETER<UD7> 		1-83120-191-0 01 1 9001- ● ●
274 METER; OIL PRESSURE
MILE SPEEDOMETER<UC1> 		1-83150-106-0 01 1 9001- ● ●
274 METER; OIL PRESSURE
MILE TACHOGRAPH(UC5) 		1-83150-106-0 01 1 9001- ● ●
274 METER; OIL PRESSURE
EXC. MILE SPEEDOMETER<UC1>,MILE TACHOGRAPH(UC5) 		1-83150-099-0 01 1 9001- ● ●
