Sayfa 4-10 - Isuzu EPC

4-10 — FRONT AXLE (#21409) — 308 parça

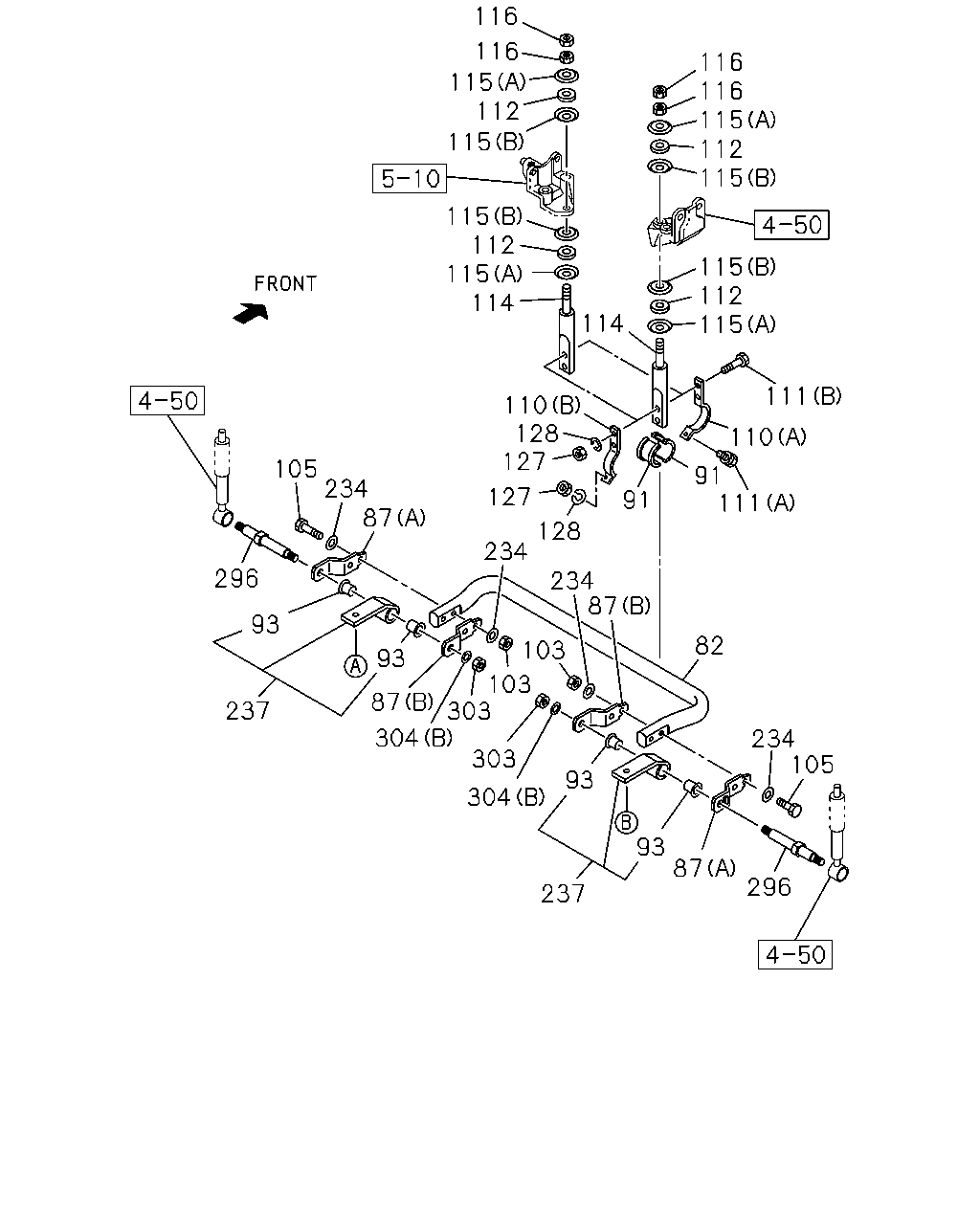

116 116 116 116 115 112 115 115 112 115 115 112 115 114 115 112 115 114 111 110 128 127 110 105 234 87 91 111 127 91 128 234 296 234 87 93 82 103 93 103 303 304 87 237 234 105 303 93 304 93 87 296 237

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51771-134-1	01	1	1004-1108	●
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51771-134-1	01	1	1109-	●	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	8-98012-958-0	02	1	1004-1108	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	8-98012-958-0	02	1	1109-	●	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	8-98012-959-0	02	1	1004-1108	●
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	8-98012-959-0	02	1	1109-	●	●
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-079-1	04	1	1004-1108	●
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-079-1	04	1	1109-	●	●
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59> SOU	1-51689-015-3	04	1	1004-1108	●
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59> SOU	1-51689-015-3	04	1	1109-	●	●
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14 SOU	0-91110-514-0	04	1	1004-1108	●
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14 SOU	0-91110-514-0	04	1	1109-	●	●
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	0-10956-470-0	04	1	1004-1108	●
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	0-10956-470-0	04	1	1109-	●	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	1004-1108	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	1109-	●	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	1004-1108	●
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	1109-	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30 SOU	0-20851-230-0	02	1	1004-1108	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30 SOU	0-20851-230-0	02	1	1109-	●	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20851-250-0	04	1	1004-1108	●
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20851-250-0	04	1	1109-	●	●
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-039-0	04	1	1004-1108	●
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59>	9-51631-039-0	04	1	1109-	●	●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-072-2	02	1	1004-1108	●
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-072-2	02	1	1109-	●	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=16.5	9-51631-040-0	04	1	1004-1108	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=16.5	9-51631-040-0	04	1	1109-	●	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=20.8	9-51631-041-0	04	1	1004-1108	●
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=20.8	9-51631-041-0	04	1	1109-	●	●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14 SOU	0-91111-514-0	04	1	1004-1108	●
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14 SOU	0-91111-514-0	04	1	1109-	●	●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12 SOU	0-91110-512-0	06	1	1004-1108	●
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12 SOU	0-91110-512-0	06	1	1109-	●	●
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	1004-1108	●
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	0-91510-812-0	06	1	1109-	●	●
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15 SOU	8-98010-627-1	08	1	1004-1108	●
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15 SOU	8-98010-627-1	08	1	1109-	●	●
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59> SOU	1-51681-662-0	02	1	1004-1108	●
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59> SOU	1-51681-662-0	02	1	1109-	●	●
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	8-98022-874-1	02	1	1004-1108	●
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	8-98022-874-1	02	1	1109-	●	●
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	0-91110-520-0	02	1	1004-1108	●
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	0-91110-520-0	02	1	1109-	●	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1004-1108	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1109-	●	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21 SOU	0-91614-520-0	02	1	1004-1108	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21 SOU	0-91614-520-0	02	1	1109-	●	●

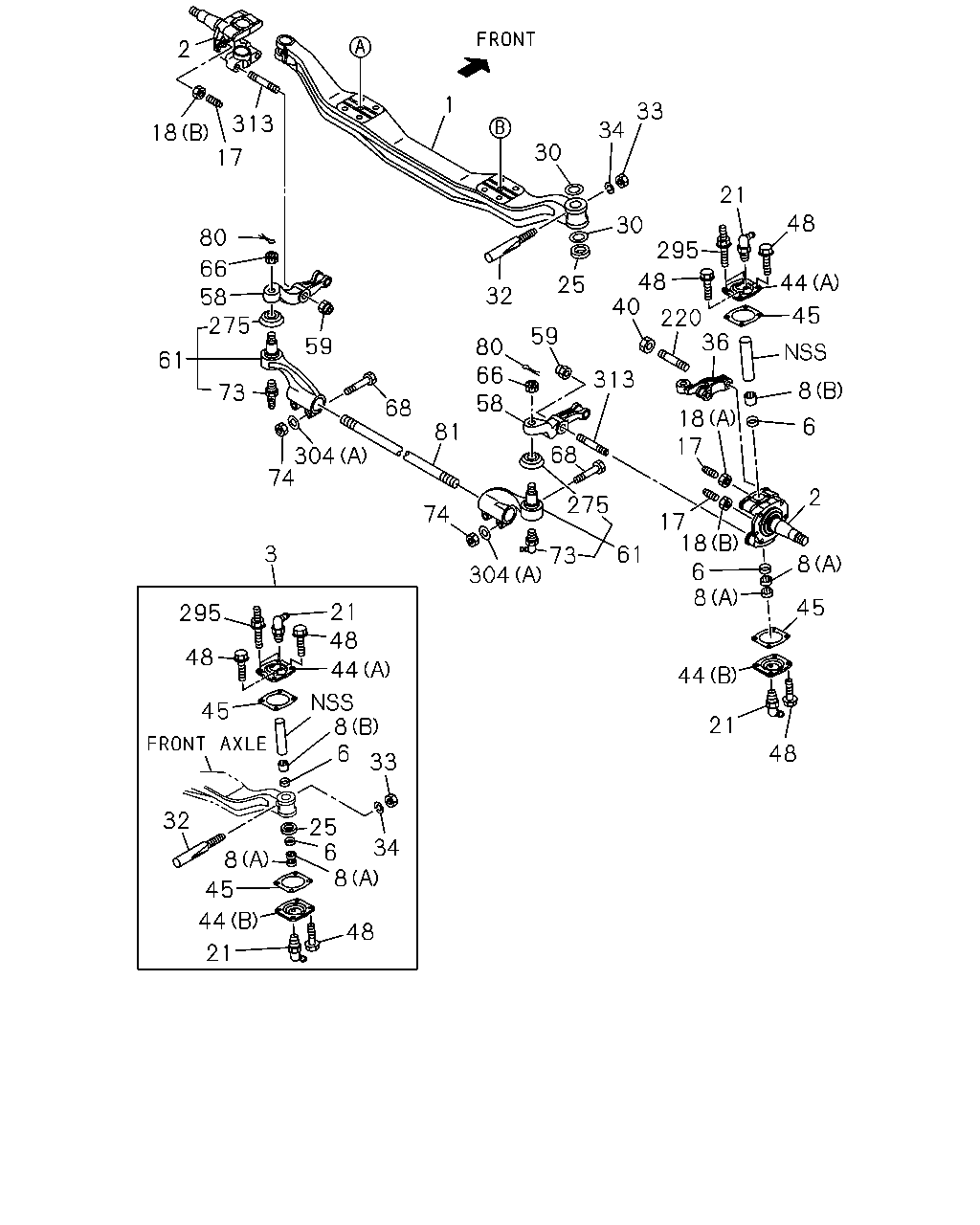

2 1 33 313 34 18 17 30 21 48 30 80 295 66 58 275 48 40 44 25 32 220 36 45 59 59 80 66 58 61 313 8 73 18 17 68 6 81 68 304 74 2 275 74 17 18 3 61 73 8 6 8 304 45 21 48 295 48 44 44 8 6 45 21 48 33 32 25 6 8 34 8 45 44 48 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT FRONT AXLE F066(FAU)	1-43111-177-3	01	1	1004-1108	●
1	AXLE; FRT FRONT AXLE F066(FAU)	1-43111-177-4	01	1	1109-	●	●
1	AXLE; FRT FRONT AXLE F075(FH5)	1-43111-178-2	01	1	1004-1108	●
1	AXLE; FRT FRONT AXLE F075(FH5)	1-43111-178-3	01	1	1109-	●	●
2	KNUCKLE; FRT AXLE	1-43132-101-0	01	1	1004-1108	●
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	1109-	●	●
2	KNUCKLE; FRT AXLE	1-43131-118-0	01	1	1004-1108	●
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	1109-	●	●
3	KING PIN SET	1-87831-349-1	02	1	1004-1108	●
3	KING PIN SET	1-87831-349-3	02	1	1109-	●	●
6	SEAL; KING PIN	9-09926-024-0	04	1	1004-1108	●
6	SEAL; KING PIN	9-09926-024-0	04	1	1109-	●	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1004-1108	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1109-	●	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1004-1108	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1109-	●	●
17	BOLT; STOPPER KNUCKLE TIRE 12R22.5-16 RIB(75N) M18X53	1-09009-066-0	03	1	1004-1108	●
17	BOLT; STOPPER KNUCKLE TIRE 12R22.5-16 RIB(75N) M18X53	1-09009-066-0	03	1	1109-	●	●
17	BOLT; STOPPER KNUCKLE TIRE 295/80R22.5-152/148J RIB CHINA(5E0) M18X53	1-09009-066-0	01	1	1004-1108	●
17	BOLT; STOPPER KNUCKLE TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150L RIB EEC(5J5) M18X53	1-09009-066-0	01	1	1109-	●	●
17	BOLT; STOPPER KNUCKLE TIRE 295/80R22.5-152/148J RIB CHINA(5E0) M18X43	1-09009-190-0	02	1	1004-1108	●
17	BOLT; STOPPER KNUCKLE TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150L RIB EEC(5J5) M18X43	1-09009-190-0	02	1	1109-	●	●
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	1004-1108	●
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	1109-	●	●
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	1004-1108	●
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	1109-	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1004-1108	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1109-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1004-1108	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1109-	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1004-1108	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1109-	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1004-1108	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1109-	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1004-1108	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1109-	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1004-1108	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1109-	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1004-1108	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1109-	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1004-1108	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1109-	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1004-1108	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1109-	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1004-1108	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1109-	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1004-1108	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1109-	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1004-1108	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1109-	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1004-1108	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1109-	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1004-1108	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1109-	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1004-1108	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1109-	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1004-1108	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1109-	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1004-1108	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1109-	●	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	1004-1108	●
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1109-	●	●
33	NUT; KEY BOLT M10 SOU	0-91110-510-0	02	1	1004-1108	●
33	NUT; KEY BOLT M10 SOU	0-91110-510-0	02	1	1109-	●	●
34	WASHER; LK,KEY BOLT ID=10.2 SOU	0-91510-510-0	02	1	1004-1108	●
34	WASHER; LK,KEY BOLT ID=10.2 SOU	0-91510-510-0	02	1	1109-	●	●
36	ARM; KNUCKLE	8-98061-893-0	01	1	1004-1108	●
36	ARM; KNUCKLE	8-98061-893-0	01	1	1109-	●	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1004-1108	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1109-	●	●
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1004-1108	●
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1109-	●	●
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1004-1108	●
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1109-	●	●
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1004-1108	●
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1109-	●	●
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	12	1	1004-1108	●
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	12	1	1109-	●	●
58	ARM; TIE ROD VIN MODEL YEAR 2011<VZB>	8-98145-592-0	01	1	1109-	●
58	ARM; TIE ROD	8-98145-592-0	01	1	1109-		●
58	ARM; TIE ROD VIN MODEL YEAR 2011<VZB>	8-98145-593-0	01	1	1109-	●
58	ARM; TIE ROD	8-98145-593-0	01	1	1109-		●
58	ARM; TIE ROD	1-43135-049-4	01	1	1004-1108	●
58	ARM; TIE ROD EXC. VIN MODEL YEAR 2011<VZB>	1-43135-049-4	01	1	1109-	●
58	ARM; TIE ROD	1-43134-049-4	01	1	1004-1108	●
58	ARM; TIE ROD EXC. VIN MODEL YEAR 2011<VZB>	1-43134-049-4	01	1	1109-	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1004-1108	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1109-	●	●
61	ROD END; TIE ROD	8-98054-853-0	01	1	1004-1009	●
61	ROD END; TIE ROD	8-98096-754-0	01	1	1010-1108	●
61	ROD END; TIE ROD	8-98096-754-0	01	1	1109-1306	●	●
61	ROD END; TIE ROD	8-98228-107-0	01	1	1307-	●	●
61	ROD END; TIE ROD	8-98054-851-0	01	1	1004-1009	●
61	ROD END; TIE ROD	8-98096-753-0	01	1	1010-1108	●
61	ROD END; TIE ROD	8-98096-753-0	01	1	1109-1306	●	●
61	ROD END; TIE ROD	8-98228-106-0	01	1	1307-	●	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1004-1108	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1109-	●	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1004-1108	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1109-	●	●
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1010-1108	●
73	NIPPLE; GREASE,TIE ROD END	1-43159-133-0	02	1	1109-	●	●
74	NUT; TIE ROD END M12 SOU	0-91110-512-0	04	1	1004-1108	●
74	NUT; TIE ROD END M12 SOU	0-91110-512-0	04	1	1109-	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1004-1108	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1109-	●	●
81	ROD; TIE	1-43151-154-0	01	1	1004-1009	●
81	ROD; TIE	8-98105-064-0	01	1	1010-1108	●
81	ROD; TIE	8-98105-064-0	01	1	1109-	●	●
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1004-1108	●
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1109-	●	●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	1004-1009	●
275	BOOT; ROD END,TIE SOU	1-43159-131-0	02	1	1010-1108	●
275	BOOT; ROD END,TIE SOU	1-43159-131-0	02	1	1109-1306	●	●
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-	●	●
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1004-1108	●
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1109-	●	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1004-1108	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1109-	●	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21 SOU	0-91614-520-0	02	1	1004-1108	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21 SOU	0-91614-520-0	02	1	1109-	●	●
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1004-1108	●
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1109-	●	●

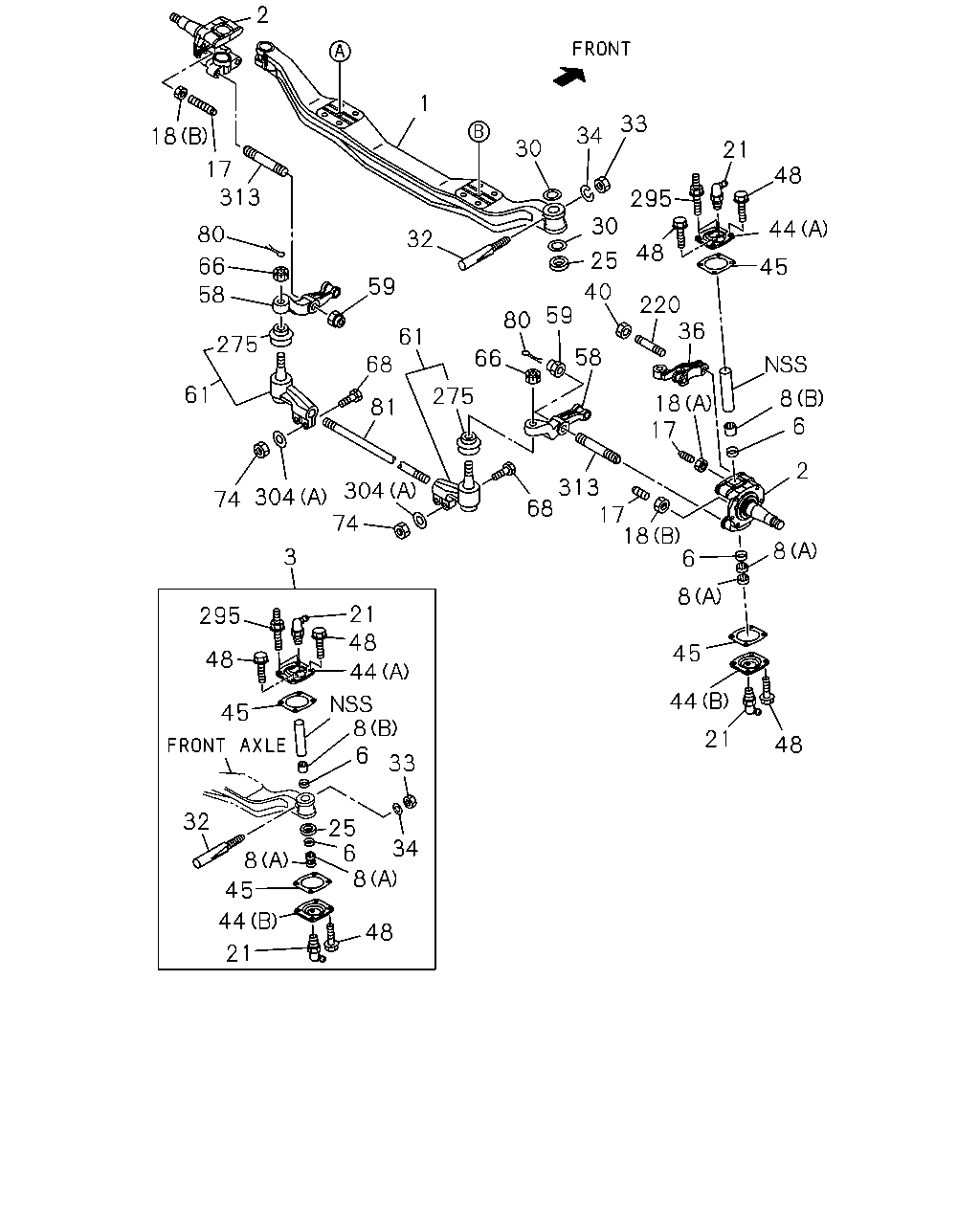

2 1 33 34 18 30 21 17 313 48 295 30 44 80 32 48 25 66 45 59 40 58 220 36 59 80 61 68 275 58 66 18 17 61 275 8 6 81 2 313 68 17 18 6 304 304 74 74 8 3 8 21 48 295 45 48 44 44 8 6 45 21 48 33 32 25 6 8 34 8 45 44 48 21

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	AXLE; FRT FRONT AXLE F066(FAU)	1-43111-177-3	01	1	1004-1108	●
1	AXLE; FRT FRONT AXLE F066(FAU)	1-43111-177-4	01	1	1109-	●	●
1	AXLE; FRT FRONT AXLE F075(FH5)	1-43111-178-2	01	1	1004-1108	●
1	AXLE; FRT FRONT AXLE F075(FH5)	1-43111-178-3	01	1	1109-	●	●
2	KNUCKLE; FRT AXLE	1-43132-101-0	01	1	1004-1108	●
2	KNUCKLE; FRT AXLE	1-43132-101-1	01	1	1109-	●	●
2	KNUCKLE; FRT AXLE	1-43131-118-0	01	1	1004-1108	●
2	KNUCKLE; FRT AXLE	1-43131-118-1	01	1	1109-	●	●
3	KING PIN SET	1-87831-349-1	02	1	1004-1108	●
3	KING PIN SET	1-87831-349-3	02	1	1109-	●	●
6	SEAL; KING PIN	9-09926-024-0	04	1	1004-1108	●
6	SEAL; KING PIN	9-09926-024-0	04	1	1109-	●	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1004-1108	●
8	BEARING; NEEDLE,KING PIN (A) NTN	9-00096-242-0	04	1	1109-	●	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1004-1108	●
8	BEARING; NEEDLE,KING PIN (B) NTN	9-00096-243-0	02	1	1109-	●	●
17	BOLT; STOPPER KNUCKLE TIRE 12R22.5-16 RIB(75N) M18X53	1-09009-066-0	03	1	1004-1108	●
17	BOLT; STOPPER KNUCKLE TIRE 12R22.5-16 RIB(75N) M18X53	1-09009-066-0	03	1	1109-	●	●
17	BOLT; STOPPER KNUCKLE TIRE 295/80R22.5-152/148J RIB CHINA(5E0) M18X53	1-09009-066-0	01	1	1004-1108	●
17	BOLT; STOPPER KNUCKLE TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150L RIB EEC(5J5) M18X53	1-09009-066-0	01	1	1109-	●	●
17	BOLT; STOPPER KNUCKLE TIRE 295/80R22.5-152/148J RIB CHINA(5E0) M18X43	1-09009-190-0	02	1	1004-1108	●
17	BOLT; STOPPER KNUCKLE TIRE 295/80R22.5-152/148J RIB CHINA(5E0),TIRE 315/80R22.5-156/150L RIB EEC(5J5) M18X43	1-09009-190-0	02	1	1109-	●	●
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	1004-1108	●
18	NUT; STOPPER BOLT,KNUCKLE (B) M18	0-91110-518-0	02	1	1109-	●	●
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	1004-1108	●
18	NUT; STOPPER BOLT,KNUCKLE (A) OCTAGON M18	1-09469-011-1	01	1	1109-	●	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1004-1108	●
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	1109-	●	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1004-1108	●
25	BEARING; THRUST,KING PIN NSK	1-09829-043-2	02	1	1109-	●	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1004-1108	●
30	WASHER; THRUST,KING PIN T=4.875 -4.900	1-43171-185-0	AR	1	1109-	●	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1004-1108	●
30	WASHER; THRUST,KING PIN T=4.900 -4.925	1-43171-186-0	AR	1	1109-	●	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1004-1108	●
30	WASHER; THRUST,KING PIN T=4.925 -4.950	1-43171-187-0	AR	1	1109-	●	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1004-1108	●
30	WASHER; THRUST,KING PIN T=4.950 -4.975	1-43171-188-0	AR	1	1109-	●	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1004-1108	●
30	WASHER; THRUST,KING PIN T=4.975 -5.000	1-43171-189-0	AR	1	1109-	●	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1004-1108	●
30	WASHER; THRUST,KING PIN T=5.000 -5.025	1-43171-190-0	AR	1	1109-	●	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1004-1108	●
30	WASHER; THRUST,KING PIN T=5.025 -5.050	1-43171-191-0	AR	1	1109-	●	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1004-1108	●
30	WASHER; THRUST,KING PIN T=5.050 -5.075	1-43171-192-0	AR	1	1109-	●	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1004-1108	●
30	WASHER; THRUST,KING PIN T=5.075 -5.100	1-43171-193-0	AR	1	1109-	●	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1004-1108	●
30	WASHER; THRUST,KING PIN T=5.100 -5.125	1-43171-194-0	AR	1	1109-	●	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1004-1108	●
30	WASHER; THRUST,KING PIN T=5.125 -5.150	1-43171-195-0	AR	1	1109-	●	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1004-1108	●
30	WASHER; THRUST,KING PIN T=5.150 -5.175	1-43171-196-0	AR	1	1109-	●	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1004-1108	●
30	WASHER; THRUST,KING PIN T=5.175 -5.200	1-43171-197-0	AR	1	1109-	●	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1004-1108	●
30	WASHER; THRUST,KING PIN T=5.200 -5.225	1-43171-198-0	AR	1	1109-	●	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1004-1108	●
30	WASHER; THRUST,KING PIN T=5.225 -5.250	1-43171-199-0	AR	1	1109-	●	●
32	BOLT; KEY,KING PIN	1-43116-002-1	02	1	1004-1108	●
32	BOLT; KEY,KING PIN	1-43116-002-2	02	1	1109-	●	●
33	NUT; KEY BOLT M10 SOU	0-91110-510-0	02	1	1004-1108	●
33	NUT; KEY BOLT M10 SOU	0-91110-510-0	02	1	1109-	●	●
34	WASHER; LK,KEY BOLT ID=10.2 SOU	0-91510-510-0	02	1	1004-1108	●
34	WASHER; LK,KEY BOLT ID=10.2 SOU	0-91510-510-0	02	1	1109-	●	●
36	ARM; KNUCKLE	8-98061-893-0	01	1	1004-1108	●
36	ARM; KNUCKLE	8-98061-893-0	01	1	1109-	●	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1004-1108	●
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	1109-	●	●
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1004-1108	●
44	COVER; KING PIN (A)	8-98100-654-0	02	1	1109-	●	●
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1004-1108	●
44	COVER; KING PIN (B)	8-98100-655-0	02	1	1109-	●	●
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1004-1108	●
45	GASKET; KING PIN COVER	8-98100-656-1	04	1	1109-	●	●
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	12	1	1004-1108	●
48	BOLT; COVER M10X25 FLANGE	0-28751-025-0	12	1	1109-	●	●
58	ARM; TIE ROD VIN MODEL YEAR 2011<VZB>	8-98145-592-0	01	1	1109-	●
58	ARM; TIE ROD	8-98145-592-0	01	1	1109-		●
58	ARM; TIE ROD VIN MODEL YEAR 2011<VZB>	8-98145-593-0	01	1	1109-	●
58	ARM; TIE ROD	8-98145-593-0	01	1	1109-		●
58	ARM; TIE ROD	1-43135-049-4	01	1	1004-1108	●
58	ARM; TIE ROD EXC. VIN MODEL YEAR 2011<VZB>	1-43135-049-4	01	1	1109-	●
58	ARM; TIE ROD	1-43134-049-4	01	1	1004-1108	●
58	ARM; TIE ROD EXC. VIN MODEL YEAR 2011<VZB>	1-43134-049-4	01	1	1109-	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1004-1108	●
59	NUT; TIE ROD ARM M22	1-09449-084-0	04	1	1109-	●	●
61	ROD END; TIE ROD	8-98054-853-0	01	1	1004-1009	●
61	ROD END; TIE ROD	8-98096-754-0	01	1	1010-1108	●
61	ROD END; TIE ROD	8-98096-754-0	01	1	1109-1306	●	●
61	ROD END; TIE ROD	8-98228-107-0	01	1	1307-	●	●
61	ROD END; TIE ROD	8-98054-851-0	01	1	1004-1009	●
61	ROD END; TIE ROD	8-98096-753-0	01	1	1010-1108	●
61	ROD END; TIE ROD	8-98096-753-0	01	1	1109-1306	●	●
61	ROD END; TIE ROD	8-98228-106-0	01	1	1307-	●	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1004-1108	●
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	1109-	●	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1004-1108	●
68	BOLT; TIE ROD END M12X65	8-98053-922-0	04	1	1109-	●	●
74	NUT; TIE ROD END M12 SOU	0-91110-512-0	04	1	1004-1108	●
74	NUT; TIE ROD END M12 SOU	0-91110-512-0	04	1	1109-	●	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1004-1108	●
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	1109-	●	●
81	ROD; TIE	1-43151-154-0	01	1	1004-1009	●
81	ROD; TIE	8-98105-064-0	01	1	1010-1108	●
81	ROD; TIE	8-98105-064-0	01	1	1109-	●	●
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1004-1108	●
220	STUD; KNUCKLE ARM M22X145	1-09300-127-1	02	1	1109-	●	●
275	BOOT; ROD END,TIE	1-43159-107-0	02	1	1004-1009	●
275	BOOT; ROD END,TIE SOU	1-43159-131-0	02	1	1010-1108	●
275	BOOT; ROD END,TIE SOU	1-43159-131-0	02	1	1109-1306	●	●
275	BOOT; ROD END,TIE	8-98229-116-0	02	1	1307-	●	●
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1004-1108	●
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1109-	●	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1004-1108	●
304	WASHER; PL (A) ID=12.5	0-91614-512-0	04	1	1109-	●	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21 SOU	0-91614-520-0	02	1	1004-1108	●
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21 SOU	0-91614-520-0	02	1	1109-	●	●
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1004-1108	●
313	STUD; TIE ROD ARM M22X145	1-09300-127-1	04	1	1109-	●	●

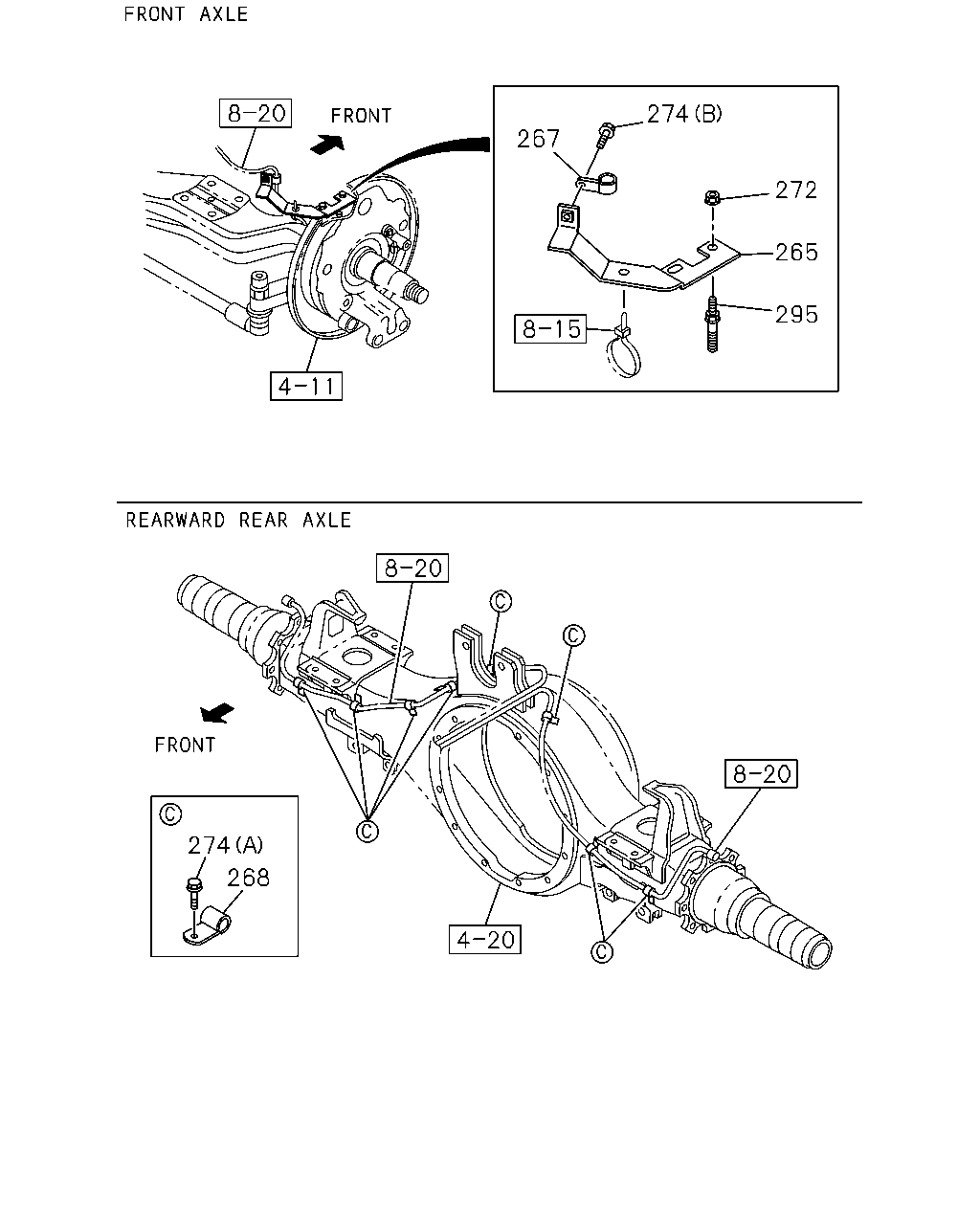

274 267 272 265 295 274 268

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
265	BRACKET; CLIP I BEAM	1-82698-427-0	01	1	1004-1108	●
265	BRACKET; CLIP I BEAM	1-82698-427-0	01	1	1109-	●	●
265	BRACKET; CLIP I BEAM	1-82698-426-0	01	1	1004-1108	●
265	BRACKET; CLIP I BEAM	1-82698-426-0	01	1	1109-	●	●
267	CLIP; HARNESS ID=11 L=20	0-95235-035-0	02	1	1004-1108	●
267	CLIP; HARNESS ID=11 L=20	0-95235-035-0	02	1	1109-	●	●
268	CLIP; HARNESS ID=11 L=20	0-95235-035-0	08	1	1004-1108	●
268	CLIP; HARNESS ID=11 L=20	0-95235-035-0	08	1	1109-	●	●
272	NUT; CLIP M10 FLANGE SOU	0-91180-110-0	04	1	1004-1108	●
272	NUT; CLIP M10 FLANGE SOU	0-91180-110-0	04	1	1109-	●	●
274	BOLT; CLIP (A) M8X10 FLANGE	0-28050-810-0	08	1	1004-1108	●
274	BOLT; CLIP (A) M8X10 FLANGE	0-28050-810-0	08	1	1109-	●	●
274	BOLT; CLIP (B) M8X16 FLANGE SOU	0-28050-816-0	02	1	1004-1108	●
274	BOLT; CLIP (B) M8X16 FLANGE SOU	0-28050-816-0	02	1	1109-	●	●
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1004-1108	●
295	STUD; COVER,KING PIN M10X20,M10X26 L=56	8-98010-334-0	04	1	1109-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
