Sayfa 4-01 - Isuzu EPC

4-01 — PROPELLER SHAFT (#21408) — 347 parça

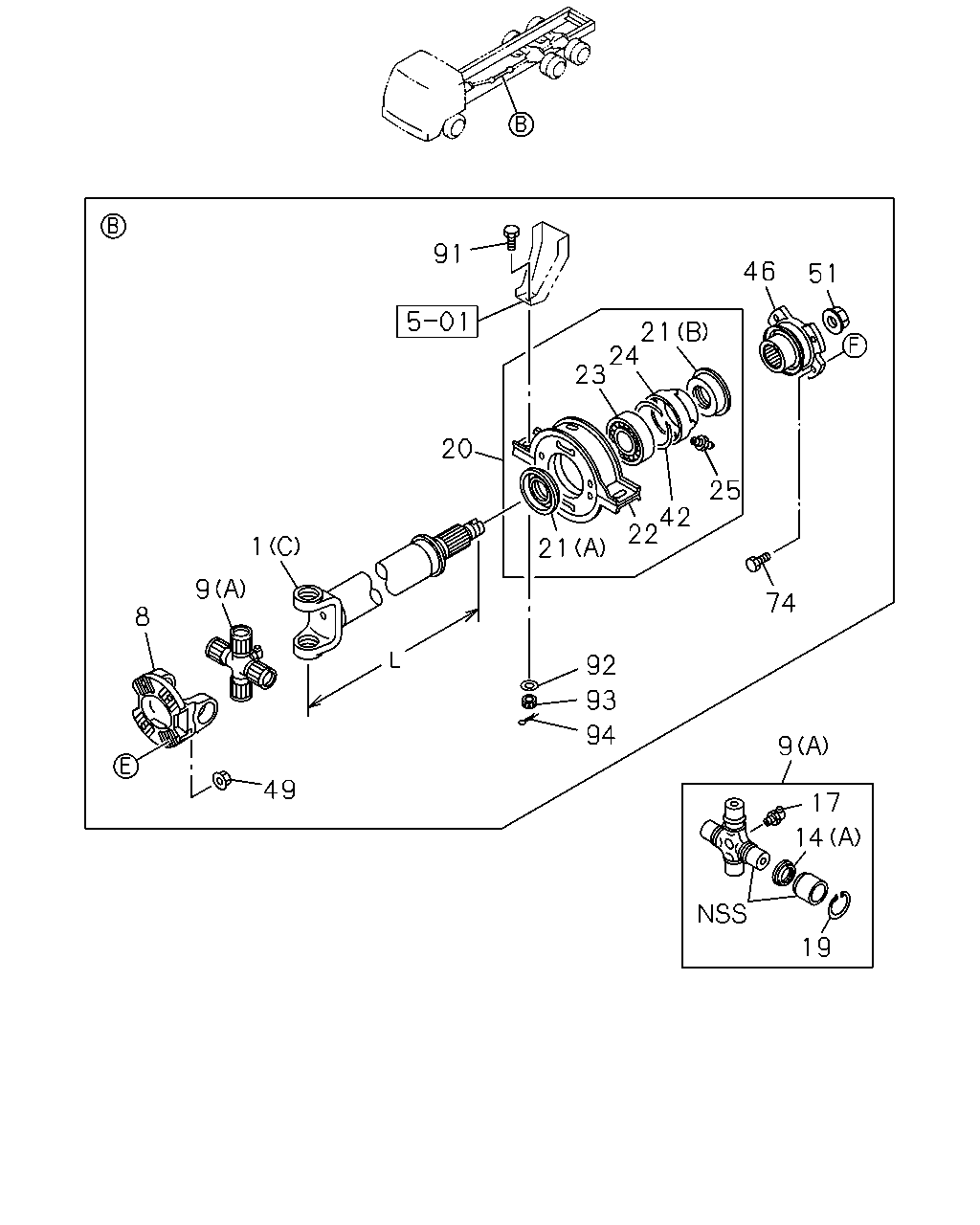

91 46 51 21 24 23 20 25 42 22 1 21 9 74 8 92 93 94 9 49 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP ENGINE REAR PTO(SV1) (D) L=1330	8-98025-912-0	01	1	1109-	●
1	SHAFT; PROP EXC. ENGINE REAR PTO(SV1) (D) L=1430	8-98094-191-0	01	1	1109-	●
1	SHAFT; PROP VIN MODEL YEAR 2011<VZB> (A) L=975	1-37125-338-0	01	1	1109-		●
1	SHAFT; PROP (D) L=1210	1-37125-381-0	01	1	1109-			●
1	SHAFT; PROP (A) L=1010	1-37125-339-0	01	1	1004-1108		●
1	SHAFT; PROP EXC. VIN MODEL YEAR 2011<VZB> (A) L=1010	1-37125-339-0	01	1	1109-		●
1	SHAFT; PROP (B) L=1227	8-98086-976-0	01	1	1004-		●
1	SHAFT; PROP (C) L=742	8-98086-977-0	01	1	1004-		●
8	YOKE; FLANGE,PROP SHAFT	1-37211-084-0	02	1	1004-1108		●
8	YOKE; FLANGE,PROP SHAFT	1-37211-084-0	02	1	1109-	●	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-084-0	01	1	1004-		●
8	YOKE; FLANGE,PROP SHAFT	1-37211-084-0	01	1	1004-		●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-100-1	01	1	1004-1108		●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-100-1	01	1	1109-	●	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	02	1	1004-1108		●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	02	1	1109-	●	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	01	1	1004-		●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	01	1	1004-		●
14	COVER; DUST,SPIDER (A)	1-37249-133-0	08	1	1004-1108		●
14	COVER; DUST,SPIDER (A)	1-37249-133-0	08	1	1109-	●	●	●
14	COVER; DUST,SPIDER (A)	1-37249-133-0	04	1	1004-		●
14	COVER; DUST,SPIDER (A)	1-37249-133-0	04	1	1004-		●
14	COVER; DUST,SPIDER (B)	1-37319-004-0	08	1	1004-1108		●
14	COVER; DUST,SPIDER (B)	1-37319-004-0	08	1	1109-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1004-		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1004-		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1004-1108		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1004-1108		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1109-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1109-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-103-1	08	1	1004-1108		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-103-1	08	1	1109-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-103-1	04	1	1004-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-103-1	04	1	1004-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17	1-09587-107-0	08	1	1004-1108		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17	1-09587-107-0	08	1	1109-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17	1-09587-107-0	04	1	1004-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17	1-09587-107-0	04	1	1004-		●
20	BEARING ASM; CTR,PROP SHAFT ID=65	1-37510-116-1	01	1	1004-		●
20	BEARING ASM; CTR,PROP SHAFT ID=65	1-37510-116-1	01	1	1004-		●
21	SEAL; OIL,CENTER BRG (A) OD=114	1-09625-222-1	01	1	1004-		●
21	SEAL; OIL,CENTER BRG (A) OD=114	1-09625-222-1	01	1	1004-		●
21	SEAL; OIL,CENTER BRG (B) OD=106	1-09625-622-0	01	1	1004-		●
21	SEAL; OIL,CENTER BRG (B) OD=106	1-09625-622-0	01	1	1004-		●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-056-0	01	1	1004-		●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-056-0	01	1	1004-		●
23	BEARING; CENTER,PROP SHAFT	1-09800-210-0	01	1	1004-		●
23	BEARING; CENTER,PROP SHAFT	1-09800-210-0	01	1	1004-		●
24	RETAINER; CENTER BRG,1ST	1-37529-110-0	01	1	1004-		●
24	RETAINER; CENTER BRG,1ST	1-37529-110-0	01	1	1004-		●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1004-		●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1004-		●
42	RING; SNAP,CTR BRG	1-09587-085-1	01	1	1004-		●
42	RING; SNAP,CTR BRG	1-09587-085-1	01	1	1004-		●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-349-0	01	1	1004-		●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-349-0	01	1	1004-		●
49	NUT; YOKE M14 FLANGE	8-97365-444-0	04	1	1004-		●
51	NUT; FLANGE,SPLINED M45 FLAMGE	1-09449-040-0	01	1	1004-		●
51	NUT; FLANGE,SPLINED M45 FLAMGE	1-09449-040-0	01	1	1004-		●
74	BOLT; YOKE,TRANS M14X50	1-09000-645-0	08	1	1004-		●
91	BOLT; HOLDER SET,CTR BRG M16X45	1-09042-030-0	02	1	1004-		●
92	WASHER; LK,HOLDER SET,CTR BRG ID=17	1-09503-241-1	02	1	1004-		●
93	NUT; HOLDER SET,CTR BRG M16 SLOTTED	0-91116-516-0	02	1	1004-1204		●
93	NUT; HOLDER SET,CTR BRG M16 SLOTTED	8-98049-689-0	02	1	1205-		●
94	PIN; SPLIT,HOLDER SET CTR BRG OD=3.7 L=25	0-81124-025-0	02	1	1004-		●

95 56 9 1 8 128 225 104 9 8 106 106 56 9 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP ENGINE REAR PTO(SV1) (D) L=1330	8-98025-912-0	01	1	1109-	●
1	SHAFT; PROP EXC. ENGINE REAR PTO(SV1) (D) L=1430	8-98094-191-0	01	1	1109-	●
1	SHAFT; PROP VIN MODEL YEAR 2011<VZB> (A) L=975	1-37125-338-0	01	1	1109-		●
1	SHAFT; PROP (D) L=1210	1-37125-381-0	01	1	1109-			●
1	SHAFT; PROP (A) L=1010	1-37125-339-0	01	1	1004-1108		●
1	SHAFT; PROP EXC. VIN MODEL YEAR 2011<VZB> (A) L=1010	1-37125-339-0	01	1	1109-		●
1	SHAFT; PROP (B) L=1227	8-98086-976-0	01	1	1004-		●
1	SHAFT; PROP (C) L=742	8-98086-977-0	01	1	1004-		●
8	YOKE; FLANGE,PROP SHAFT	1-37211-084-0	02	1	1004-1108		●
8	YOKE; FLANGE,PROP SHAFT	1-37211-084-0	02	1	1109-	●	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-084-0	01	1	1004-		●
8	YOKE; FLANGE,PROP SHAFT	1-37211-084-0	01	1	1004-		●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-100-1	01	1	1004-1108		●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-100-1	01	1	1109-	●	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	02	1	1004-1108		●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	02	1	1109-	●	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	01	1	1004-		●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	01	1	1004-		●
14	COVER; DUST,SPIDER (A)	1-37249-133-0	08	1	1004-1108		●
14	COVER; DUST,SPIDER (A)	1-37249-133-0	08	1	1109-	●	●	●
14	COVER; DUST,SPIDER (A)	1-37249-133-0	04	1	1004-		●
14	COVER; DUST,SPIDER (A)	1-37249-133-0	04	1	1004-		●
14	COVER; DUST,SPIDER (B)	1-37319-004-0	08	1	1004-1108		●
14	COVER; DUST,SPIDER (B)	1-37319-004-0	08	1	1109-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1004-		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1004-		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1004-1108		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1004-1108		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1109-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1109-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-103-1	08	1	1004-1108		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-103-1	08	1	1109-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-103-1	04	1	1004-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-103-1	04	1	1004-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17	1-09587-107-0	08	1	1004-1108		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17	1-09587-107-0	08	1	1109-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17	1-09587-107-0	04	1	1004-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17	1-09587-107-0	04	1	1004-		●
56	NUT; YOKE M14 FLANGE	8-97365-444-0	04	1	1004-1108		●
56	NUT; YOKE M14 FLANGE	8-97365-444-0	04	1	1004-1108		●
56	NUT; YOKE M14 FLANGE	8-97365-444-0	04	1	1109-	●	●	●
56	NUT; YOKE M14 FLANGE	8-97365-444-0	04	1	1109-		●
95	BOLT; YOKE,FINAL M14X50	1-09000-645-0	04	1	1004-1108		●
95	BOLT; YOKE,FINAL M14X50	1-09000-645-0	04	1	1109-	●	●	●
104	PLUG; SLEEVE YOKE	1-09600-049-0	01	1	1004-1108		●
104	PLUG; SLEEVE YOKE	1-09600-049-0	01	1	1004-1108		●
104	PLUG; SLEEVE YOKE	1-09600-049-0	01	1	1109-	●	●	●
104	PLUG; SLEEVE YOKE	1-09600-049-0	01	1	1109-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT SOU	0-90301-410-0	01	1	1004-1108		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT SOU	0-90301-410-0	01	1	1109-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT SOU	0-90301-410-0	02	1	1004-1108		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT SOU	0-90301-410-0	02	1	1109-	●	●	●
128	SEAL; SLEEVE (A)	1-37247-020-0	01	1	1004-1108		●
128	SEAL; SLEEVE (A)	1-37247-020-0	01	1	1109-	●	●	●
128	SEAL; SLEEVE (B)	8-97603-618-0	01	1	1004-1108		●
128	SEAL; SLEEVE (B)	8-97603-618-0	01	1	1109-	●	●	●
225	YOKE; SLEEVE,PROP SHAFT L=339	1-37241-140-0	01	1	1004-1108		●
225	YOKE; SLEEVE,PROP SHAFT L=339	1-37241-140-0	01	1	1109-	●	●	●

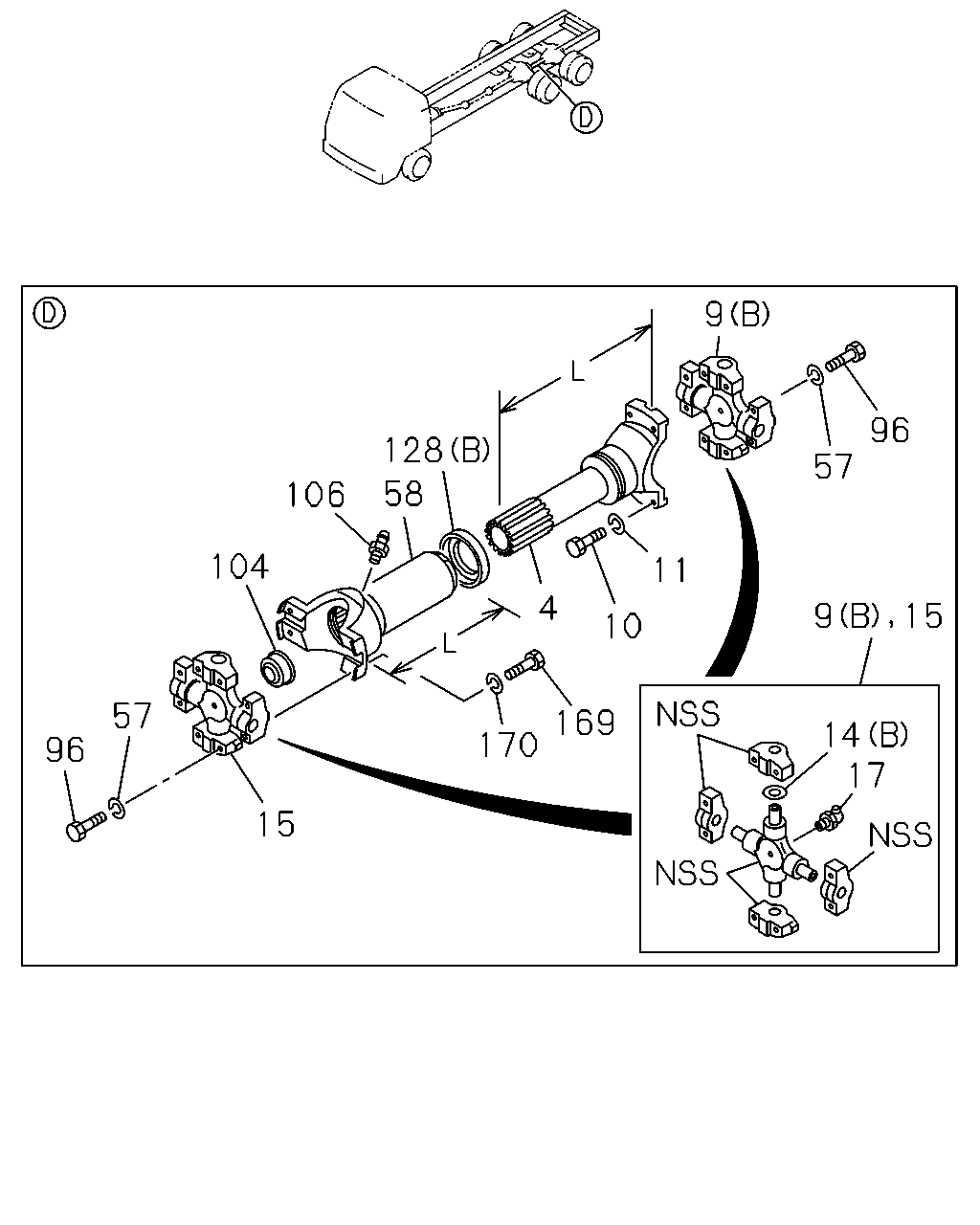

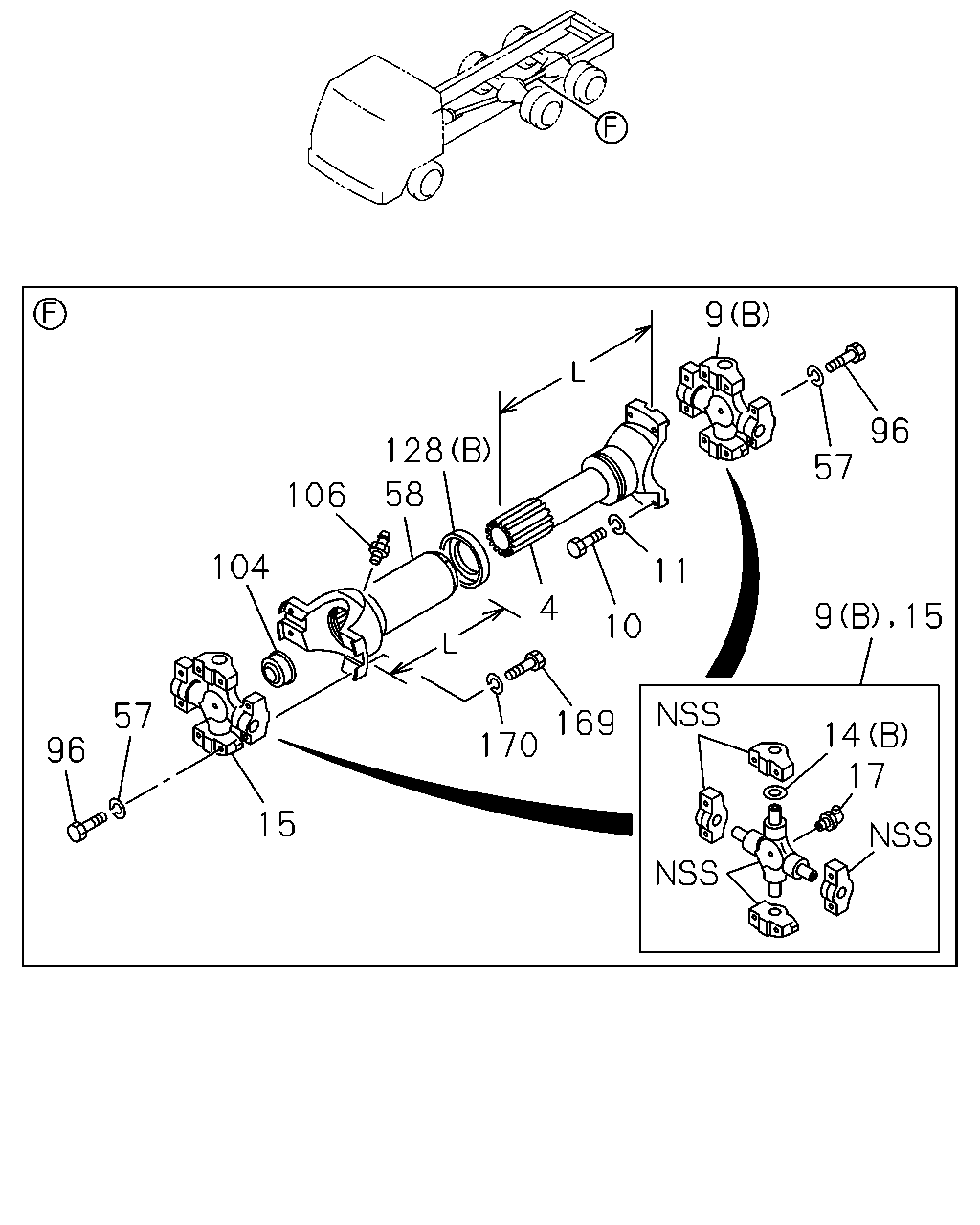

9 96 128 57 58 106 104 11 4 9 15 10 57 169 14 17 170 96 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	SHAFT; PROP VIN MODEL YEAR 2011<VZB> L=418	1-37171-129-3	01	1	1109-	●	●	●
4	SHAFT; PROP L=348	1-37171-127-2	01	1	1004-1108		●
4	SHAFT; PROP EXC. VIN MODEL YEAR 2011<VZB> L=348	1-37171-127-2	01	1	1109-	●	●	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-100-1	01	1	1004-1108		●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-100-1	01	1	1109-	●	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	02	1	1004-1108		●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	02	1	1109-	●	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	01	1	1004-		●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	01	1	1004-		●
10	BOLT; UJT M12X45	8-98036-382-0	04	1	1004-1108		●
10	BOLT; UJT M12X45	8-98036-382-0	04	1	1109-	●	●	●
11	WASHER; LK,UNIVERSAL,PROP SHAFT ID=12.2 SOU	0-91510-612-0	04	1	1004-1108		●
11	WASHER; LK,UNIVERSAL,PROP SHAFT ID=12.2 SOU	0-91510-612-0	04	1	1109-	●	●	●
14	COVER; DUST,SPIDER (A)	1-37249-133-0	08	1	1004-1108		●
14	COVER; DUST,SPIDER (A)	1-37249-133-0	08	1	1109-	●	●	●
14	COVER; DUST,SPIDER (A)	1-37249-133-0	04	1	1004-		●
14	COVER; DUST,SPIDER (A)	1-37249-133-0	04	1	1004-		●
14	COVER; DUST,SPIDER (B)	1-37319-004-0	08	1	1004-1108		●
14	COVER; DUST,SPIDER (B)	1-37319-004-0	08	1	1109-	●	●	●
15	UNIVERSAL CENTER	1-37300-100-1	01	1	1004-1108		●
15	UNIVERSAL CENTER	1-37300-100-1	01	1	1109-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1004-		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1004-		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1004-1108		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1004-1108		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1109-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1109-	●	●	●
57	WASHER; LK,YOKE ID=12.2 SOU	0-91510-612-0	08	1	1004-1108		●
57	WASHER; LK,YOKE ID=12.2 SOU	0-91510-612-0	08	1	1109-	●	●	●
58	FLANGE; SPLINED L=265	1-37245-317-0	01	1	1004-1108		●
58	FLANGE; SPLINED L=265	1-37245-317-0	01	1	1109-	●	●	●
96	BOLT; PROP SHAFT M12X45	8-98036-382-0	08	1	1004-1108		●
96	BOLT; PROP SHAFT M12X45	8-98036-382-0	08	1	1109-	●	●	●
104	PLUG; SLEEVE YOKE	1-09600-049-0	01	1	1004-1108		●
104	PLUG; SLEEVE YOKE	1-09600-049-0	01	1	1004-1108		●
104	PLUG; SLEEVE YOKE	1-09600-049-0	01	1	1109-	●	●	●
104	PLUG; SLEEVE YOKE	1-09600-049-0	01	1	1109-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT SOU	0-90301-410-0	01	1	1004-1108		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT SOU	0-90301-410-0	01	1	1109-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT SOU	0-90301-410-0	02	1	1004-1108		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT SOU	0-90301-410-0	02	1	1109-	●	●	●
128	SEAL; SLEEVE (A)	1-37247-020-0	01	1	1004-1108		●
128	SEAL; SLEEVE (A)	1-37247-020-0	01	1	1109-	●	●	●
128	SEAL; SLEEVE (B)	8-97603-618-0	01	1	1004-1108		●
128	SEAL; SLEEVE (B)	8-97603-618-0	01	1	1109-	●	●	●
169	BOLT; YOKE,SLEEVE M12X45	8-98036-382-0	04	1	1004-1108		●
169	BOLT; YOKE,SLEEVE M12X45	8-98036-382-0	04	1	1109-	●	●	●
170	WASHER; LK,YOKE,SLEEVE ID=12.2 SOU	0-91510-612-0	04	1	1004-1108		●
170	WASHER; LK,YOKE,SLEEVE ID=12.2 SOU	0-91510-612-0	04	1	1109-	●	●	●

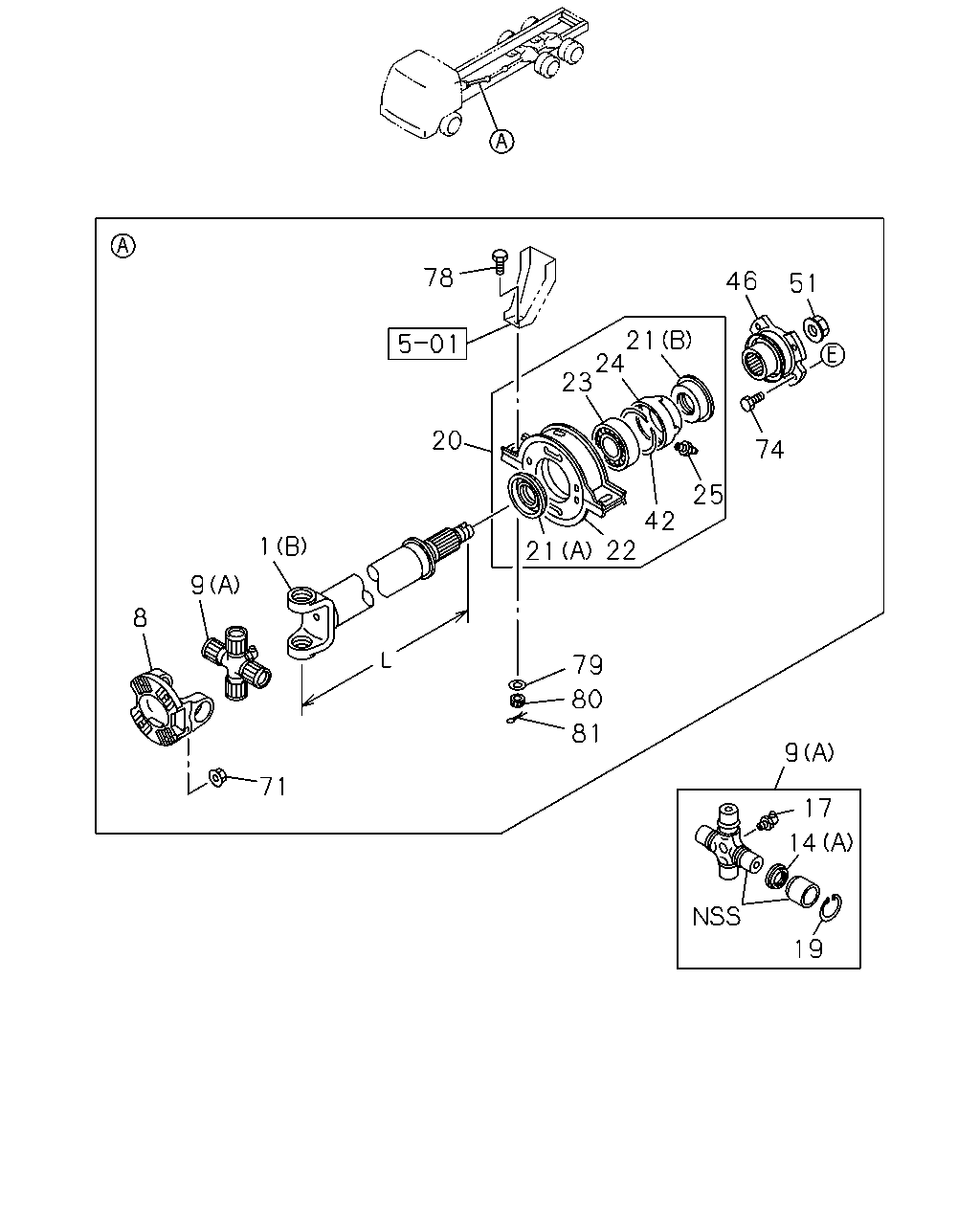

78 46 51 21 24 23 20 74 25 42 22 1 21 9 8 79 80 81 9 71 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP ENGINE REAR PTO(SV1) (D) L=1330	8-98025-912-0	01	1	1109-	●
1	SHAFT; PROP EXC. ENGINE REAR PTO(SV1) (D) L=1430	8-98094-191-0	01	1	1109-	●
1	SHAFT; PROP VIN MODEL YEAR 2011<VZB> (A) L=975	1-37125-338-0	01	1	1109-		●
1	SHAFT; PROP (D) L=1210	1-37125-381-0	01	1	1109-			●
1	SHAFT; PROP (A) L=1010	1-37125-339-0	01	1	1004-1108		●
1	SHAFT; PROP EXC. VIN MODEL YEAR 2011<VZB> (A) L=1010	1-37125-339-0	01	1	1109-		●
1	SHAFT; PROP (B) L=1227	8-98086-976-0	01	1	1004-		●
1	SHAFT; PROP (C) L=742	8-98086-977-0	01	1	1004-		●
8	YOKE; FLANGE,PROP SHAFT	1-37211-084-0	02	1	1004-1108		●
8	YOKE; FLANGE,PROP SHAFT	1-37211-084-0	02	1	1109-	●	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-084-0	01	1	1004-		●
8	YOKE; FLANGE,PROP SHAFT	1-37211-084-0	01	1	1004-		●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-100-1	01	1	1004-1108		●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-100-1	01	1	1109-	●	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	02	1	1004-1108		●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	02	1	1109-	●	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	01	1	1004-		●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	01	1	1004-		●
14	COVER; DUST,SPIDER (A)	1-37249-133-0	08	1	1004-1108		●
14	COVER; DUST,SPIDER (A)	1-37249-133-0	08	1	1109-	●	●	●
14	COVER; DUST,SPIDER (A)	1-37249-133-0	04	1	1004-		●
14	COVER; DUST,SPIDER (A)	1-37249-133-0	04	1	1004-		●
14	COVER; DUST,SPIDER (B)	1-37319-004-0	08	1	1004-1108		●
14	COVER; DUST,SPIDER (B)	1-37319-004-0	08	1	1109-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1004-		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1004-		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1004-1108		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1004-1108		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1109-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1109-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-103-1	08	1	1004-1108		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-103-1	08	1	1109-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-103-1	04	1	1004-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-103-1	04	1	1004-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17	1-09587-107-0	08	1	1004-1108		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17	1-09587-107-0	08	1	1109-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17	1-09587-107-0	04	1	1004-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17	1-09587-107-0	04	1	1004-		●
20	BEARING ASM; CTR,PROP SHAFT ID=65	1-37510-116-1	01	1	1004-		●
20	BEARING ASM; CTR,PROP SHAFT ID=65	1-37510-116-1	01	1	1004-		●
21	SEAL; OIL,CENTER BRG (A) OD=114	1-09625-222-1	01	1	1004-		●
21	SEAL; OIL,CENTER BRG (A) OD=114	1-09625-222-1	01	1	1004-		●
21	SEAL; OIL,CENTER BRG (B) OD=106	1-09625-622-0	01	1	1004-		●
21	SEAL; OIL,CENTER BRG (B) OD=106	1-09625-622-0	01	1	1004-		●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-056-0	01	1	1004-		●
22	RUBBER; CUSHION,CENTER BRG,1ST	1-37516-056-0	01	1	1004-		●
23	BEARING; CENTER,PROP SHAFT	1-09800-210-0	01	1	1004-		●
23	BEARING; CENTER,PROP SHAFT	1-09800-210-0	01	1	1004-		●
24	RETAINER; CENTER BRG,1ST	1-37529-110-0	01	1	1004-		●
24	RETAINER; CENTER BRG,1ST	1-37529-110-0	01	1	1004-		●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1004-		●
25	NIPPLE; GREASE,CENTER BRG MT6 STRAIGHT	1-09380-006-0	01	1	1004-		●
42	RING; SNAP,CTR BRG	1-09587-085-1	01	1	1004-		●
42	RING; SNAP,CTR BRG	1-09587-085-1	01	1	1004-		●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-349-0	01	1	1004-		●
46	FLANGE; SPLINED,PROP SHAFT,1ST	1-37245-349-0	01	1	1004-		●
51	NUT; FLANGE,SPLINED M45 FLAMGE	1-09449-040-0	01	1	1004-		●
51	NUT; FLANGE,SPLINED M45 FLAMGE	1-09449-040-0	01	1	1004-		●
71	NUT; YOKE M14 FLANGE	8-97365-444-0	04	1	1004-1108		●
71	NUT; YOKE M14 FLANGE	8-97365-444-0	04	1	1109-	●	●	●
74	BOLT; YOKE,TRANS M14X50	1-09000-645-0	08	1	1004-		●
78	BOLT; HOLDER SET,CENTER BRG,1ST PROP M16X45	1-09042-030-0	02	1	1004-		●
79	WASHER; PL,HOLDER SET,CENTER BRG ID=17	1-09503-241-1	02	1	1004-		●
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	0-91116-516-0	02	1	1004-1204		●
80	NUT; HOLDER SET,CENTER BRG,1ST PROP M16 SLOTTED	8-98049-689-0	02	1	1205-		●
81	PIN; SPLIT,HOLDER SET,CENTER BRG OD=3.7 L=25	0-81124-025-0	02	1	1004-		●

95 56 9 1 8 128 225 104 9 8 106 71 9 17 14 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	SHAFT; PROP ENGINE REAR PTO(SV1) (D) L=1330	8-98025-912-0	01	1	1109-	●
1	SHAFT; PROP EXC. ENGINE REAR PTO(SV1) (D) L=1430	8-98094-191-0	01	1	1109-	●
1	SHAFT; PROP VIN MODEL YEAR 2011<VZB> (A) L=975	1-37125-338-0	01	1	1109-		●
1	SHAFT; PROP (D) L=1210	1-37125-381-0	01	1	1109-			●
1	SHAFT; PROP (A) L=1010	1-37125-339-0	01	1	1004-1108		●
1	SHAFT; PROP EXC. VIN MODEL YEAR 2011<VZB> (A) L=1010	1-37125-339-0	01	1	1109-		●
1	SHAFT; PROP (B) L=1227	8-98086-976-0	01	1	1004-		●
1	SHAFT; PROP (C) L=742	8-98086-977-0	01	1	1004-		●
8	YOKE; FLANGE,PROP SHAFT	1-37211-084-0	02	1	1004-1108		●
8	YOKE; FLANGE,PROP SHAFT	1-37211-084-0	02	1	1109-	●	●	●
8	YOKE; FLANGE,PROP SHAFT	1-37211-084-0	01	1	1004-		●
8	YOKE; FLANGE,PROP SHAFT	1-37211-084-0	01	1	1004-		●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-100-1	01	1	1004-1108		●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-100-1	01	1	1109-	●	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	02	1	1004-1108		●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	02	1	1109-	●	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	01	1	1004-		●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	01	1	1004-		●
14	COVER; DUST,SPIDER (A)	1-37249-133-0	08	1	1004-1108		●
14	COVER; DUST,SPIDER (A)	1-37249-133-0	08	1	1109-	●	●	●
14	COVER; DUST,SPIDER (A)	1-37249-133-0	04	1	1004-		●
14	COVER; DUST,SPIDER (A)	1-37249-133-0	04	1	1004-		●
14	COVER; DUST,SPIDER (B)	1-37319-004-0	08	1	1004-1108		●
14	COVER; DUST,SPIDER (B)	1-37319-004-0	08	1	1109-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1004-		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1004-		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1004-1108		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1004-1108		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1109-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1109-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-103-1	08	1	1004-1108		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-103-1	08	1	1109-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-103-1	04	1	1004-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.2	1-09587-103-1	04	1	1004-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17	1-09587-107-0	08	1	1004-1108		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17	1-09587-107-0	08	1	1109-	●	●	●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17	1-09587-107-0	04	1	1004-		●
19	RING; SNAP,JOURNAL,PROP SHAFT,1ST T=2.17	1-09587-107-0	04	1	1004-		●
56	NUT; YOKE M14 FLANGE	8-97365-444-0	04	1	1004-1108		●
56	NUT; YOKE M14 FLANGE	8-97365-444-0	04	1	1004-1108		●
56	NUT; YOKE M14 FLANGE	8-97365-444-0	04	1	1109-	●	●	●
56	NUT; YOKE M14 FLANGE	8-97365-444-0	04	1	1109-		●
71	NUT; YOKE M14 FLANGE	8-97365-444-0	04	1	1004-1108		●
71	NUT; YOKE M14 FLANGE	8-97365-444-0	04	1	1109-	●	●	●
95	BOLT; YOKE,FINAL M14X50	1-09000-645-0	04	1	1004-1108		●
95	BOLT; YOKE,FINAL M14X50	1-09000-645-0	04	1	1109-	●	●	●
104	PLUG; SLEEVE YOKE	1-09600-049-0	01	1	1004-1108		●
104	PLUG; SLEEVE YOKE	1-09600-049-0	01	1	1004-1108		●
104	PLUG; SLEEVE YOKE	1-09600-049-0	01	1	1109-	●	●	●
104	PLUG; SLEEVE YOKE	1-09600-049-0	01	1	1109-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT SOU	0-90301-410-0	01	1	1004-1108		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT SOU	0-90301-410-0	01	1	1109-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT SOU	0-90301-410-0	02	1	1004-1108		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT SOU	0-90301-410-0	02	1	1109-	●	●	●
128	SEAL; SLEEVE (A)	1-37247-020-0	01	1	1004-1108		●
128	SEAL; SLEEVE (A)	1-37247-020-0	01	1	1109-	●	●	●
128	SEAL; SLEEVE (B)	8-97603-618-0	01	1	1004-1108		●
128	SEAL; SLEEVE (B)	8-97603-618-0	01	1	1109-	●	●	●
225	YOKE; SLEEVE,PROP SHAFT L=339	1-37241-140-0	01	1	1004-1108		●
225	YOKE; SLEEVE,PROP SHAFT L=339	1-37241-140-0	01	1	1109-	●	●	●

9 96 128 57 58 106 104 11 4 9 15 10 57 169 14 17 170 96 15

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
4	SHAFT; PROP VIN MODEL YEAR 2011<VZB> L=418	1-37171-129-3	01	1	1109-	●	●	●
4	SHAFT; PROP L=348	1-37171-127-2	01	1	1004-1108		●
4	SHAFT; PROP EXC. VIN MODEL YEAR 2011<VZB> L=348	1-37171-127-2	01	1	1109-	●	●	●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-100-1	01	1	1004-1108		●
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-100-1	01	1	1109-	●	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	02	1	1004-1108		●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	02	1	1109-	●	●	●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	01	1	1004-		●
9	JOURNAL ASM; PROP SHAFT (A)	1-37300-112-0	01	1	1004-		●
10	BOLT; UJT M12X45	8-98036-382-0	04	1	1004-1108		●
10	BOLT; UJT M12X45	8-98036-382-0	04	1	1109-	●	●	●
11	WASHER; LK,UNIVERSAL,PROP SHAFT ID=12.2 SOU	0-91510-612-0	04	1	1004-1108		●
11	WASHER; LK,UNIVERSAL,PROP SHAFT ID=12.2 SOU	0-91510-612-0	04	1	1109-	●	●	●
14	COVER; DUST,SPIDER (A)	1-37249-133-0	08	1	1004-1108		●
14	COVER; DUST,SPIDER (A)	1-37249-133-0	08	1	1109-	●	●	●
14	COVER; DUST,SPIDER (A)	1-37249-133-0	04	1	1004-		●
14	COVER; DUST,SPIDER (A)	1-37249-133-0	04	1	1004-		●
14	COVER; DUST,SPIDER (B)	1-37319-004-0	08	1	1004-1108		●
14	COVER; DUST,SPIDER (B)	1-37319-004-0	08	1	1109-	●	●	●
15	UNIVERSAL CENTER	1-37300-100-1	01	1	1004-1108		●
15	UNIVERSAL CENTER	1-37300-100-1	01	1	1109-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1004-		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	1004-		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1004-1108		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1004-1108		●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1109-	●	●	●
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	1109-	●	●	●
57	WASHER; LK,YOKE ID=12.2 SOU	0-91510-612-0	08	1	1004-1108		●
57	WASHER; LK,YOKE ID=12.2 SOU	0-91510-612-0	08	1	1109-	●	●	●
58	FLANGE; SPLINED L=265	1-37245-317-0	01	1	1004-1108		●
58	FLANGE; SPLINED L=265	1-37245-317-0	01	1	1109-	●	●	●
96	BOLT; PROP SHAFT M12X45	8-98036-382-0	08	1	1004-1108		●
96	BOLT; PROP SHAFT M12X45	8-98036-382-0	08	1	1109-	●	●	●
104	PLUG; SLEEVE YOKE	1-09600-049-0	01	1	1004-1108		●
104	PLUG; SLEEVE YOKE	1-09600-049-0	01	1	1004-1108		●
104	PLUG; SLEEVE YOKE	1-09600-049-0	01	1	1109-	●	●	●
104	PLUG; SLEEVE YOKE	1-09600-049-0	01	1	1109-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT SOU	0-90301-410-0	01	1	1004-1108		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT SOU	0-90301-410-0	01	1	1109-	●	●	●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT SOU	0-90301-410-0	02	1	1004-1108		●
106	NIPPLE; GREASE,YOKE,PROP SHAFT PT1/8 STRAIGHT SOU	0-90301-410-0	02	1	1109-	●	●	●
128	SEAL; SLEEVE (A)	1-37247-020-0	01	1	1004-1108		●
128	SEAL; SLEEVE (A)	1-37247-020-0	01	1	1109-	●	●	●
128	SEAL; SLEEVE (B)	8-97603-618-0	01	1	1004-1108		●
128	SEAL; SLEEVE (B)	8-97603-618-0	01	1	1109-	●	●	●
169	BOLT; YOKE,SLEEVE M12X45	8-98036-382-0	04	1	1004-1108		●
169	BOLT; YOKE,SLEEVE M12X45	8-98036-382-0	04	1	1109-	●	●	●
170	WASHER; LK,YOKE,SLEEVE ID=12.2 SOU	0-91510-612-0	04	1	1004-1108		●
170	WASHER; LK,YOKE,SLEEVE ID=12.2 SOU	0-91510-612-0	04	1	1109-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
