Sayfa 3-78 - Isuzu EPC

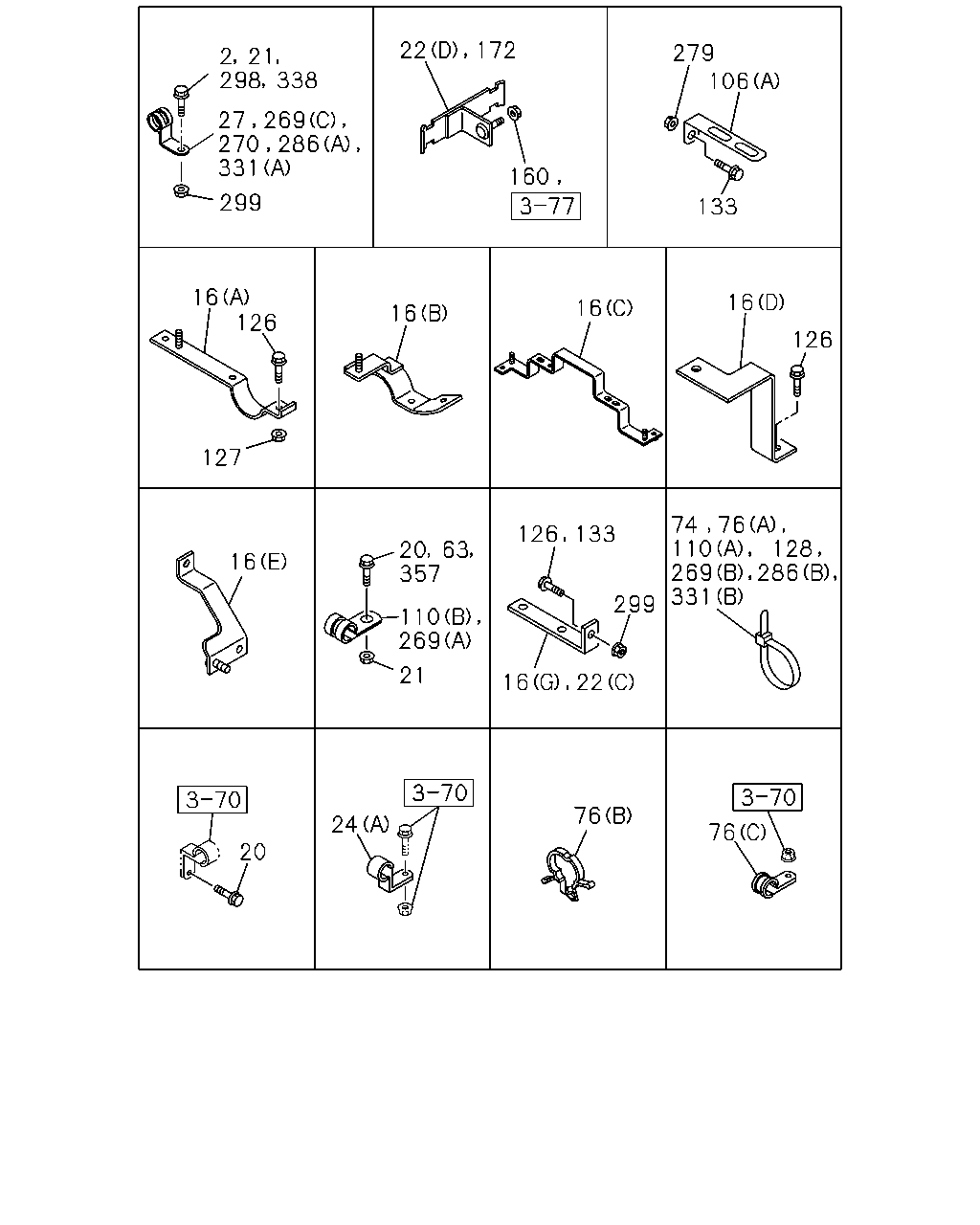

3-78 — FIXING PARTS; AIR PIPING (#21405) — 372 parça

22 172 279 106 331 160 299 133 16 126 16 16 16 126 127 76 110 128 331 126 133 357 16 299 110 269 21 16 22 76 24 76 20 2 21 298 338 27 269 270 286 74 269 286 20 63

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	01	1	1109-	●
2	BOLT; CLIP FIX M8X20 FLANGE	0-28650-820-0	03	1	1004-		●
16	BRACKET; PIPE CLIP (F)	1-47471-309-0	01	1	1109-	●
16	BRACKET; PIPE CLIP (G) L=60 H=30	1-47477-716-1	01	1	1109-	●
16	BRACKET; PIPE CLIP (H)	8-98054-389-0	01	1	1109-	●
16	BRACKET; PIPE CLIP (A)	1-47479-856-0	02	1	1004-1108		●
16	BRACKET; PIPE CLIP (A)	1-47479-856-0	02	1	1109-	●	●
16	BRACKET; PIPE CLIP (B)	1-47479-857-0	02	1	1004-1108		●
16	BRACKET; PIPE CLIP (B)	1-47479-857-0	02	1	1109-	●	●
16	BRACKET; PIPE CLIP (C)	1-47479-898-0	02	1	1004-1108		●
16	BRACKET; PIPE CLIP (C)	1-47479-898-0	02	1	1109-	●	●
16	BRACKET; PIPE CLIP (D)	8-98086-226-0	01	1	1004-1108		●
16	BRACKET; PIPE CLIP (D)	8-98086-226-0	01	1	1109-	●	●
16	BRACKET; PIPE CLIP (E)	8-98110-074-0	01	1	1004-		●
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1004-1108		●
20	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1109-	●	●
20	BOLT; CLIP M8X25 FLANGE SOU	0-28650-825-0	01	1	1004-1108		●
20	BOLT; CLIP M8X25 FLANGE SOU	0-28650-825-0	01	1	1109-	●	●
21	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	01	1	1004-1101		●
21	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	03	1	1102-1108		●
21	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	03	1	1109-	●	●
21	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	04	1	1004-1101		●
21	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	01	1	1102-1108		●
21	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	01	1	1102-1108		●
21	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	01	1	1109-	●	●
21	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	01	1	1109-	●	●
22	BRACKET; CLIP (E)	1-47477-571-3	01	1	1109-	●
22	BRACKET; CLIP (B) L=145	1-47475-655-0	01	1	1004-1108		●
22	BRACKET; CLIP (B) L=145	1-47475-655-0	01	1	1109-	●	●
22	BRACKET; CLIP (A) L=60 H=30	1-47477-716-1	02	1	1004-1101		●
22	BRACKET; CLIP (A) L=60 H=30	1-47477-716-1	01	1	1102-1108		●
22	BRACKET; CLIP (A) L=60 H=30	1-47477-716-1	01	1	1102-1108		●
22	BRACKET; CLIP (A) L=60 H=30	1-47477-716-1	01	1	1109-1112	●	●
22	BRACKET; CLIP (A) L=60 H=30	1-47477-716-1	01	1	1109-1112		●
22	BRACKET; CLIP (A) L=60 H=30	1-47477-716-1	01	1	1201-		●
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) (D)	1-47479-554-0	01	1	1004-1108		●
22	BRACKET; CLIP (D)	1-47479-554-0	01	1	1109-	●	●
22	BRACKET; CLIP (C) L=95	1-82698-557-0	01	1	1004-1108		●
22	BRACKET; CLIP (C) L=95	1-82698-557-0	01	1	1109-	●	●
24	CLIP; PIPE ENGINE REAR PTO(SV1) (B) ID=25 L=50	1-09701-019-0	02	1	1102-		●
24	CLIP; PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	1004-1108		●
24	CLIP; PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	1109-	●	●
24	CLIP; PIPE (B) ID=25 L=50	1-09701-019-0	03	1	1004-1101		●
24	CLIP; PIPE EXC. ENGINE REAR PTO(SV1) (B) ID=25 L=50	1-09701-019-0	03	1	1102-1108		●
24	CLIP; PIPE EXC. ENGINE REAR PTO(SV1) (B) ID=25 L=50	1-09701-019-0	03	1	1109-		●
24	CLIP; PIPE (B) ID=25 L=50	1-09701-019-0	03	1	1109-	●
27	CLIP; FLEX HOSE ID=25 H=30 L=35	1-09700-875-0	01	1	1004-1108		●
27	CLIP; FLEX HOSE ID=25 H=30 L=35	1-09700-875-0	01	1	1109-	●	●
63	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1004-1108		●
63	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1109-	●	●
74	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) L=350	1-09707-183-0	05	1	1109-		●
74	CLIP; NYLON TUBE L=350	1-09707-183-0	10	1	1004-1108		●
74	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) L=350	1-09707-183-0	10	1	1109-		●
76	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) ENGINE REAR PTO(SV1) (A) L=350	1-09707-183-0	05	1	1109-		●
76	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	05	1	1109-	●
76	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) (A) L=350	1-09707-183-0	06	1	1109-		●
76	CLIP; NYLON TUBE (A) L=350	1-09707-183-0	08	1	1004-1108		●
76	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) (A) L=350	1-09707-183-0	08	1	1109-		●
76	CLIP; NYLON TUBE (B) ID=24-30 L=18	1-09709-297-0	01	1	1004-1108		●
76	CLIP; NYLON TUBE (B) ID=24-30 L=18	1-09709-297-0	01	1	1109-	●	●
76	CLIP; NYLON TUBE (C) ID=39 L=33	8-98009-359-0	01	1	1004-1108		●
76	CLIP; NYLON TUBE (C) ID=39 L=33	8-98009-359-0	01	1	1109-	●	●
106	BRACKET; TUBE CLIP WHEEL BASE 5000MM(50W) (C)	1-47479-693-0	01	1	1109-		●
106	BRACKET; TUBE CLIP WHEEL BASE 5000MM(50W) (D)	1-47479-554-0	01	1	1109-		●
106	BRACKET; TUBE CLIP (D)	1-47479-554-0	01	1	1109-	●
106	BRACKET; TUBE CLIP (E) L=150	1-47471-217-0	03	1	1109-	●
106	BRACKET; TUBE CLIP (F)	1-47477-571-3	01	1	1109-	●
106	BRACKET; TUBE CLIP (G)	1-47479-329-0	01	1	1109-	●
106	BRACKET; TUBE CLIP WHEEL BASE 6600MM(66W) (B) L=115 H=30	1-47477-715-3	01	1	1004-1108		●
106	BRACKET; TUBE CLIP WHEEL BASE 5000MM(50W),WHEEL BASE 6600MM(66W) (B) L=115 H=30	1-47477-715-3	01	1	1109-		●
106	BRACKET; TUBE CLIP (B) L=90	1-47477-755-1	02	1	1004-1108		●
106	BRACKET; TUBE CLIP (B) L=90	1-47477-755-1	02	1	1109-	●	●
106	BRACKET; TUBE CLIP SHIFT PATTERN DOUBLE-H<EDZ> (A) L=100 H=30	1-47477-645-2	03	1	1004-1108		●
106	BRACKET; TUBE CLIP SHIFT PATTERN DOUBLE-H<EDZ> (A) L=100 H=30	1-47477-645-2	03	1	1109-		●
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	03	1	1109-	●
110	CLIP; BAND,NYLON TUBE (B) ID=19 L=20	0-95235-836-0	02	1	1004-1108		●
110	CLIP; BAND,NYLON TUBE (B) ID=19 L=20	0-95235-836-0	02	1	1109-	●	●
110	CLIP; BAND,NYLON TUBE ANTILOCK BRAKE SYSTEM(BFA) (A) L=350	1-09707-183-0	10	1	1004-1108		●
110	CLIP; BAND,NYLON TUBE ANTILOCK BRAKE SYSTEM(BFA) (A) L=350	1-09707-183-0	10	1	1109-	●	●
110	CLIP; BAND,NYLON TUBE EXC. ANTILOCK BRAKE SYSTEM(BFA) (A) L=350	1-09707-183-0	09	1	1004-		●
126	BOLT; CLIP BRKT M8X45 FLANGE SOU	0-28050-845-0	01	1	1109-	●
126	BOLT; CLIP BRKT M8X25 FLANGE SOU	0-28650-825-0	03	1	1109-	●
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28050-812-0	04	1	1004-1108		●
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28050-812-0	04	1	1109-	●	●
126	BOLT; CLIP BRKT M8X25 FLANGE SOU	0-28650-825-0	02	1	1004-1108		●
126	BOLT; CLIP BRKT M8X25 FLANGE SOU	0-28650-825-0	02	1	1004-1108		●
126	BOLT; CLIP BRKT M8X25 FLANGE SOU	0-28650-825-0	02	1	1109-	●	●
126	BOLT; CLIP BRKT M8X25 FLANGE SOU	0-28650-825-0	02	1	1109-		●
126	BOLT; CLIP BRKT M8X35 FLANGE SOU	0-28650-835-0	02	1	1004-1108		●
126	BOLT; CLIP BRKT M8X35 FLANGE SOU	0-28650-835-0	02	1	1109-	●	●
127	NUT; CLIP BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1109-	●
127	NUT; CLIP BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1004-1101		●
127	NUT; CLIP BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1102-1108		●
127	NUT; CLIP BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1102-1108		●
127	NUT; CLIP BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1109-	●	●
127	NUT; CLIP BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1109-		●
128	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) L=350	1-09707-183-0	07	1	1109-		●
128	CLIP; NYLON TUBE L=350	1-09707-183-0	07	1	1109-	●
128	CLIP; NYLON TUBE L=350	1-09707-183-0	07	1	1004-1108		●
128	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) L=350	1-09707-183-0	03	1	1109-		●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1109-	●
133	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	02	1	1004-1101		●
133	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	02	1	1102-1108		●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE SOU	0-28650-825-0	02	1	1109-		●
133	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	03	1	1004-1108		●
133	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	03	1	1109-	●	●
133	BOLT; BRKT WHEEL BASE 5000MM(50W) M8X25 FLANGE SOU	0-28650-825-0	03	1	1109-		●
133	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	03	1	1109-	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1004-1108		●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1109-	●	●
133	BOLT; BRKT M8X35 FLANGE SOU	0-28650-835-0	04	1	1004-1108		●
133	BOLT; BRKT M8X35 FLANGE SOU	0-28650-835-0	04	1	1109-	●	●
160	NUT; CLIP BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1004-1108		●
160	NUT; CLIP BRKT WHEEL BASE 6600MM(66W) VIN MODEL YEAR 2011<VZB> M8 FLANGE SOU	0-91180-108-0	01	1	1109-		●
160	NUT; CLIP BRKT EXC. VIN MODEL YEAR 2011<VZB> M8 FLANGE SOU	0-91180-108-0	01	1	1109-		●
172	BRACKET; TUBE CLIP	1-47479-554-0	01	1	1004-1108		●
172	BRACKET; TUBE CLIP WHEEL BASE 6600MM(66W) VIN MODEL YEAR 2011<VZB>	1-47479-554-0	01	1	1109-		●
172	BRACKET; TUBE CLIP EXC. VIN MODEL YEAR 2011<VZB>	1-47479-554-0	01	1	1109-		●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 5000MM(50W) (B) L=350	1-09707-183-0	24	1	1202-		●
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	02	1	1109-		●
269	CLIP; BAND,NYLON TUBE (A) ID=35 L=33	1-09700-945-0	01	1	1109-	●
269	CLIP; BAND,NYLON TUBE (C) ID=35 H=45 L=33	1-09700-947-0	02	1	1109-	●
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	19	1	1109-	●
269	CLIP; BAND,NYLON TUBE (A) ID=39 L=33	8-98009-359-0	02	1	1109-1206	●
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM RETARDER<RE2> (A) ID=39 L=33	8-98009-359-0	02	1	1207-	●
269	CLIP; BAND,NYLON TUBE (A) ID=35 L=33	1-09700-945-0	03	1	1102-1108		●
269	CLIP; BAND,NYLON TUBE (A) ID=35 L=33	1-09700-945-0	02	1	1109-1206		●
269	CLIP; BAND,NYLON TUBE (A) ID=35 L=33	1-09700-945-0	02	1	1207-		●
269	CLIP; BAND,NYLON TUBE EXC. BRAKE SYSTEM RETARDER<RE2> (A) ID=35 L=33	1-09700-945-0	02	1	1207-	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 6600MM(66W) (B) L=350	1-09707-183-0	30	1	1102-1108		●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 5000MM(50W) (B) L=350	1-09707-183-0	25	1	1109-1201		●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 5000MM(50W) (B) L=350	1-09707-183-0	01	1	1202-		●
269	CLIP; BAND,NYLON TUBE (A) ID=35 L=33	1-09700-945-0	05	1	1004-1101		●
269	CLIP; BAND,NYLON TUBE (A) ID=35 L=33	1-09700-945-0	02	1	1102-1108		●
269	CLIP; BAND,NYLON TUBE (A) ID=35 L=33	1-09700-945-0	03	1	1109-	●	●
269	CLIP; BAND,NYLON TUBE (C) ID=35 H=45 L=33	1-09700-947-0	01	1	1004-		●
269	CLIP; BAND,NYLON TUBE (C) ID=28 H=45 L=30	1-09700-948-0	02	1	1004-1108		●
269	CLIP; BAND,NYLON TUBE (C) ID=28 H=45 L=30	1-09700-948-0	02	1	1109-	●	●
269	CLIP; BAND,NYLON TUBE (D) ID=28 L=40	1-09701-261-0	01	1	1004-1108		●
269	CLIP; BAND,NYLON TUBE (D) ID=28 L=40	1-09701-261-0	01	1	1109-	●	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 6600MM(66W) (B) L=350	1-09707-183-0	02	1	1004-1108		●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 6600MM(66W) (B) L=350	1-09707-183-0	30	1	1109-		●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 6600MM(66W) (B) L=350	1-09707-183-0	33	1	1004-1101		●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 6600MM(66W) (B) L=350	1-09707-183-0	03	1	1102-1108		●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 6600MM(66W) (B) L=350	1-09707-183-0	03	1	1109-		●
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	03	1	1109-	●
270	CLIP; NYLON TUBE ID=16 H=45 L=20	1-09701-161-0	02	1	1109-	●
270	CLIP; NYLON TUBE ID=16 H=25 L=25	1-09701-162-0	03	1	1004-		●
279	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1109-	●	●
279	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	11	1	1109-	●
279	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1004-1108		●
279	NUT; BRKT WHEEL BASE 5000MM(50W) M8 FLANGE SOU	0-91180-108-0	08	1	1109-		●
279	NUT; BRKT WHEEL BASE 6600MM(66W) M8 FLANGE SOU	0-91180-108-0	06	1	1004-		●
286	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) (A) ID=21 L=30 H=40	1-09700-991-1	02	1	1109-		●
286	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) (B) L=350	1-09707-183-0	01	1	1109-		●
286	CLIP; NYLON TUBE (A) ID=21 L=30 H=40	1-09700-991-1	03	1	1004-1108		●
286	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) (A) ID=21 L=30 H=40	1-09700-991-1	03	1	1109-		●
286	CLIP; NYLON TUBE (B) L=350	1-09707-183-0	02	1	1004-1108		●
286	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) (B) L=350	1-09707-183-0	02	1	1109-		●
298	BOLT; CLIP WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) M8X25 FLANGE SOU	0-28650-825-0	02	1	1109-		●
298	BOLT; CLIP M8X25 FLANGE SOU	0-28650-825-0	03	1	1004-1108		●
298	BOLT; CLIP WHEEL BASE 6600MM(66W) M8X25 FLANGE SOU	0-28650-825-0	03	1	1109-		●
299	NUT; CLIP WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) M8 FLANGE SOU	0-91180-108-0	02	1	1109-		●
299	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	01	1	1004-1108		●
299	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	01	1	1109-	●	●
299	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	03	1	1004-1108		●
299	NUT; CLIP WHEEL BASE 6600MM(66W) M8 FLANGE SOU	0-91180-108-0	03	1	1109-		●
331	CLIP; NYLON TUBE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	1004-1108		●
331	CLIP; NYLON TUBE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	1109-	●	●
331	CLIP; NYLON TUBE (B) L=350	1-09707-183-0	03	1	1004-1108		●
331	CLIP; NYLON TUBE (B) L=350	1-09707-183-0	03	1	1109-	●	●
338	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1004-1108		●
338	BOLT; PIPE CLIP M8X20 FLANGE	0-28650-820-0	01	1	1109-	●	●
357	BOLT; CLIP FIX M8X10 FLANGE	0-28050-810-0	02	1	1004-1108		●
357	BOLT; CLIP FIX M8X10 FLANGE	0-28050-810-0	02	1	1109-	●	●

388 269 269 279 109 22 379 106 108 11 109 108 22 34 133 24 297 61 77 372 133 372 279 297

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; CLIP BRKT WHEEL BASE 5000MM(50W) M8X30 FLANGE	0-28650-830-0	01	1	1109-		●
11	BOLT; CLIP BRKT M8X25 FLANGE SOU	0-28650-825-0	01	1	1004-1108		●
11	BOLT; CLIP BRKT M8X25 FLANGE SOU	0-28650-825-0	01	1	1004-1108		●
11	BOLT; CLIP BRKT M8X25 FLANGE SOU	0-28650-825-0	01	1	1109-	●	●
11	BOLT; CLIP BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE SOU	0-28650-825-0	01	1	1109-		●
11	BOLT; CLIP BRKT M8X25 FLANGE SOU	0-28650-825-0	01	1	1109-	●
22	BRACKET; CLIP (E)	1-47477-571-3	01	1	1109-	●
22	BRACKET; CLIP (B) L=145	1-47475-655-0	01	1	1004-1108		●
22	BRACKET; CLIP (B) L=145	1-47475-655-0	01	1	1109-	●	●
22	BRACKET; CLIP (A) L=60 H=30	1-47477-716-1	02	1	1004-1101		●
22	BRACKET; CLIP (A) L=60 H=30	1-47477-716-1	01	1	1102-1108		●
22	BRACKET; CLIP (A) L=60 H=30	1-47477-716-1	01	1	1102-1108		●
22	BRACKET; CLIP (A) L=60 H=30	1-47477-716-1	01	1	1109-1112	●	●
22	BRACKET; CLIP (A) L=60 H=30	1-47477-716-1	01	1	1109-1112		●
22	BRACKET; CLIP (A) L=60 H=30	1-47477-716-1	01	1	1201-		●
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) (D)	1-47479-554-0	01	1	1004-1108		●
22	BRACKET; CLIP (D)	1-47479-554-0	01	1	1109-	●	●
22	BRACKET; CLIP (C) L=95	1-82698-557-0	01	1	1004-1108		●
22	BRACKET; CLIP (C) L=95	1-82698-557-0	01	1	1109-	●	●
24	CLIP; PIPE ENGINE REAR PTO(SV1) (B) ID=25 L=50	1-09701-019-0	02	1	1102-		●
24	CLIP; PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	1004-1108		●
24	CLIP; PIPE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	1109-	●	●
24	CLIP; PIPE (B) ID=25 L=50	1-09701-019-0	03	1	1004-1101		●
24	CLIP; PIPE EXC. ENGINE REAR PTO(SV1) (B) ID=25 L=50	1-09701-019-0	03	1	1102-1108		●
24	CLIP; PIPE EXC. ENGINE REAR PTO(SV1) (B) ID=25 L=50	1-09701-019-0	03	1	1109-		●
24	CLIP; PIPE (B) ID=25 L=50	1-09701-019-0	03	1	1109-	●
34	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1004-1108		●
34	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1109-	●	●
61	NUT; CLIP FIX M8 FLANGE SOU	0-91180-108-0	01	1	1109-	●
61	NUT; CLIP FIX ENGINE REAR PTO(SV1) M8 FLANGE SOU	0-91180-108-0	02	1	1102-		●
61	NUT; CLIP FIX M8 FLANGE SOU	0-91180-108-0	03	1	1004-1101		●
61	NUT; CLIP FIX EXC. ENGINE REAR PTO(SV1) M8 FLANGE SOU	0-91180-108-0	03	1	1102-1108		●
61	NUT; CLIP FIX EXC. ENGINE REAR PTO(SV1) M8 FLANGE SOU	0-91180-108-0	03	1	1109-		●
61	NUT; CLIP FIX M8 FLANGE SOU	0-91180-108-0	03	1	1109-	●
77	NUT; CLIP BRKT WHEEL BASE 6600MM(66W) M8 FLANGE SOU	0-91180-108-0	02	1	1004-		●
106	BRACKET; TUBE CLIP WHEEL BASE 5000MM(50W) (C)	1-47479-693-0	01	1	1109-		●
106	BRACKET; TUBE CLIP WHEEL BASE 5000MM(50W) (D)	1-47479-554-0	01	1	1109-		●
106	BRACKET; TUBE CLIP (D)	1-47479-554-0	01	1	1109-	●
106	BRACKET; TUBE CLIP (E) L=150	1-47471-217-0	03	1	1109-	●
106	BRACKET; TUBE CLIP (F)	1-47477-571-3	01	1	1109-	●
106	BRACKET; TUBE CLIP (G)	1-47479-329-0	01	1	1109-	●
106	BRACKET; TUBE CLIP WHEEL BASE 6600MM(66W) (B) L=115 H=30	1-47477-715-3	01	1	1004-1108		●
106	BRACKET; TUBE CLIP WHEEL BASE 5000MM(50W),WHEEL BASE 6600MM(66W) (B) L=115 H=30	1-47477-715-3	01	1	1109-		●
106	BRACKET; TUBE CLIP (B) L=90	1-47477-755-1	02	1	1004-1108		●
106	BRACKET; TUBE CLIP (B) L=90	1-47477-755-1	02	1	1109-	●	●
106	BRACKET; TUBE CLIP SHIFT PATTERN DOUBLE-H<EDZ> (A) L=100 H=30	1-47477-645-2	03	1	1004-1108		●
106	BRACKET; TUBE CLIP SHIFT PATTERN DOUBLE-H<EDZ> (A) L=100 H=30	1-47477-645-2	03	1	1109-		●
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	03	1	1109-	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	04	1	1109-	●
108	BOLT; TUBE CLIP M8X25 FLANGE SOU	0-28650-825-0	02	1	1004-1108		●
108	BOLT; TUBE CLIP M8X25 FLANGE SOU	0-28650-825-0	02	1	1109-	●	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28650-830-0	03	1	1004-		●
109	NUT; TUBE CLIP M8 FLANGE SOU	0-91180-108-0	04	1	1109-	●
109	NUT; TUBE CLIP M8 FLANGE SOU	0-91180-108-0	03	1	1004-		●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1109-	●
133	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	02	1	1004-1101		●
133	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	02	1	1102-1108		●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE SOU	0-28650-825-0	02	1	1109-		●
133	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	03	1	1004-1108		●
133	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	03	1	1109-	●	●
133	BOLT; BRKT WHEEL BASE 5000MM(50W) M8X25 FLANGE SOU	0-28650-825-0	03	1	1109-		●
133	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	03	1	1109-	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1004-1108		●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1109-	●	●
133	BOLT; BRKT M8X35 FLANGE SOU	0-28650-835-0	04	1	1004-1108		●
133	BOLT; BRKT M8X35 FLANGE SOU	0-28650-835-0	04	1	1109-	●	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 5000MM(50W) (B) L=350	1-09707-183-0	24	1	1202-		●
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	02	1	1109-		●
269	CLIP; BAND,NYLON TUBE (A) ID=35 L=33	1-09700-945-0	01	1	1109-	●
269	CLIP; BAND,NYLON TUBE (C) ID=35 H=45 L=33	1-09700-947-0	02	1	1109-	●
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	19	1	1109-	●
269	CLIP; BAND,NYLON TUBE (A) ID=39 L=33	8-98009-359-0	02	1	1109-1206	●
269	CLIP; BAND,NYLON TUBE BRAKE SYSTEM RETARDER<RE2> (A) ID=39 L=33	8-98009-359-0	02	1	1207-	●
269	CLIP; BAND,NYLON TUBE (A) ID=35 L=33	1-09700-945-0	03	1	1102-1108		●
269	CLIP; BAND,NYLON TUBE (A) ID=35 L=33	1-09700-945-0	02	1	1109-1206		●
269	CLIP; BAND,NYLON TUBE (A) ID=35 L=33	1-09700-945-0	02	1	1207-		●
269	CLIP; BAND,NYLON TUBE EXC. BRAKE SYSTEM RETARDER<RE2> (A) ID=35 L=33	1-09700-945-0	02	1	1207-	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 6600MM(66W) (B) L=350	1-09707-183-0	30	1	1102-1108		●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 5000MM(50W) (B) L=350	1-09707-183-0	25	1	1109-1201		●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 5000MM(50W) (B) L=350	1-09707-183-0	01	1	1202-		●
269	CLIP; BAND,NYLON TUBE (A) ID=35 L=33	1-09700-945-0	05	1	1004-1101		●
269	CLIP; BAND,NYLON TUBE (A) ID=35 L=33	1-09700-945-0	02	1	1102-1108		●
269	CLIP; BAND,NYLON TUBE (A) ID=35 L=33	1-09700-945-0	03	1	1109-	●	●
269	CLIP; BAND,NYLON TUBE (C) ID=35 H=45 L=33	1-09700-947-0	01	1	1004-		●
269	CLIP; BAND,NYLON TUBE (C) ID=28 H=45 L=30	1-09700-948-0	02	1	1004-1108		●
269	CLIP; BAND,NYLON TUBE (C) ID=28 H=45 L=30	1-09700-948-0	02	1	1109-	●	●
269	CLIP; BAND,NYLON TUBE (D) ID=28 L=40	1-09701-261-0	01	1	1004-1108		●
269	CLIP; BAND,NYLON TUBE (D) ID=28 L=40	1-09701-261-0	01	1	1109-	●	●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 6600MM(66W) (B) L=350	1-09707-183-0	02	1	1004-1108		●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 6600MM(66W) (B) L=350	1-09707-183-0	30	1	1109-		●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 6600MM(66W) (B) L=350	1-09707-183-0	33	1	1004-1101		●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 6600MM(66W) (B) L=350	1-09707-183-0	03	1	1102-1108		●
269	CLIP; BAND,NYLON TUBE WHEEL BASE 6600MM(66W) (B) L=350	1-09707-183-0	03	1	1109-		●
269	CLIP; BAND,NYLON TUBE (B) L=350	1-09707-183-0	03	1	1109-	●
279	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1109-	●	●
279	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	11	1	1109-	●
279	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1004-1108		●
279	NUT; BRKT WHEEL BASE 5000MM(50W) M8 FLANGE SOU	0-91180-108-0	08	1	1109-		●
279	NUT; BRKT WHEEL BASE 6600MM(66W) M8 FLANGE SOU	0-91180-108-0	06	1	1004-		●
297	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1109-	●	●
297	NUT; BRKT WHEEL BASE 6600MM(66W) VIN MODEL YEAR 2011<VZB> M8 FLANGE SOU	0-91180-108-0	02	1	1109-		●
297	NUT; BRKT EXC. ENGINE REAR PTO(SV1),VIN MODEL YEAR 2011<VZB> M8 FLANGE SOU	0-91180-108-0	02	1	1109-		●
297	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1004-1101		●
297	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1004-1101		●
297	NUT; BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1102-1108		●
297	NUT; BRKT EXC. ENGINE REAR PTO(SV1) M8 FLANGE SOU	0-91180-108-0	02	1	1102-1108		●
297	NUT; BRKT WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) M8 FLANGE SOU	0-91180-108-0	01	1	1109-		●
372	BOLT; CLIP BRKT WHEEL BASE 6600MM(66W) VIN MODEL YEAR 2011<VZB> M8X30 FLANGE	0-28650-830-0	02	1	1109-		●
372	BOLT; CLIP BRKT EXC. ENGINE REAR PTO(SV1),VIN MODEL YEAR 2011<VZB> M8X30 FLANGE	0-28650-830-0	02	1	1109-		●
372	BOLT; CLIP BRKT M8X25 FLANGE SOU	0-28650-825-0	02	1	1004-1108		●
372	BOLT; CLIP BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE SOU	0-28650-825-0	02	1	1109-		●
372	BOLT; CLIP BRKT M8X30 FLANGE	0-28650-830-0	02	1	1004-1101		●
372	BOLT; CLIP BRKT EXC. ENGINE REAR PTO(SV1) M8X30 FLANGE	0-28650-830-0	02	1	1102-1108		●
372	BOLT; CLIP BRKT WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) M8X30 FLANGE	0-28650-830-0	01	1	1109-		●
379	BRACKET; NYLON TUBE WHEEL BASE 5000MM(50W) EXC. ENGINE REAR PTO(SV1) L=60 H=30	1-47477-716-1	01	1	1109-		●
379	BRACKET; NYLON TUBE L=60 H=30	1-47477-716-1	02	1	1004-1101		●
379	BRACKET; NYLON TUBE EXC. ENGINE REAR PTO(SV1) L=60 H=30	1-47477-716-1	02	1	1102-1108		●
379	BRACKET; NYLON TUBE WHEEL BASE 6600MM(66W) VIN MODEL YEAR 2011<VZB> L=60 H=30	1-47477-716-1	02	1	1109-		●
379	BRACKET; NYLON TUBE EXC. ENGINE REAR PTO(SV1),VIN MODEL YEAR 2011<VZB> L=60 H=30	1-47477-716-1	02	1	1109-		●
388	SEAL 100X40 SOU	1-72498-022-1	04	1	1109-	●
388	SEAL 100X40 SOU	1-72498-022-1	03	1	1004-		●

391 390 390 390 391 390 16 16 106 22 106 126 11 127 126 127 106 133 106 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BOLT; CLIP BRKT WHEEL BASE 5000MM(50W) M8X30 FLANGE	0-28650-830-0	01	1	1109-		●
11	BOLT; CLIP BRKT M8X25 FLANGE SOU	0-28650-825-0	01	1	1004-1108		●
11	BOLT; CLIP BRKT M8X25 FLANGE SOU	0-28650-825-0	01	1	1004-1108		●
11	BOLT; CLIP BRKT M8X25 FLANGE SOU	0-28650-825-0	01	1	1109-	●	●
11	BOLT; CLIP BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE SOU	0-28650-825-0	01	1	1109-		●
11	BOLT; CLIP BRKT M8X25 FLANGE SOU	0-28650-825-0	01	1	1109-	●
16	BRACKET; PIPE CLIP (F)	1-47471-309-0	01	1	1109-	●
16	BRACKET; PIPE CLIP (G) L=60 H=30	1-47477-716-1	01	1	1109-	●
16	BRACKET; PIPE CLIP (H)	8-98054-389-0	01	1	1109-	●
16	BRACKET; PIPE CLIP (A)	1-47479-856-0	02	1	1004-1108		●
16	BRACKET; PIPE CLIP (A)	1-47479-856-0	02	1	1109-	●	●
16	BRACKET; PIPE CLIP (B)	1-47479-857-0	02	1	1004-1108		●
16	BRACKET; PIPE CLIP (B)	1-47479-857-0	02	1	1109-	●	●
16	BRACKET; PIPE CLIP (C)	1-47479-898-0	02	1	1004-1108		●
16	BRACKET; PIPE CLIP (C)	1-47479-898-0	02	1	1109-	●	●
16	BRACKET; PIPE CLIP (D)	8-98086-226-0	01	1	1004-1108		●
16	BRACKET; PIPE CLIP (D)	8-98086-226-0	01	1	1109-	●	●
16	BRACKET; PIPE CLIP (E)	8-98110-074-0	01	1	1004-		●
22	BRACKET; CLIP (E)	1-47477-571-3	01	1	1109-	●
22	BRACKET; CLIP (B) L=145	1-47475-655-0	01	1	1004-1108		●
22	BRACKET; CLIP (B) L=145	1-47475-655-0	01	1	1109-	●	●
22	BRACKET; CLIP (A) L=60 H=30	1-47477-716-1	02	1	1004-1101		●
22	BRACKET; CLIP (A) L=60 H=30	1-47477-716-1	01	1	1102-1108		●
22	BRACKET; CLIP (A) L=60 H=30	1-47477-716-1	01	1	1102-1108		●
22	BRACKET; CLIP (A) L=60 H=30	1-47477-716-1	01	1	1109-1112	●	●
22	BRACKET; CLIP (A) L=60 H=30	1-47477-716-1	01	1	1109-1112		●
22	BRACKET; CLIP (A) L=60 H=30	1-47477-716-1	01	1	1201-		●
22	BRACKET; CLIP WHEEL BASE 6600MM(66W) (D)	1-47479-554-0	01	1	1004-1108		●
22	BRACKET; CLIP (D)	1-47479-554-0	01	1	1109-	●	●
22	BRACKET; CLIP (C) L=95	1-82698-557-0	01	1	1004-1108		●
22	BRACKET; CLIP (C) L=95	1-82698-557-0	01	1	1109-	●	●
106	BRACKET; TUBE CLIP WHEEL BASE 5000MM(50W) (C)	1-47479-693-0	01	1	1109-		●
106	BRACKET; TUBE CLIP WHEEL BASE 5000MM(50W) (D)	1-47479-554-0	01	1	1109-		●
106	BRACKET; TUBE CLIP (D)	1-47479-554-0	01	1	1109-	●
106	BRACKET; TUBE CLIP (E) L=150	1-47471-217-0	03	1	1109-	●
106	BRACKET; TUBE CLIP (F)	1-47477-571-3	01	1	1109-	●
106	BRACKET; TUBE CLIP (G)	1-47479-329-0	01	1	1109-	●
106	BRACKET; TUBE CLIP WHEEL BASE 6600MM(66W) (B) L=115 H=30	1-47477-715-3	01	1	1004-1108		●
106	BRACKET; TUBE CLIP WHEEL BASE 5000MM(50W),WHEEL BASE 6600MM(66W) (B) L=115 H=30	1-47477-715-3	01	1	1109-		●
106	BRACKET; TUBE CLIP (B) L=90	1-47477-755-1	02	1	1004-1108		●
106	BRACKET; TUBE CLIP (B) L=90	1-47477-755-1	02	1	1109-	●	●
106	BRACKET; TUBE CLIP SHIFT PATTERN DOUBLE-H<EDZ> (A) L=100 H=30	1-47477-645-2	03	1	1004-1108		●
106	BRACKET; TUBE CLIP SHIFT PATTERN DOUBLE-H<EDZ> (A) L=100 H=30	1-47477-645-2	03	1	1109-		●
106	BRACKET; TUBE CLIP (A) L=100 H=30	1-47477-645-2	03	1	1109-	●
126	BOLT; CLIP BRKT M8X45 FLANGE SOU	0-28050-845-0	01	1	1109-	●
126	BOLT; CLIP BRKT M8X25 FLANGE SOU	0-28650-825-0	03	1	1109-	●
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28050-812-0	04	1	1004-1108		●
126	BOLT; CLIP BRKT M8X12 FLANGE	0-28050-812-0	04	1	1109-	●	●
126	BOLT; CLIP BRKT M8X25 FLANGE SOU	0-28650-825-0	02	1	1004-1108		●
126	BOLT; CLIP BRKT M8X25 FLANGE SOU	0-28650-825-0	02	1	1004-1108		●
126	BOLT; CLIP BRKT M8X25 FLANGE SOU	0-28650-825-0	02	1	1109-	●	●
126	BOLT; CLIP BRKT M8X25 FLANGE SOU	0-28650-825-0	02	1	1109-		●
126	BOLT; CLIP BRKT M8X35 FLANGE SOU	0-28650-835-0	02	1	1004-1108		●
126	BOLT; CLIP BRKT M8X35 FLANGE SOU	0-28650-835-0	02	1	1109-	●	●
127	NUT; CLIP BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1109-	●
127	NUT; CLIP BRKT M8 FLANGE SOU	0-91180-108-0	02	1	1004-1101		●
127	NUT; CLIP BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1102-1108		●
127	NUT; CLIP BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1102-1108		●
127	NUT; CLIP BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1109-	●	●
127	NUT; CLIP BRKT M8 FLANGE SOU	0-91180-108-0	01	1	1109-		●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	02	1	1109-	●
133	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	02	1	1004-1101		●
133	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	02	1	1102-1108		●
133	BOLT; BRKT WHEEL BASE 6600MM(66W) M8X25 FLANGE SOU	0-28650-825-0	02	1	1109-		●
133	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	03	1	1004-1108		●
133	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	03	1	1109-	●	●
133	BOLT; BRKT WHEEL BASE 5000MM(50W) M8X25 FLANGE SOU	0-28650-825-0	03	1	1109-		●
133	BOLT; BRKT M8X25 FLANGE SOU	0-28650-825-0	03	1	1109-	●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1004-1108		●
133	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	01	1	1109-	●	●
133	BOLT; BRKT M8X35 FLANGE SOU	0-28650-835-0	04	1	1004-1108		●
133	BOLT; BRKT M8X35 FLANGE SOU	0-28650-835-0	04	1	1109-	●	●
390	TUBE; NYLON SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1004-	●	●
390	TUBE; NYLON SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1004-	●	●
391	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1004-	●	●
391	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	1004-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
