◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11197 - FXZ SOUTH AFRICA ▶ 3 - Brakes, Brake System ▶ 3-77 - BRAKE PIPING; AIR,REAR ▶
3-77 — BRAKE PIPING; AIR,REAR (#21404) — 105 parça

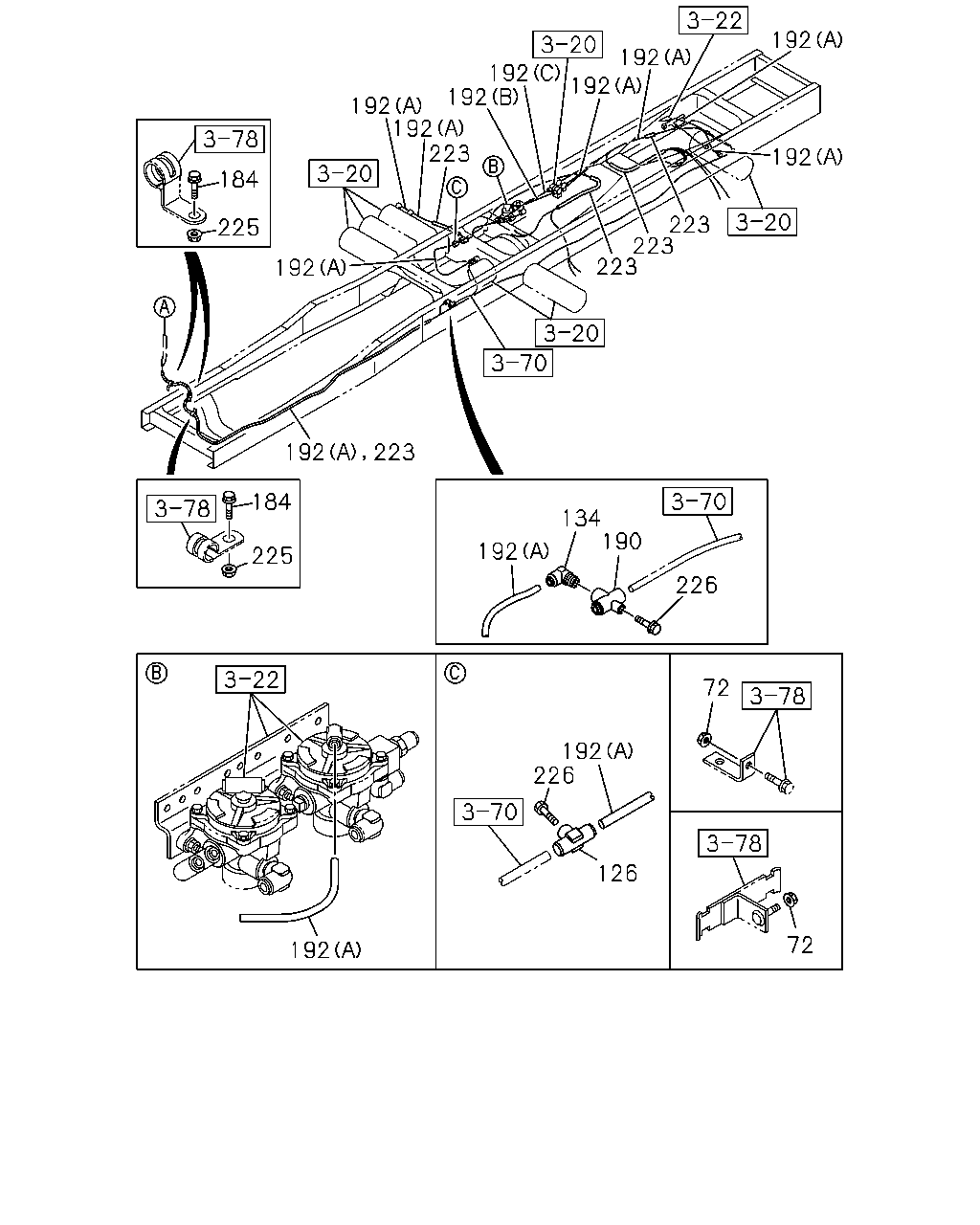

çizim 129305
192 192 192 192 192 192 192 223 192 184 225 223 223 223 192 192 223 184 134 190 192 225 226 72 192 226 126 72 192
BalonParca AdiParca NoAdetTipApplied Date A B
72 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 1004-1108 ●
72 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 1004-1108 ●
72 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 1109- ● ●
72 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 01 1 1109- ● ●
126 UNION; NYLON TUBE
DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 1004-1108 ●
126 UNION; NYLON TUBE
DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 1109- ● ●
134 CONNECTOR
DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 1004- ●
184 BOLT; TUBE CLIP
M8X30 FLANGE 		0-28650-830-0 02 1 1109- ●
184 BOLT; TUBE CLIP
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1004-1108 ●
184 BOLT; TUBE CLIP
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1109- ● ●
184 BOLT; TUBE CLIP
M8X35 FLANGE SOU 		0-28650-835-0 02 1 1004-1108 ●
184 BOLT; TUBE CLIP
M8X35 FLANGE SOU 		0-28650-835-0 02 1 1109- ● ●
190 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1004- ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1207- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1004- ● ●
192 TUBE; NYLON
WHEEL BASE 6600MM(66W) (B) 		8-98109-852-0 01 1 1004-1108 ●
192 TUBE; NYLON
(B) 		8-98109-852-0 01 1 1109- ● ●
192 TUBE; NYLON
WHEEL BASE 6600MM(66W) (C) 		8-98122-535-0 01 1 1004-1108 ●
192 TUBE; NYLON
(C) 		8-98122-535-0 01 1 1109- ● ●
223 TUBE; CORRUGATE
EXC. BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=2000 ID=19 		1-87411-027-0 01 1 1207- ●
223 TUBE; CORRUGATE
WHEEL BASE 5000MM(50W) SERVICED BY L=6000 ID=19 		1-87411-303-0 01 1 1207- ●
223 TUBE; CORRUGATE
EXC. BRAKE SYSTEM RETARDER<RE2> SERVICED BY L=6000 ID=19 		1-87411-303-0 01 1 1207- ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1004- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1004- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=4000 ID=19 		1-87411-028-0 AR 1 1004- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1004- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=2000 ID=28 		1-87411-033-0 AR 1 1004- ● ●
223 TUBE; CORRUGATE
SERVICED BY L=6000 ID=19 		1-87411-303-0 AR 1 1004- ● ●
225 NUT; TUBE CLIP
M8 FLANGE SOU 		0-91180-108-0 05 1 1109- ●
225 NUT; TUBE CLIP
M8 FLANGE SOU 		0-91180-108-0 03 1 1004- ●
226 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 1004-1108 ●
226 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 1004-1108 ●
226 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 1109- ● ●
226 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 1109- ●

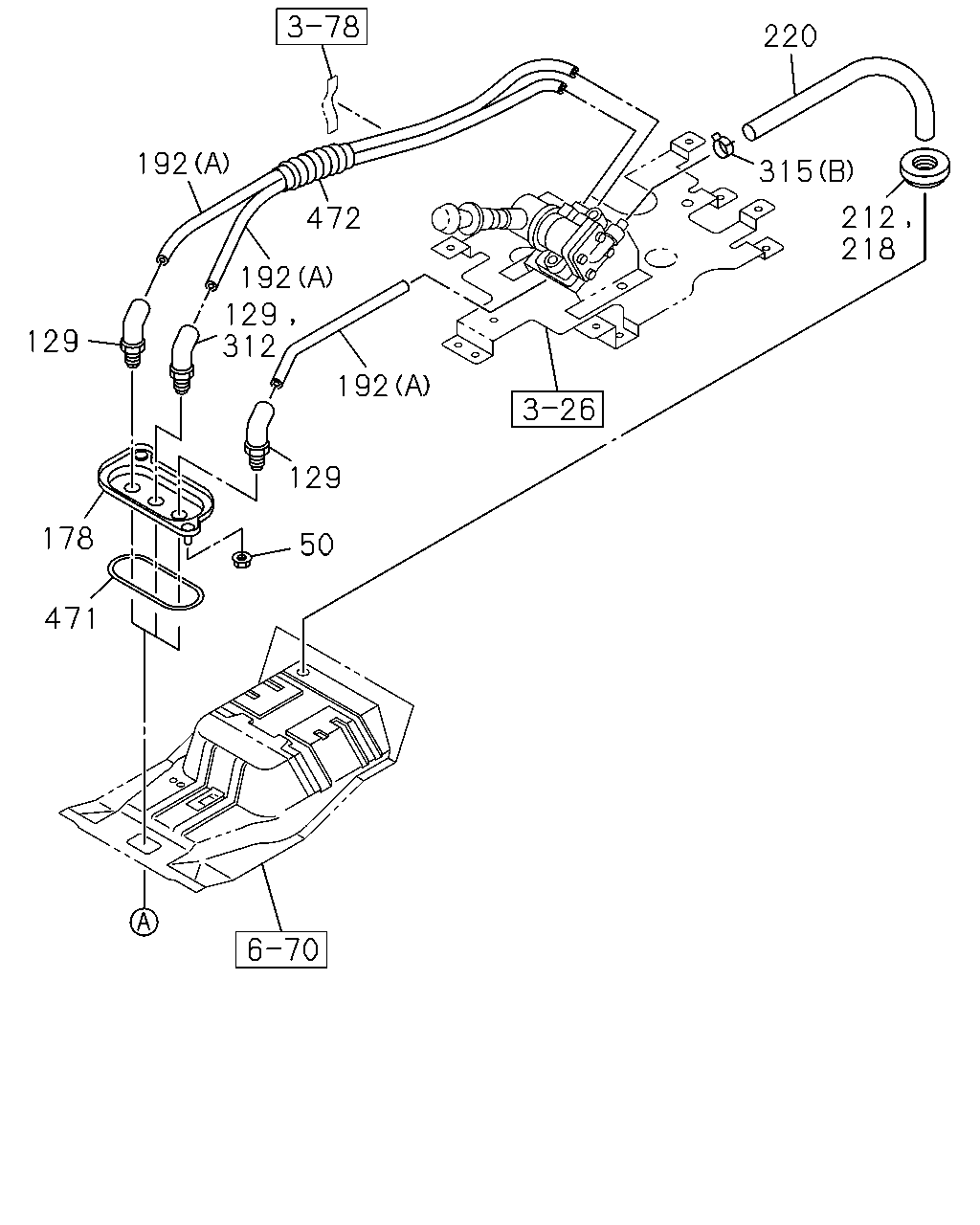

çizim 129312
220 192 315 212 218 472 192 129 312 129 192 129 178 50 471
BalonParca AdiParca NoAdetTipApplied Date A B
50 NUT; UNION BRKT
M8 FLANGE SOU 		0-91180-108-0 02 1 1004-1108 ●
50 NUT; UNION BRKT
M8 FLANGE SOU 		0-91180-108-0 02 1 1109- ● ●
129 CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW 		8-97611-963-1 01 1 1109-1205 ●
129 CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW 		8-97611-963-1 01 1 1004-1101 ●
129 CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW 		8-97611-963-1 02 1 1102-1108 ●
129 CONNECTOR; NYLON TUBE
DIN13 & M18 ELBOW 		8-97611-963-1 02 1 1109- ● ●
178 BRACKET; UNION 8-98017-056-1 01 1 1109- ●
178 BRACKET; UNION 8-98017-054-1 01 1 1004- ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1207- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1004- ● ●
192 TUBE; NYLON
WHEEL BASE 6600MM(66W) (B) 		8-98109-852-0 01 1 1004-1108 ●
192 TUBE; NYLON
(B) 		8-98109-852-0 01 1 1109- ● ●
192 TUBE; NYLON
WHEEL BASE 6600MM(66W) (C) 		8-98122-535-0 01 1 1004-1108 ●
192 TUBE; NYLON
(C) 		8-98122-535-0 01 1 1109- ● ●
212 GROMMET; AIR PIPE
OD=24 SOU 		9-61166-007-0 01 1 1102-1102 ●
218 GROMMET; VINYL HOSE
OD=24 SOU 		9-61166-007-0 01 1 1103-1108 ●
218 GROMMET; VINYL HOSE
OD=24 SOU 		9-61166-007-0 01 1 1109- ● ●
218 GROMMET; VINYL HOSE
OD=24 SOU 		9-61166-007-0 01 1 1004-1101 ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 SOU 		9-09914-701-0 01 1 1004-1108 ●
220 HOSE; VINYL,EXH,PARKING BRK VLV
L=260 ID=9.5 SERVICED BY L=10000 SOU 		9-09914-701-0 01 1 1109- ● ●
312 CONNECTOR; SUPPLY
DIN13 & M18 ELBOW 		8-97611-963-1 01 1 1206- ●
312 CONNECTOR; SUPPLY
DIN13 & M18 ELBOW 		8-97611-963-1 01 1 1004-1101 ●
315 CLIP
(B) ID=14 SOU 		8-94238-572-0 01 1 1004-1108 ●
315 CLIP
(B) ID=14 SOU 		8-94238-572-0 01 1 1109- ● ●
315 CLIP
WHEEL BASE 6600MM(66W) (A) L=350 		1-09707-183-0 01 1 1004- ●
471 SEAL; BRKT
SOU 		1-79738-832-0 01 1 1004-1108 ●
471 SEAL; BRKT
SOU 		1-79738-832-0 01 1 1109- ● ●
472 TUBE; SPUTTER 8-98108-051-0 02 1 1109- ●
472 TUBE; SPUTTER 8-98108-051-0 01 1 1004- ●

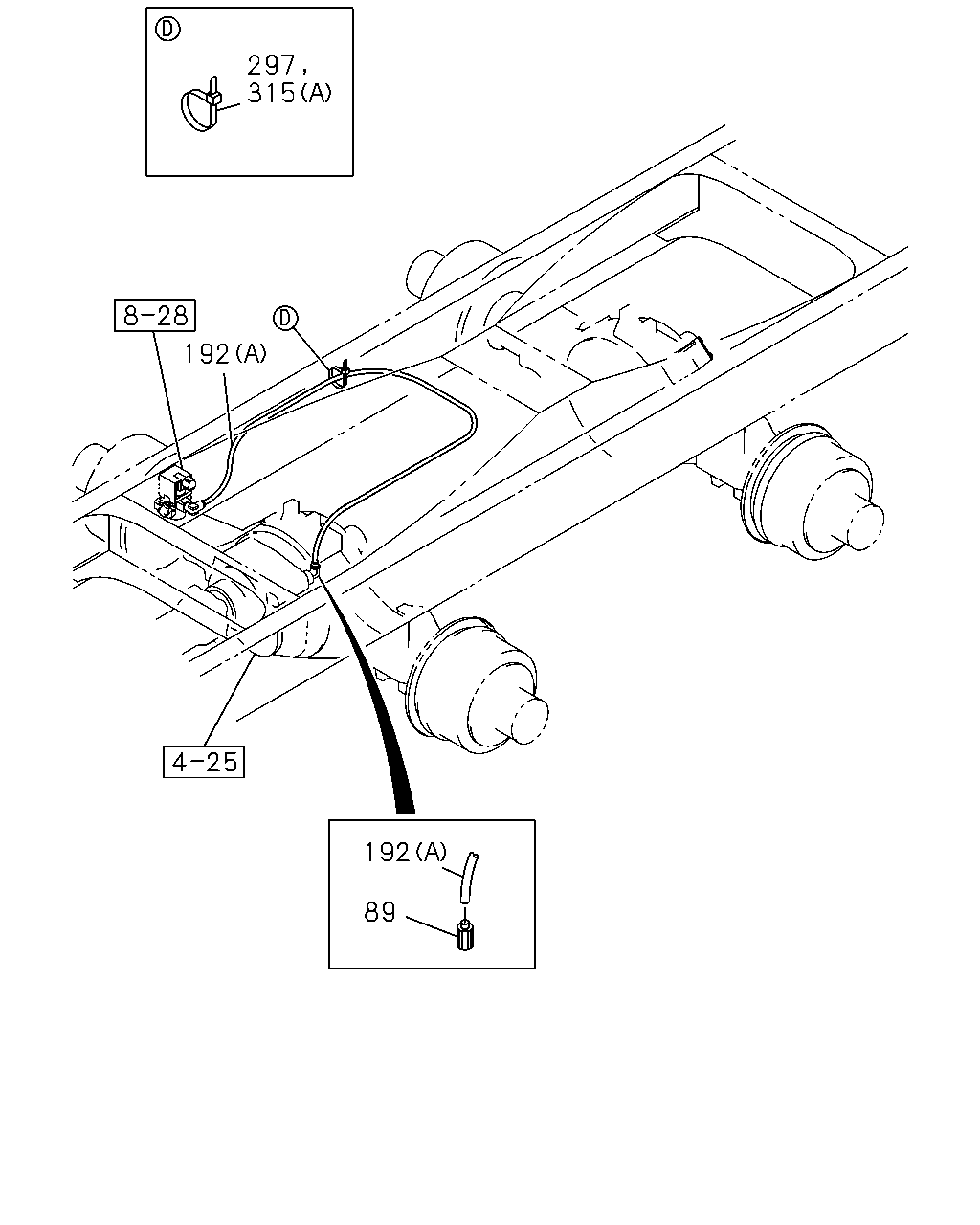

çizim 129324
297 315 192 192 89
BalonParca AdiParca NoAdetTipApplied Date A B
89 CONNECTOR; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1004-1108 ●
89 CONNECTOR; NYLON TUBE
DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1109- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1207- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1004- ● ●
192 TUBE; NYLON
WHEEL BASE 6600MM(66W) (B) 		8-98109-852-0 01 1 1004-1108 ●
192 TUBE; NYLON
(B) 		8-98109-852-0 01 1 1109- ● ●
192 TUBE; NYLON
WHEEL BASE 6600MM(66W) (C) 		8-98122-535-0 01 1 1004-1108 ●
192 TUBE; NYLON
(C) 		8-98122-535-0 01 1 1109- ● ●
297 CLIP; BAND
WHEEL BASE 5000MM(50W) ENGINE REAR PTO(SV1) L=350 		1-09707-183-0 01 1 1109- ●
315 CLIP
(B) ID=14 SOU 		8-94238-572-0 01 1 1004-1108 ●
315 CLIP
(B) ID=14 SOU 		8-94238-572-0 01 1 1109- ● ●
315 CLIP
WHEEL BASE 6600MM(66W) (A) L=350 		1-09707-183-0 01 1 1004- ●

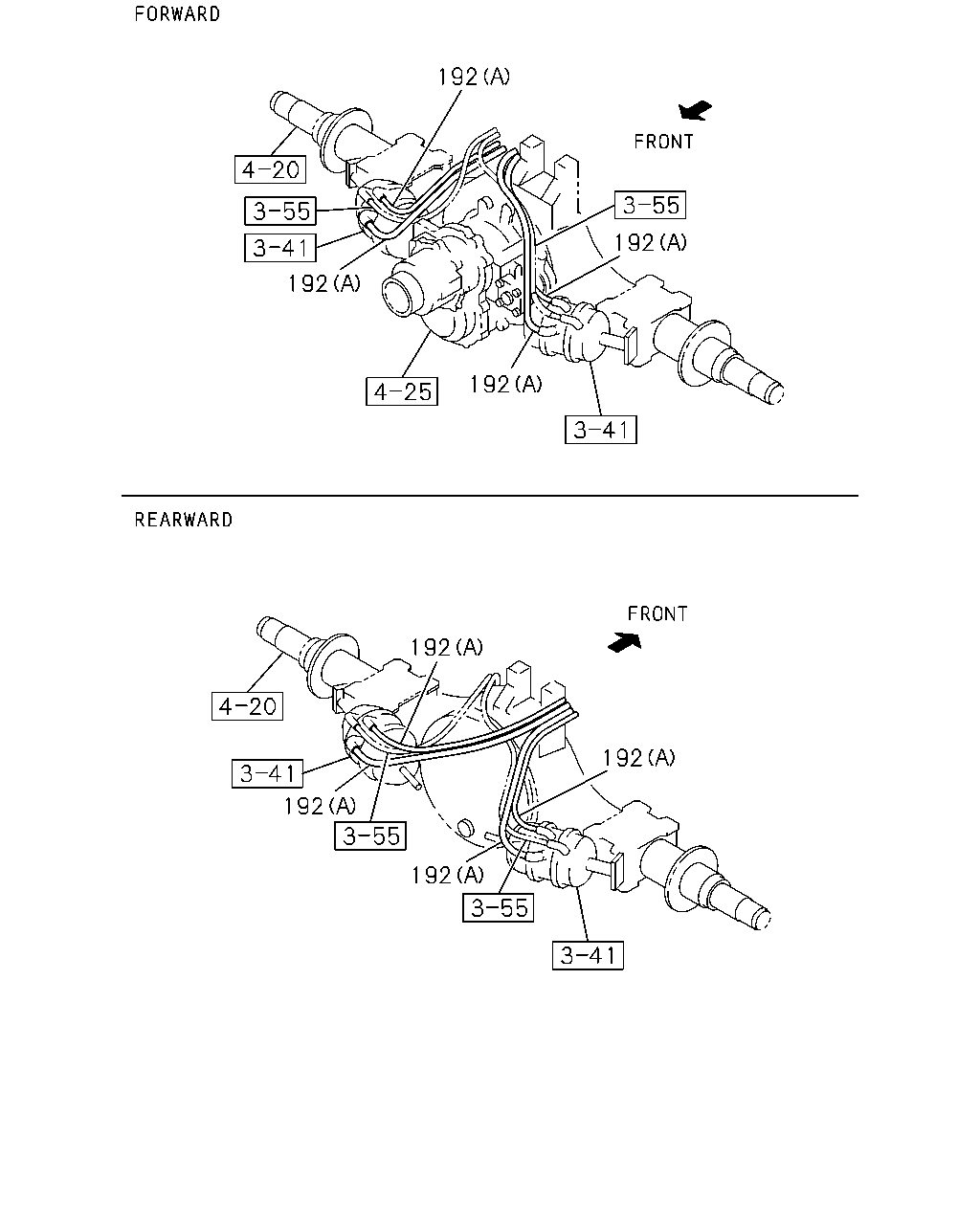

çizim 129331
192 192 192 192 192 192 192 192
BalonParca AdiParca NoAdetTipApplied Date A B
192 TUBE; NYLON
(A) SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 1207- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=6 		1-87411-003-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=12000 OD=8 		1-87411-010-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1004- ● ●
192 TUBE; NYLON
(A) SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 1004- ● ●
192 TUBE; NYLON
WHEEL BASE 6600MM(66W) (B) 		8-98109-852-0 01 1 1004-1108 ●
192 TUBE; NYLON
(B) 		8-98109-852-0 01 1 1109- ● ●
192 TUBE; NYLON
WHEEL BASE 6600MM(66W) (C) 		8-98122-535-0 01 1 1004-1108 ●
192 TUBE; NYLON
(C) 		8-98122-535-0 01 1 1109- ● ●
