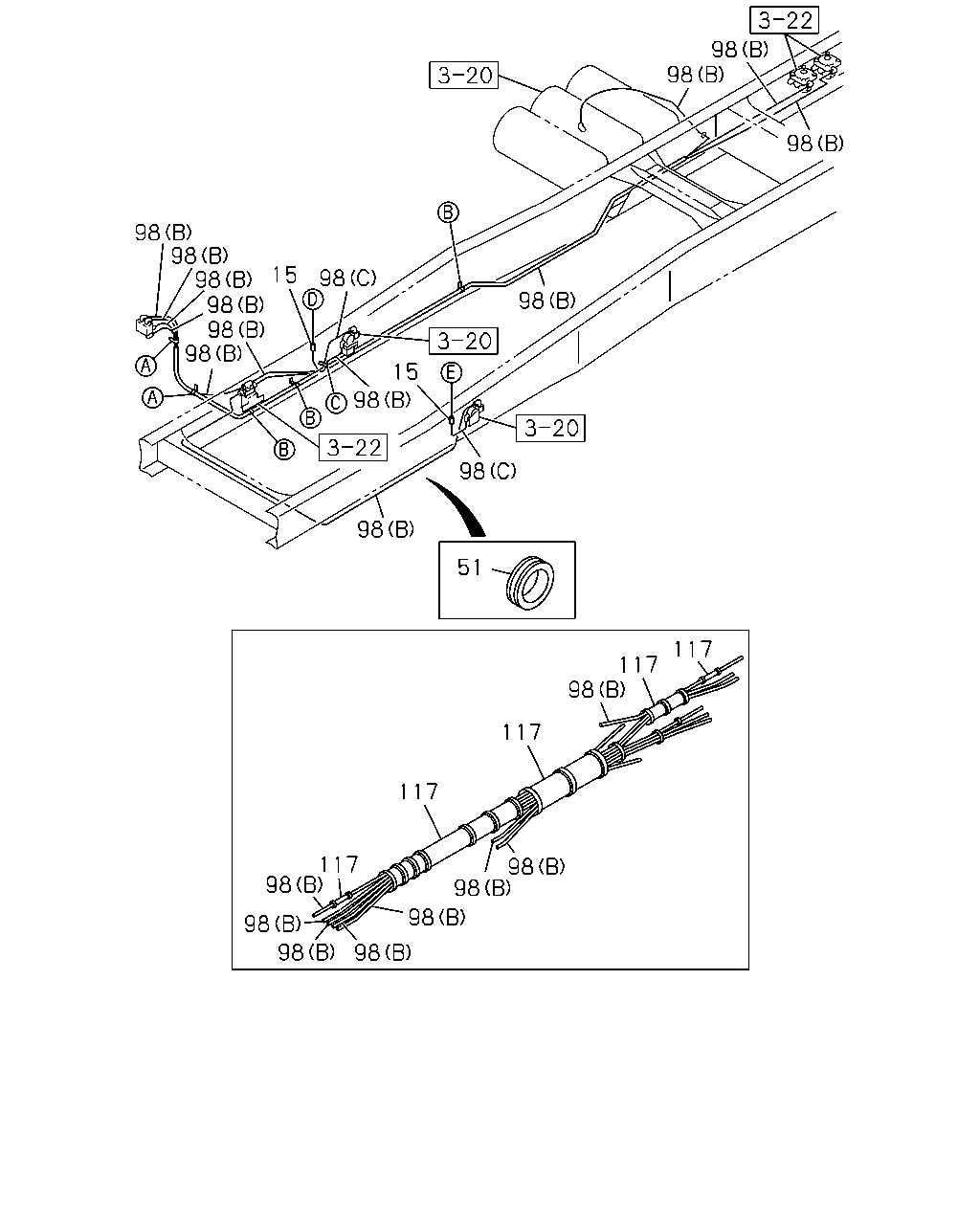

3-75 — BRAKE PIPING; AIR,FRONT (#21403) — 129 parça

98 98 98 98 98 98 98 98 98 15 98 98 15 98 98 98 51 117 117 98 117 117 117 98 98 98 98 98 98 98

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT SOU	1-09660-877-0	02	1	1004-1108	●
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT SOU	1-09660-877-0	02	1	1109-1201	●	●
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT SOU	1-09660-877-0	01	1	1202-	●	●
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT SOU	1-09660-877-0	01	1	1202-	●	●
51	GROMMET; NYLON TUBE EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=28 OD=35 T=25	1-09332-011-1	01	1	1004-	●
51	GROMMET; NYLON TUBE EXC. ANTILOCK BRAKE SYSTEM(BFA) ID=28 OD=35 T=17	9-09956-256-2	01	1	1004-	●
98	TUBE; NYLON (C) L=170 OD=12	1-49222-063-0	01	1	1004-1108	●
98	TUBE; NYLON (C) L=170 OD=12	1-49222-063-0	01	1	1004-1108	●
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) L=170 OD=12	1-49222-063-0	01	1	1109-1504	●	●
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) L=170 OD=12	1-49222-063-0	01	1	1109-1504	●	●
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C)	8-98302-565-0	01	1	1505-	●	●
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C)	8-98302-565-0	01	1	1505-	●	●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1004-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1004-	●	●
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1004-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1004-	●	●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1004-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1004-	●	●
98	TUBE; NYLON (A)	8-98091-307-0	01	1	1004-1108	●
98	TUBE; NYLON (A)	8-98091-307-0	01	1	1109-	●	●
98	TUBE; NYLON EXC. ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98086-217-0	01	1	1004-	●
98	TUBE; NYLON EXC. ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98106-552-0	01	1	1004-	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1004-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1004-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=13	1-87411-023-0	AR	1	1004-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1004-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1004-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1004-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	1004-	●	●

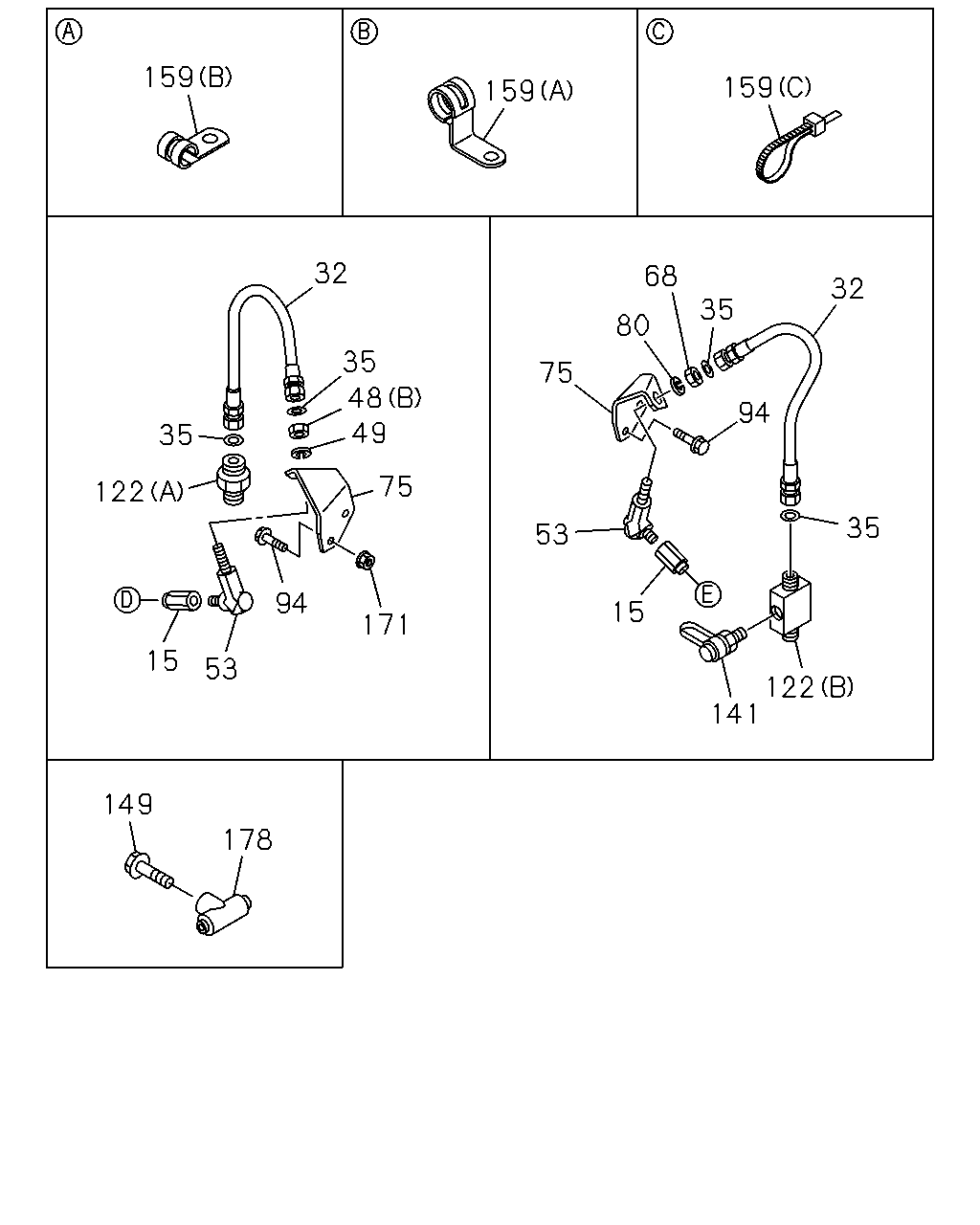

159 159 159 32 68 32 35 80 35 75 48 49 94 35 75 122 35 53 94 15 171 15 53 122 141 149 178

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT SOU	1-09660-877-0	02	1	1004-1108	●
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT SOU	1-09660-877-0	02	1	1109-1201	●	●
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT SOU	1-09660-877-0	01	1	1202-	●	●
15	CONNECTOR; AIR PIPE DIN12 & M20 STRAIGHT SOU	1-09660-877-0	01	1	1202-	●	●
32	HOSE; FLEX,FRT	0-87847-430-1	02	1	1004-1108	●
32	HOSE; FLEX,FRT	0-87847-430-1	02	1	1109-	●	●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	1004-1108	●
35	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	04	1	1109-	●	●
48	NUT; UNION BRKT (B) M20 SOU	0-91111-520-0	01	1	1004-1108	●
48	NUT; UNION BRKT (B) M20 SOU	0-91111-520-0	01	1	1109-	●	●
48	NUT; UNION BRKT (A) M6 FLANGE SOU	0-91180-106-0	02	1	1004-1108	●
48	NUT; UNION BRKT (A) M6 FLANGE SOU	0-91180-106-0	02	1	1109-	●	●
49	WASHER; LK,UNION BRKT ID=20.2	0-91510-520-0	01	1	1004-1108	●
49	WASHER; LK,UNION BRKT ID=20.2	0-91510-520-0	01	1	1109-	●	●
53	UNION; ELBOW M20 & M20 ELBOW	1-09654-128-1	02	1	1004-1108	●
53	UNION; ELBOW M20 & M20 ELBOW	1-09654-128-1	02	1	1109-	●	●
68	NUT; UNION M20 SOU	0-91111-520-0	01	1	1004-1108	●
68	NUT; UNION M20 SOU	0-91111-520-0	01	1	1109-	●	●
75	BRACKET; UNION	8-98094-075-0	01	1	1004-1108	●
75	BRACKET; UNION	8-98094-075-0	01	1	1109-	●	●
75	BRACKET; UNION	8-98094-074-0	01	1	1004-1108	●
75	BRACKET; UNION	8-98094-074-0	01	1	1109-	●	●
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	01	1	1004-1108	●
80	WASHER; LK,UNION ID=20.2	0-91510-520-0	01	1	1109-	●	●
94	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	04	1	1004-1108	●
94	BOLT; BRKT M8X30 FLANGE	0-28650-830-0	04	1	1109-	●	●
122	CONNECTOR; FLEX HOSE (B) R3/8 & RC1/4 & M20 3WAY	1-09661-607-0	01	1	1004-1108	●
122	CONNECTOR; FLEX HOSE (B) R3/8 & RC1/4 & M20 3WAY	1-09661-607-0	01	1	1109-	●	●
122	CONNECTOR; FLEX HOSE (A) M20 & PT3/8	1-09660-731-0	01	1	1004-1108	●
122	CONNECTOR; FLEX HOSE (A) M20 & PT3/8	1-09660-731-1	01	1	1109-	●	●
141	CONNECTOR; TEST R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1004-1108	●
141	CONNECTOR; TEST R1/4 & M16 TEST CONNECTOR	1-47459-013-1	01	1	1109-	●	●
149	BOLT; UNION EXC. ANTILOCK BRAKE SYSTEM(BFA) M8X25 FLANGE SOU	0-28650-825-0	01	1	1004-	●
149	BOLT; UNION EXC. ANTILOCK BRAKE SYSTEM(BFA) M8X20 FLANGE	0-28650-820-0	01	1	1004-	●
159	CLIP; NYLON TUBE WHEEL BASE 5000MM(50W) (C) L=350	1-09707-183-0	25	1	1109-	●
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	25	1	1109-		●
159	CLIP; NYLON TUBE (A) ID=45 H=31 L=35	1-09701-308-0	01	1	1109-		●
159	CLIP; NYLON TUBE (B) ID=29 L=35	5-09700-293-1	02	1	1109-		●
159	CLIP; NYLON TUBE (A) ID=31 H=30 L=35	1-09700-994-0	02	1	1004-1108	●
159	CLIP; NYLON TUBE (A) ID=31 H=30 L=35	1-09700-994-0	02	1	1109-	●	●
159	CLIP; NYLON TUBE (B) ID=26 L=26	1-09701-236-0	01	1	1004-	●
159	CLIP; NYLON TUBE (C) L=350	1-09707-183-0	18	1	1004-1108	●
159	CLIP; NYLON TUBE WHEEL BASE 6600MM(66W) (C) L=350	1-09707-183-0	18	1	1109-	●
159	CLIP; NYLON TUBE (B) ID=29 L=35	5-09700-293-1	01	1	1004-	●
159	CLIP; NYLON TUBE (B) ID=39 L=33	8-98009-359-0	01	1	1004-1108	●
159	CLIP; NYLON TUBE (B) ID=39 L=33	8-98009-359-0	01	1	1109-	●	●
171	NUT; BRACKET VIN MODEL YEAR 2011<VZB> M8 FLANGE SOU	0-91180-108-0	04	1	1109-	●
171	NUT; BRACKET M8 FLANGE SOU	0-91180-108-0	04	1	1109-		●
178	UNION EXC. ANTILOCK BRAKE SYSTEM(BFA) DIN7.5X2 & M8 2WAY	1-09661-128-0	02	1	1004-	●

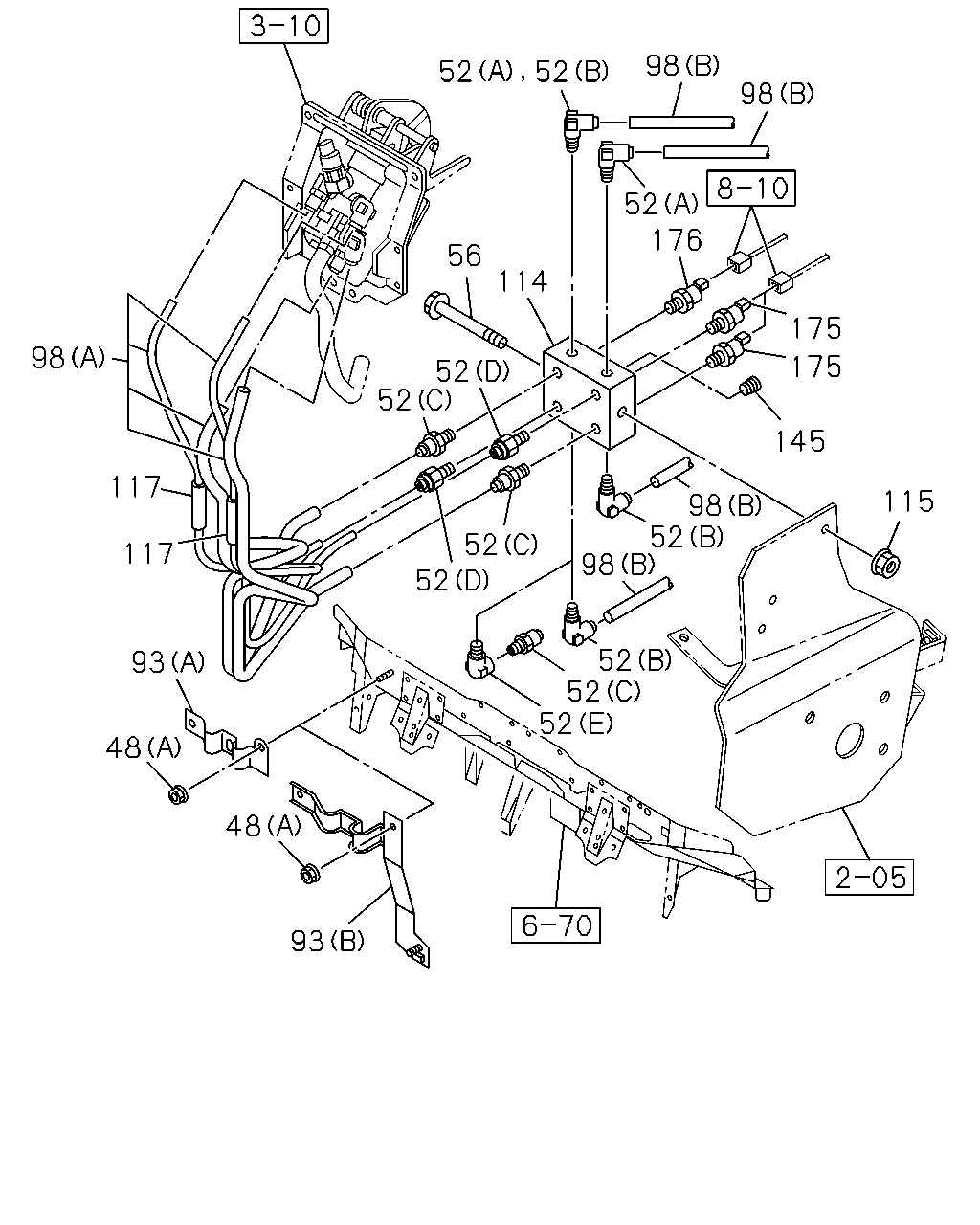

98 52 52 98 52 176 56 114 175 98 175 52 52 145 117 115 98 52 98 52 52 117 52 52 52 93 48 48 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
48	NUT; UNION BRKT (B) M20 SOU	0-91111-520-0	01	1	1004-1108	●
48	NUT; UNION BRKT (B) M20 SOU	0-91111-520-0	01	1	1109-	●	●
48	NUT; UNION BRKT (A) M6 FLANGE SOU	0-91180-106-0	02	1	1004-1108	●
48	NUT; UNION BRKT (A) M6 FLANGE SOU	0-91180-106-0	02	1	1109-	●	●
52	CONNECTOR; NYLON TUBE (E) PT1/4 & PT1/4 2WAY SOU	1-09660-693-0	01	1	1109-		●
52	CONNECTOR; NYLON TUBE (A) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	01	1	1109-		●
52	CONNECTOR; NYLON TUBE (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	03	1	1109-		●
52	CONNECTOR; NYLON TUBE (A) DIN8 & R1/4 ELBOW SOU	1-09660-956-0	02	1	1004-	●
52	CONNECTOR; NYLON TUBE (B) DIN12 & R1/4 ELBOW	1-09660-958-0	02	1	1004-1108	●
52	CONNECTOR; NYLON TUBE (B) DIN12 & R1/4 ELBOW	1-09660-958-0	02	1	1109-	●	●
52	CONNECTOR; NYLON TUBE (D) DIN8 R1/4 STRAIGHT SOU	1-09660-963-0	02	1	1004-1108	●
52	CONNECTOR; NYLON TUBE (D) DIN8 R1/4 STRAIGHT SOU	1-09660-963-0	02	1	1109-	●	●
52	CONNECTOR; NYLON TUBE (C) DIN12 & R1/4 STRAIGHT	1-09660-967-0	02	1	1004-	●
56	BOLT; UNION BRKT M8X100 FLANGE	0-28050-800-0	01	1	1004-1108	●
56	BOLT; UNION BRKT M8X100 FLANGE	0-28050-800-0	01	1	1109-	●	●
93	BRACKET; UNION,TUBE (A)	8-98044-013-0	01	1	1004-1108	●
93	BRACKET; UNION,TUBE (A)	8-98044-013-0	01	1	1109-1201	●	●
93	BRACKET; UNION,TUBE (B)	8-98186-924-0	01	1	1202-	●	●
98	TUBE; NYLON (C) L=170 OD=12	1-49222-063-0	01	1	1004-1108	●
98	TUBE; NYLON (C) L=170 OD=12	1-49222-063-0	01	1	1004-1108	●
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) L=170 OD=12	1-49222-063-0	01	1	1109-1504	●	●
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C) L=170 OD=12	1-49222-063-0	01	1	1109-1504	●	●
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C)	8-98302-565-0	01	1	1505-	●	●
98	TUBE; NYLON ANTILOCK BRAKE SYSTEM(BFA) FRONT AXLE F066(FAU),FRONT AXLE F075(FH5) (C)	8-98302-565-0	01	1	1505-	●	●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=6	1-87411-002-0	AR	1	1004-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=8	1-87411-008-0	AR	1	1004-	●	●
98	TUBE; NYLON (B) SERVICED BY L=8000 OD=8	1-87411-009-0	AR	1	1004-	●	●
98	TUBE; NYLON (B) SERVICED BY L=2000 OD=12	1-87411-011-0	AR	1	1004-	●	●
98	TUBE; NYLON (B) SERVICED BY L=4000 OD=12	1-87411-012-0	AR	1	1004-	●	●
98	TUBE; NYLON (B) SERVICED BY L=6000 OD=12	1-87411-013-0	AR	1	1004-	●	●
98	TUBE; NYLON (A)	8-98091-307-0	01	1	1004-1108	●
98	TUBE; NYLON (A)	8-98091-307-0	01	1	1109-	●	●
98	TUBE; NYLON EXC. ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98086-217-0	01	1	1004-	●
98	TUBE; NYLON EXC. ANTILOCK BRAKE SYSTEM(BFA) (C)	8-98106-552-0	01	1	1004-	●
114	UNION; NYLON TUBE SOU	8-98057-394-1	01	1	1004-1108	●
114	UNION; NYLON TUBE SOU	8-98057-394-1	01	1	1109-	●	●
115	NUT; TUBE UNION M8 FLANGE SOU	0-91180-108-0	01	1	1004-1108	●
115	NUT; TUBE UNION M8 FLANGE SOU	0-91180-108-0	01	1	1109-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=10	1-87411-019-0	AR	1	1004-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=13	1-87411-022-0	AR	1	1004-	●	●
117	TUBE; CORRUGATE SERVICED BY L=4000 ID=13	1-87411-023-0	AR	1	1004-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=19	1-87411-027-0	AR	1	1004-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=22	1-87411-029-0	AR	1	1004-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=25	1-87411-031-0	AR	1	1004-	●	●
117	TUBE; CORRUGATE SERVICED BY L=2000 ID=28	1-87411-033-0	AR	1	1004-	●	●
145	PLUG PT1/4	9-99204-513-0	01	1	1004-1108	●
145	PLUG PT1/4	9-99204-513-0	01	1	1109-	●	●
175	SENSOR; AIR PRESS THREAD R1/4	1-80220-023-1	02	1	1004-1108	●
175	SENSOR; AIR PRESS THREAD R1/4	1-80220-023-1	02	1	1109-	●	●
176	SWITCH; AIR PRESS STAMP 0.3	8-98010-857-0	01	1	1004-1108	●
176	SWITCH; AIR PRESS STAMP 0.3	8-98010-857-0	01	1	1109-	●	●
