3-70 — BRAKE PIPING; AIR,AIR MASTER (#21402) — 119 parça

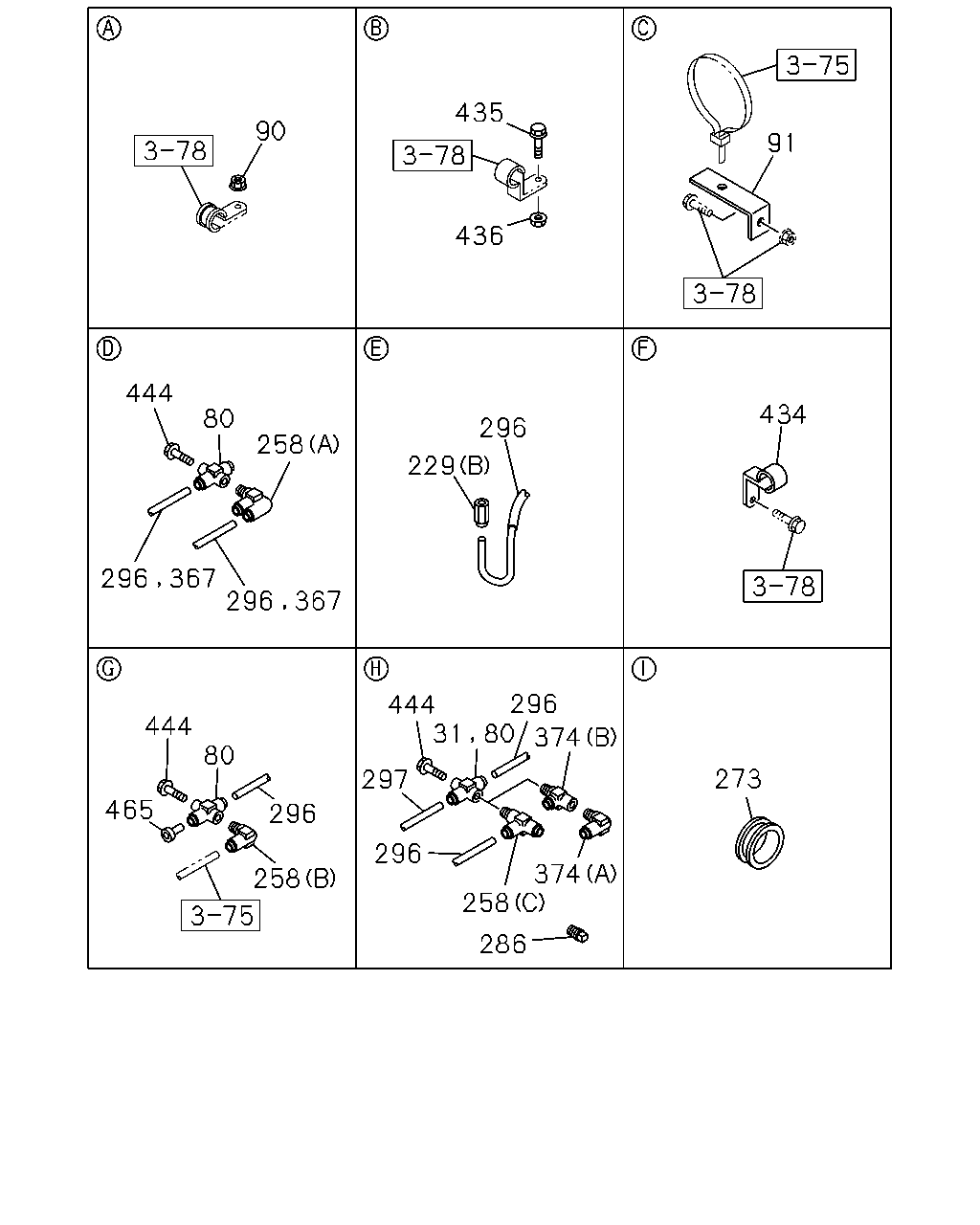

çizim 129257
435 90 91 436 444 434 80 296 258 229 296 80 444 31 444 374 80 273 297 465 296 296 374 258 258 286 296 367 296 367
BalonParca AdiParca NoAdetTipApplied Date A B
31 UNION; 3 WAY
ENGINE REAR PTO(SV1) VIN MODEL YEAR 2011<VZB> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1109- ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1004-1108 ●
80 UNION; 3 WAY
SHIFT PATTERN DOUBLE-H<EDZ> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1004-1108 ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1004-1108 ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1109- ● ●
80 UNION; 3 WAY
EXC. VIN MODEL YEAR 2011<VZB> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1109- ●
80 UNION; 3 WAY
SHIFT PATTERN DOUBLE-H<EDZ> EXC. VIN MODEL YEAR 2011<VZB> DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1109- ●
80 UNION; 3 WAY
VIN MODEL YEAR 2011<VZB> EXC. ENGINE REAR PTO(SV1) DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1109- ●
80 UNION; 3 WAY
DIN8 & RC3/8 3WAY 		1-09661-129-0 01 1 1109- ●
90 NUT; TUBE CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1004-1108 ●
90 NUT; TUBE CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1109- ● ●
91 BRACKET; TUBE CLIP
WHEEL BASE 6600MM(66W) L=60 H=30 		1-47477-716-1 02 1 1004- ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1004-1108 ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1109- ● ●
229 ADAPTER; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1004-1108 ●
229 ADAPTER; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1109- ● ●
258 CONNECTOR; NYLON TUBE
VIN MODEL YEAR 2011<VZB> EXC. ENGINE REAR PTO(SV1) (C) 		1-09660-969-0 01 1 1109- ●
258 CONNECTOR; NYLON TUBE
(C) 		1-09660-969-0 01 1 1109- ●
258 CONNECTOR; NYLON TUBE
(A) DIN12X2 & PT3/8 DOUBLE ELBOW SOU 		1-09661-026-0 01 1 1004-1108 ●
258 CONNECTOR; NYLON TUBE
(A) DIN12X2 & PT3/8 DOUBLE ELBOW SOU 		1-09661-026-0 01 1 1109- ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 1004-1108 ●
258 CONNECTOR; NYLON TUBE
EXC. VIN MODEL YEAR 2011<VZB> (B) DIN6 & R3/8 ELBOW 		1-09661-234-0 01 1 1109- ●
258 CONNECTOR; NYLON TUBE
SHIFT PATTERN DOUBLE-H<EDZ> (C) 		1-09660-969-0 01 1 1004-1006 ●
258 CONNECTOR; NYLON TUBE
SHIFT PATTERN DOUBLE-H<EDZ> (C) DIN8X2 & R3/8 3WAY SOU 		1-09660-997-0 01 1 1007-1108 ●
258 CONNECTOR; NYLON TUBE
SHIFT PATTERN DOUBLE-H<EDZ> EXC. VIN MODEL YEAR 2011<VZB> (C) DIN8X2 & R3/8 3WAY SOU 		1-09660-997-0 01 1 1109- ●
273 GROMMET
ID=32 OD=40 T=18 		1-09891-003-0 01 1 1004-1108 ●
273 GROMMET
ID=32 OD=40 T=18 		1-09891-003-0 01 1 1109- ● ●
286 PLUG; AIR PIPE
PT3/8 		9-09204-517-0 01 1 1109- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1004- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1004- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1004- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1004- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1004- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1004- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1004- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1004- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1004- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1004- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1004- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1004- ● ●
374 CONNECTOR
ENGINE REAR PTO(SV1) VIN MODEL YEAR 2011<VZB> (A) DIN6 & R1/4 ELBOW SOU 		1-09661-067-0 01 1 1109- ●
374 CONNECTOR
ENGINE REAR PTO(SV1) VIN MODEL YEAR 2011<VZB> (B) DIN8 & R3/8 & RC1/4 3WAY 		1-09661-536-0 01 1 1109- ●
434 CLIP
ID=8 H=20 L=20 		1-09700-604-0 01 1 1004-1108 ●
434 CLIP
ID=8 H=20 L=20 		1-09700-604-0 01 1 1109- ● ●
435 BOLT; CLIP
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1004-1108 ●
435 BOLT; CLIP
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1109- ● ●
436 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1004-1108 ●
436 NUT; CLIP
M8 FLANGE SOU 		0-91180-108-0 01 1 1109- ● ●
444 BOLT; UNION
M8X25 FLANGE SOU 		0-28650-825-0 01 1 1109- ●
444 BOLT; UNION
WHEEL BASE 6600MM(66W) M8X20 FLANGE 		0-28650-820-0 01 1 1004-1108 ●
444 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 01 1 1109- ● ●
444 BOLT; UNION
VIN MODEL YEAR 2011<VZB> M8X20 FLANGE 		0-28650-820-0 01 1 1109- ●
444 BOLT; UNION
M8X20 FLANGE 		0-28650-820-0 02 1 1004-1108 ●
444 BOLT; UNION
EXC. VIN MODEL YEAR 2011<VZB> M8X20 FLANGE 		0-28650-820-0 02 1 1109- ●
465 PLUG
OD=8 PLASTIC 		1-09661-616-0 01 1 1004-1108 ●
465 PLUG
EXC. VIN MODEL YEAR 2011<VZB> OD=8 PLASTIC 		1-09661-616-0 01 1 1109- ●

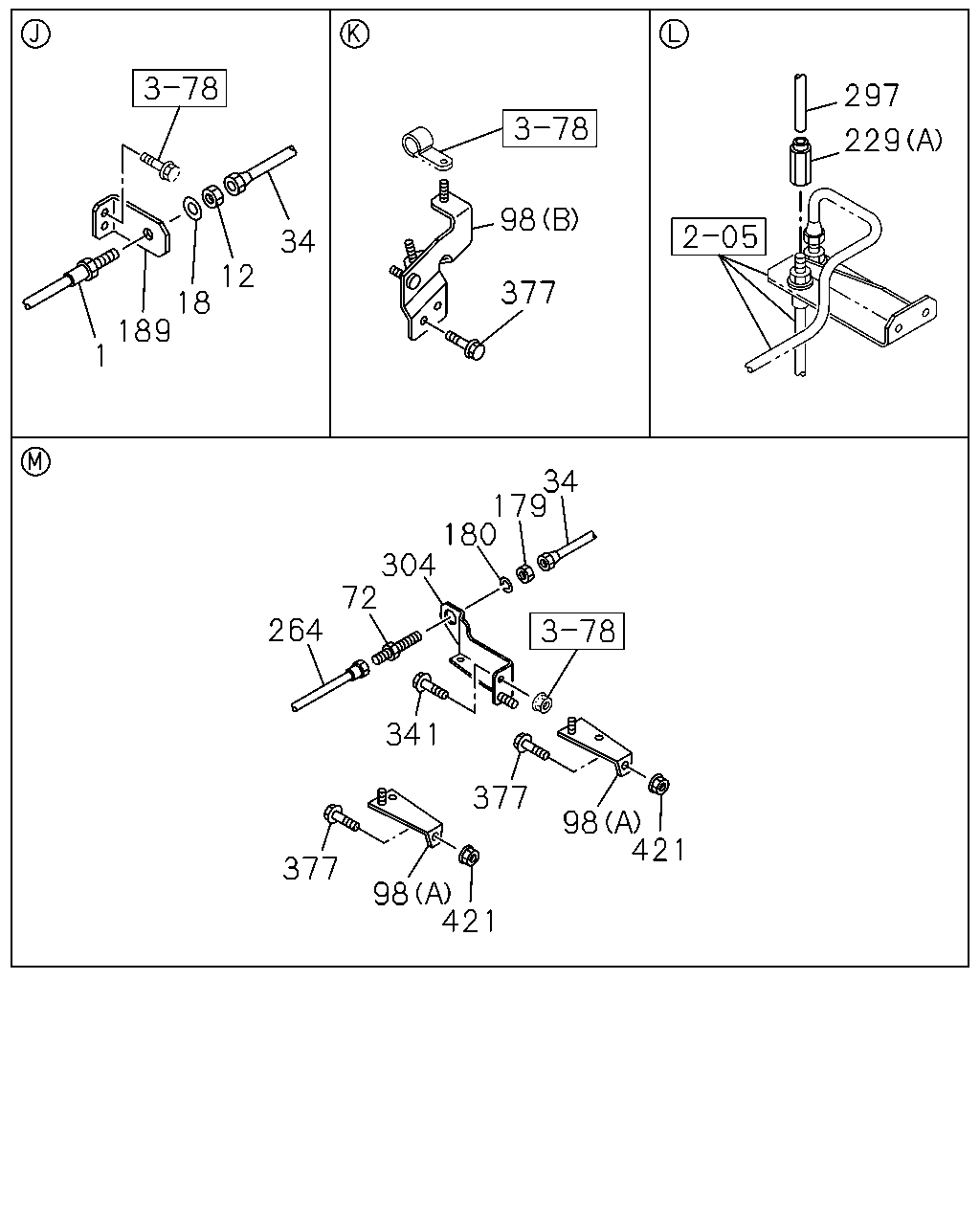

çizim 129266
297 229 98 34 12 18 189 377 1 34 179 180 304 72 264 341 377 98 421 377 98 421
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK 8-98100-332-0 01 1 1004-1108 ●
1 HOSE; FLEX,AIR TANK 8-98100-332-0 01 1 1109- ● ●
12 NUT; UNION
M22 		0-91111-522-0 01 1 1004-1108 ●
12 NUT; UNION
M22 		0-91111-522-0 01 1 1109- ● ●
18 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1004-1108 ●
18 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1109- ● ●
34 PIPE; AIR
L=1258 		8-97618-580-0 01 1 1109- ●
34 PIPE; AIR
L=1287 		8-97620-985-0 01 1 1004- ●
72 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 1004-1108 ●
72 UNION; AIR PIPE
M22 		0-92123-315-0 01 1 1109- ● ●
98 BRACKET; AIR PIPE
(A) 		8-97609-096-0 02 1 1004-1108 ●
98 BRACKET; AIR PIPE
(A) 		8-97609-096-0 02 1 1109- ● ●
98 BRACKET; AIR PIPE
(B) 		8-97610-999-0 01 1 1004-1108 ●
98 BRACKET; AIR PIPE
(B) 		8-97610-999-0 01 1 1109- ● ●
179 NUT; UNION
M22 		0-91111-522-0 01 1 1004-1108 ●
179 NUT; UNION
M22 		0-91111-522-0 01 1 1109- ● ●
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1004-1108 ●
180 WASHER; LK,UNION
ID=22.5 		0-91510-522-0 01 1 1109- ● ●
189 BRACKET; FLEX HOSE 1-47479-473-0 01 1 1004-1108 ●
189 BRACKET; FLEX HOSE 1-47479-473-0 01 1 1109- ● ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1004-1108 ●
229 ADAPTER; NYLON TUBE
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1109- ● ●
229 ADAPTER; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1004-1108 ●
229 ADAPTER; NYLON TUBE
(B) DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 1109- ● ●
264 HOSE; FLEX
ENGINE REAR PTO(SV1) L=1000 		1-09363-794-0 01 1 1102- ●
264 HOSE; FLEX
L=1150 		1-09363-791-0 01 1 1004-1101 ●
264 HOSE; FLEX
EXC. ENGINE REAR PTO(SV1) L=1150 		1-09363-791-0 01 1 1102-1108 ●
264 HOSE; FLEX
EXC. ENGINE REAR PTO(SV1) L=1150 		1-09363-791-0 01 1 1109- ●
264 HOSE; FLEX
L=1150 		1-09363-791-0 01 1 1109- ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1004- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1004- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1004- ● ●
304 BRACKET; UNION 8-97610-362-1 01 1 1004-1108 ●
304 BRACKET; UNION 8-97610-362-1 01 1 1109- ● ●
341 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1004-1108 ●
341 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1109- ● ●
377 BOLT; BRKT FIX
M8X25 FLANGE SOU 		0-28650-825-0 02 1 1004-1108 ●
377 BOLT; BRKT FIX
M8X25 FLANGE SOU 		0-28650-825-0 02 1 1109- ● ●
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 02 1 1004-1108 ●
377 BOLT; BRKT FIX
M8X30 FLANGE 		0-28650-830-0 02 1 1109- ● ●
421 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 02 1 1004-1108 ●
421 NUT; BRKT
M8 FLANGE SOU 		0-91180-108-0 02 1 1109- ● ●

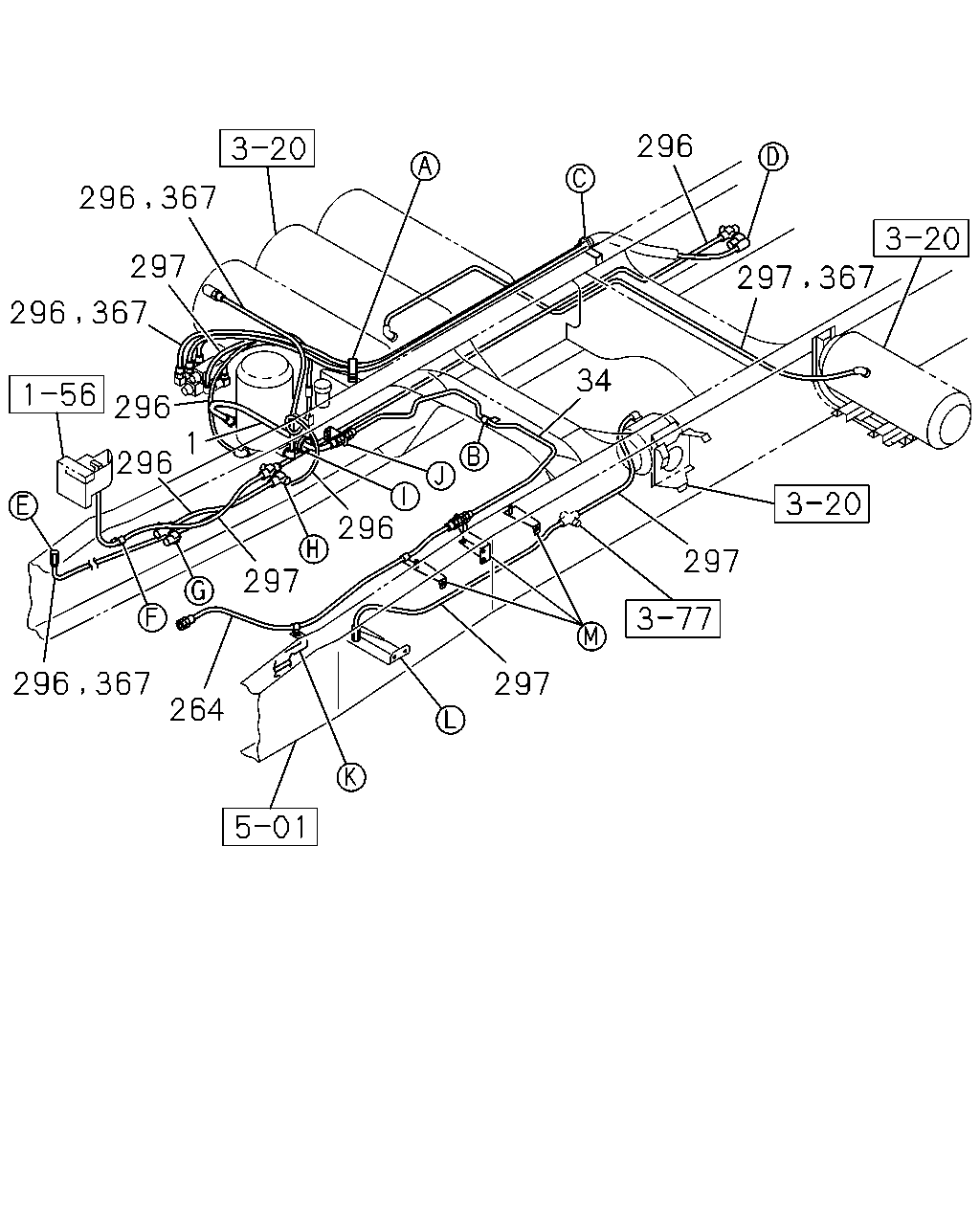

çizim 129296
296 297 34 296 1 296 296 297 297 297 264 297 367 367 296 367 296 296 367
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK 8-98100-332-0 01 1 1004-1108 ●
1 HOSE; FLEX,AIR TANK 8-98100-332-0 01 1 1109- ● ●
34 PIPE; AIR
L=1258 		8-97618-580-0 01 1 1109- ●
34 PIPE; AIR
L=1287 		8-97620-985-0 01 1 1004- ●
264 HOSE; FLEX
ENGINE REAR PTO(SV1) L=1000 		1-09363-794-0 01 1 1102- ●
264 HOSE; FLEX
L=1150 		1-09363-791-0 01 1 1004-1101 ●
264 HOSE; FLEX
EXC. ENGINE REAR PTO(SV1) L=1150 		1-09363-791-0 01 1 1102-1108 ●
264 HOSE; FLEX
EXC. ENGINE REAR PTO(SV1) L=1150 		1-09363-791-0 01 1 1109- ●
264 HOSE; FLEX
L=1150 		1-09363-791-0 01 1 1109- ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 1004- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=6 		1-87411-002-0 AR 1 1004- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1004- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1004- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1004- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 1004- ● ●
297 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 1004- ● ●
297 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 1004- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=7 		1-87411-016-0 AR 1 1004- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 1004- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 1004- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 1004- ● ●
