◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FXZ ▶ 11197 - FXZ SOUTH AFRICA ▶ 3 - Brakes, Brake System ▶ 3-58 - FIXING PARTS; OIL PIPING ▶
3-58 — FIXING PARTS; OIL PIPING (#21401) — 28 parça

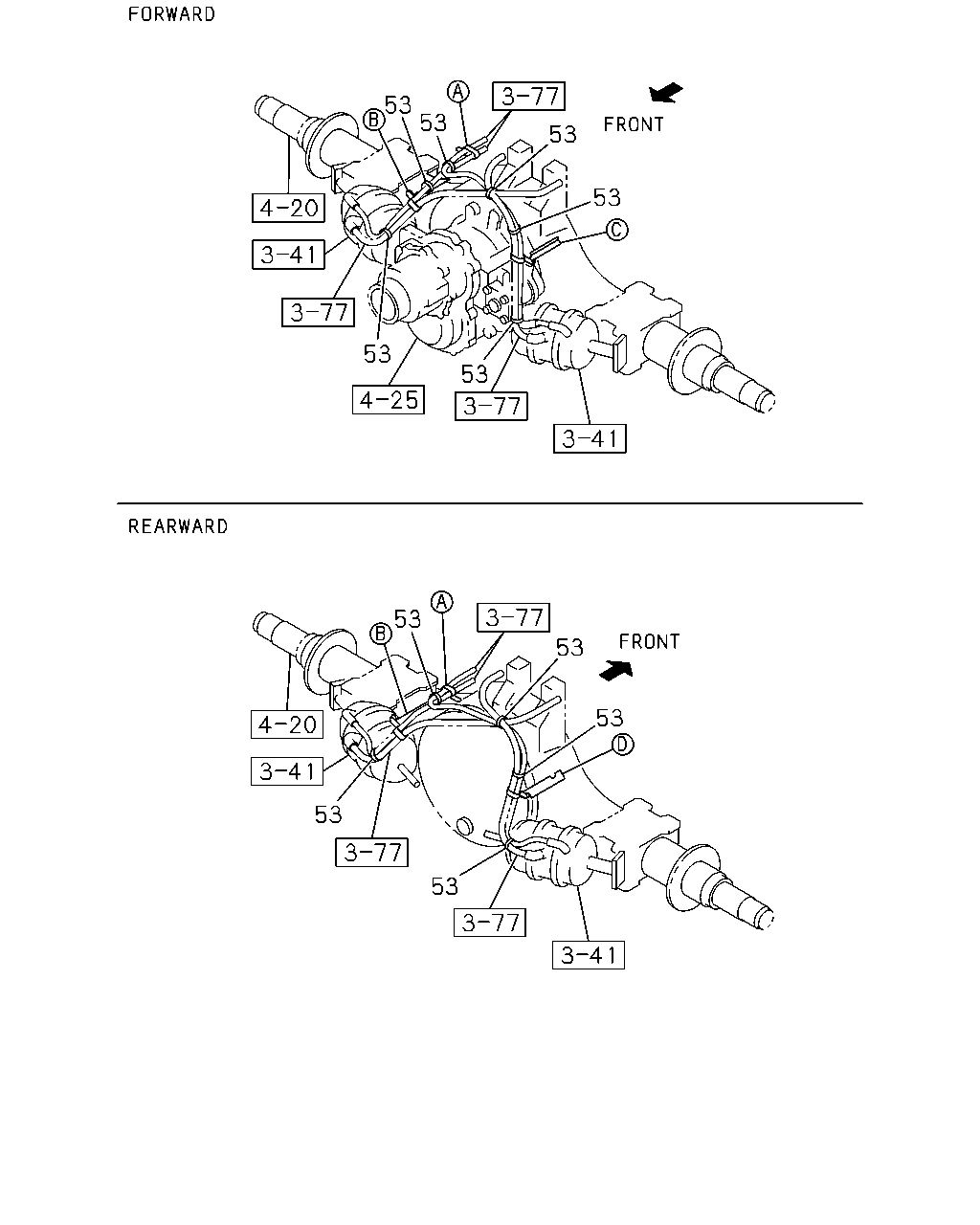

çizim 129258
53 53 53 53 53 53 53 53 53 53 53
BalonParca AdiParca NoAdetTipApplied Date A B
53 CLIP; UNION
L=250 		1-09707-126-0 12 1 1004-1108 ●
53 CLIP; UNION
L=250 		1-09707-126-0 12 1 1109- ● ●

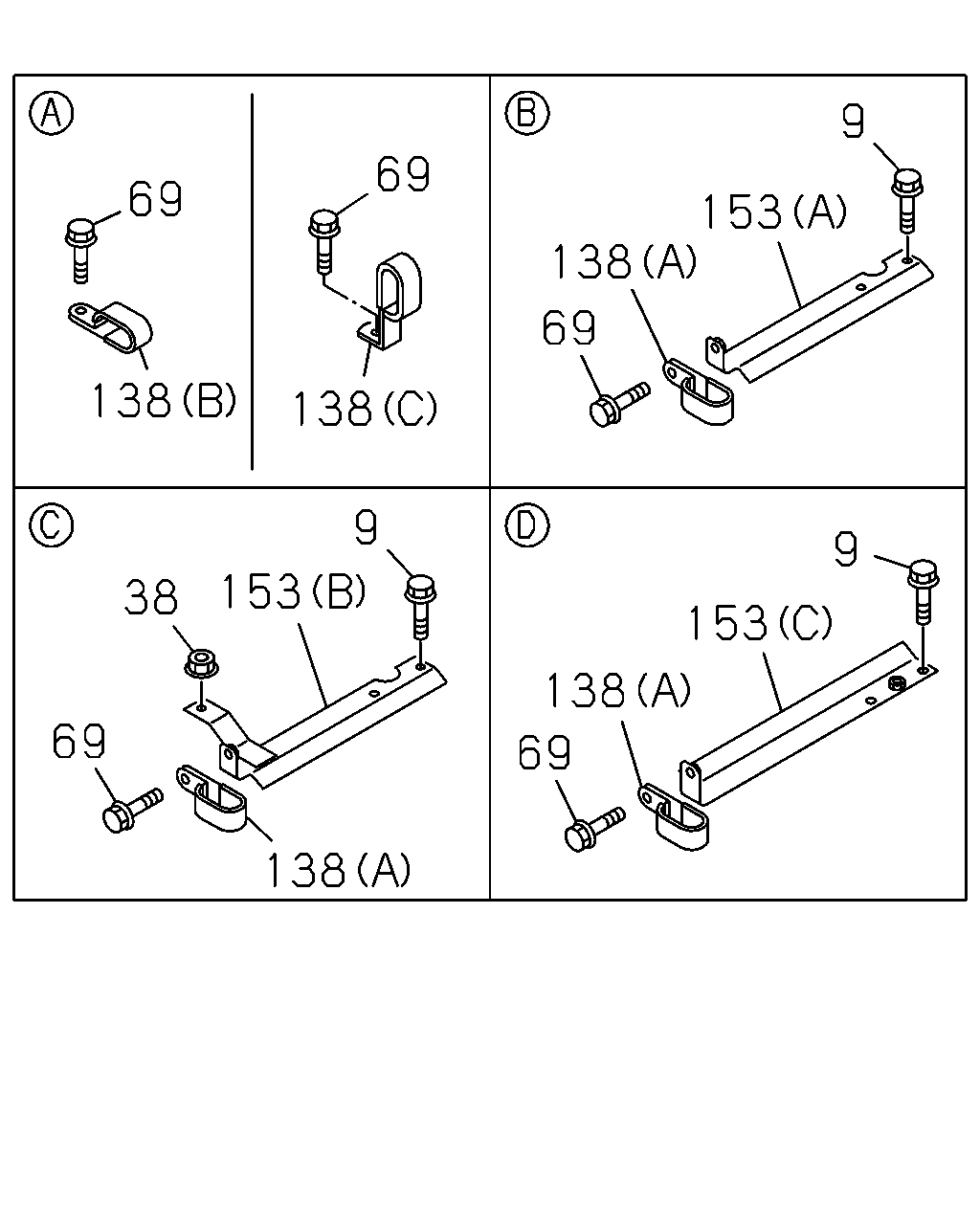

çizim 129288
9 69 69 153 138 69 138 138 9 9 153 38 153 138 69 69 138
BalonParca AdiParca NoAdetTipApplied Date A B
9 BOLT; BRKT
M8X16 FLANGE SOU 		0-28050-816-0 08 1 1004-1108 ●
9 BOLT; BRKT
M8X16 FLANGE SOU 		0-28050-816-0 08 1 1109- ● ●
38 NUT; CLIP FIX
M8 FLANGE SOU 		0-91180-108-0 01 1 1004-1108 ●
38 NUT; CLIP FIX
M8 FLANGE SOU 		0-91180-108-0 01 1 1109- ● ●
69 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 05 1 1004-1108 ●
69 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 05 1 1109- ● ●
138 CLIP; TUBE
(B) ID=11X2 L=20 		0-95325-035-0 01 1 1004-1108 ●
138 CLIP; TUBE
(B) ID=11X2 L=20 		0-95325-035-0 01 1 1109- ● ●
138 CLIP; TUBE
(C) ID=11X2 H=35 L=20 		1-09700-847-0 01 1 1004-1108 ●
138 CLIP; TUBE
(C) ID=11X2 H=35 L=20 		1-09700-847-0 01 1 1109- ● ●
138 CLIP; TUBE
(A) ID=35 L=33 		1-09700-945-0 05 1 1004-1108 ●
138 CLIP; TUBE
(A) ID=35 L=33 		1-09700-945-0 05 1 1109- ● ●
153 BRACKET; NYLON TUBE
(C) FORWARD RH 		1-42129-494-0 01 1 1109-1206 ●
153 BRACKET; NYLON TUBE
BRAKE SYSTEM RETARDER<RE2> (C) FORWARD RH 		1-42129-494-0 01 1 1207- ●
153 BRACKET; NYLON TUBE
(C) 		1-42129-486-1 02 1 1004-1101 ●
153 BRACKET; NYLON TUBE
(C) 		1-42129-486-1 01 1 1102-1108 ●
153 BRACKET; NYLON TUBE
(C) 		1-42129-486-1 01 1 1102-1108 ●
153 BRACKET; NYLON TUBE
(C) GXZ REARWARD LH 		1-42129-486-1 01 1 1109-1206 ● ●
153 BRACKET; NYLON TUBE
(C) GXZ REARWARD LH 		1-42129-486-1 01 1 1109-1206 ●
153 BRACKET; NYLON TUBE
(C) GXZ REARWARD LH 		1-42129-486-1 01 1 1207- ● ●
153 BRACKET; NYLON TUBE
(C) GXZ REARWARD LH 		1-42129-486-1 01 1 1207- ●
153 BRACKET; NYLON TUBE
EXC. BRAKE SYSTEM RETARDER<RE2> (C) GXZ REARWARD LH 		1-42129-486-1 01 1 1207- ●
153 BRACKET; NYLON TUBE
(A) 		1-42129-487-1 01 1 1004-1108 ●
153 BRACKET; NYLON TUBE
(A) 		1-42129-487-1 01 1 1109- ● ●
153 BRACKET; NYLON TUBE
(B) 		1-42129-500-0 01 1 1004-1108 ●
153 BRACKET; NYLON TUBE
(B) 		1-42129-500-0 01 1 1109- ● ●
