◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CHR ▶ 10648 - CHR/CJR/CQR ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶

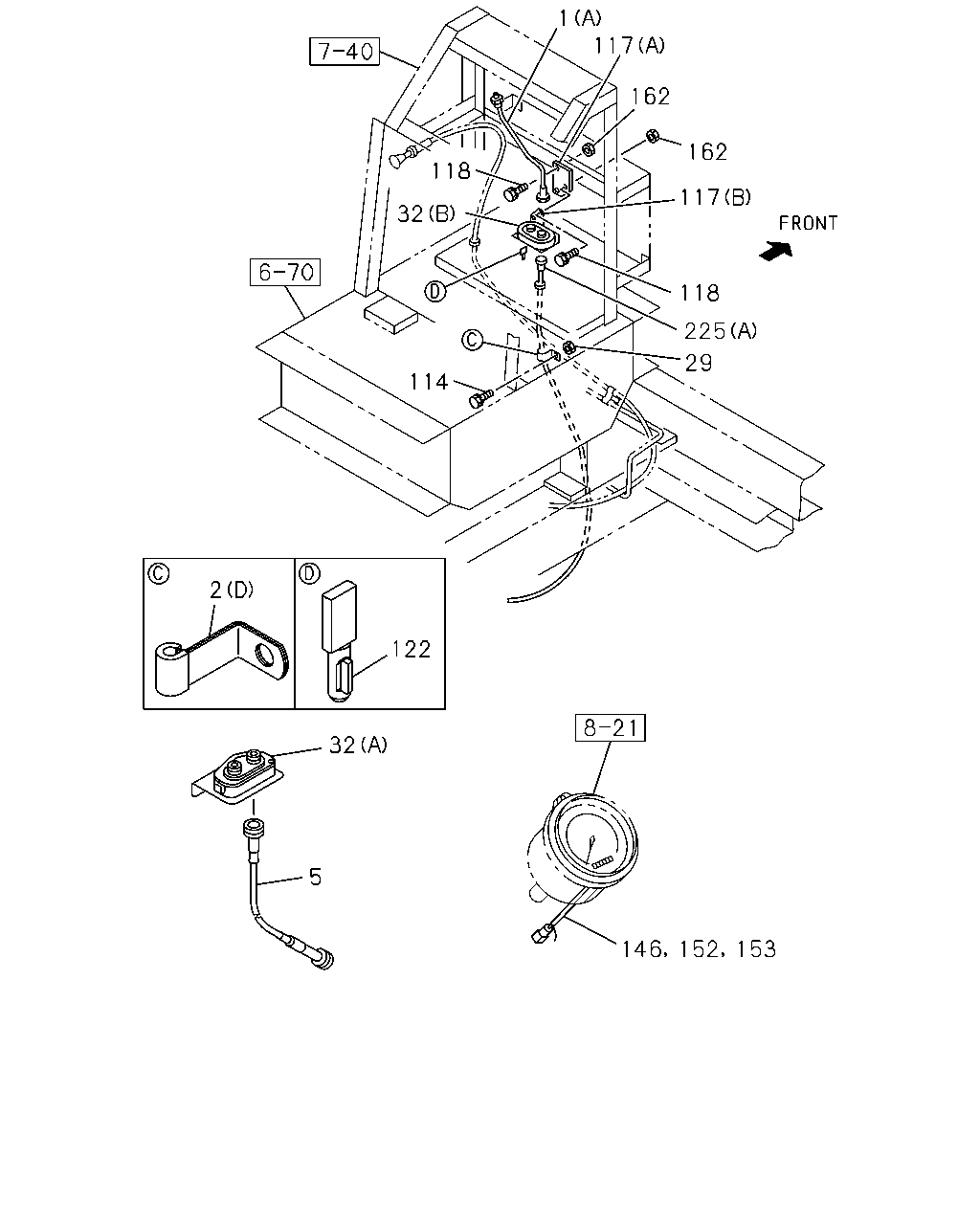

8-20 — METER CABLE (#2140) — 234 parça
çizim 93893
1 117 162 162 118 117 32 118 225 29 114 2 122 32 5 146 152 153
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; FLEX,SPD TO CONN
AXLE RATIO 2 SPEED<W9Y> (A) L=350 		1-83123-499-0 01 1 9001-9508 ● ●
1 SHAFT; FLEX,SPD TO CONN
AXLE RATIO 2 SPEED<W9Y> EXC. TACHOGRAPH 120KM/H(SM8),MILE TACHOGRAPH(UC5) (A) L=350 		1-83123-499-0 01 1 9509- ● ●
1 SHAFT; FLEX,SPD TO CONN
SINGLE SPEED-AXLE RATIO<W9Z> EXC. TACHOGRAPH 120KM/H(SM8),MILE TACHOGRAPH(UC5) (A) L=350 		1-83123-258-1 01 1 9001- ● ●
1 SHAFT; FLEX,SPD TO CONN
TACHOGRAPH 120KM/H(SM8),MILE TACHOGRAPH(UC5) AXLE RATIO 2 SPEED<W9Y> (A) L=290 		1-83123-172-2 01 1 9509- ● ●
1 SHAFT; FLEX,SPD TO CONN
TACHOGRAPH 120KM/H(SM8),MILE TACHOGRAPH(UC5) (A) L=300 		1-83123-228-1 01 1 9001-9104 ● ●
1 SHAFT; FLEX,SPD TO CONN
TACHOGRAPH 120KM/H(SM8),MILE TACHOGRAPH(UC5) (A) L=300 		1-83123-173-1 01 1 9105-9112 ● ●
1 SHAFT; FLEX,SPD TO CONN
TACHOGRAPH 120KM/H(SM8),MILE TACHOGRAPH(UC5) SINGLE SPEED-AXLE RATIO<W9Z> (A) L=300 		1-83123-173-1 01 1 9201- ● ●
1 SHAFT; FLEX,SPD TO CONN
A/T<X9D> (B) L=1700 		1-83123-428-2 01 1 9001-9112 ●
2 CLIP; FLEX SHAFT
(C) ID=11 L=20 		9-09525-032-0 02 1 9001- ●
2 CLIP; FLEX SHAFT
A/T<X9D> (C) ID=11 L=20 		9-09525-032-0 02 1 9001- ●
2 CLIP; FLEX SHAFT
(D) 		5-09700-053-0 01 1 9001- ● ●
2 CLIP; FLEX SHAFT
(A) ID=13 H=24 L=20 		9-09527-012-0 01 1 9001- ● ●
2 CLIP; FLEX SHAFT
(B) ID=12 L=42 		9-09917-426-0 03 1 9001- ● ●
2 CLIP; FLEX SHAFT
A/T<X9D> (B) ID=12 L=42 		9-09917-426-0 13 1 9001-9112 ●
2 CLIP; FLEX SHAFT
A/T<X9D> WHEEL BASE 5800MM(58W) (B) ID=12 L=42 		9-09917-426-0 15 1 9201- ●
2 CLIP; FLEX SHAFT
A/T<X9D> (A) ID=13 L=50 		1-09700-027-1 01 1 9201- ●
2 CLIP; FLEX SHAFT
A/T<X9D> WHEEL BASE 6600MM(66W) (B) ID=12 L=42 		9-09917-426-0 17 1 9201- ●
5 SHAFT; FLEX,TACHOMETER TO ENG
ENGINE OVERRUN BUZZER<SK4> L=650 		1-83123-056-0 01 1 9001- ● ●
5 SHAFT; FLEX,TACHOMETER TO ENG
ENGINE OVERRUN BUZZER<SK4> TACHOMETER<UD7> L=700 		9-83112-714-0 01 1 9001- ● ●
5 SHAFT; FLEX,TACHOMETER TO ENG
TACHOMETER<UD7> L=700 		1-83123-187-0 01 1 9001-9104 ● ●
5 SHAFT; FLEX,TACHOMETER TO ENG
TACHOMETER<UD7> L=700 		1-83123-255-0 01 1 9105- ● ●
29 NUT; CLIP,METER FLEX SHAFT
M6 		9-09110-406-0 02 1 9001-9606 ●
29 NUT; CLIP,METER FLEX SHAFT
A/T<X9D> M6 		9-09110-406-0 02 1 9001-9606 ●
29 NUT; CLIP,METER FLEX SHAFT
M6 FLANGE 		0-91150-106-0 02 1 9607- ●
29 NUT; CLIP,METER FLEX SHAFT
A/T<X9D> M6 FLANGE 		0-91150-106-0 02 1 9607- ●
29 NUT; CLIP,METER FLEX SHAFT
M6 		9-09110-406-0 01 1 9001-9606 ● ●
29 NUT; CLIP,METER FLEX SHAFT
M6 FLANGE 		0-91150-106-0 01 1 9607- ● ●
29 NUT; CLIP,METER FLEX SHAFT
A/T<X9D> M8 		9-09110-408-0 01 1 9201-9606 ●
29 NUT; CLIP,METER FLEX SHAFT
A/T<X9D> M8 FLANGE 		0-91150-108-0 01 1 9607- ●
29 NUT; CLIP,METER FLEX SHAFT
M10 		9-09110-510-0 01 1 9308-9606 ● ●
29 NUT; CLIP,METER FLEX SHAFT
M10 FLANGE 		0-91150-210-0 01 1 9607- ● ●
32 BOX; GEAR,FLEX SHAFT
ENGINE OVERRUN BUZZER<SK4> TACHOMETER<UD7> (A) 		9-83111-949-0 01 1 9001- ● ●
32 BOX; GEAR,FLEX SHAFT
M/T<X9C> FINAL GEAR 39/8 16.5"(W3A) (B) 		1-83126-056-1 01 1 9001-9205 ● ●
32 BOX; GEAR,FLEX SHAFT
MAB5D M/T(X1N),MAB6M M/T(X2W),MAB5R M/T(X3K), MAB6HM/T(X3L) FINAL GEAR 39/8 16.5"(W3A) (B) 		1-83126-056-1 01 1 9206-9702 ● ●
32 BOX; GEAR,FLEX SHAFT
MAB5D M/T(X1N),MAB6M M/T(X2W),MAB5R M/T(X3K), MAB6HM/T(X3L) FINAL GEAR 39/8 16.5"(W3A) (B) 		1-83126-336-0 01 1 9703- ● ●
32 BOX; GEAR,FLEX SHAFT
A/T<X9D> FINAL GEAR 5.429/7.392 18" SPIRAL 2 SPEED(W2E), FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J),FINAL GEAR 39/7 16.5"(W3B) (B) 		1-83126-032-1 01 1 9001-9201 ●
32 BOX; GEAR,FLEX SHAFT
A/T<X9D> FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J), FINAL GEAR 39/7 16.5"(W3B) (B) 		1-83126-032-1 01 1 9202-9307 ●
32 BOX; GEAR,FLEX SHAFT
A/T<X9D> FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J), FINAL GEAR 3.909/5.322 EATON 18" SPIRAL 2 SPD(W2V),FI NAL GEAR 39/7 16.5"(W3B) (B) 		1-83126-032-1 01 1 9308-9702 ●
32 BOX; GEAR,FLEX SHAFT
A/T<X9D> FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J), FINAL GEAR 3.909/5.322 EATON 18" SPIRAL 2 SPD(W2V),FI NAL GEAR 39/7 16.5"(W3B) (B) 		1-83126-333-0 01 1 9703- ●
32 BOX; GEAR,FLEX SHAFT
A/T<X9D> FINAL GEAR 39/8 16.5"(W3A) (B) 		1-83126-052-0 01 1 9001-9205 ●
32 BOX; GEAR,FLEX SHAFT
A/T<X9D> FINAL GEAR 41/8 16.5"(W3P) TIRE 11.00-20-14 RIB(70T),TIRE 11.00-20-14 LUG(71R),TIRE 11.00-20-14 SNOW(72T),TIRE 11.00-20-16 RIB(80R),TIRE 11.00-20-16 LUG(81R) (B) 		1-83126-052-0 01 1 9001-9205 ●
32 BOX; GEAR,FLEX SHAFT
A/T<X9D> FINAL GEAR 39/8 16.5"(W3A) (B) 		1-83126-052-0 01 1 9206-9702 ●
32 BOX; GEAR,FLEX SHAFT
A/T<X9D> FINAL GEAR 41/8 16.5"(W3P) RR TIRE 11.00-20<97X> (B) 		1-83126-052-0 01 1 9206-9702 ●
32 BOX; GEAR,FLEX SHAFT
A/T<X9D> FINAL GEAR 39/8 16.5"(W3A) (B) 		1-83126-335-0 01 1 9703- ●
32 BOX; GEAR,FLEX SHAFT
A/T<X9D> FINAL GEAR 41/8 16.5"(W3P) RR TIRE 11.00-20<97X> (B) 		1-83126-335-0 01 1 9703- ●
32 BOX; GEAR,FLEX SHAFT
A/T<X9D> FINAL GEAR 41/8 16.5"(W3P) TIRE 10.00-20-14 RIB(30T),TIRE 10.00-20-14 SNOW(32T),TIRE 10.00-20-16 RIB(40T),TIRE 10.00-20-14 LUG(41R),TIRE 10.00-20-16 LUG(51R),TIRE 10.00-20-16 SPECIAL(54R),TIRE 10.00R20-16 RIB(55R) (B) 		1-83126-043-0 01 1 9001-9205 ●
32 BOX; GEAR,FLEX SHAFT
A/T<X9D> FINAL GEAR 41/8 16.5"(W3P) RR TIRE 10.00-20<96X> (B) 		1-83126-043-0 01 1 9206-9702 ●
32 BOX; GEAR,FLEX SHAFT
A/T<X9D> FINAL GEAR 41/8 16.5"(W3P) RR TIRE 10.00-20<96X> (B) 		1-83126-334-0 01 1 9703- ●
32 BOX; GEAR,FLEX SHAFT
FINAL GEAR 3.700/5.040 EATON 18" SPIRAL 2 SPD(W2Q) RR TIRE 10.00-20<96X> (B) 		1-83126-048-1 01 1 9101-9106 ●
32 BOX; GEAR,FLEX SHAFT
FINAL GEAR 3.700/5.040 EATON 18" SPIRAL 2 SPD(W2Q) RR TIRE 11.00-20<97X> (B) 		1-83126-068-0 01 1 9101-9106 ●
32 BOX; GEAR,FLEX SHAFT
MAF5L M/T(X7F) FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) (B) 		1-83126-060-1 01 1 9001-9207 ●
32 BOX; GEAR,FLEX SHAFT
MAF5L M/T(X7F) FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) (B) 		1-83126-060-1 01 1 9208-9307 ● ●
32 BOX; GEAR,FLEX SHAFT
MAF5L M/T(X7F) FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J), FINAL GEAR 3.909/5.322 EATON 18" SPIRAL 2 SPD(W2V) (B) 		1-83126-060-1 01 1 9308-9702 ● ●
32 BOX; GEAR,FLEX SHAFT
MAF5L M/T(X7F) FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J), FINAL GEAR 3.909/5.322 EATON 18" SPIRAL 2 SPD(W2V) (B) 		1-83126-337-0 01 1 9703- ● ●
32 BOX; GEAR,FLEX SHAFT
6RA1 STD ENG(14L) WHEEL BASE 5800MM(58W) FINAL GEAR 5.429/7.392 18" SPIRAL 2 SPEED(W2E), FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) (B) 		1-83126-063-0 01 1 9001-9012 ●
32 BOX; GEAR,FLEX SHAFT
AXLE RATIO 2 SPEED<W9Y> (B) 		1-83126-063-0 01 1 9101- ● ●
114 BOLT; CLIP
M6X20 W/LK WASHER 		9-01900-620-0 02 1 9001-9204 ●
114 BOLT; CLIP
A/T<X9D> M6X20 W/LK WASHER 		9-01900-620-0 02 1 9001-9204 ●
114 BOLT; CLIP
M6X20 W/LK WASHER 		0-50040-620-0 02 1 9205-9606 ●
114 BOLT; CLIP
A/T<X9D> M6X20 W/LK WASHER 		0-50040-620-0 02 1 9205-9606 ●
114 BOLT; CLIP
M6X25 FLANGE 		0-28680-625-0 02 1 9607- ●
114 BOLT; CLIP
A/T<X9D> M6X25 FLANGE 		0-28680-625-0 02 1 9607- ●
114 BOLT; CLIP
M10X25 W/LK WASHER 		9-01901-025-0 01 1 9001-9204 ● ●
114 BOLT; CLIP
M10X25 W/LK WASHER 		0-50041-025-0 01 1 9205-9606 ● ●
114 BOLT; CLIP
M10X30 FLANGE 		0-28681-030-0 01 1 9607- ● ●
117 BRACKET; GEAR BOX
AXLE RATIO 2 SPEED<W9Y> (A) 		1-83129-040-0 01 1 9001- ● ●
117 BRACKET; GEAR BOX
FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J), FINAL GEAR 3.909/5.322 EATON 18" SPIRAL 2 SPD(W2V) (B) 		1-83129-018-0 01 1 9001- ● ●
117 BRACKET; GEAR BOX
M/T<X9C> FINAL GEAR 39/8 16.5"(W3A) (A) 		1-53456-130-1 01 1 9001- ● ●
117 BRACKET; GEAR BOX
A/T<X9D> (A) 		1-53456-130-1 01 1 9001- ●
117 BRACKET; GEAR BOX
A/T<X9D> FINAL GEAR 39/8 16.5"(W3A),FINAL GEAR 41/8 16.5"(W3P) (B) 		1-83126-004-2 01 1 9001- ●
118 BOLT; GEAR BOX
M/T<X9C> FINAL GEAR 39/8 16.5"(W3A) M6X14 W/LK WASHER 		9-01900-614-0 02 1 9001-9106 ● ●
118 BOLT; GEAR BOX
A/T<X9D> M6X14 W/LK WASHER 		9-01900-614-0 02 1 9001-9106 ●
118 BOLT; GEAR BOX
M/T<X9C> FINAL GEAR 39/8 16.5"(W3A) M6X20 W/LK&PL WASHER 		9-01960-620-0 04 1 9107-9204 ● ●
118 BOLT; GEAR BOX
A/T<X9D> M6X20 W/LK&PL WASHER 		9-01960-620-0 04 1 9107-9204 ●
118 BOLT; GEAR BOX
M/T<X9C> FINAL GEAR 39/8 16.5"(W3A) M6X20 W/LK&PL WASHER 		0-50140-620-0 04 1 9205-9606 ● ●
118 BOLT; GEAR BOX
A/T<X9D> M6X20 W/LK&PL WASHER 		0-50140-620-0 04 1 9205-9606 ●
118 BOLT; GEAR BOX
M/T<X9C> FINAL GEAR 39/8 16.5"(W3A) M6X25 FLANGE 		0-28680-625-0 04 1 9607- ● ●
118 BOLT; GEAR BOX
A/T<X9D> M6X25 FLANGE 		0-28680-625-0 04 1 9607- ●
118 BOLT; GEAR BOX
M/T<X9C> FINAL GEAR 39/8 16.5"(W3A) M6X18 W/LK WASHER 		9-01900-618-0 02 1 9001-9106 ● ●
118 BOLT; GEAR BOX
A/T<X9D> M6X18 W/LK WASHER 		9-01900-618-0 02 1 9001-9106 ●
118 BOLT; GEAR BOX
MAF5L M/T(X7F) FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) M8X25 W/LK WASHER 		9-01910-825-0 02 1 9001-9005 ●
118 BOLT; GEAR BOX
MAF5L M/T(X7F) FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9006-9012 ●
118 BOLT; GEAR BOX
AXLE RATIO 2 SPEED<W9Y> M8X25 W/LK WASHER 		0-50040-825-0 02 1 9101-9106 ● ●
118 BOLT; GEAR BOX
AXLE RATIO 2 SPEED<W9Y> M6X20 W/LK&PL WASHER 		9-01960-620-0 03 1 9107-9204 ● ●
118 BOLT; GEAR BOX
AXLE RATIO 2 SPEED<W9Y> M6X20 W/LK&PL WASHER 		0-50140-620-0 03 1 9205-9606 ● ●
118 BOLT; GEAR BOX
AXLE RATIO 2 SPEED<W9Y> M6X25 FLANGE 		0-28680-625-0 03 1 9607- ● ●
118 BOLT; GEAR BOX
6RA1 STD ENG(14L) WHEEL BASE 5800MM(58W) FINAL GEAR 5.429/7.392 18" SPIRAL 2 SPEED(W2E), FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) M6X20 W/LK&PL WASHER 		9-01960-620-0 02 1 9001-9012 ●
118 BOLT; GEAR BOX
AXLE RATIO 2 SPEED<W9Y> M6X20 W/LK&PL WASHER 		9-01960-620-0 02 1 9101-9106 ● ●
118 BOLT; GEAR BOX
FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9107-9207 ●
118 BOLT; GEAR BOX
FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9208-9307 ● ●
118 BOLT; GEAR BOX
FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J), FINAL GEAR 3.909/5.322 EATON 18" SPIRAL 2 SPD(W2V) M8X25 W/LK WASHER 		0-50040-825-0 02 1 9308-9606 ● ●
118 BOLT; GEAR BOX
FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J), FINAL GEAR 3.909/5.322 EATON 18" SPIRAL 2 SPD(W2V) M8X30 FLANGE 		0-28680-830-0 02 1 9607- ● ●
122 KEY; FLEX SHAFT,COUPLING & GEAR BOX
M/T<X9C> FINAL GEAR 39/8 16.5"(W3A) L=30 		1-83129-027-0 01 1 9001-9012 ● ●
122 KEY; FLEX SHAFT,COUPLING & GEAR BOX
FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) L=30 		1-83129-027-0 01 1 9001-9012 ●
122 KEY; FLEX SHAFT,COUPLING & GEAR BOX
A/T<X9D> L=30 		1-83129-027-0 01 1 9001-9012 ●
122 KEY; FLEX SHAFT,COUPLING & GEAR BOX
M/T<X9C> FINAL GEAR 39/8 16.5"(W3A) L=30 		1-83129-027-0 01 1 9101-9106 ● ●
122 KEY; FLEX SHAFT,COUPLING & GEAR BOX
FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J), FINAL GEAR 3.700/5.040 EATON 18" SPIRAL 2 SPD(W2Q) L=30 		1-83129-027-0 01 1 9101-9106 ●
122 KEY; FLEX SHAFT,COUPLING & GEAR BOX
A/T<X9D> L=30 		1-83129-027-0 01 1 9101-9106 ●
122 KEY; FLEX SHAFT,COUPLING & GEAR BOX
M/T<X9C> FINAL GEAR 39/8 16.5"(W3A) L=30 		1-83129-027-0 01 1 9107-9205 ● ●
122 KEY; FLEX SHAFT,COUPLING & GEAR BOX
FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) L=30 		1-83129-027-0 01 1 9107-9205 ●
122 KEY; FLEX SHAFT,COUPLING & GEAR BOX
A/T<X9D> L=30 		1-83129-027-0 01 1 9107-9205 ●
122 KEY; FLEX SHAFT,COUPLING & GEAR BOX
MAB5D M/T(X1N),MAB5R M/T(X3K) FINAL GEAR 39/8 16.5"(W3A) L=30 		1-83129-027-0 01 1 9206-9207 ●
122 KEY; FLEX SHAFT,COUPLING & GEAR BOX
MAB5D M/T(X1N),MAB6M M/T(X2W),MAB5R M/T(X3K), MAB6HM/T(X3L) FINAL GEAR 39/8 16.5"(W3A) L=30 		1-83129-027-0 01 1 9206-9207 ●
122 KEY; FLEX SHAFT,COUPLING & GEAR BOX
FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) L=30 		1-83129-027-0 01 1 9206-9207 ●
122 KEY; FLEX SHAFT,COUPLING & GEAR BOX
A/T<X9D> L=30 		1-83129-027-0 01 1 9206-9207 ●
122 KEY; FLEX SHAFT,COUPLING & GEAR BOX
FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) L=30 		1-83129-027-0 01 1 9208-9307 ● ●
122 KEY; FLEX SHAFT,COUPLING & GEAR BOX
MAB5D M/T(X1N),MAB5R M/T(X3K) FINAL GEAR 39/8 16.5"(W3A) L=30 		1-83129-027-0 01 1 9208-9307 ●
122 KEY; FLEX SHAFT,COUPLING & GEAR BOX
MAB5D M/T(X1N),MAB6M M/T(X2W),MAB5R M/T(X3K), MAB6HM/T(X3L) FINAL GEAR 39/8 16.5"(W3A) L=30 		1-83129-027-0 01 1 9208-9307 ●
122 KEY; FLEX SHAFT,COUPLING & GEAR BOX
A/T<X9D> L=30 		1-83129-027-0 01 1 9208-9307 ●
122 KEY; FLEX SHAFT,COUPLING & GEAR BOX
MAB5D M/T(X1N),MAB6M M/T(X2W),MAB5R M/T(X3K), MAB6HM/T(X3L) FINAL GEAR 39/8 16.5"(W3A) L=30 		1-83129-027-0 01 1 9308- ● ●
122 KEY; FLEX SHAFT,COUPLING & GEAR BOX
FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J), FINAL GEAR 3.909/5.322 EATON 18" SPIRAL 2 SPD(W2V) L=30 		1-83129-027-0 01 1 9308- ● ●
122 KEY; FLEX SHAFT,COUPLING & GEAR BOX
A/T<X9D> L=30 		1-83129-027-0 01 1 9308- ●
146 HARNESS; METER
TACHOMETER<UD7> 		1-82631-491-0 01 1 9001- ● ●
152 HARNESS; TACHOGRAPH
TACHOGRAPH 120KM/H(SM8),MILE TACHOGRAPH(UC5) 		1-83118-159-2 01 1 9001- ● ●
153 HARNESS; SPEEDOMETER
EXC. TACHOGRAPH 120KM/H(SM8),MILE TACHOGRAPH(UC5) 		1-83118-144-1 01 1 9001- ● ●
162 NUT; GEAR BOX
M/T<X9C> FINAL GEAR 39/8 16.5"(W3A) M6 		9-09110-406-0 04 1 9001-9205 ● ●
162 NUT; GEAR BOX
A/T<X9D> M6 		9-09110-406-0 04 1 9001-9205 ●
162 NUT; GEAR BOX
MAB5D M/T(X1N),MAB6M M/T(X2W),MAB5R M/T(X3K), MAB6HM/T(X3L) FINAL GEAR 39/8 16.5"(W3A) M6 		9-09110-406-0 04 1 9206-9606 ● ●
162 NUT; GEAR BOX
A/T<X9D> M6 		9-09110-406-0 04 1 9206-9606 ●
162 NUT; GEAR BOX
MAB5D M/T(X1N),MAB6M M/T(X2W),MAB5R M/T(X3K), MAB6HM/T(X3L) FINAL GEAR 39/8 16.5"(W3A) M6 FLANGE 		0-91150-106-0 04 1 9607- ● ●
162 NUT; GEAR BOX
A/T<X9D> M6 FLANGE 		0-91150-106-0 04 1 9607- ●
162 NUT; GEAR BOX
M/T<X9C> FINAL GEAR 39/8 16.5"(W3A) M22 		9-83111-951-0 01 1 9001-9012 ● ●
162 NUT; GEAR BOX
M/T<X9C> FINAL GEAR 39/8 16.5"(W3A) M22 		9-83111-951-0 01 1 9001-9012 ● ●
162 NUT; GEAR BOX
FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) M22 		9-83111-951-0 01 1 9001-9012 ●
162 NUT; GEAR BOX
A/T<X9D> M22 		9-83111-951-0 01 1 9001-9012 ●
162 NUT; GEAR BOX
M/T<X9C> FINAL GEAR 39/8 16.5"(W3A) M22 		9-83111-951-0 01 1 9101-9106 ● ●
162 NUT; GEAR BOX
M/T<X9C> FINAL GEAR 39/8 16.5"(W3A) M22 		9-83111-951-0 01 1 9101-9106 ● ●
162 NUT; GEAR BOX
FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J), FINAL GEAR 3.700/5.040 EATON 18" SPIRAL 2 SPD(W2Q) M22 		9-83111-951-0 01 1 9101-9106 ●
162 NUT; GEAR BOX
A/T<X9D> M22 		9-83111-951-0 01 1 9101-9106 ●
162 NUT; GEAR BOX
M/T<X9C> FINAL GEAR 39/8 16.5"(W3A) M22 		9-83111-951-0 01 1 9107-9307 ● ●
162 NUT; GEAR BOX
M/T<X9C> FINAL GEAR 39/8 16.5"(W3A) M22 		9-83111-951-0 01 1 9107-9307 ● ●
162 NUT; GEAR BOX
FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) M22 		9-83111-951-0 01 1 9107-9307 ●
162 NUT; GEAR BOX
A/T<X9D> M22 		9-83111-951-0 01 1 9107-9307 ●
162 NUT; GEAR BOX
M/T<X9C> FINAL GEAR 39/8 16.5"(W3A) M22 		9-83111-951-0 01 1 9308- ● ●
162 NUT; GEAR BOX
M/T<X9C> FINAL GEAR 39/8 16.5"(W3A) M22 		9-83111-951-0 01 1 9308- ● ●
162 NUT; GEAR BOX
FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J), FINAL GEAR 3.909/5.322 EATON 18" SPIRAL 2 SPD(W2V) M22 		9-83111-951-0 01 1 9308- ● ●
162 NUT; GEAR BOX
A/T<X9D> M22 		9-83111-951-0 01 1 9308- ●
162 NUT; GEAR BOX
MAF5L M/T(X7F) FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) M8 		9-09110-408-0 02 1 9001-9012 ●
162 NUT; GEAR BOX
FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J), FINAL GEAR 3.700/5.040 EATON 18" SPIRAL 2 SPD(W2Q) M8 		9-09110-408-0 02 1 9101-9106 ●
162 NUT; GEAR BOX
FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) M8 		9-09110-408-0 02 1 9107-9207 ●
162 NUT; GEAR BOX
FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) M8 		9-09110-408-0 02 1 9208-9307 ● ●
162 NUT; GEAR BOX
FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J), FINAL GEAR 3.909/5.322 EATON 18" SPIRAL 2 SPD(W2V) M8 		9-09110-408-0 02 1 9308-9606 ● ●
162 NUT; GEAR BOX
FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J), FINAL GEAR 3.909/5.322 EATON 18" SPIRAL 2 SPD(W2V) M8 FLANGE 		0-91150-108-0 02 1 9607- ● ●
162 NUT; GEAR BOX
6RA1 STD ENG(14L) WHEEL BASE 5800MM(58W) FINAL GEAR 5.429/7.392 18" SPIRAL 2 SPEED(W2E), FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) M6 		9-09110-406-0 03 1 9001-9012 ●
162 NUT; GEAR BOX
AXLE RATIO 2 SPEED<W9Y> M6 		9-09110-406-0 03 1 9101-9606 ● ●
162 NUT; GEAR BOX
AXLE RATIO 2 SPEED<W9Y> M6 FLANGE 		0-91150-106-0 03 1 9607- ● ●
225 SHAFT; FLEX,CONN TO CONN
WHEEL BASE 5800MM(58W) SINGLE SPEED-AXLE RATIO<W9Z> (A) L=3500 		1-83123-270-2 01 1 9001-9909 ●
225 SHAFT; FLEX,CONN TO CONN
A/T<X9D> WHEEL BASE 5800MM(58W) SINGLE SPEED-AXLE RATIO<W9Z> (A) L=3500 		1-83123-270-2 01 1 9001-9909 ●
225 SHAFT; FLEX,CONN TO CONN
WHEEL BASE 5800MM(58W) SINGLE SPEED-AXLE RATIO<W9Z> (A) L=3500 		1-83124-186-0 01 1 9910- ●
225 SHAFT; FLEX,CONN TO CONN
A/T<X9D> WHEEL BASE 5800MM(58W) SINGLE SPEED-AXLE RATIO<W9Z> (A) L=3500 		1-83124-186-0 01 1 9910- ●
225 SHAFT; FLEX,CONN TO CONN
WHEEL BASE 6800MM(68W) SINGLE SPEED-AXLE RATIO<W9Z> (A) L=3850 		1-83123-290-1 01 1 9001-9909 ●
225 SHAFT; FLEX,CONN TO CONN
A/T<X9D> WHEEL BASE 6800MM(68W) SINGLE SPEED-AXLE RATIO<W9Z> (A) L=3850 		1-83123-290-1 01 1 9001-9909 ●
225 SHAFT; FLEX,CONN TO CONN
WHEEL BASE 6800MM(68W) SINGLE SPEED-AXLE RATIO<W9Z> (A) L=3850 		1-83124-189-0 01 1 9910- ●
225 SHAFT; FLEX,CONN TO CONN
A/T<X9D> WHEEL BASE 6800MM(68W) SINGLE SPEED-AXLE RATIO<W9Z> (A) L=3850 		1-83124-189-0 01 1 9910- ●
225 SHAFT; FLEX,CONN TO CONN
WHEEL BASE 5800MM(58W) (B) L=5890 		1-83123-272-1 01 1 9001-9909 ● ●
225 SHAFT; FLEX,CONN TO CONN
WHEEL BASE 5800MM(58W) (B) L=5890 		1-83124-142-0 01 1 9910- ● ●
225 SHAFT; FLEX,CONN TO CONN
WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) (B) L=6600 		1-83123-192-2 01 1 9001-9909 ● ●
225 SHAFT; FLEX,CONN TO CONN
WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) (B) L=6600 		1-83124-144-0 01 1 9910- ● ●
225 SHAFT; FLEX,CONN TO CONN
AXLE RATIO 2 SPEED<W9Y> (A) 		1-83123-500-0 01 1 9001- ●
225 SHAFT; FLEX,CONN TO CONN
WHEEL BASE 5800MM(58W) SINGLE SPEED-AXLE RATIO<W9Z> M/T<X9C> (A) L=2600 		1-83123-286-1 01 1 9001-9909 ●
225 SHAFT; FLEX,CONN TO CONN
WHEEL BASE 5800MM(58W) SINGLE SPEED-AXLE RATIO<W9Z> M/T<X9C> (A) L=2600 		1-83124-188-0 01 1 9910- ●
225 SHAFT; FLEX,CONN TO CONN
WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) SINGLE SPEED-AXLE RATIO<W9Z> M/T<X9C> (A) L=3000 		1-83123-289-1 01 1 9001-9909 ●
225 SHAFT; FLEX,CONN TO CONN
WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) SINGLE SPEED-AXLE RATIO<W9Z> M/T<X9C> (A) L=3000 		1-83124-140-0 01 1 9910- ●
çizim 94490
74 225 225 3 29 188 2 156 2 156 114 156 2 29 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHAFT; FLEX,SPD TO CONN
AXLE RATIO 2 SPEED<W9Y> (A) L=350 		1-83123-499-0 01 1 9001-9508 ● ●
1 SHAFT; FLEX,SPD TO CONN
AXLE RATIO 2 SPEED<W9Y> EXC. TACHOGRAPH 120KM/H(SM8),MILE TACHOGRAPH(UC5) (A) L=350 		1-83123-499-0 01 1 9509- ● ●
1 SHAFT; FLEX,SPD TO CONN
SINGLE SPEED-AXLE RATIO<W9Z> EXC. TACHOGRAPH 120KM/H(SM8),MILE TACHOGRAPH(UC5) (A) L=350 		1-83123-258-1 01 1 9001- ● ●
1 SHAFT; FLEX,SPD TO CONN
TACHOGRAPH 120KM/H(SM8),MILE TACHOGRAPH(UC5) AXLE RATIO 2 SPEED<W9Y> (A) L=290 		1-83123-172-2 01 1 9509- ● ●
1 SHAFT; FLEX,SPD TO CONN
TACHOGRAPH 120KM/H(SM8),MILE TACHOGRAPH(UC5) (A) L=300 		1-83123-228-1 01 1 9001-9104 ● ●
1 SHAFT; FLEX,SPD TO CONN
TACHOGRAPH 120KM/H(SM8),MILE TACHOGRAPH(UC5) (A) L=300 		1-83123-173-1 01 1 9105-9112 ● ●
1 SHAFT; FLEX,SPD TO CONN
TACHOGRAPH 120KM/H(SM8),MILE TACHOGRAPH(UC5) SINGLE SPEED-AXLE RATIO<W9Z> (A) L=300 		1-83123-173-1 01 1 9201- ● ●
1 SHAFT; FLEX,SPD TO CONN
A/T<X9D> (B) L=1700 		1-83123-428-2 01 1 9001-9112 ●
2 CLIP; FLEX SHAFT
(C) ID=11 L=20 		9-09525-032-0 02 1 9001- ●
2 CLIP; FLEX SHAFT
A/T<X9D> (C) ID=11 L=20 		9-09525-032-0 02 1 9001- ●
2 CLIP; FLEX SHAFT
(D) 		5-09700-053-0 01 1 9001- ● ●
2 CLIP; FLEX SHAFT
(A) ID=13 H=24 L=20 		9-09527-012-0 01 1 9001- ● ●
2 CLIP; FLEX SHAFT
(B) ID=12 L=42 		9-09917-426-0 03 1 9001- ● ●
2 CLIP; FLEX SHAFT
A/T<X9D> (B) ID=12 L=42 		9-09917-426-0 13 1 9001-9112 ●
2 CLIP; FLEX SHAFT
A/T<X9D> WHEEL BASE 5800MM(58W) (B) ID=12 L=42 		9-09917-426-0 15 1 9201- ●
2 CLIP; FLEX SHAFT
A/T<X9D> (A) ID=13 L=50 		1-09700-027-1 01 1 9201- ●
2 CLIP; FLEX SHAFT
A/T<X9D> WHEEL BASE 6600MM(66W) (B) ID=12 L=42 		9-09917-426-0 17 1 9201- ●
3 BOLT; FLEX SHAFT,CLIP
M6X25 W/LK WASHER 		9-01900-625-0 01 1 9001-9204 ● ●
3 BOLT; FLEX SHAFT,CLIP
M6X25 W/LK WASHER 		0-50040-625-0 01 1 9205-9606 ● ●
3 BOLT; FLEX SHAFT,CLIP
M6X30 FLANGE 		0-28680-630-0 01 1 9607- ● ●
3 BOLT; FLEX SHAFT,CLIP
A/T<X9D> M8X20 W/LK WASHER 		0-50040-820-0 01 1 9201-9606 ●
3 BOLT; FLEX SHAFT,CLIP
A/T<X9D> M8X25 FLANGE 		0-28680-825-0 01 1 9607- ●
29 NUT; CLIP,METER FLEX SHAFT
M6 		9-09110-406-0 02 1 9001-9606 ●
29 NUT; CLIP,METER FLEX SHAFT
A/T<X9D> M6 		9-09110-406-0 02 1 9001-9606 ●
29 NUT; CLIP,METER FLEX SHAFT
M6 FLANGE 		0-91150-106-0 02 1 9607- ●
29 NUT; CLIP,METER FLEX SHAFT
A/T<X9D> M6 FLANGE 		0-91150-106-0 02 1 9607- ●
29 NUT; CLIP,METER FLEX SHAFT
M6 		9-09110-406-0 01 1 9001-9606 ● ●
29 NUT; CLIP,METER FLEX SHAFT
M6 FLANGE 		0-91150-106-0 01 1 9607- ● ●
29 NUT; CLIP,METER FLEX SHAFT
A/T<X9D> M8 		9-09110-408-0 01 1 9201-9606 ●
29 NUT; CLIP,METER FLEX SHAFT
A/T<X9D> M8 FLANGE 		0-91150-108-0 01 1 9607- ●
29 NUT; CLIP,METER FLEX SHAFT
M10 		9-09110-510-0 01 1 9308-9606 ● ●
29 NUT; CLIP,METER FLEX SHAFT
M10 FLANGE 		0-91150-210-0 01 1 9607- ● ●
74 SHAFT; FLEX,METER TO CONN
M/T<X9C> BUS BODY REAR OVERHANG<YK4> EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) L=1250 		1-83123-788-0 01 1 9001-9909 ● ●
74 SHAFT; FLEX,METER TO CONN
M/T<X9C> BUS BODY REAR OVERHANG<YK4> EXC. 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) L=1250 		1-83124-182-0 01 1 9910- ● ●
74 SHAFT; FLEX,METER TO CONN
M/T<X9C> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) BUS BODY REAR OVERHANG<YK4> L=1100 		1-83123-223-4 01 1 9001-9909 ● ●
74 SHAFT; FLEX,METER TO CONN
M/T<X9C> EXC. BUS BODY REAR OVERHANG<YK4> L=1100 		1-83123-223-4 01 1 9001-9909 ● ●
74 SHAFT; FLEX,METER TO CONN
M/T<X9C> 16"CLUTCH SINGLE PLATE STRAP DRIVE(RF2) BUS BODY REAR OVERHANG<YK4> L=1100 		1-83124-143-0 01 1 9910- ● ●
74 SHAFT; FLEX,METER TO CONN
M/T<X9C> EXC. BUS BODY REAR OVERHANG<YK4> L=1100 		1-83124-143-0 01 1 9910- ● ●
74 SHAFT; FLEX,METER TO CONN
A/T<X9D> L=1700 		1-83123-794-1 01 1 9201-9909 ●
74 SHAFT; FLEX,METER TO CONN
A/T<X9D> L=1100 		1-83124-195-0 01 1 9910- ●
114 BOLT; CLIP
M6X20 W/LK WASHER 		9-01900-620-0 02 1 9001-9204 ●
114 BOLT; CLIP
A/T<X9D> M6X20 W/LK WASHER 		9-01900-620-0 02 1 9001-9204 ●
114 BOLT; CLIP
M6X20 W/LK WASHER 		0-50040-620-0 02 1 9205-9606 ●
114 BOLT; CLIP
A/T<X9D> M6X20 W/LK WASHER 		0-50040-620-0 02 1 9205-9606 ●
114 BOLT; CLIP
M6X25 FLANGE 		0-28680-625-0 02 1 9607- ●
114 BOLT; CLIP
A/T<X9D> M6X25 FLANGE 		0-28680-625-0 02 1 9607- ●
114 BOLT; CLIP
M10X25 W/LK WASHER 		9-01901-025-0 01 1 9001-9204 ● ●
114 BOLT; CLIP
M10X25 W/LK WASHER 		0-50041-025-0 01 1 9205-9606 ● ●
114 BOLT; CLIP
M10X30 FLANGE 		0-28681-030-0 01 1 9607- ● ●
156 CLIP; FLEX SHAFT,CONNECTOR TO TRANS
(C) ID=15 L=45 		1-09700-402-0 01 1 9001- ● ●
156 CLIP; FLEX SHAFT,CONNECTOR TO TRANS
(B) L=140 		5-09707-031-1 03 1 9001- ● ●
156 CLIP; FLEX SHAFT,CONNECTOR TO TRANS
(A) ID=12 L=42 		9-09917-426-0 01 1 9001- ●
156 CLIP; FLEX SHAFT,CONNECTOR TO TRANS
A/T<X9D> (B) L=140 		5-09707-031-1 02 1 9201- ●
188 WASHER; LK,CLIP
ID=6.1 		9-09150-506-0 01 1 9001- ● ●
225 SHAFT; FLEX,CONN TO CONN
WHEEL BASE 5800MM(58W) SINGLE SPEED-AXLE RATIO<W9Z> (A) L=3500 		1-83123-270-2 01 1 9001-9909 ●
225 SHAFT; FLEX,CONN TO CONN
A/T<X9D> WHEEL BASE 5800MM(58W) SINGLE SPEED-AXLE RATIO<W9Z> (A) L=3500 		1-83123-270-2 01 1 9001-9909 ●
225 SHAFT; FLEX,CONN TO CONN
WHEEL BASE 5800MM(58W) SINGLE SPEED-AXLE RATIO<W9Z> (A) L=3500 		1-83124-186-0 01 1 9910- ●
225 SHAFT; FLEX,CONN TO CONN
A/T<X9D> WHEEL BASE 5800MM(58W) SINGLE SPEED-AXLE RATIO<W9Z> (A) L=3500 		1-83124-186-0 01 1 9910- ●
225 SHAFT; FLEX,CONN TO CONN
WHEEL BASE 6800MM(68W) SINGLE SPEED-AXLE RATIO<W9Z> (A) L=3850 		1-83123-290-1 01 1 9001-9909 ●
225 SHAFT; FLEX,CONN TO CONN
A/T<X9D> WHEEL BASE 6800MM(68W) SINGLE SPEED-AXLE RATIO<W9Z> (A) L=3850 		1-83123-290-1 01 1 9001-9909 ●
225 SHAFT; FLEX,CONN TO CONN
WHEEL BASE 6800MM(68W) SINGLE SPEED-AXLE RATIO<W9Z> (A) L=3850 		1-83124-189-0 01 1 9910- ●
225 SHAFT; FLEX,CONN TO CONN
A/T<X9D> WHEEL BASE 6800MM(68W) SINGLE SPEED-AXLE RATIO<W9Z> (A) L=3850 		1-83124-189-0 01 1 9910- ●
225 SHAFT; FLEX,CONN TO CONN
WHEEL BASE 5800MM(58W) (B) L=5890 		1-83123-272-1 01 1 9001-9909 ● ●
225 SHAFT; FLEX,CONN TO CONN
WHEEL BASE 5800MM(58W) (B) L=5890 		1-83124-142-0 01 1 9910- ● ●
225 SHAFT; FLEX,CONN TO CONN
WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) (B) L=6600 		1-83123-192-2 01 1 9001-9909 ● ●
225 SHAFT; FLEX,CONN TO CONN
WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) (B) L=6600 		1-83124-144-0 01 1 9910- ● ●
225 SHAFT; FLEX,CONN TO CONN
AXLE RATIO 2 SPEED<W9Y> (A) 		1-83123-500-0 01 1 9001- ●
225 SHAFT; FLEX,CONN TO CONN
WHEEL BASE 5800MM(58W) SINGLE SPEED-AXLE RATIO<W9Z> M/T<X9C> (A) L=2600 		1-83123-286-1 01 1 9001-9909 ●
225 SHAFT; FLEX,CONN TO CONN
WHEEL BASE 5800MM(58W) SINGLE SPEED-AXLE RATIO<W9Z> M/T<X9C> (A) L=2600 		1-83124-188-0 01 1 9910- ●
225 SHAFT; FLEX,CONN TO CONN
WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) SINGLE SPEED-AXLE RATIO<W9Z> M/T<X9C> (A) L=3000 		1-83123-289-1 01 1 9001-9909 ●
225 SHAFT; FLEX,CONN TO CONN
WHEEL BASE 6600MM(66W),WHEEL BASE 6800MM(68W) SINGLE SPEED-AXLE RATIO<W9Z> M/T<X9C> (A) L=3000 		1-83124-140-0 01 1 9910- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
