0-10 — CYLINDER HEAD COVER (#21399) — 14 parça

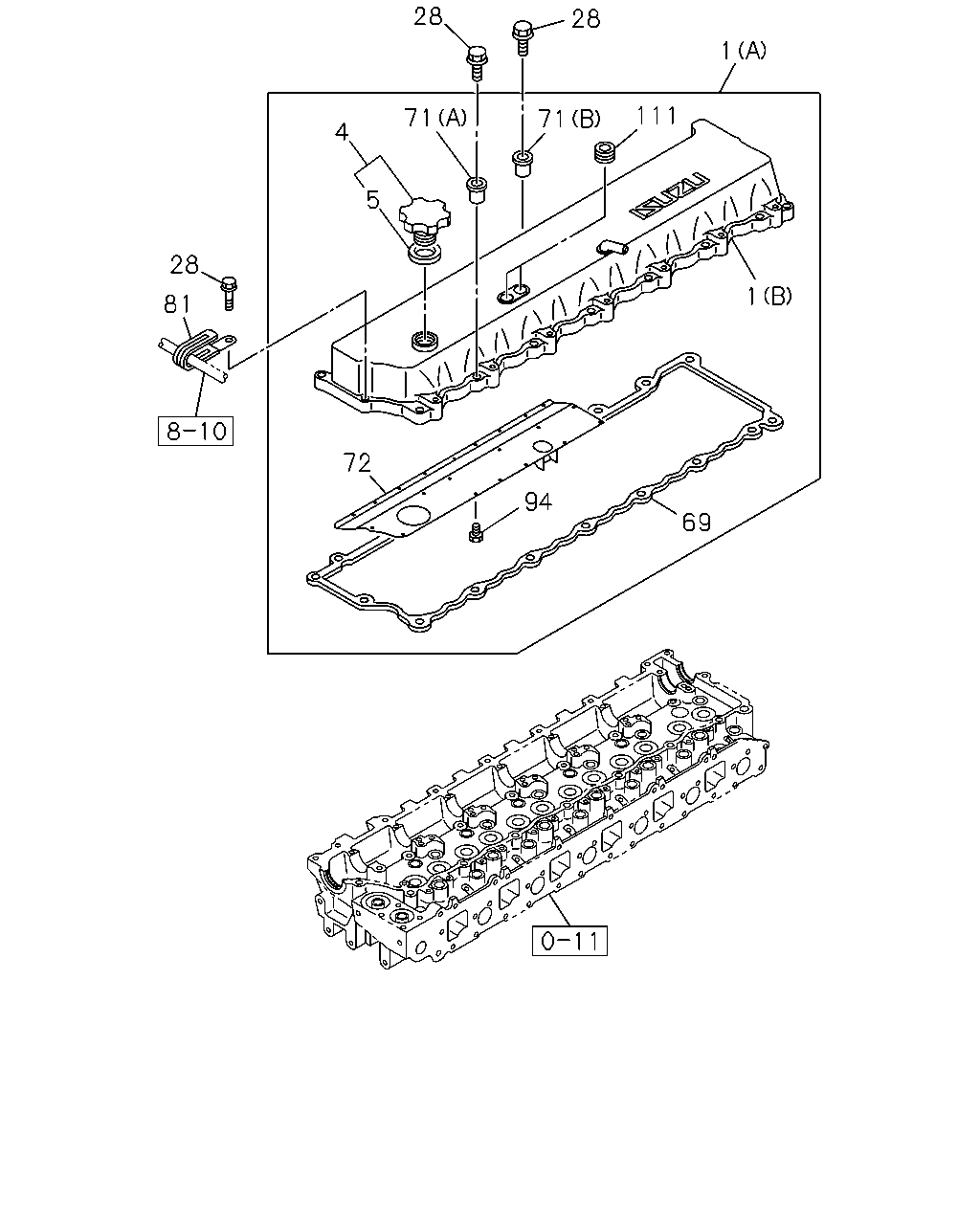

çizim 128700
28 28 1 111 71 71 4 5 28 1 81 72 94 69
BalonParca AdiParca NoAdetTipApplied Date
1 COVER; CYL HD
(A) 		8-98015-021-1 01 1 1005-1012
1 COVER; CYL HD
(A) 		8-98153-621-0 01 1 1101-
1 COVER; CYL HD
(B) 		8-98015-022-1 01 1 1005-1012
1 COVER; CYL HD
(B) 		8-98153-626-0 01 1 1101-
4 CAP; OIL FILLER 8-94399-723-0 01 1 1005-
5 GASKET; OIL FILLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=49 OD=58 		8-94399-689-0 01 1 1005-
28 BOLT; HD COVER
M8X35 FLANGE THA 		0-28050-835-0 19 1 1005-
69 GASKET; HD TO COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-94396-383-0 01 1 1005-
71 COLLAR; HD COVER
(A) OD=12.3 		8-94396-971-1 18 1 1005-
71 COLLAR; HD COVER
(B) OD=11 		8-94396-972-1 01 1 1005-
72 PLATE; INNER HD COVER 8-98015-023-0 01 1 1005-
81 CLIP; HARNESS
ID=18 L=44 		8-97367-985-1 01 1 1005-
94 SCREW; BAFFLE PLATE,CYL HD COVER
M4X8 W/LK WASHER 		0-36220-408-0 20 1 1005-1012
111 GROMMET; PCV VLV 8-97074-653-0 02 1 1005-1012
