◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CHR ▶ 10648 - CHR/CJR/CQR ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#2138) — 57 parça

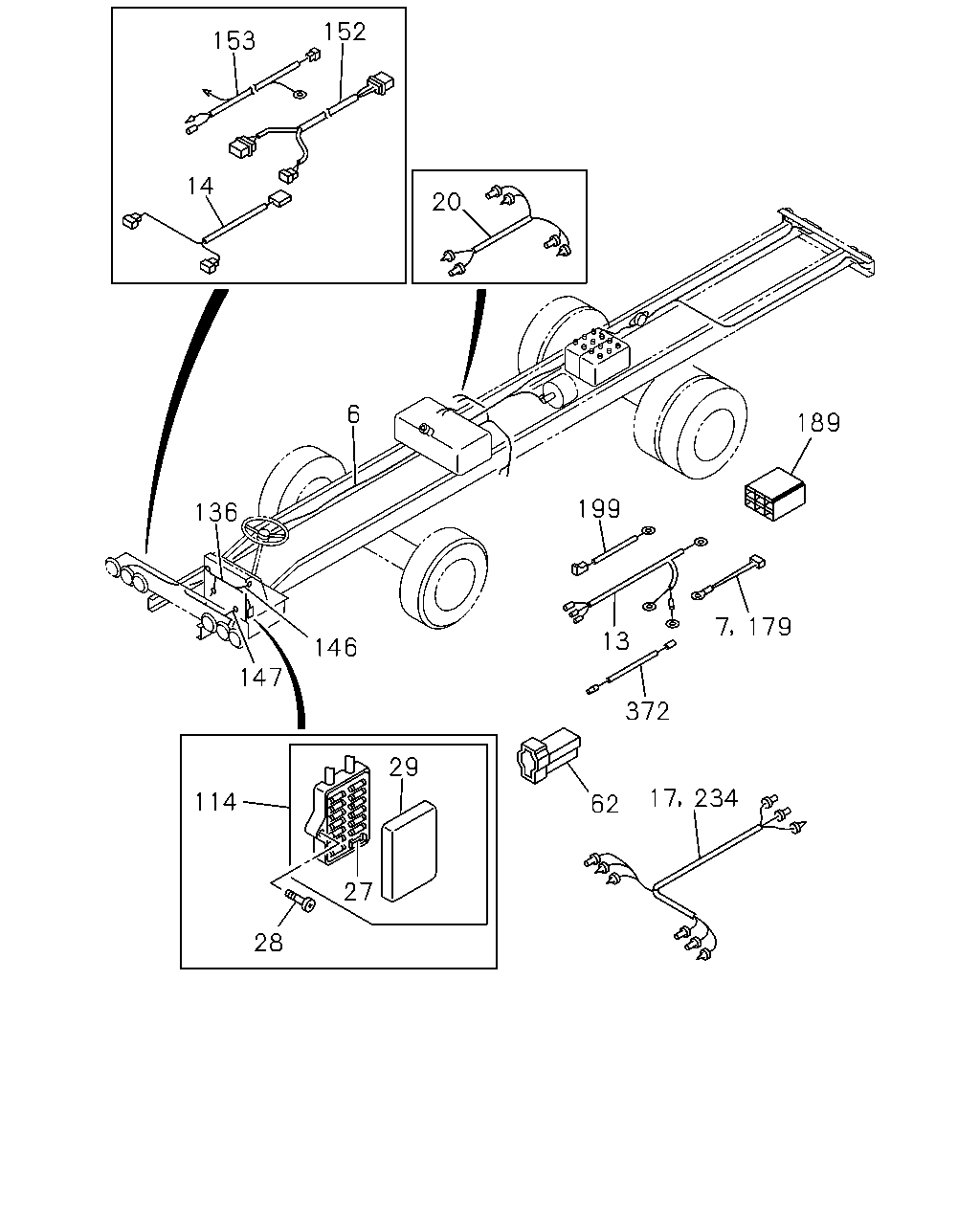

çizim 95411
152 153 14 20 6 189 199 136 7 179 13 146 147 372 29 234 17 114 62 27 28
BalonParca AdiParca NoAdetTipApplied Date A B
6 HARNESS; FRAME
MAB5D M/T(X1N),MAB5R M/T(X3K),MAF5P M/T(X4X), MAF5LM/T(X7F) WHEEL BASE 5800MM(58W) SINGLE SPEED-AXLE RATIO<W9Z> 		1-82631-460-7 01 1 9001-9012 ● ●
6 HARNESS; FRAME
WHEEL BASE 5800MM(58W) EXC. BUS BODY REAR OVERHANG<YK4> 		1-82631-460-7 01 1 9101-9112 ● ●
6 HARNESS; FRAME
M/T<X9C> WHEEL BASE 5800MM(58W) SINGLE SPEED-AXLE RATIO<W9Z> EXC. BUS BODY REAR OVERHANG<YK4> 		1-82631-460-9 01 1 9201- ● ●
6 HARNESS; FRAME
MAB6M M/T(X2W),MAB6H M/T(X3L),MAF6T M/T(X3X), MAF6ZM/T(X7U) WHEEL BASE 5800MM(58W) SINGLE SPEED-AXLE RATIO<W9Z> 		1-82634-923-1 01 1 9001-9012 ● ●
6 HARNESS; FRAME
WHEEL BASE 5800MM(58W) BUS BODY REAR OVERHANG<YK4> 		1-82634-923-1 01 1 9101-9112 ● ●
6 HARNESS; FRAME
M/T<X9C> WHEEL BASE 5800MM(58W) SINGLE SPEED-AXLE RATIO<W9Z> BUS BODY REAR OVERHANG<YK4> 		1-82634-923-3 01 1 9201- ● ●
6 HARNESS; FRAME
WHEEL BASE 6800MM(68W) 		1-82631-126-8 01 1 9001-9112 ● ●
6 HARNESS; FRAME
WHEEL BASE 6800MM(68W) SINGLE SPEED-AXLE RATIO<W9Z> 		1-82631-126-9 01 1 9201- ● ●
6 HARNESS; FRAME
A/T<X9D> WHEEL BASE 6600MM(66W) 		1-82631-960-4 01 1 9001-9112 ●
6 HARNESS; FRAME
M/T<X9C> WHEEL BASE 6600MM(66W) SINGLE SPEED-AXLE RATIO<W9Z> 		1-82631-960-7 01 1 9201- ●
6 HARNESS; FRAME
A/T<X9D> WHEEL BASE 6600MM(66W) SINGLE SPEED-AXLE RATIO<W9Z> 		1-82637-690-3 01 1 9201- ●
6 HARNESS; FRAME
WHEEL BASE 5800MM(58W) FINAL GEAR 5.429/7.392 18" SPIRAL 2 SPEED(W2E), FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) OVERHEAD COOLING SYSTEM(YS9) 		1-82634-109-0 01 1 9001-9012 ●
6 HARNESS; FRAME
6RA1 TC ENG(15L) WHEEL BASE 5800MM(58W) FINAL GEAR 3.700/5.040 EATON 18" SPIRAL 2 SPD(W2Q) 		1-82636-819-0 01 1 9101-9112 ●
6 HARNESS; FRAME
M/T<X9C> WHEEL BASE 5800MM(58W) AXLE RATIO 2 SPEED<W9Y> BUS BODY REAR OVERHANG<YK4> 		1-82636-819-2 01 1 9201- ●
6 HARNESS; FRAME
WHEEL BASE 5800MM(58W) SINGLE SPEED-AXLE RATIO<W9Z> A/T<X9D> BUS BODY REAR OVERHANG<YK4> 		1-82637-691-3 01 1 9201- ●
6 HARNESS; FRAME
6RA1 STD ENG(14L) WHEEL BASE 5800MM(58W) FINAL GEAR 5.429/7.392 18" SPIRAL 2 SPEED(W2E), FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) 		1-82632-735-2 01 1 9001-9112 ●
6 HARNESS; FRAME
M/T<X9C> WHEEL BASE 5800MM(58W) AXLE RATIO 2 SPEED<W9Y> EXC. BUS BODY REAR OVERHANG<YK4> 		1-82632-735-4 01 1 9201- ● ●
6 HARNESS; FRAME
6RA1 TC ENG(15L) WHEEL BASE 6600MM(66W) FINAL GEAR 3.700/5.040 EATON 18" SPIRAL 2 SPD(W2Q) 		1-82636-820-0 01 1 9101-9112 ●
6 HARNESS; FRAME
M/T<X9C> WHEEL BASE 6600MM(66W) AXLE RATIO 2 SPEED<W9Y> 		1-82636-820-2 01 1 9201- ●
7 LINK ASM; FUSIBLE 1-82659-007-0 01 1 9001- ● ●
13 HARNESS; ENG 1-82640-093-2 01 1 9001- ● ●
14 HARNESS; HEADLAMP
HEAD LAMP RECTANGULAR ANGLE<TR4> 		1-82638-845-0 02 1 9408- ●
17 HARNESS; BACKUP LAMP
HEAD LAMP RECTANGULAR ANGLE<TR4> 		1-82638-846-0 01 1 9408- ●
20 HARNESS; SIDE FLASHER
HEAD LAMP RECTANGULAR ANGLE<TR4> 		1-82638-848-0 02 1 9408- ●
27 FUSE UNIT
30A 		1-82516-001-0 03 1 9001- ● ●
27 FUSE UNIT
10A 		9-82941-136-0 07 1 9001- ● ●
27 FUSE UNIT
15A 		9-82941-137-0 09 1 9001- ● ●
28 SCREW; FUSE BOX
M6X25 		9-03490-625-0 02 1 9001-9412 ● ●
28 SCREW; FUSE BOX
M6X25 W/LK WASHER 		9-03910-625-0 02 1 9501- ● ●
29 COVER; FUSE BOX 1-82513-010-0 01 1 9001- ● ●
62 DIODE; HARNESS
2P 2.5A 		8-94136-639-0 03 1 9001- ● ●
114 BOX ASM; FUSE 1-82510-143-1 01 1 9001- ● ●
136 HARNESS; DASH
WHEEL BASE 5800MM(58W),WHEEL BASE 6800MM(68W) SINGLE SPEED-AXLE RATIO<W9Z> 		1-82620-908-7 01 1 9001-9112 ● ●
136 HARNESS; DASH
MAB6M M/T(X2W),MAB6H M/T(X3L) SINGLE SPEED-AXLE RATIO<W9Z> 		1-82620-908-7 01 1 9001-9112 ●
136 HARNESS; DASH
M/T<X9C> SINGLE SPEED-AXLE RATIO<W9Z> 		1-82620-908-9 01 1 9201- ● ●
136 HARNESS; DASH
A/T<X9D> 		1-82621-140-3 01 1 9001-9112 ●
136 HARNESS; DASH
A/T<X9D> SINGLE SPEED-AXLE RATIO<W9Z> 		1-82621-140-6 01 1 9201- ●
136 HARNESS; DASH
WHEEL BASE 5800MM(58W) FINAL GEAR 5.429/7.392 18" SPIRAL 2 SPEED(W2E), FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) OVERHEAD COOLING SYSTEM(YS9) 		1-82622-776-0 01 1 9001-9012 ●
136 HARNESS; DASH
6RA1 STD ENG(14L) WHEEL BASE 5800MM(58W) FINAL GEAR 5.429/7.392 18" SPIRAL 2 SPEED(W2E), FINAL GEAR 3.909/5.322 18" SPIRAL 2 SPEED(W2J) 		1-82621-833-3 01 1 9001-9012 ●
136 HARNESS; DASH
AXLE RATIO 2 SPEED<W9Y> 		1-82621-833-4 01 1 9101-9112 ● ●
136 HARNESS; DASH
M/T<X9C> AXLE RATIO 2 SPEED<W9Y> 		1-82621-833-7 01 1 9201- ● ●
146 HARNESS; JUNCTION
INDICATOR WARNING BUZZER(WF9) EXC. OVERHEAD COOLING SYSTEM(YS9) 		1-82620-914-0 01 1 9001-9012 ● ●
146 HARNESS; JUNCTION
INDICATOR WARNING BUZZER(WF9) 		1-82620-914-0 01 1 9101-9303 ● ●
146 HARNESS; JUNCTION
INDICATOR WARNING BUZZER(WF9) SINGLE SPEED-AXLE RATIO<W9Z> 		1-82620-914-0 01 1 9304- ● ●
146 HARNESS; JUNCTION
EXC. INDICATOR WARNING BUZZER(WF9),OVERHEAD COOLING SYSTEM(YS9) 		1-82620-913-0 01 1 9001-9012 ● ●
146 HARNESS; JUNCTION
EXC. INDICATOR WARNING BUZZER(WF9) 		1-82620-913-0 01 1 9101-9303 ● ●
146 HARNESS; JUNCTION
SINGLE SPEED-AXLE RATIO<W9Z> EXC. INDICATOR WARNING BUZZER(WF9) 		1-82620-913-0 01 1 9304- ● ●
147 HARNESS; ACCEL SW 1-82632-267-0 01 1 9001- ● ●
152 HARNESS; WIPER
WIPER BLADE LONG<YD4> 		1-82621-295-0 01 1 9001- ● ●
152 HARNESS; WIPER
WIPER MOTOR KIT<ST7> 		1-82620-468-0 01 1 9001- ● ●
153 HARNESS; WASHER TANK
WINDSHIELD WASHER<C11> 		1-82620-467-0 01 1 9001- ● ●
179 FUSIBLE LINK 1-82659-023-0 01 1 9001- ● ●
189 HARNESS; EXT 1-82672-517-0 01 1 9906-9907 ● ●
189 HARNESS; EXT
EXC. NIKKO<Y70> 		1-82672-517-0 01 1 9908- ● ●
199 HARNESS; STARTER 1-82640-130-0 01 1 9001- ● ●
234 HARNESS; LICENSE LAMP
HEAD LAMP RECTANGULAR ANGLE<TR4> 		1-82638-847-0 01 1 9408- ●
372 HARNESS; CABLE,ENG OVERRUN
ENGINE OVERRUN BUZZER<SK4> 		1-82631-908-0 01 1 9001- ● ●
