Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#21377) — 291 parça

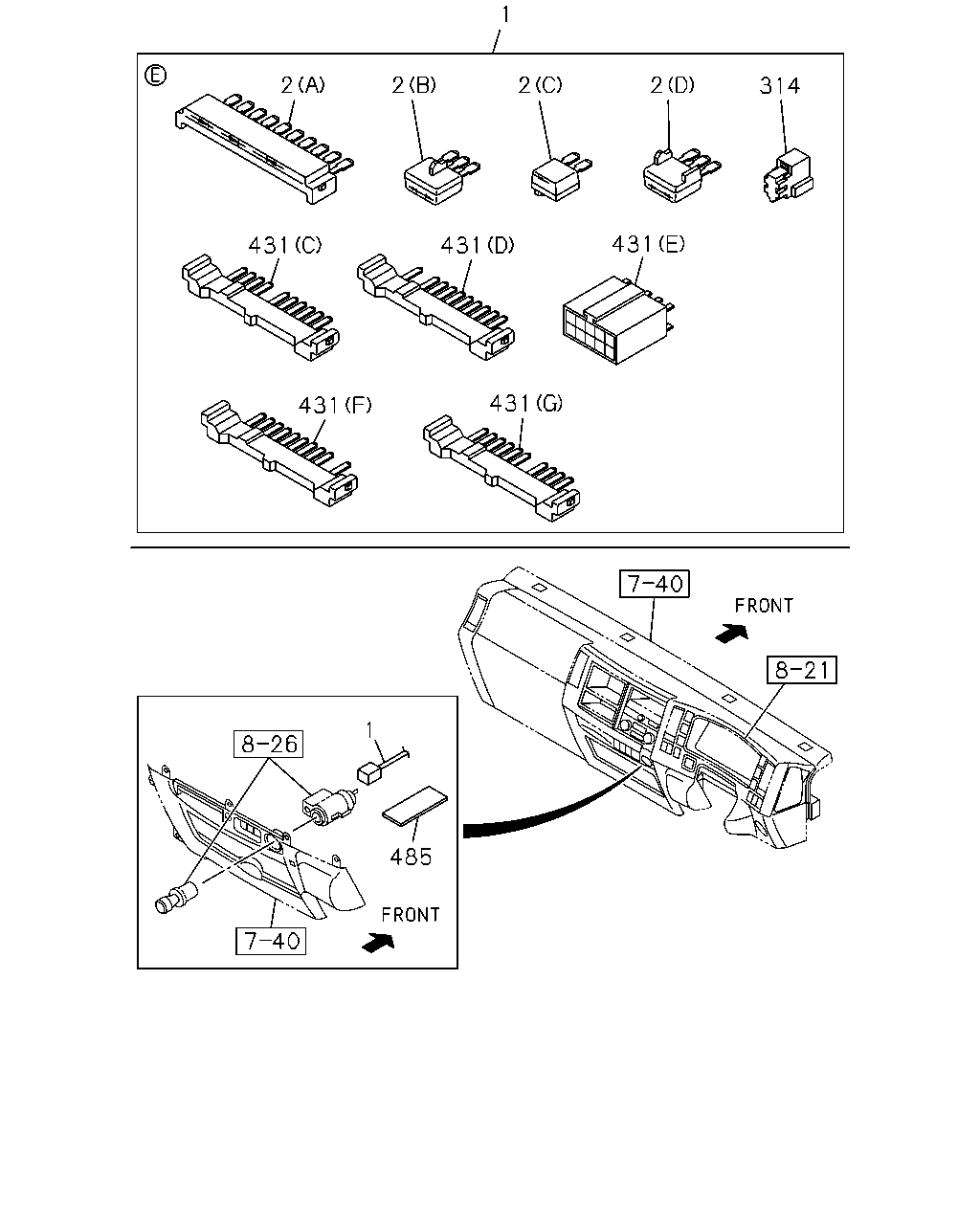

1 2 2 2 2 314 431 431 431 431 431 1 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3)	8-98190-081-0	01	1	1107-1209
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) EXC. AIR BAG DRIVER(AJ3)	8-98190-081-0	01	1	1210-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-981-0	01	1	1110-1209
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) ASSISTOR SHIFT CONTROL<WX8>	8-98187-981-0	01	1	1210-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98187-952-0	01	1	1110-1209
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98187-952-0	01	1	1210-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) IN HOUSE PRODUCTION<TKF> ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98187-980-0	01	1	1110-1209
1	HARNESS; CAB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3)	8-98187-980-0	01	1	1210-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),ASSISTOR SHIFT CONTROL<WX8>	8-98187-951-0	01	1	1110-1209
1	HARNESS; CAB ZF9S1110 M/T(Y5E) EXC. AIR BAG DRIVER(AJ3),ASSISTOR SHIFT CONTROL<WX8>	8-98187-951-0	01	1	1210-
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98192-088-0	01	1	1107-1209
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) ASSISTOR SHIFT CONTROL<WX8>	8-98084-996-2	01	1	1001-1109
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98084-996-2	01	1	1110-1209
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98084-936-2	01	1	1001-1109
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>,ASSISTOR SHIFT CONTROL<WX8>	8-98084-936-2	01	1	1110-1209
1	HARNESS; CAB ZF9S1110 M/T(Y5E) EXC. AIR BAG DRIVER(AJ3),ASSISTOR SHIFT CONTROL<WX8>	8-98084-935-2	01	1	1001-1109
1	HARNESS; CAB ZF9S1110 M/T(Y5E) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>, ASSISTOR SHIFT CONTROL<WX8>	8-98084-935-2	01	1	1110-1209
1	HARNESS; CAB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3)	8-98084-995-2	01	1	1001-1109
1	HARNESS; CAB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98084-995-2	01	1	1110-1209
2	DIODE; CABLE HARNESS (A) BLACK 10P SOU	1-82699-703-0	01	1	1001-
2	DIODE; CABLE HARNESS (D) BLACK 3P-1.5A SOU	8-94416-438-1	01	1	1001-
2	DIODE; CABLE HARNESS (C) BLACK 2P-1.5A SOU	8-94422-639-1	03	1	1001-
2	DIODE; CABLE HARNESS (B) BLACK 3P-1.5A SOU	8-94422-640-1	01	1	1001-
314	RESISTOR; HARNESS BLUE	1-82691-204-0	01	1	1001-
431	CONNECTOR; JOINT ZF9S1110 M/T(Y5E) EXC. VIN MODEL YEAR 2011<VZB> (C) 10P BLUE	1-82699-598-0	04	1	1012-1102
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	01	1	1001-
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	1001-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	02	1	1001-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	1001-1011
431	CONNECTOR; JOINT ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> (C) 10P BLUE	1-82699-598-0	05	1	1012-1102
431	CONNECTOR; JOINT ZF9S1110 M/T(Y5E) (C) 10P BLUE	1-82699-598-0	05	1	1103-1106
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	05	1	1107-
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	1001-
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	1001-
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	09	1	1001-
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	01	1	1001-
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	1001-
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	01	1	1001-
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1001-
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1001-
485	SEAL; CONNECTOR 180X40	1-72498-019-1	01	1	1001-

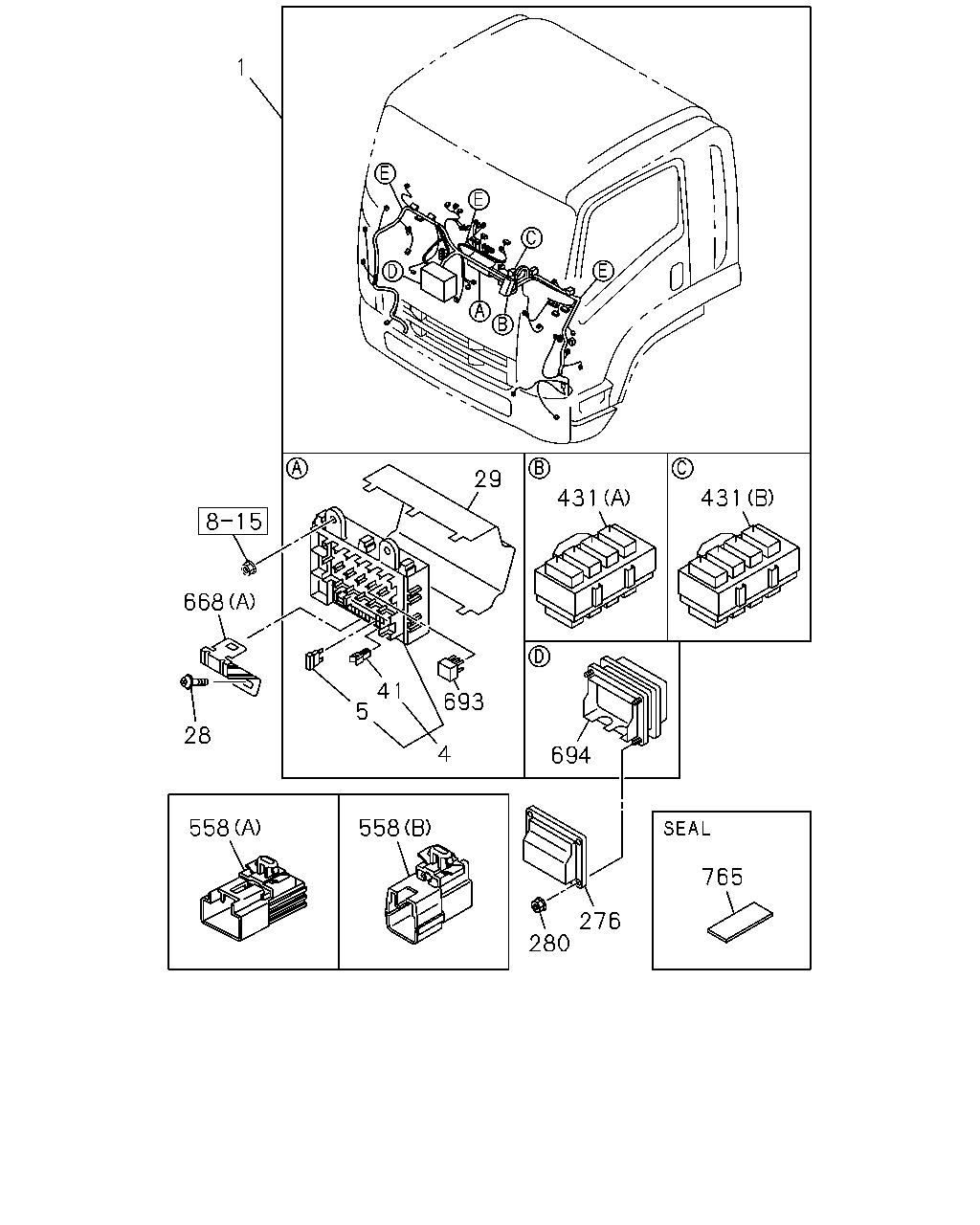

1 431 431 29 668 28 5 41 4 693 694 558 558 280 276 765

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3)	8-98190-081-0	01	1	1107-1209
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) EXC. AIR BAG DRIVER(AJ3)	8-98190-081-0	01	1	1210-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-981-0	01	1	1110-1209
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) ASSISTOR SHIFT CONTROL<WX8>	8-98187-981-0	01	1	1210-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98187-952-0	01	1	1110-1209
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98187-952-0	01	1	1210-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) IN HOUSE PRODUCTION<TKF> ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98187-980-0	01	1	1110-1209
1	HARNESS; CAB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3)	8-98187-980-0	01	1	1210-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),ASSISTOR SHIFT CONTROL<WX8>	8-98187-951-0	01	1	1110-1209
1	HARNESS; CAB ZF9S1110 M/T(Y5E) EXC. AIR BAG DRIVER(AJ3),ASSISTOR SHIFT CONTROL<WX8>	8-98187-951-0	01	1	1210-
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98192-088-0	01	1	1107-1209
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) ASSISTOR SHIFT CONTROL<WX8>	8-98084-996-2	01	1	1001-1109
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98084-996-2	01	1	1110-1209
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98084-936-2	01	1	1001-1109
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>,ASSISTOR SHIFT CONTROL<WX8>	8-98084-936-2	01	1	1110-1209
1	HARNESS; CAB ZF9S1110 M/T(Y5E) EXC. AIR BAG DRIVER(AJ3),ASSISTOR SHIFT CONTROL<WX8>	8-98084-935-2	01	1	1001-1109
1	HARNESS; CAB ZF9S1110 M/T(Y5E) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>, ASSISTOR SHIFT CONTROL<WX8>	8-98084-935-2	01	1	1110-1209
1	HARNESS; CAB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3)	8-98084-995-2	01	1	1001-1109
1	HARNESS; CAB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98084-995-2	01	1	1110-1209
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1001-
5	FUSE; FACIA HARNESS 10A RED SOU	8-98054-257-0	AR	1	1001-
5	FUSE; FACIA HARNESS 15A BLUE SOU	8-98054-258-0	AR	1	1001-
5	FUSE; FACIA HARNESS 20A YELLOW SOU	8-98054-259-0	AR	1	1001-
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	02	1	1001-
28	SCREW; FUSE BOX BOLT M6X16 FLANGE SOU	0-28650-616-0	01	1	1001-
29	COVER; FUSE BOX	8-98056-968-0	01	1	1001-
41	PULLER; FUSE SOU	8-98054-260-0	01	1	1001-
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1001-
280	NUT; BOX ASM FIX M6 FLANGE SOU	0-91180-106-0	04	1	1001-
431	CONNECTOR; JOINT ZF9S1110 M/T(Y5E) EXC. VIN MODEL YEAR 2011<VZB> (C) 10P BLUE	1-82699-598-0	04	1	1012-1102
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	01	1	1001-
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	1001-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	02	1	1001-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	1001-1011
431	CONNECTOR; JOINT ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> (C) 10P BLUE	1-82699-598-0	05	1	1012-1102
431	CONNECTOR; JOINT ZF9S1110 M/T(Y5E) (C) 10P BLUE	1-82699-598-0	05	1	1103-1106
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	05	1	1107-
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	1001-
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	1001-
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	09	1	1001-
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	01	1	1001-
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	1001-
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	01	1	1001-
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1001-
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1001-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98108-678-0	01	1	1001-
558	CONNECTOR; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98108-679-0	01	1	1001-
668	BRACKET; HARNESS ALLISON MD3560P A/T(Y3B) (B)	8-98032-360-0	01	1	1107-
668	BRACKET; HARNESS (A)	8-98095-653-2	01	1	1001-
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1001-
694	BOX ASM; CONNECTOR	8-98063-269-1	01	1	1001-
765	TAPE 100X40 SOU	1-72498-022-1	01	1	1409-

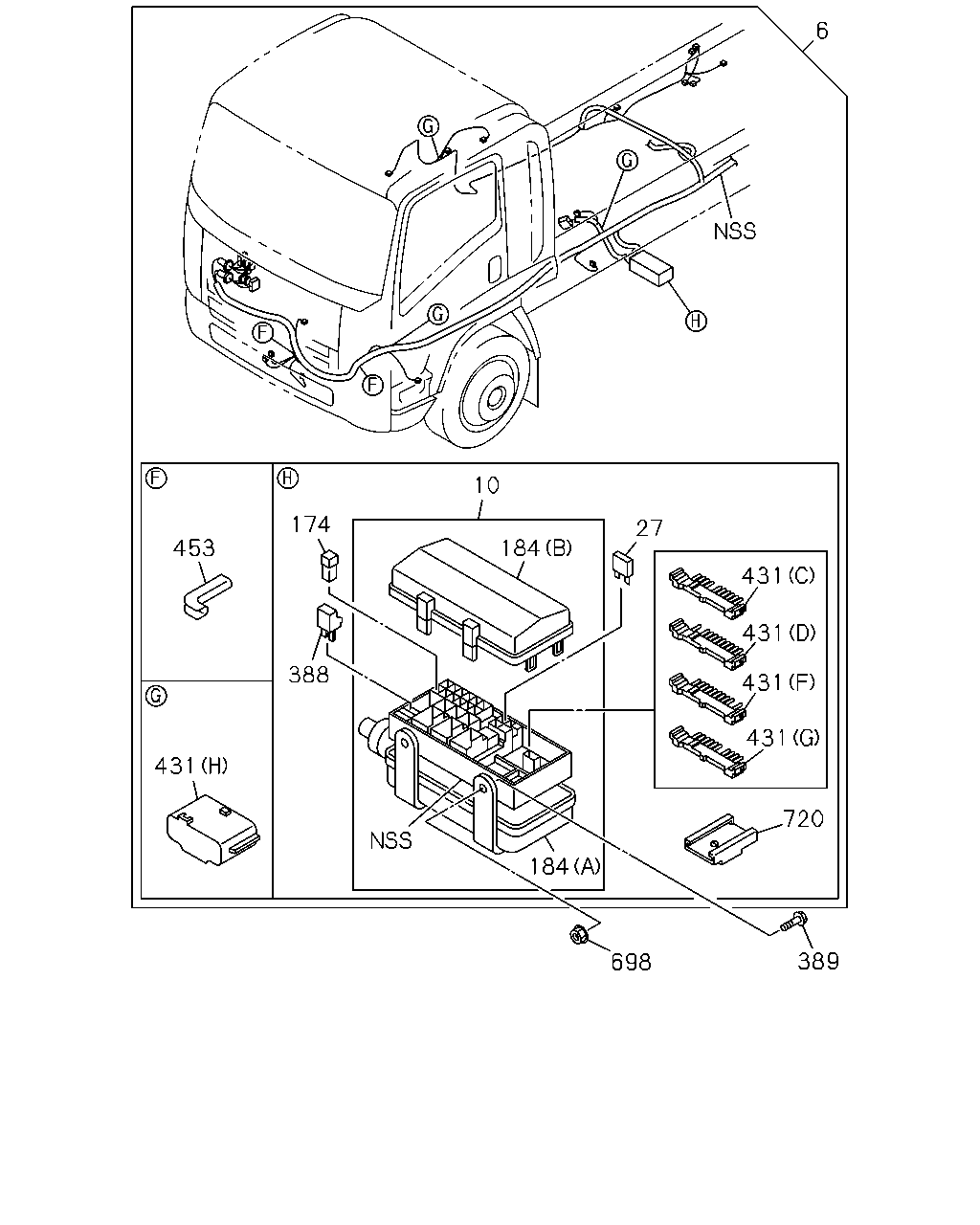

6 10 174 27 453 184 431 431 388 431 431 431 720 184 389 698

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME ALLISON MD3560P A/T(Y3B)	8-98190-154-1	01	1	1107-1405
6	HARNESS; FRAME ALLISON MD3560P A/T(Y3B)	8-98270-672-0	01	1	1406-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8>	8-98173-989-1	01	1	1012-1102
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98173-989-1	01	1	1103-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98173-990-1	01	1	1012-1102
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98173-990-1	01	1	1103-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98113-616-3	01	1	1001-1011
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. VIN MODEL YEAR 2011<VZB>	8-98113-616-3	01	1	1012-1102
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98113-617-3	01	1	1001-1011
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. VIN MODEL YEAR 2011<VZB>,ASSISTOR SHIFT CONTROL<WX8>	8-98113-617-3	01	1	1012-1102
10	BOX; FUSE,HARNESS	8-98030-762-0	01	1	1001-
27	FUSE UNIT 15A BLUE SOU	8-98054-258-0	02	1	1406-
27	FUSE UNIT 10A RED SOU	8-98054-257-0	01	1	1001-
27	FUSE UNIT 15A BLUE SOU	8-98054-258-0	02	1	1001-1405
27	FUSE UNIT ALLISON MD3560P A/T(Y3B) 15A BLUE SOU	8-98054-258-0	03	1	1406-
174	FUSE; SLOW BLOW 60A YELLOW SOU	8-97219-407-0	01	1	1107-
174	FUSE; SLOW BLOW 30A PINK SOU	8-98079-191-0	01	1	1001-
174	FUSE; SLOW BLOW 40A GREEN SOU	8-98079-192-0	01	1	1001-
174	FUSE; SLOW BLOW 50A RED SOU	8-98079-193-0	03	1	1001-
174	FUSE; SLOW BLOW 60A YELLOW 60A YELLOW SOU	8-97219-407-0	03	1	1001-1106
174	FUSE; SLOW BLOW 60A YELLOW 60A YELLOW SOU	8-97219-407-0	02	1	1107-
184	COVER; RELAY & FUSE BOX (A)	8-98030-766-0	01	1	1001-
184	COVER; RELAY & FUSE BOX (B)	8-98030-767-1	01	1	1001-
388	DIODE; RELAY BOX BLACK 2P-1.5A SOU	8-94422-639-1	01	1	1406-
388	DIODE; RELAY BOX BLACK 2P-1.5A SOU	8-94422-639-1	01	1	1001-1405
388	DIODE; RELAY BOX ALLISON MD3560P A/T(Y3B) BLACK 2P-1.5A SOU	8-94422-639-1	02	1	1406-
389	BOLT; COVER,RELAY BOX M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1001-
431	CONNECTOR; JOINT ZF9S1110 M/T(Y5E) EXC. VIN MODEL YEAR 2011<VZB> (C) 10P BLUE	1-82699-598-0	04	1	1012-1102
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	01	1	1001-
431	CONNECTOR; JOINT (F) 10P GREEN	1-82698-579-0	02	1	1001-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	02	1	1001-
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	04	1	1001-1011
431	CONNECTOR; JOINT ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> (C) 10P BLUE	1-82699-598-0	05	1	1012-1102
431	CONNECTOR; JOINT ZF9S1110 M/T(Y5E) (C) 10P BLUE	1-82699-598-0	05	1	1103-1106
431	CONNECTOR; JOINT (C) 10P BLUE	1-82699-598-0	05	1	1107-
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	01	1	1001-
431	CONNECTOR; JOINT (G) 10P GREEN	1-82699-599-0	04	1	1001-
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	09	1	1001-
431	CONNECTOR; JOINT (D) 10P BROWN SOU	1-82699-601-0	01	1	1001-
431	CONNECTOR; JOINT (E) 10P	8-97077-943-0	02	1	1001-
431	CONNECTOR; JOINT (H) 6P BLACK	8-97616-194-0	01	1	1001-
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1001-
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1001-
453	PROTECTOR; HARNESS	1-82699-709-0	01	1	1001-
698	NUT; COVER,RELAY BOX M8 FLANGE SOU	0-91180-108-0	02	1	1001-
720	ATTACHMENT; CONNECTOR	1-82699-688-0	03	1	1001-

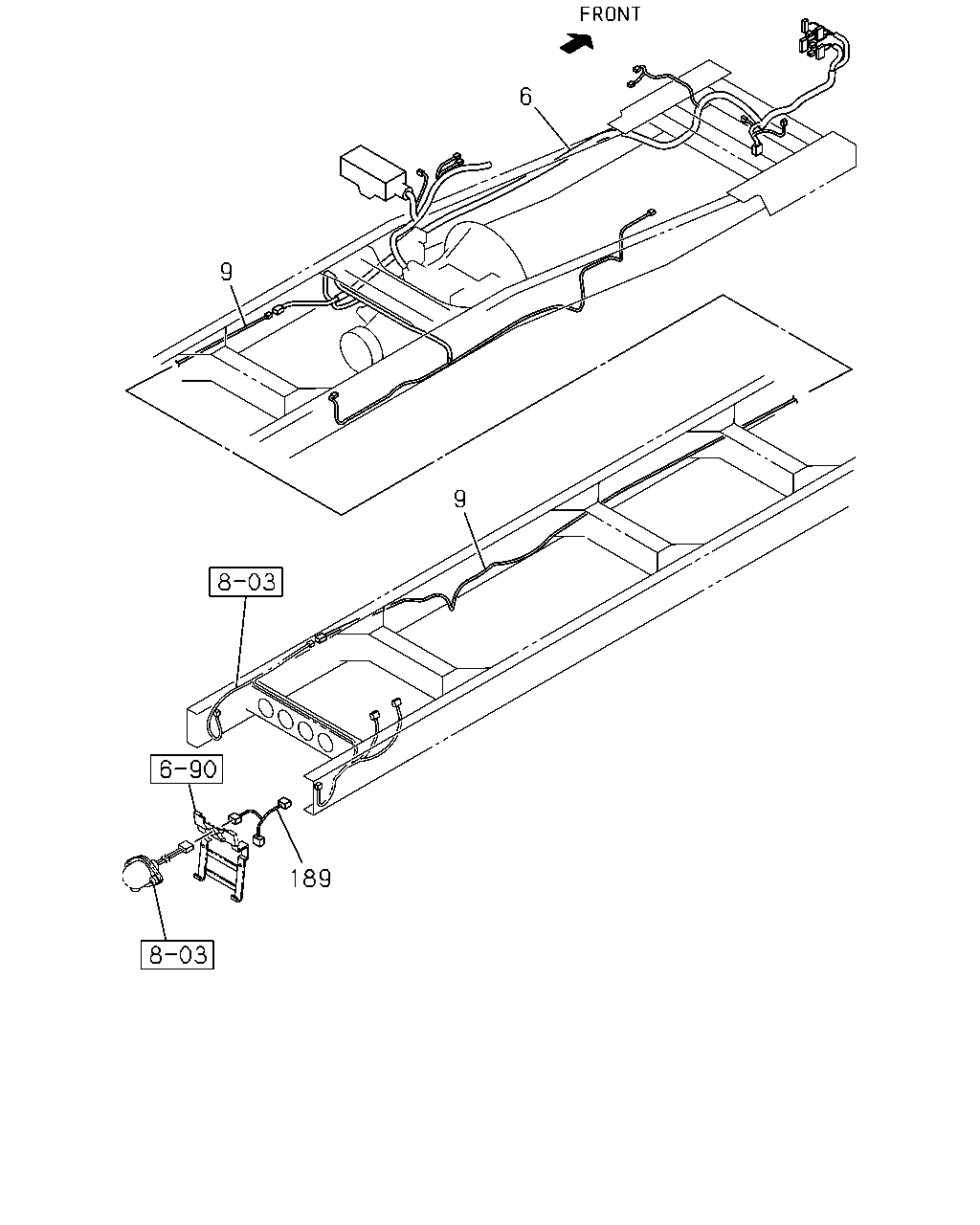

6 9 9 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME ALLISON MD3560P A/T(Y3B)	8-98190-154-1	01	1	1107-1405
6	HARNESS; FRAME ALLISON MD3560P A/T(Y3B)	8-98270-672-0	01	1	1406-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8>	8-98173-989-1	01	1	1012-1102
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98173-989-1	01	1	1103-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98173-990-1	01	1	1012-1102
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98173-990-1	01	1	1103-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98113-616-3	01	1	1001-1011
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. VIN MODEL YEAR 2011<VZB>	8-98113-616-3	01	1	1012-1102
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98113-617-3	01	1	1001-1011
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. VIN MODEL YEAR 2011<VZB>,ASSISTOR SHIFT CONTROL<WX8>	8-98113-617-3	01	1	1012-1102
9	HARNESS; FRAME,RR	8-98069-205-1	01	1	1001-1007
9	HARNESS; FRAME,RR	8-98168-624-0	01	1	1008-1109
9	HARNESS; FRAME,RR	8-98191-176-0	01	1	1110-
189	HARNESS; EXT	8-98131-066-0	01	1	1001-

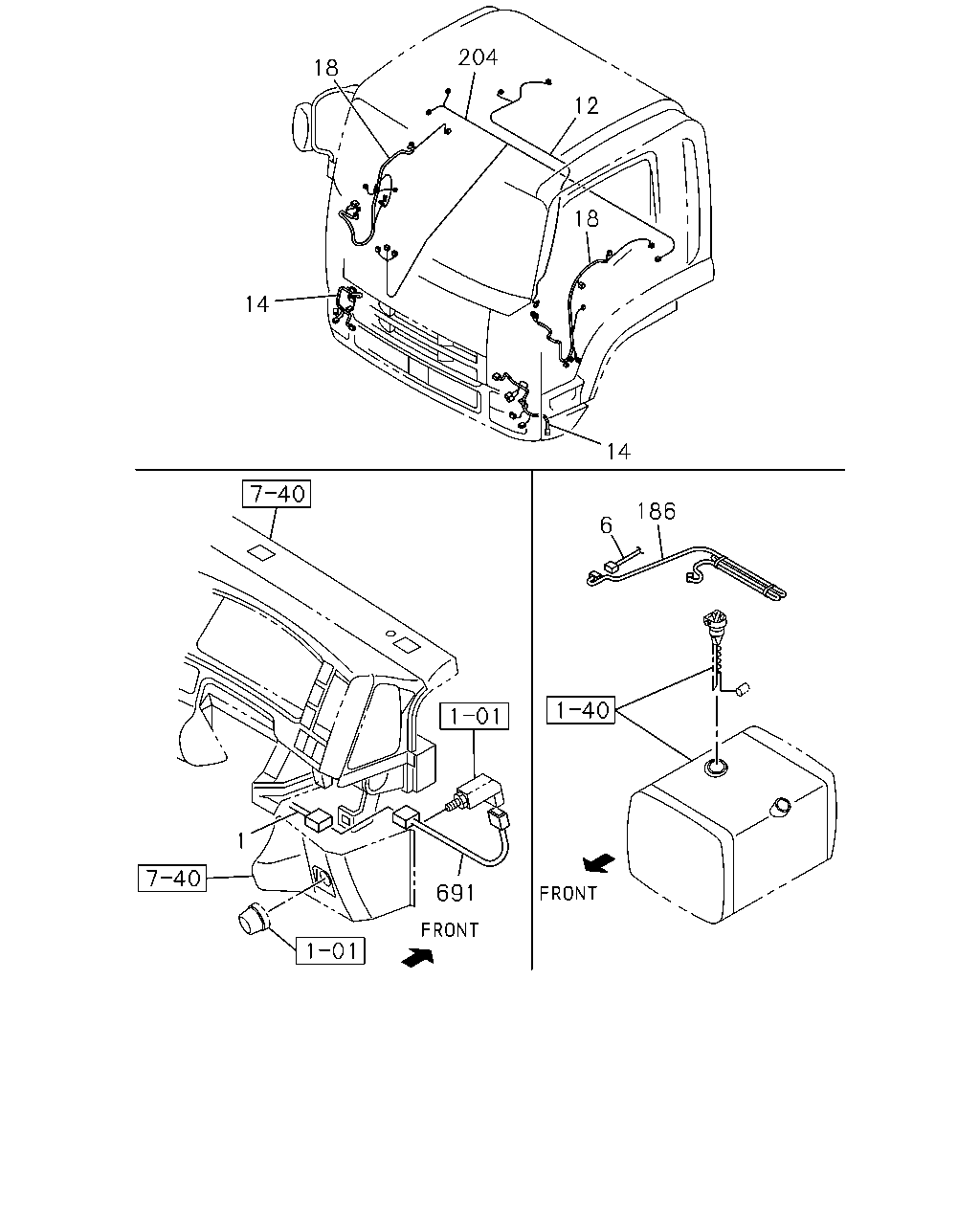

204 18 12 18 14 14 186 6 1 691

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3)	8-98190-081-0	01	1	1107-1209
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) EXC. AIR BAG DRIVER(AJ3)	8-98190-081-0	01	1	1210-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-981-0	01	1	1110-1209
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) ASSISTOR SHIFT CONTROL<WX8>	8-98187-981-0	01	1	1210-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98187-952-0	01	1	1110-1209
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98187-952-0	01	1	1210-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) IN HOUSE PRODUCTION<TKF> ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98187-980-0	01	1	1110-1209
1	HARNESS; CAB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3)	8-98187-980-0	01	1	1210-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),ASSISTOR SHIFT CONTROL<WX8>	8-98187-951-0	01	1	1110-1209
1	HARNESS; CAB ZF9S1110 M/T(Y5E) EXC. AIR BAG DRIVER(AJ3),ASSISTOR SHIFT CONTROL<WX8>	8-98187-951-0	01	1	1210-
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98192-088-0	01	1	1107-1209
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) ASSISTOR SHIFT CONTROL<WX8>	8-98084-996-2	01	1	1001-1109
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98084-996-2	01	1	1110-1209
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98084-936-2	01	1	1001-1109
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>,ASSISTOR SHIFT CONTROL<WX8>	8-98084-936-2	01	1	1110-1209
1	HARNESS; CAB ZF9S1110 M/T(Y5E) EXC. AIR BAG DRIVER(AJ3),ASSISTOR SHIFT CONTROL<WX8>	8-98084-935-2	01	1	1001-1109
1	HARNESS; CAB ZF9S1110 M/T(Y5E) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>, ASSISTOR SHIFT CONTROL<WX8>	8-98084-935-2	01	1	1110-1209
1	HARNESS; CAB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3)	8-98084-995-2	01	1	1001-1109
1	HARNESS; CAB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98084-995-2	01	1	1110-1209
6	HARNESS; FRAME ALLISON MD3560P A/T(Y3B)	8-98190-154-1	01	1	1107-1405
6	HARNESS; FRAME ALLISON MD3560P A/T(Y3B)	8-98270-672-0	01	1	1406-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8>	8-98173-989-1	01	1	1012-1102
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98173-989-1	01	1	1103-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98173-990-1	01	1	1012-1102
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98173-990-1	01	1	1103-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98113-616-3	01	1	1001-1011
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. VIN MODEL YEAR 2011<VZB>	8-98113-616-3	01	1	1012-1102
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98113-617-3	01	1	1001-1011
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. VIN MODEL YEAR 2011<VZB>,ASSISTOR SHIFT CONTROL<WX8>	8-98113-617-3	01	1	1012-1102
12	HARNESS; ROOF LAMPS TWO ROOF MARKER<TEC>	8-98085-333-0	01	1	1001-
12	HARNESS; ROOF EXC. LAMPS TWO ROOF MARKER<TEC>	8-98041-949-2	01	1	1001-
14	HARNESS; HEADLAMP EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-94270-986-0	02	1	1307-
14	HARNESS; HEADLAMP	8-98069-166-0	02	1	1001-1306
14	HARNESS; HEADLAMP HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98069-166-1	02	1	1307-
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>	8-98084-288-3	01	1	1001-1202
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>	8-98108-440-1	01	1	1203-
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>	8-98084-283-3	01	1	1001-1202
18	HARNESS; DOOR AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32>	8-98108-439-1	01	1	1203-
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-98084-287-3	01	1	1001-1202
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-98076-305-3	01	1	1203-
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-98084-282-3	01	1	1001-1202
18	HARNESS; DOOR EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>	8-98076-304-3	01	1	1203-
186	HARNESS; FUEL TANK	8-98099-650-0	01	1	1001-
204	HARNESS; CABLE,FLOOR ALLISON MD3560P A/T(Y3B) DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. AIR BAG DRIVER(AJ3)	8-98190-083-0	01	1	1107-
204	HARNESS; CABLE,FLOOR ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ>	8-98085-279-1	01	1	1001-
204	HARNESS; CABLE,FLOOR ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98085-280-1	01	1	1001-
204	HARNESS; CABLE,FLOOR ZF9S1110 M/T(Y5E) AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> EXC. AIR BAG DRIVER(AJ3)	8-98085-274-0	01	1	1001-
204	HARNESS; CABLE,FLOOR ZF9S1110 M/T(Y5E) DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. AIR BAG DRIVER(AJ3)	8-98085-275-1	01	1	1001-
691	HARNESS; IDLE CONT	8-98049-014-2	01	1	1001-

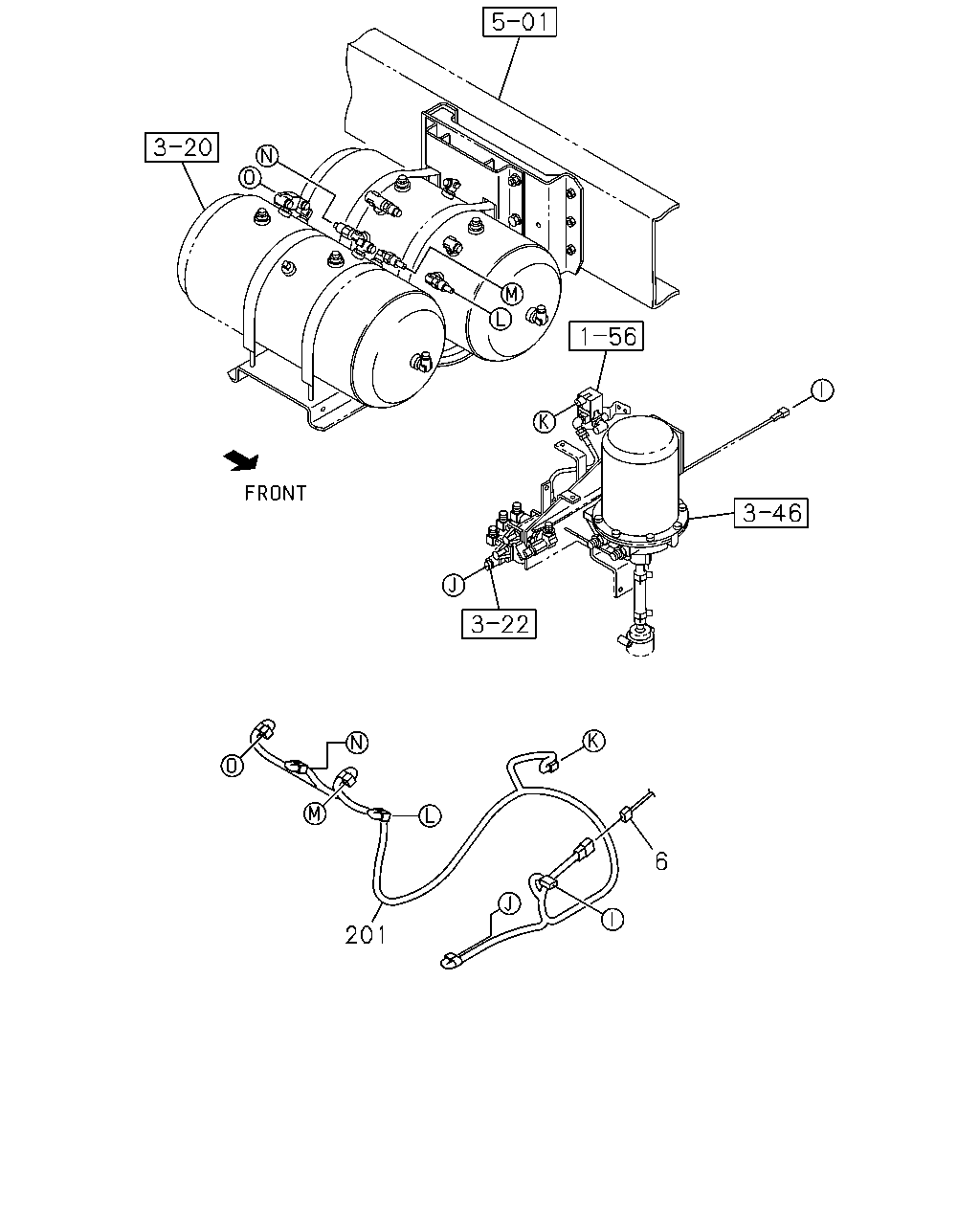

6 201

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME ALLISON MD3560P A/T(Y3B)	8-98190-154-1	01	1	1107-1405
6	HARNESS; FRAME ALLISON MD3560P A/T(Y3B)	8-98270-672-0	01	1	1406-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8>	8-98173-989-1	01	1	1012-1102
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98173-989-1	01	1	1103-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98173-990-1	01	1	1012-1102
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98173-990-1	01	1	1103-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98113-616-3	01	1	1001-1011
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. VIN MODEL YEAR 2011<VZB>	8-98113-616-3	01	1	1012-1102
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98113-617-3	01	1	1001-1011
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. VIN MODEL YEAR 2011<VZB>,ASSISTOR SHIFT CONTROL<WX8>	8-98113-617-3	01	1	1012-1102
201	HARNESS; AIR TANK EXC. AIR DRYER<PS7>	8-98240-716-0	01	1	1406-
201	HARNESS; AIR TANK VIN MODEL YEAR 2011<VZB>	8-98173-996-0	01	1	1012-1012
201	HARNESS; AIR TANK VIN MODEL YEAR 2011<VZB>	8-98184-703-0	01	1	1012-1102
201	HARNESS; AIR TANK	8-98184-703-0	01	1	1103-1405
201	HARNESS; AIR TANK AIR DRYER<PS7>	8-98184-703-0	01	1	1406-
201	HARNESS; AIR TANK	8-98069-170-1	01	1	1001-1011
201	HARNESS; AIR TANK EXC. VIN MODEL YEAR 2011<VZB>	8-98069-170-1	01	1	1012-1102

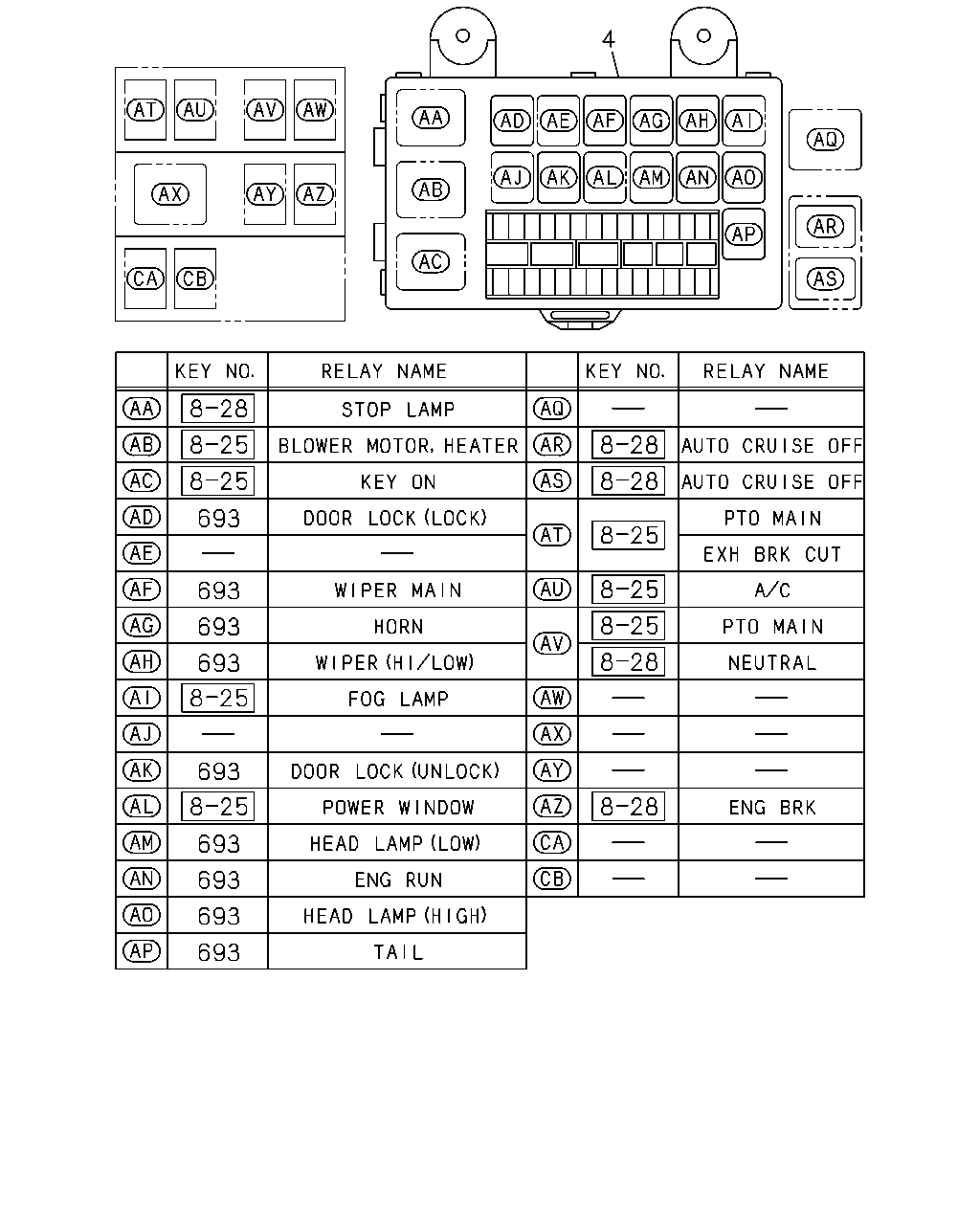

4 693 693 693 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1001-
	693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1001-

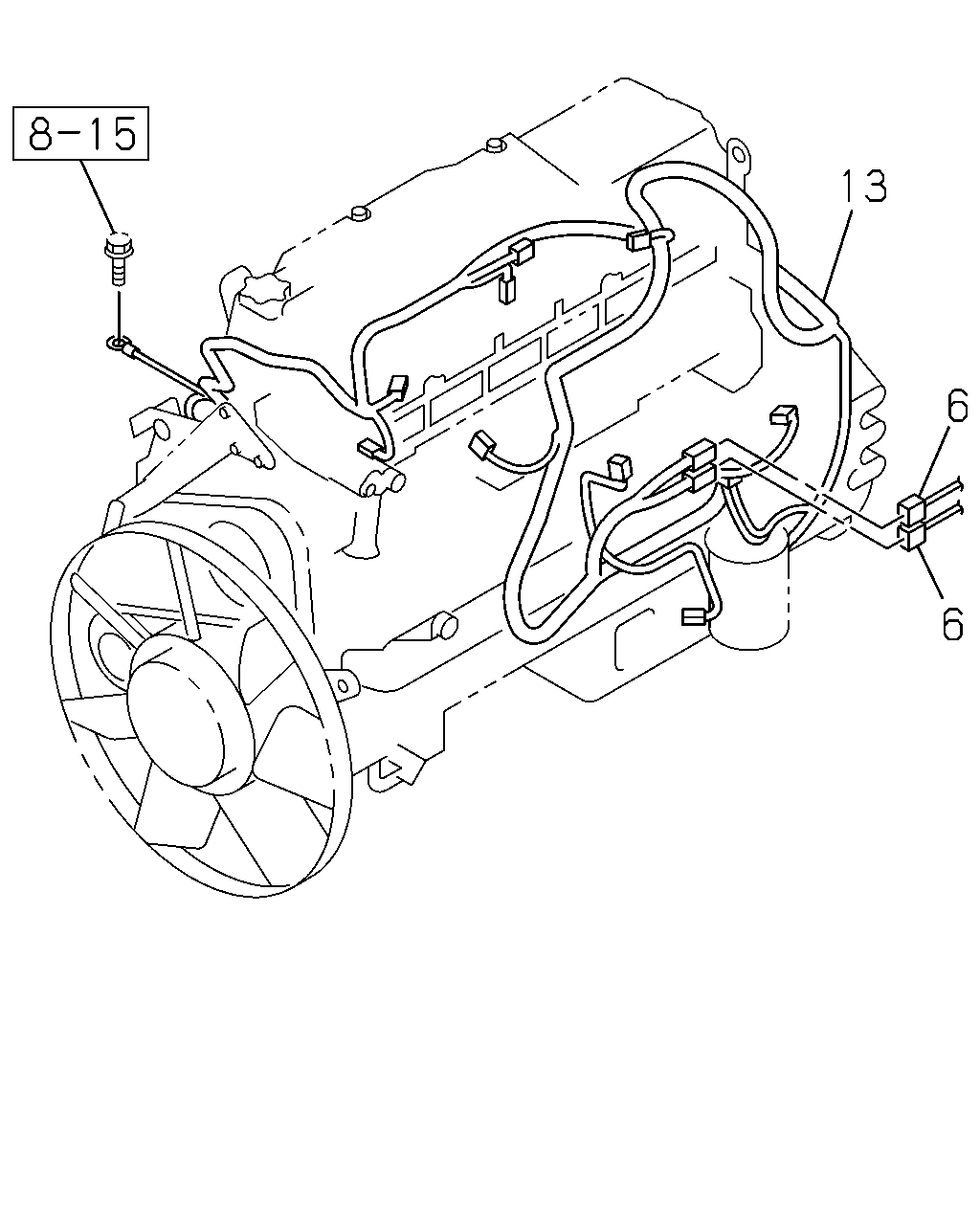

13 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME ALLISON MD3560P A/T(Y3B)	8-98190-154-1	01	1	1107-1405
6	HARNESS; FRAME ALLISON MD3560P A/T(Y3B)	8-98270-672-0	01	1	1406-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8>	8-98173-989-1	01	1	1012-1102
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98173-989-1	01	1	1103-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98173-990-1	01	1	1012-1102
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98173-990-1	01	1	1103-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98113-616-3	01	1	1001-1011
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. VIN MODEL YEAR 2011<VZB>	8-98113-616-3	01	1	1012-1102
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98113-617-3	01	1	1001-1011
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. VIN MODEL YEAR 2011<VZB>,ASSISTOR SHIFT CONTROL<WX8>	8-98113-617-3	01	1	1012-1102
13	HARNESS; ENG ALLISON MD3560P A/T(Y3B) GENERATOR 24V60A(KG2)	8-98190-068-1	01	1	1107-
13	HARNESS; ENG ALLISON MD3560P A/T(Y3B) GENERATOR 24V50A(K89)	8-98190-067-1	01	1	1107-
13	HARNESS; ENG GENERATOR 24V50A(K89)	8-98075-774-5	01	1	1001-1106
13	HARNESS; ENG ZF9S1110 M/T(Y5E) GENERATOR 24V50A(K89)	8-98075-774-5	01	1	1107-
13	HARNESS; ENG GENERATOR 24V60A(KG2)	8-98075-775-5	01	1	1001-1106
13	HARNESS; ENG ZF9S1110 M/T(Y5E) GENERATOR 24V60A(KG2)	8-98075-775-5	01	1	1107-

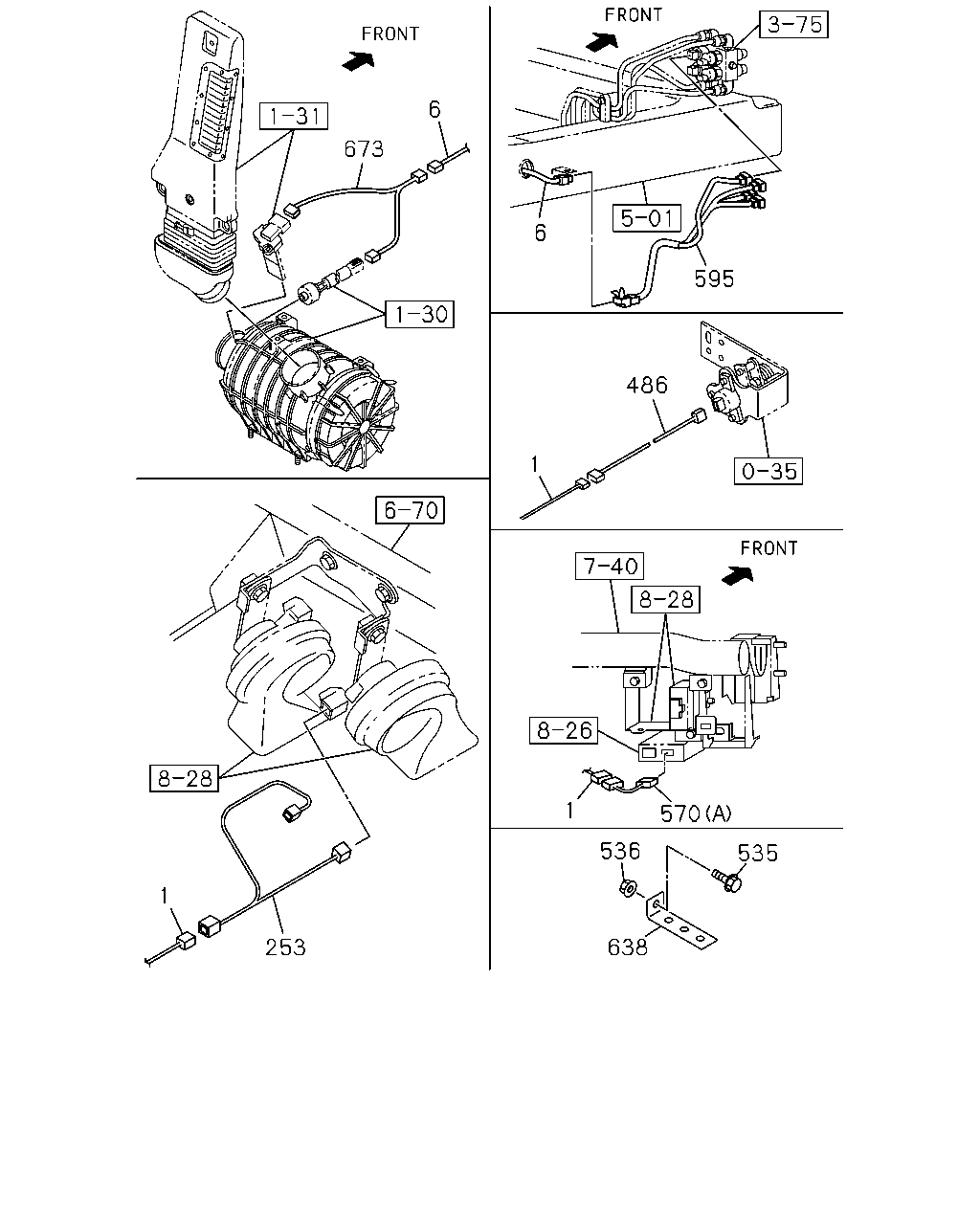

6 673 6 595 486 1 1 570 536 535 1 253 638

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3)	8-98190-081-0	01	1	1107-1209
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) EXC. AIR BAG DRIVER(AJ3)	8-98190-081-0	01	1	1210-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98187-981-0	01	1	1110-1209
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) ASSISTOR SHIFT CONTROL<WX8>	8-98187-981-0	01	1	1210-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98187-952-0	01	1	1110-1209
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98187-952-0	01	1	1210-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) IN HOUSE PRODUCTION<TKF> ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3)	8-98187-980-0	01	1	1110-1209
1	HARNESS; CAB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3)	8-98187-980-0	01	1	1210-
1	HARNESS; CAB ZF9S1110 M/T(Y5E) IN HOUSE PRODUCTION<TKF> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),ASSISTOR SHIFT CONTROL<WX8>	8-98187-951-0	01	1	1110-1209
1	HARNESS; CAB ZF9S1110 M/T(Y5E) EXC. AIR BAG DRIVER(AJ3),ASSISTOR SHIFT CONTROL<WX8>	8-98187-951-0	01	1	1210-
1	HARNESS; CAB ALLISON MD3560P A/T(Y3B) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98192-088-0	01	1	1107-1209
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) ASSISTOR SHIFT CONTROL<WX8>	8-98084-996-2	01	1	1001-1109
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>	8-98084-996-2	01	1	1110-1209
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98084-936-2	01	1	1001-1109
1	HARNESS; CAB ZF9S1110 M/T(Y5E) AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IN HOUSE PRODUCTION<TKF>,ASSISTOR SHIFT CONTROL<WX8>	8-98084-936-2	01	1	1110-1209
1	HARNESS; CAB ZF9S1110 M/T(Y5E) EXC. AIR BAG DRIVER(AJ3),ASSISTOR SHIFT CONTROL<WX8>	8-98084-935-2	01	1	1001-1109
1	HARNESS; CAB ZF9S1110 M/T(Y5E) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>, ASSISTOR SHIFT CONTROL<WX8>	8-98084-935-2	01	1	1110-1209
1	HARNESS; CAB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. AIR BAG DRIVER(AJ3)	8-98084-995-2	01	1	1001-1109
1	HARNESS; CAB ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF>	8-98084-995-2	01	1	1110-1209
6	HARNESS; FRAME ALLISON MD3560P A/T(Y3B)	8-98190-154-1	01	1	1107-1405
6	HARNESS; FRAME ALLISON MD3560P A/T(Y3B)	8-98270-672-0	01	1	1406-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> ASSISTOR SHIFT CONTROL<WX8>	8-98173-989-1	01	1	1012-1102
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98173-989-1	01	1	1103-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) VIN MODEL YEAR 2011<VZB> EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98173-990-1	01	1	1012-1102
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98173-990-1	01	1	1103-
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98113-616-3	01	1	1001-1011
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> EXC. VIN MODEL YEAR 2011<VZB>	8-98113-616-3	01	1	1012-1102
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8>	8-98113-617-3	01	1	1001-1011
6	HARNESS; FRAME ZF9S1110 M/T(Y5E) EXC. VIN MODEL YEAR 2011<VZB>,ASSISTOR SHIFT CONTROL<WX8>	8-98113-617-3	01	1	1012-1102
253	HARNESS; EXT,HORN	8-98074-080-3	01	1	1001-
486	HARNESS; ALL SPEED ACCEL PTO ZF TRANS RR(BDM)	1-82675-898-0	01	1	1001-
535	BOLT; BRKT FIX M8X35 FLANGE SOU	0-28650-835-0	01	1	1001-
536	NUT; BRKT FIX M8 FLANGE SOU	0-91180-108-0	01	1	1001-
570	HARNESS; SPEED SENSOR ZF9S1110 M/T(Y5E) (B)	1-82659-230-0	01	1	1001-1004
570	HARNESS; SPEED SENSOR ZF9S1110 M/T(Y5E) (B)	8-98148-602-0	01	1	1005-
570	HARNESS; SPEED SENSOR ZF9S1110 M/T(Y5E) (A)	8-98058-327-1	01	1	1001-
570	HARNESS; SPEED SENSOR ALLISON MD3560P A/T(Y3B) (A)	8-98091-562-0	01	1	1107-
595	HARNESS; WARNING,BRK	8-97620-487-1	01	1	1001-
638	BRACKET; SPD SENSOR	1-82698-167-0	01	1	1001-
673	HARNESS; EXT,SENSOR	8-98069-172-0	01	1	1001-

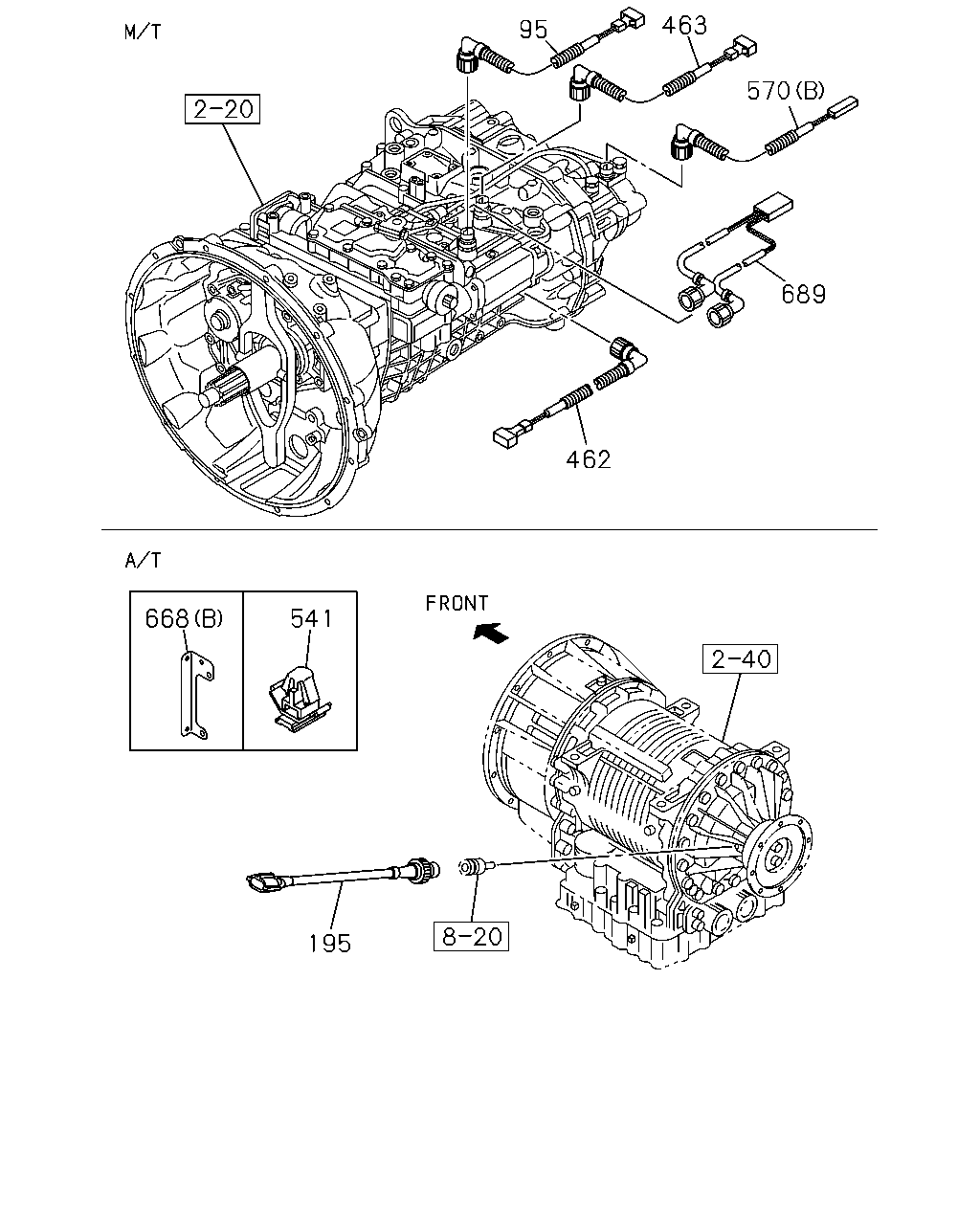

463 95 570 689 462 668 541 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
95	HARNESS; NEUTRAL SW ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> RED	8-98145-854-0	01	1	1001-
95	HARNESS; NEUTRAL SW ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> RED	8-98145-855-0	01	1	1001-
195	HARNESS; EXT ALLISON MD3560P A/T(Y3B)	1-82671-045-1	01	1	1107-
462	HARNESS; SW,RANGE ZF9S1110 M/T(Y5E) BLUE	8-98145-857-0	01	1	1001-
463	HARNESS; SW,BACK UP ZF9S1110 M/T(Y5E) BLACK	8-98145-856-0	01	1	1001-
541	CLIP ALLISON MD3560P A/T(Y3B) OD=9 H=6	1-09709-178-0	01	1	1107-
570	HARNESS; SPEED SENSOR ZF9S1110 M/T(Y5E) (B)	1-82659-230-0	01	1	1001-1004
570	HARNESS; SPEED SENSOR ZF9S1110 M/T(Y5E) (B)	8-98148-602-0	01	1	1005-
570	HARNESS; SPEED SENSOR ZF9S1110 M/T(Y5E) (A)	8-98058-327-1	01	1	1001-
570	HARNESS; SPEED SENSOR ALLISON MD3560P A/T(Y3B) (A)	8-98091-562-0	01	1	1107-
668	BRACKET; HARNESS ALLISON MD3560P A/T(Y3B) (B)	8-98032-360-0	01	1	1107-
668	BRACKET; HARNESS (A)	8-98095-653-2	01	1	1001-
689	HARNESS; PRESSURE & ECU SWITCH ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	1-82659-229-1	01	1	1001-1101
689	HARNESS; PRESSURE & ECU SWITCH ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98148-603-0	01	1	1102-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
