Sayfa 8-03 - Isuzu EPC

8-03 — LAMP; REAR AND REAR SIDE (#2136) — 252 parça

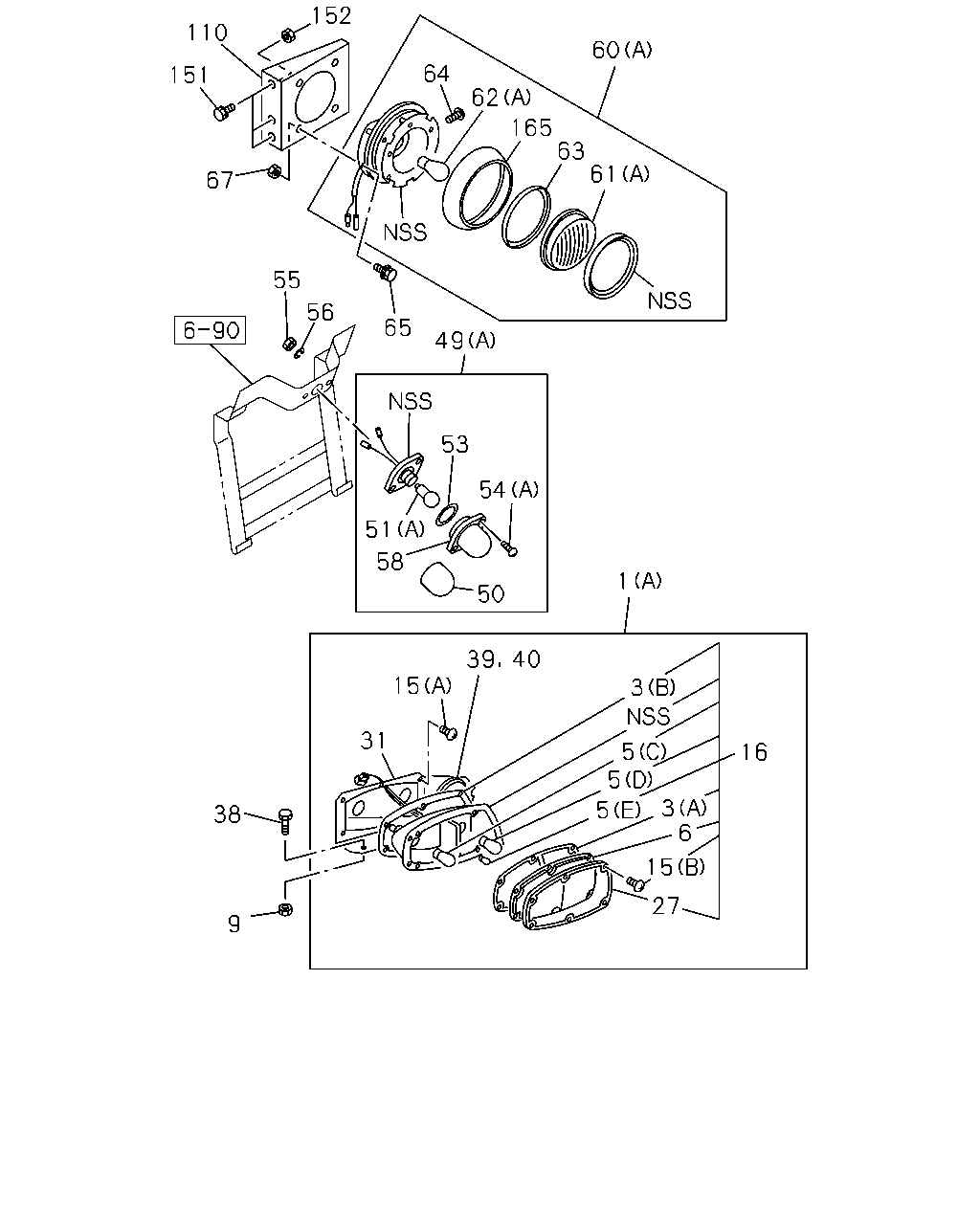

152 110 60 64 151 62 165 63 61 67 55 56 65 49 53 54 51 58 1 50 39 15 3 31 5 5 3 6 16 5 38 15 27 9 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; RR COMB (A)	1-82230-045-1	01	1	9001-9407	●	●
1	LAMP ASM; RR COMB (A)	1-82230-045-1	01	1	9408-	●
1	LAMP ASM; RR COMB EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> (A)	1-82230-045-1	01	1	9408-		●
1	LAMP ASM; RR COMB (A)	1-82230-044-1	01	1	9001-9407	●	●
1	LAMP ASM; RR COMB (A)	1-82230-044-1	01	1	9408-	●
1	LAMP ASM; RR COMB EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> (A)	1-82230-044-1	01	1	9408-		●
1	LAMP ASM; RR COMB HEAD LAMP RECTANGULAR ANGLE<TR4> (B)	1-82230-181-0	02	1	9408-		●
3	GASKET; RR COMB LAMP (A)	9-82631-714-0	02	1	9001-9407	●	●
3	GASKET; RR COMB LAMP (A)	9-82631-714-0	02	1	9408-	●
3	GASKET; RR COMB LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> (A)	9-82631-714-0	02	1	9408-		●
3	GASKET; RR COMB LAMP (B)	9-82631-715-0	02	1	9001-9407	●	●
3	GASKET; RR COMB LAMP (B)	9-82631-715-0	02	1	9408-	●
3	GASKET; RR COMB LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> (B)	9-82631-715-0	02	1	9408-		●
3	GASKET; RR COMB LAMP HEAD LAMP RECTANGULAR ANGLE<TR4> (A)	1-82239-044-0	02	1	9408-		●
3	GASKET; RR COMB LAMP HEAD LAMP RECTANGULAR ANGLE<TR4> (B)	1-82239-045-0	02	1	9408-		●
5	BULB; RR COMB LAMP (C) 24V 25/10W	9-82691-335-0	02	1	9001-9407	●	●
5	BULB; RR COMB LAMP (C) 24V 25/10W	9-82691-335-0	02	1	9408-	●
5	BULB; RR COMB LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> (C) 24V 25/10W	9-82691-335-0	02	1	9408-		●
5	BULB; RR COMB LAMP (D) 24V 25W	9-82691-347-0	02	1	9001-9407	●	●
5	BULB; RR COMB LAMP (D) 24V 25W	9-82691-347-0	02	1	9408-	●
5	BULB; RR COMB LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> (D) 24V 25W	9-82691-347-0	02	1	9408-		●
5	BULB; RR COMB LAMP (E) 24V 3W	9-82691-367-0	02	1	9001-9407	●	●
5	BULB; RR COMB LAMP (E) 24V 3W	9-82691-367-0	02	1	9408-	●
5	BULB; RR COMB LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> (E) 24V 3W	9-82691-367-0	02	1	9408-		●
5	BULB; RR COMB LAMP HEAD LAMP RECTANGULAR ANGLE<TR4> (A) 24V 25/10W	1-82194-028-0	02	1	9408-		●
5	BULB; RR COMB LAMP HEAD LAMP RECTANGULAR ANGLE<TR4> (B) 24V 6W	9-82691-398-0	02	1	9408-		●
6	LENS; RR COMB LAMP	9-82631-240-0	02	1	9001-9407	●	●
6	LENS; RR COMB LAMP	9-82631-240-0	02	1	9408-	●
6	LENS; RR COMB LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4>	9-82631-240-0	02	1	9408-		●
6	LENS; RR COMB LAMP HEAD LAMP RECTANGULAR ANGLE<TR4>	1-82235-027-0	02	1	9408-		●
9	NUT; LAMP,RR COMB M8	9-09110-408-0	04	1	9001-9407	●	●
9	NUT; LAMP,RR COMB M8	9-09110-408-0	04	1	9408-9606	●
9	NUT; LAMP,RR COMB EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> M8	9-09110-408-0	04	1	9408-9606		●
9	NUT; LAMP,RR COMB M8 FLANGE	0-91150-108-0	04	1	9607-	●
9	NUT; LAMP,RR COMB EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> M8 FLANGE	0-91150-108-0	04	1	9607-		●
9	NUT; LAMP,RR COMB HEAD LAMP RECTANGULAR ANGLE<TR4> M5 FLANGE	1-82239-046-0	08	1	9408-		●
15	SCREW; RR COMB LAMP (A) M4X6	1-09100-007-0	04	1	9001-9407	●	●
15	SCREW; RR COMB LAMP (A) M4X6	1-09100-007-0	04	1	9408-	●
15	SCREW; RR COMB LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> (A) M4X6	1-09100-007-0	04	1	9408-		●
15	SCREW; RR COMB LAMP (B) M4X12	9-93490-412-0	12	1	9001-9407	●	●
15	SCREW; RR COMB LAMP (B) M4X12	9-93490-412-0	12	1	9408-	●
15	SCREW; RR COMB LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> (B) M4X12	9-93490-412-0	12	1	9408-		●
15	SCREW; RR COMB LAMP HEAD LAMP RECTANGULAR ANGLE<TR4> (C) M4X16	9-03494-416-0	08	1	9408-		●
16	LAMP; STOP COMB LAMP	9-82633-005-1	01	1	9001-9407	●	●
16	LAMP; STOP COMB LAMP	9-82633-005-1	01	1	9408-	●
16	LAMP; STOP COMB LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4>	9-82633-005-1	01	1	9408-		●
16	LAMP; STOP COMB LAMP	9-82633-004-1	01	1	9001-9407	●	●
16	LAMP; STOP COMB LAMP	9-82633-004-1	01	1	9408-	●
16	LAMP; STOP COMB LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4>	9-82633-004-1	01	1	9408-		●
27	RIM; RR COMB LAMP	9-82631-412-0	02	1	9001-9407	●	●
27	RIM; RR COMB LAMP	9-82631-412-0	02	1	9408-	●
27	RIM; RR COMB LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4>	9-82631-412-0	02	1	9408-		●
31	BRACKET; RR COMB LAMP	9-53487-090-0	01	1	9001-9407	●	●
31	BRACKET; RR COMB LAMP	9-53487-090-0	01	1	9408-	●
31	BRACKET; RR COMB LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4>	9-53487-090-0	01	1	9408-		●
31	BRACKET; RR COMB LAMP	9-53487-089-0	01	1	9001-9407	●	●
31	BRACKET; RR COMB LAMP	9-53487-089-0	01	1	9408-	●
31	BRACKET; RR COMB LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4>	9-53487-089-0	01	1	9408-		●
38	BOLT; LAMP,RR COMB M8X20 W/LK WASHER	9-01900-820-0	04	1	9001-9204	●	●
38	BOLT; LAMP,RR COMB M8X20 W/LK WASHER	0-50040-820-0	04	1	9205-9407	●	●
38	BOLT; LAMP,RR COMB M8X20 W/LK WASHER	0-50040-820-0	04	1	9408-9606	●
38	BOLT; LAMP,RR COMB EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> M8X20 W/LK WASHER	0-50040-820-0	04	1	9408-9606		●
38	BOLT; LAMP,RR COMB M8X25 FLANGE	0-28680-825-0	04	1	9607-	●
38	BOLT; LAMP,RR COMB EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> M8X25 FLANGE	0-28680-825-0	04	1	9607-		●
39	REFLECTOR; REFLEX RH	1-82290-002-0	01	1	9001-9407	●	●
39	REFLECTOR; REFLEX RH	1-82290-002-0	01	1	9408-	●
39	REFLECTOR; REFLEX RH EXC. HEAD LAMP RECTANGULAR ANGLE<TR4>	1-82290-002-0	01	1	9408-		●
40	REFLECTOR; REFLEX	1-82290-002-0	01	1	9001-9407	●	●
40	REFLECTOR; REFLEX	1-82290-002-0	01	1	9408-	●
40	REFLECTOR; REFLEX EXC. HEAD LAMP RECTANGULAR ANGLE<TR4>	1-82290-002-0	01	1	9408-		●
49	LAMP; LICENSE PLATE (A)	1-82120-009-1	01	1	9001-9407	●	●
49	LAMP; LICENSE PLATE (A)	1-82120-009-1	01	1	9408-	●
49	LAMP; LICENSE PLATE EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> (A)	1-82120-009-1	01	1	9408-		●
49	LAMP; LICENSE PLATE HEAD LAMP RECTANGULAR ANGLE<TR4> (B)	1-82120-013-3	01	1	9408-		●
49	LAMP; LICENSE PLATE HEAD LAMP RECTANGULAR ANGLE<TR4> (B)	1-82120-012-3	01	1	9408-		●
50	LENS; LICENSE PLATE LAMP	1-82235-005-0	01	1	9001-9407	●	●
50	LENS; LICENSE PLATE LAMP	1-82235-005-0	01	1	9408-	●
50	LENS; LICENSE PLATE LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4>	1-82235-005-0	01	1	9408-		●
51	BULB; LICENSE PLATE LAMP (A) 24V 12W	1-82194-004-0	01	1	9001-9407	●	●
51	BULB; LICENSE PLATE LAMP (A) 24V 12W	1-82194-004-0	01	1	9408-	●
51	BULB; LICENSE PLATE LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> (A) 24V 12W	1-82194-004-0	01	1	9408-		●
51	BULB; LICENSE PLATE LAMP HEAD LAMP RECTANGULAR ANGLE<TR4> (B) 24V 12W	1-82194-030-0	02	1	9408-		●
53	GASKET; LICENSE LAMP	1-82236-005-0	01	1	9001-9407	●	●
53	GASKET; LICENSE LAMP	1-82236-005-0	01	1	9408-	●
53	GASKET; LICENSE LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4>	1-82236-005-0	01	1	9408-		●
53	GASKET; LICENSE LAMP HEAD LAMP RECTANGULAR ANGLE<TR4>	1-82126-006-0	02	1	9408-		●
54	SCREW; LICENSE PLATE LAMP (A)	1-82120-010-0	02	1	9001-9407	●	●
54	SCREW; LICENSE PLATE LAMP (A)	1-82120-010-0	02	1	9408-	●
54	SCREW; LICENSE PLATE LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> (A)	1-82120-010-0	02	1	9408-		●
54	SCREW; LICENSE PLATE LAMP HEAD LAMP RECTANGULAR ANGLE<TR4> (B)	1-82129-001-0	04	1	9408-		●
55	NUT; LICENSE PLATE LAMP M5	9-99110-405-0	02	1	9001-9407	●	●
55	NUT; LICENSE PLATE LAMP M5	9-99110-405-0	02	1	9408-	●
55	NUT; LICENSE PLATE LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> M5	9-99110-405-0	02	1	9408-		●
55	NUT; LICENSE PLATE LAMP HEAD LAMP RECTANGULAR ANGLE<TR4> M5	9-99110-405-0	04	1	9408-		●
56	WASHER; LK,LICENSE PLATE LAMP ID=5.1	9-09150-505-0	02	1	9001-9407	●	●
56	WASHER; LK,LICENSE PLATE LAMP ID=5.1	9-09150-505-0	02	1	9408-	●
56	WASHER; LK,LICENSE PLATE LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> ID=5.1	9-09150-505-0	02	1	9408-		●
58	COVER; LICENSE PLATE LAMP	1-82129-009-0	01	1	9001-9407	●	●
58	COVER; LICENSE PLATE LAMP	1-82129-009-0	01	1	9408-	●
58	COVER; LICENSE PLATE LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4>	1-82129-009-0	01	1	9408-		●
60	LAMP; BACKUP (A)	1-82130-003-1	01	1	9001-9407	●	●
60	LAMP; BACKUP (A)	1-82130-003-1	01	1	9408-	●
60	LAMP; BACKUP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> (A)	1-82130-003-1	01	1	9408-		●
60	LAMP; BACKUP HEAD LAMP RECTANGULAR ANGLE<TR4> (B)	1-82130-014-3	02	1	9408-		●
61	LENS; BACKUP LAMP (A)	9-82611-224-0	01	1	9001-9407	●	●
61	LENS; BACKUP LAMP (A)	9-82611-224-0	01	1	9408-	●
61	LENS; BACKUP LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> (A)	9-82611-224-0	01	1	9408-		●
61	LENS; BACKUP LAMP HEAD LAMP RECTANGULAR ANGLE<TR4> (B)	1-82135-004-0	02	1	9408-		●
62	BULB; BACKUP LAMP (A) 24V 35W	1-82194-012-0	01	1	9001-9407	●	●
62	BULB; BACKUP LAMP (A) 24V 35W	1-82194-012-0	01	1	9408-	●
62	BULB; BACKUP LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> (A) 24V 35W	1-82194-012-0	01	1	9408-		●
62	BULB; BACKUP LAMP HEAD LAMP RECTANGULAR ANGLE<TR4> (B) 24V 35W	1-82194-047-0	02	1	9408-		●
63	GASKET; BACKUP LAMP	9-82611-734-0	01	1	9001-9407	●	●
63	GASKET; BACKUP LAMP	9-82611-734-0	01	1	9408-	●
63	GASKET; BACKUP LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4>	9-82611-734-0	01	1	9408-		●
63	GASKET; BACKUP LAMP HEAD LAMP RECTANGULAR ANGLE<TR4>	1-82216-013-0	02	1	9408-		●
64	SCREW; BACKUP LAMP M5X14 OVAL-HEAD	9-93280-514-0	01	1	9001-9407	●	●
64	SCREW; BACKUP LAMP M5X14 OVAL-HEAD	9-93280-514-0	01	1	9408-	●
64	SCREW; BACKUP LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> M5X14 OVAL-HEAD	9-93280-514-0	01	1	9408-		●
64	SCREW; BACKUP LAMP M4X6	9-93490-406-0	03	1	9001-9407	●	●
64	SCREW; BACKUP LAMP M4X6	9-93490-406-0	03	1	9408-	●
64	SCREW; BACKUP LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> M4X6	9-93490-406-0	03	1	9408-		●
64	SCREW; BACKUP LAMP HEAD LAMP RECTANGULAR ANGLE<TR4>	1-82139-003-0	04	1	9408-		●
65	BOLT; LAMP,BACKUP M5X16 W/LK WASHER	9-03910-516-0	04	1	9001-9407	●	●
65	BOLT; LAMP,BACKUP M5X16 W/LK WASHER	9-03910-516-0	04	1	9408-	●
65	BOLT; LAMP,BACKUP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> M5X16 W/LK WASHER	9-03910-516-0	04	1	9408-		●
67	NUT; FLANGE M5	9-99110-405-0	04	1	9001-9407	●	●
67	NUT; FLANGE M5	9-99110-405-0	04	1	9408-	●
67	NUT; FLANGE EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> M5	9-99110-405-0	04	1	9408-		●
67	NUT; FLANGE HEAD LAMP RECTANGULAR ANGLE<TR4> M6 FLANGE	0-91150-106-0	04	1	9408-		●
110	BRACKET; BACKUP LAMP	9-82611-741-0	01	1	9001-9407	●	●
110	BRACKET; BACKUP LAMP	9-82611-741-0	01	1	9408-	●
110	BRACKET; BACKUP LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4>	9-82611-741-0	01	1	9408-		●
151	BOLT; BACKUP LAMP BRKT M6X18 W/LK WASHER	9-01900-618-0	03	1	9001-9204	●	●
151	BOLT; BACKUP LAMP BRKT M6X18 W/LK WASHER	0-50040-618-0	03	1	9205-9407	●	●
151	BOLT; BACKUP LAMP BRKT M6X18 W/LK WASHER	0-50040-618-0	03	1	9408-9606	●
151	BOLT; BACKUP LAMP BRKT EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> M6X18 W/LK WASHER	0-50040-618-0	03	1	9408-9606		●
151	BOLT; BACKUP LAMP BRKT M6X20 FLANGE	0-28080-620-0	03	1	9607-	●
151	BOLT; BACKUP LAMP BRKT EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> M6X20 FLANGE	0-28080-620-0	03	1	9607-		●
152	NUT; BACKUP LAMP BRKT M6	9-09110-406-0	03	1	9001-9407	●	●
152	NUT; BACKUP LAMP BRKT M6	9-09110-406-0	03	1	9408-9606	●
152	NUT; BACKUP LAMP BRKT EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> M6	9-09110-406-0	03	1	9408-9606		●
152	NUT; BACKUP LAMP BRKT M6 FLANGE	0-91150-106-0	03	1	9607-	●
152	NUT; BACKUP LAMP BRKT EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> M6 FLANGE	0-91150-106-0	03	1	9607-		●
152	NUT; BACKUP LAMP BRKT HEAD LAMP RECTANGULAR ANGLE<TR4> M6 FLANGE	0-91150-106-0	04	1	9607-		●
165	RIM; BACKUP LAMP	9-82611-469-1	01	1	9001-9407	●	●
165	RIM; BACKUP LAMP	9-82611-469-1	01	1	9408-	●
165	RIM; BACKUP LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4>	9-82611-469-1	01	1	9408-		●

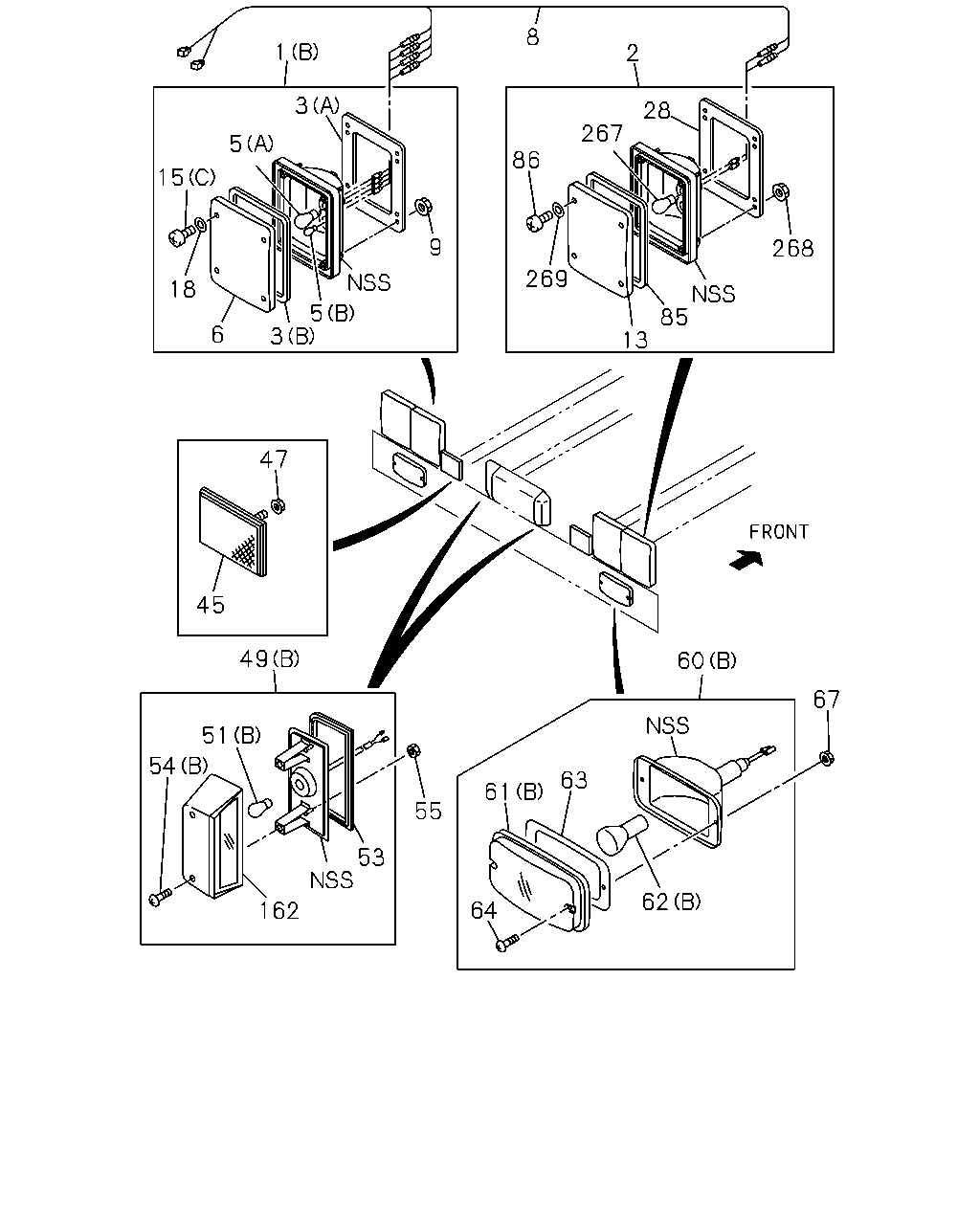

8 1 2 3 28 267 5 86 15 9 268 269 18 85 5 3 6 13 47 45 49 60 67 51 54 63 61 55 53 62 64 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LAMP ASM; RR COMB (A)	1-82230-045-1	01	1	9001-9407	●	●
1	LAMP ASM; RR COMB (A)	1-82230-045-1	01	1	9408-	●
1	LAMP ASM; RR COMB EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> (A)	1-82230-045-1	01	1	9408-		●
1	LAMP ASM; RR COMB (A)	1-82230-044-1	01	1	9001-9407	●	●
1	LAMP ASM; RR COMB (A)	1-82230-044-1	01	1	9408-	●
1	LAMP ASM; RR COMB EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> (A)	1-82230-044-1	01	1	9408-		●
1	LAMP ASM; RR COMB HEAD LAMP RECTANGULAR ANGLE<TR4> (B)	1-82230-181-0	02	1	9408-		●
2	LAMP; TURN SIGNAL HEAD LAMP RECTANGULAR ANGLE<TR4>	1-82230-179-0	02	1	9408-		●
3	GASKET; RR COMB LAMP (A)	9-82631-714-0	02	1	9001-9407	●	●
3	GASKET; RR COMB LAMP (A)	9-82631-714-0	02	1	9408-	●
3	GASKET; RR COMB LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> (A)	9-82631-714-0	02	1	9408-		●
3	GASKET; RR COMB LAMP (B)	9-82631-715-0	02	1	9001-9407	●	●
3	GASKET; RR COMB LAMP (B)	9-82631-715-0	02	1	9408-	●
3	GASKET; RR COMB LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> (B)	9-82631-715-0	02	1	9408-		●
3	GASKET; RR COMB LAMP HEAD LAMP RECTANGULAR ANGLE<TR4> (A)	1-82239-044-0	02	1	9408-		●
3	GASKET; RR COMB LAMP HEAD LAMP RECTANGULAR ANGLE<TR4> (B)	1-82239-045-0	02	1	9408-		●
5	BULB; RR COMB LAMP (C) 24V 25/10W	9-82691-335-0	02	1	9001-9407	●	●
5	BULB; RR COMB LAMP (C) 24V 25/10W	9-82691-335-0	02	1	9408-	●
5	BULB; RR COMB LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> (C) 24V 25/10W	9-82691-335-0	02	1	9408-		●
5	BULB; RR COMB LAMP (D) 24V 25W	9-82691-347-0	02	1	9001-9407	●	●
5	BULB; RR COMB LAMP (D) 24V 25W	9-82691-347-0	02	1	9408-	●
5	BULB; RR COMB LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> (D) 24V 25W	9-82691-347-0	02	1	9408-		●
5	BULB; RR COMB LAMP (E) 24V 3W	9-82691-367-0	02	1	9001-9407	●	●
5	BULB; RR COMB LAMP (E) 24V 3W	9-82691-367-0	02	1	9408-	●
5	BULB; RR COMB LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> (E) 24V 3W	9-82691-367-0	02	1	9408-		●
5	BULB; RR COMB LAMP HEAD LAMP RECTANGULAR ANGLE<TR4> (A) 24V 25/10W	1-82194-028-0	02	1	9408-		●
5	BULB; RR COMB LAMP HEAD LAMP RECTANGULAR ANGLE<TR4> (B) 24V 6W	9-82691-398-0	02	1	9408-		●
6	LENS; RR COMB LAMP	9-82631-240-0	02	1	9001-9407	●	●
6	LENS; RR COMB LAMP	9-82631-240-0	02	1	9408-	●
6	LENS; RR COMB LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4>	9-82631-240-0	02	1	9408-		●
6	LENS; RR COMB LAMP HEAD LAMP RECTANGULAR ANGLE<TR4>	1-82235-027-0	02	1	9408-		●
8	HARNESS; RR COMB LAMP HEAD LAMP RECTANGULAR ANGLE<TR4>	1-82638-849-0	02	1	9408-		●
9	NUT; LAMP,RR COMB M8	9-09110-408-0	04	1	9001-9407	●	●
9	NUT; LAMP,RR COMB M8	9-09110-408-0	04	1	9408-9606	●
9	NUT; LAMP,RR COMB EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> M8	9-09110-408-0	04	1	9408-9606		●
9	NUT; LAMP,RR COMB M8 FLANGE	0-91150-108-0	04	1	9607-	●
9	NUT; LAMP,RR COMB EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> M8 FLANGE	0-91150-108-0	04	1	9607-		●
9	NUT; LAMP,RR COMB HEAD LAMP RECTANGULAR ANGLE<TR4> M5 FLANGE	1-82239-046-0	08	1	9408-		●
13	LENS; TURN SIGNAL HEAD LAMP RECTANGULAR ANGLE<TR4>	1-82235-026-0	02	1	9408-		●
15	SCREW; RR COMB LAMP (A) M4X6	1-09100-007-0	04	1	9001-9407	●	●
15	SCREW; RR COMB LAMP (A) M4X6	1-09100-007-0	04	1	9408-	●
15	SCREW; RR COMB LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> (A) M4X6	1-09100-007-0	04	1	9408-		●
15	SCREW; RR COMB LAMP (B) M4X12	9-93490-412-0	12	1	9001-9407	●	●
15	SCREW; RR COMB LAMP (B) M4X12	9-93490-412-0	12	1	9408-	●
15	SCREW; RR COMB LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> (B) M4X12	9-93490-412-0	12	1	9408-		●
15	SCREW; RR COMB LAMP HEAD LAMP RECTANGULAR ANGLE<TR4> (C) M4X16	9-03494-416-0	08	1	9408-		●
18	WASHER; RR COMB LAMP HEAD LAMP RECTANGULAR ANGLE<TR4>	1-82239-043-0	08	1	9408-		●
28	GASKET; TURN,LAMP HEAD LAMP RECTANGULAR ANGLE<TR4>	1-82239-044-0	02	1	9408-		●
45	REFLECTOR; REFLEX,SIDE GATE,MIDDLE HEAD LAMP RECTANGULAR ANGLE<TR4>	1-82290-028-1	02	1	9408-		●
47	NUT; REFLECTOR HEAD LAMP RECTANGULAR ANGLE<TR4> M6 FLANGE	0-91150-106-0	02	1	9408-		●
49	LAMP; LICENSE PLATE (A)	1-82120-009-1	01	1	9001-9407	●	●
49	LAMP; LICENSE PLATE (A)	1-82120-009-1	01	1	9408-	●
49	LAMP; LICENSE PLATE EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> (A)	1-82120-009-1	01	1	9408-		●
49	LAMP; LICENSE PLATE HEAD LAMP RECTANGULAR ANGLE<TR4> (B)	1-82120-013-3	01	1	9408-		●
49	LAMP; LICENSE PLATE HEAD LAMP RECTANGULAR ANGLE<TR4> (B)	1-82120-012-3	01	1	9408-		●
51	BULB; LICENSE PLATE LAMP (A) 24V 12W	1-82194-004-0	01	1	9001-9407	●	●
51	BULB; LICENSE PLATE LAMP (A) 24V 12W	1-82194-004-0	01	1	9408-	●
51	BULB; LICENSE PLATE LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> (A) 24V 12W	1-82194-004-0	01	1	9408-		●
51	BULB; LICENSE PLATE LAMP HEAD LAMP RECTANGULAR ANGLE<TR4> (B) 24V 12W	1-82194-030-0	02	1	9408-		●
53	GASKET; LICENSE LAMP	1-82236-005-0	01	1	9001-9407	●	●
53	GASKET; LICENSE LAMP	1-82236-005-0	01	1	9408-	●
53	GASKET; LICENSE LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4>	1-82236-005-0	01	1	9408-		●
53	GASKET; LICENSE LAMP HEAD LAMP RECTANGULAR ANGLE<TR4>	1-82126-006-0	02	1	9408-		●
54	SCREW; LICENSE PLATE LAMP (A)	1-82120-010-0	02	1	9001-9407	●	●
54	SCREW; LICENSE PLATE LAMP (A)	1-82120-010-0	02	1	9408-	●
54	SCREW; LICENSE PLATE LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> (A)	1-82120-010-0	02	1	9408-		●
54	SCREW; LICENSE PLATE LAMP HEAD LAMP RECTANGULAR ANGLE<TR4> (B)	1-82129-001-0	04	1	9408-		●
55	NUT; LICENSE PLATE LAMP M5	9-99110-405-0	02	1	9001-9407	●	●
55	NUT; LICENSE PLATE LAMP M5	9-99110-405-0	02	1	9408-	●
55	NUT; LICENSE PLATE LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> M5	9-99110-405-0	02	1	9408-		●
55	NUT; LICENSE PLATE LAMP HEAD LAMP RECTANGULAR ANGLE<TR4> M5	9-99110-405-0	04	1	9408-		●
60	LAMP; BACKUP (A)	1-82130-003-1	01	1	9001-9407	●	●
60	LAMP; BACKUP (A)	1-82130-003-1	01	1	9408-	●
60	LAMP; BACKUP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> (A)	1-82130-003-1	01	1	9408-		●
60	LAMP; BACKUP HEAD LAMP RECTANGULAR ANGLE<TR4> (B)	1-82130-014-3	02	1	9408-		●
61	LENS; BACKUP LAMP (A)	9-82611-224-0	01	1	9001-9407	●	●
61	LENS; BACKUP LAMP (A)	9-82611-224-0	01	1	9408-	●
61	LENS; BACKUP LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> (A)	9-82611-224-0	01	1	9408-		●
61	LENS; BACKUP LAMP HEAD LAMP RECTANGULAR ANGLE<TR4> (B)	1-82135-004-0	02	1	9408-		●
62	BULB; BACKUP LAMP (A) 24V 35W	1-82194-012-0	01	1	9001-9407	●	●
62	BULB; BACKUP LAMP (A) 24V 35W	1-82194-012-0	01	1	9408-	●
62	BULB; BACKUP LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> (A) 24V 35W	1-82194-012-0	01	1	9408-		●
62	BULB; BACKUP LAMP HEAD LAMP RECTANGULAR ANGLE<TR4> (B) 24V 35W	1-82194-047-0	02	1	9408-		●
63	GASKET; BACKUP LAMP	9-82611-734-0	01	1	9001-9407	●	●
63	GASKET; BACKUP LAMP	9-82611-734-0	01	1	9408-	●
63	GASKET; BACKUP LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4>	9-82611-734-0	01	1	9408-		●
63	GASKET; BACKUP LAMP HEAD LAMP RECTANGULAR ANGLE<TR4>	1-82216-013-0	02	1	9408-		●
64	SCREW; BACKUP LAMP M5X14 OVAL-HEAD	9-93280-514-0	01	1	9001-9407	●	●
64	SCREW; BACKUP LAMP M5X14 OVAL-HEAD	9-93280-514-0	01	1	9408-	●
64	SCREW; BACKUP LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> M5X14 OVAL-HEAD	9-93280-514-0	01	1	9408-		●
64	SCREW; BACKUP LAMP M4X6	9-93490-406-0	03	1	9001-9407	●	●
64	SCREW; BACKUP LAMP M4X6	9-93490-406-0	03	1	9408-	●
64	SCREW; BACKUP LAMP EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> M4X6	9-93490-406-0	03	1	9408-		●
64	SCREW; BACKUP LAMP HEAD LAMP RECTANGULAR ANGLE<TR4>	1-82139-003-0	04	1	9408-		●
67	NUT; FLANGE M5	9-99110-405-0	04	1	9001-9407	●	●
67	NUT; FLANGE M5	9-99110-405-0	04	1	9408-	●
67	NUT; FLANGE EXC. HEAD LAMP RECTANGULAR ANGLE<TR4> M5	9-99110-405-0	04	1	9408-		●
67	NUT; FLANGE HEAD LAMP RECTANGULAR ANGLE<TR4> M6 FLANGE	0-91150-106-0	04	1	9408-		●
85	GASKET; LENS TO HSG HEAD LAMP RECTANGULAR ANGLE<TR4>	1-82239-045-0	02	1	9408-		●
86	SCREW; LENS TO HSG HEAD LAMP RECTANGULAR ANGLE<TR4> M4X16	9-03494-416-0	08	1	9408-		●
162	COVER & LENS; LICENSE PLATE LAMP HEAD LAMP RECTANGULAR ANGLE<TR4>	1-82125-002-0	02	1	9408-		●
267	BULB; TURN SIGNAL HEAD LAMP RECTANGULAR ANGLE<TR4> 24V 25W	1-82194-029-0	02	1	9408-		●
268	NUT; TURN SIGNAL LAMP HEAD LAMP RECTANGULAR ANGLE<TR4> M5 FLANGE	1-82239-046-0	08	1	9408-		●
269	WASHER; PL,LENS TO HSG HEAD LAMP RECTANGULAR ANGLE<TR4>	1-82239-043-0	08	1	9408-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
